Double layer glass reaction kettle, issues to be noted for single-layer glass reaction kettle

Theliftingdouble-layerglassreactionkettleisfilledwithaconstanttemperature(highorlowtemperature)hotsolutionmediumorcoolingmediumthroughthedouble-layerreactionkettleinterlayer,whichheatsorcoolsthemateri

Factory direct sales
Quality Assurance
Worry free delivery
After sales guarantee
Sales hotline

400-880-7108

Product Introduction

The lifting double-layer glass reaction kettle is filled with a constant temperature (high or low temperature) hot solution medium or cooling medium through the double-layer reaction kettle interlayer, which heats or cools the materials inside the reaction kettle at a constant temperature and can provide stirring. The material undergoes a reaction in the reactor and the evaporation and reflux of the reaction solution can be controlled. After the reaction is complete, the material can be released from the discharge port at the bottom of the reactor, making the operation extremely convenient. It is an ideal equipment for modern chemical small sample, medium sample experiments, biopharmaceuticals, and new material synthesis.

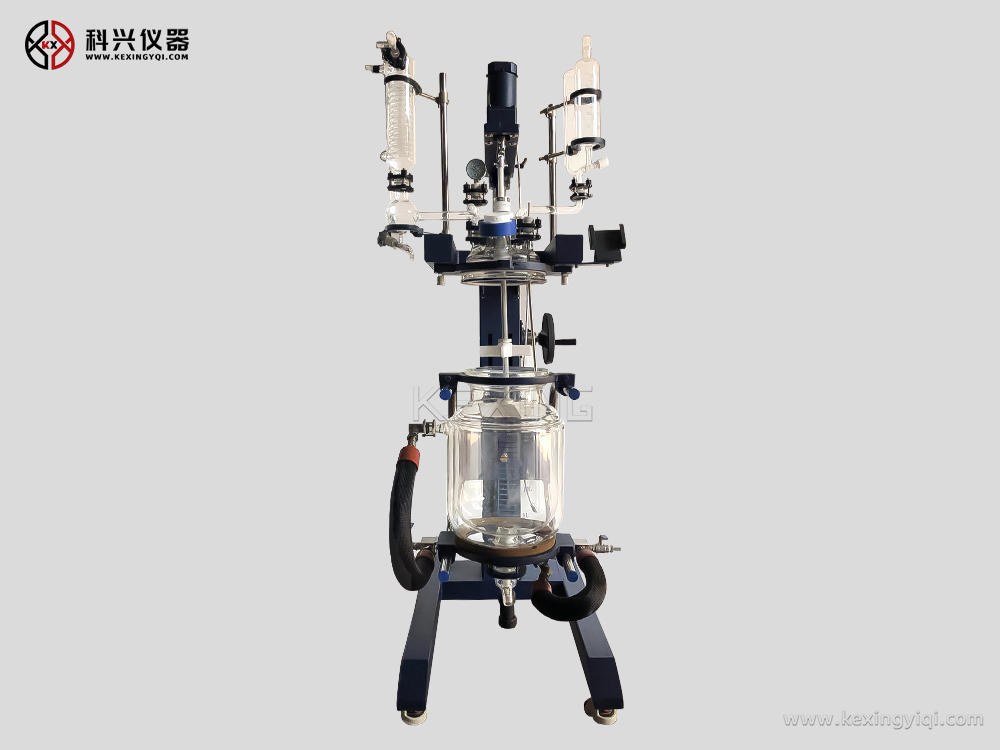

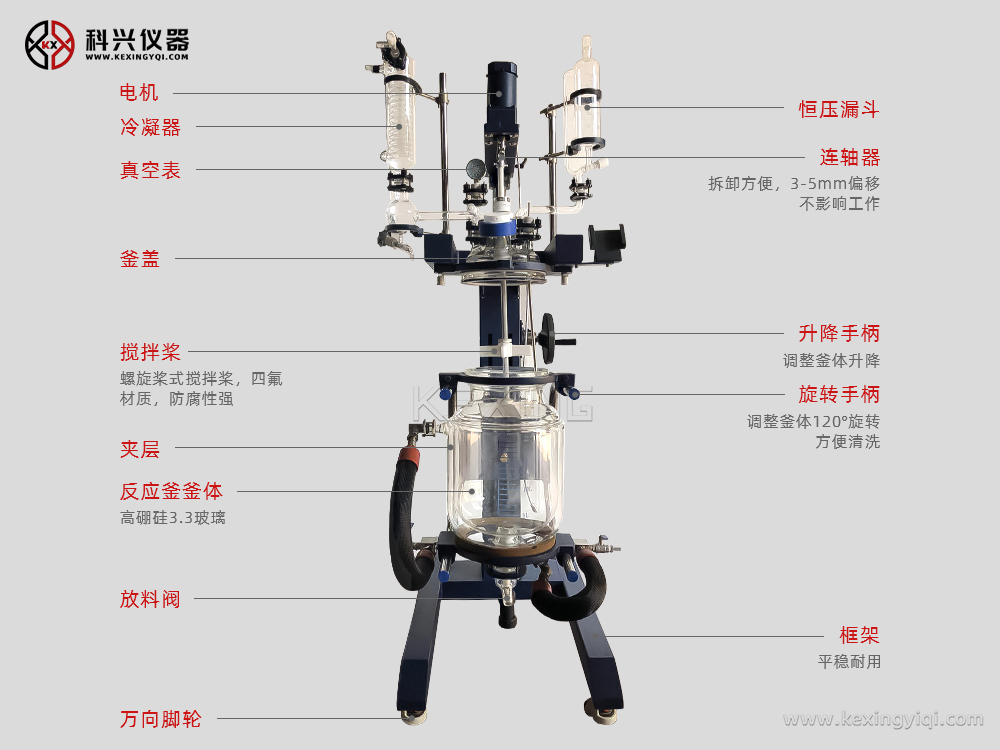

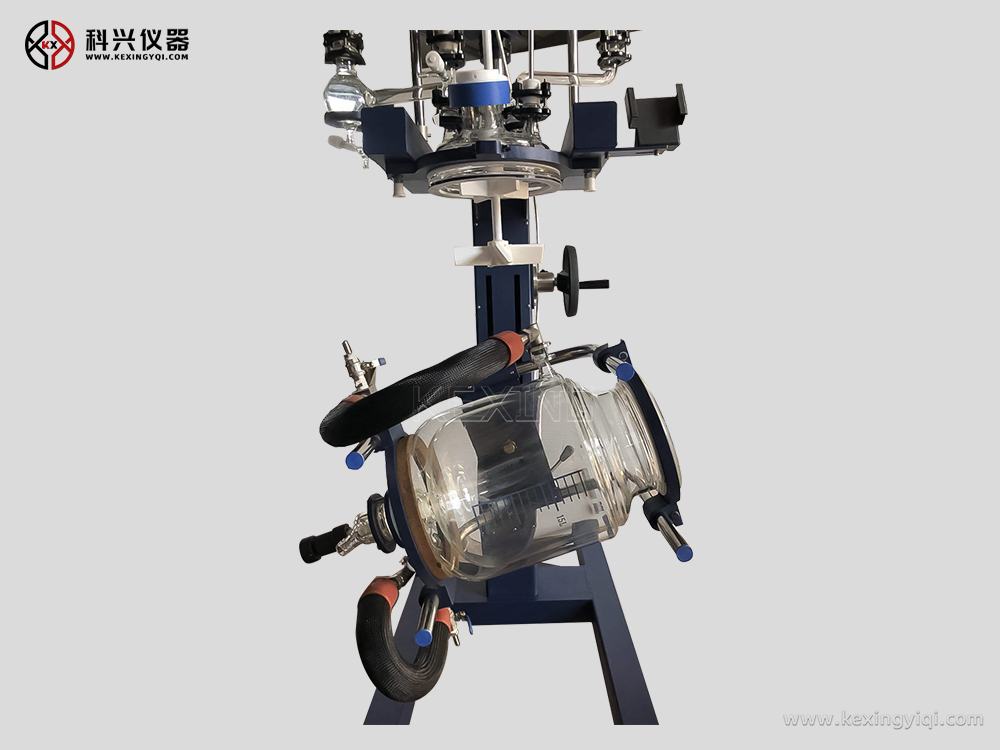

Product Display

Technical Parameter

型号50L升降釜
釜体容量50L 内径350mm 外径410mm 内长740mm
夹层容量约13L
电压频率220V/50HZ
整机功率350W
搅拌电机功率120W变频调速,速比1:3
变频器250W变频双显
升降电机功率200W速比1:15
搅拌转速0-450转
釜体温度范围-80℃~+250℃
测温精度±1℃
真空度0.098Mpa
釜盖Φ265mm六口搅拌口Φ60法兰
冷凝回流口50#球磨
恒压漏斗口50#球磨
减压口34#磨口
测温口Φ43法兰
固体加料口前右Φ80法兰
搅拌桨Φ17mm×1080H(mm)   叶展155mm
冷凝器Φ95×600H(mm)
冷凝面积0.3㎡
回流弯头500ml
恒压漏斗2L
减压阀34#标塞阀    放气咀(宝塔接头)外径12mm
夹层进出循环口进出口Φ35mm法兰   可转换成4分外螺纹或宝塔口
放料口Φ80mm法兰 斜出料口  Φ32mm  宝塔口 离地300mm
真空抽气咀Φ12mm 宝塔接头
冷凝盘管进出循环咀Φ15mm 宝塔接头
主机升降行程760mm
釜体旋转向左旋转
整机占空间尺寸800mm*1200mm*2900mm
机器净重273KG
包装重量
升降最大高度3060mm
下放料距地高度300
上密封机械密封
收集瓶3L
传感器PT100
