Product Introduction
Rotary evaporators are mainly used for concentration, crystallization, drying, separation, and solvent recovery in industries such as pharmaceuticals, chemical engineering, and biopharmaceuticals. The principle is to heat at a constant temperature under vacuum conditions, causing the rotating bottle to rotate at a constant speed. The material forms a large film on the bottle wall and evaporates efficiently. The solvent vapor is cooled by a high-efficiency glass condenser and recovered in a collection bottle, greatly improving the evaporation efficiency. Specially suitable for the concentration and purification of biological products that are prone to decomposition and denaturation at high temperatures. The product can be paired with circulating water multi-purpose vacuum pumps, diaphragm vacuum pumps, low-temperature circulation (vacuum) pumps, circulation coolers, constant temperature circulators, low-temperature coolant circulation pumps, and other system devices.

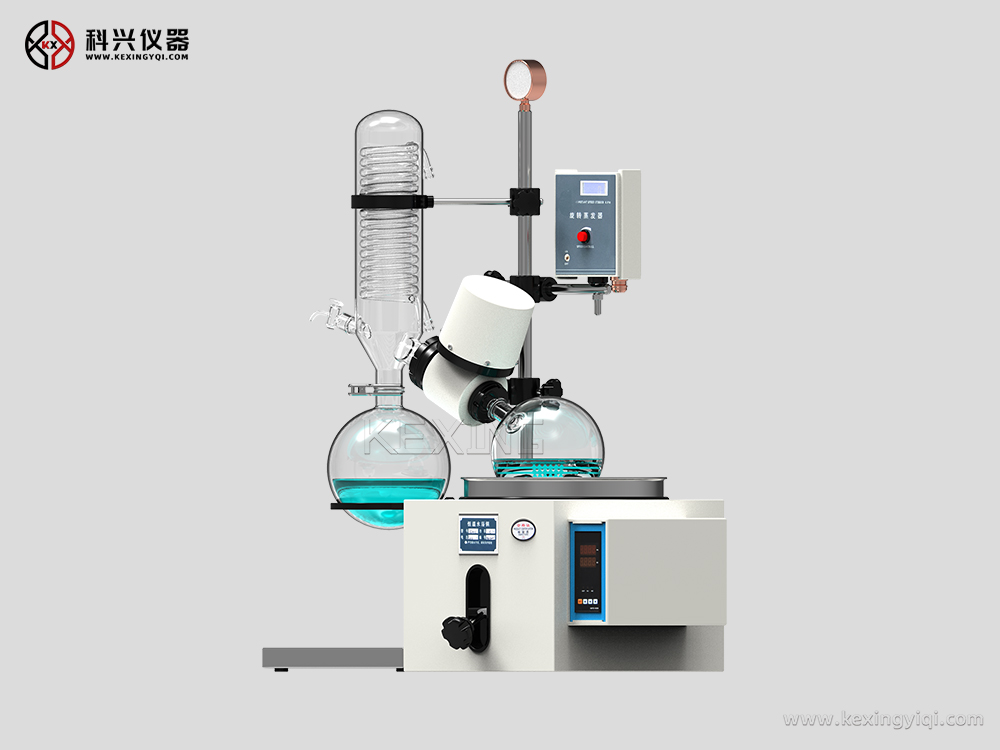

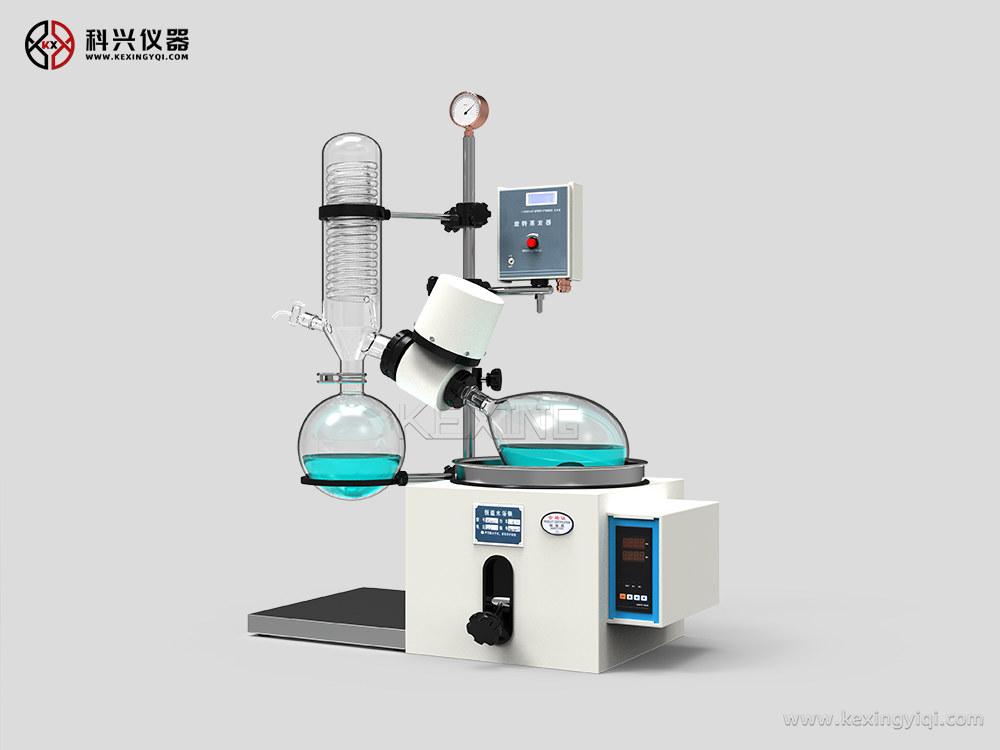

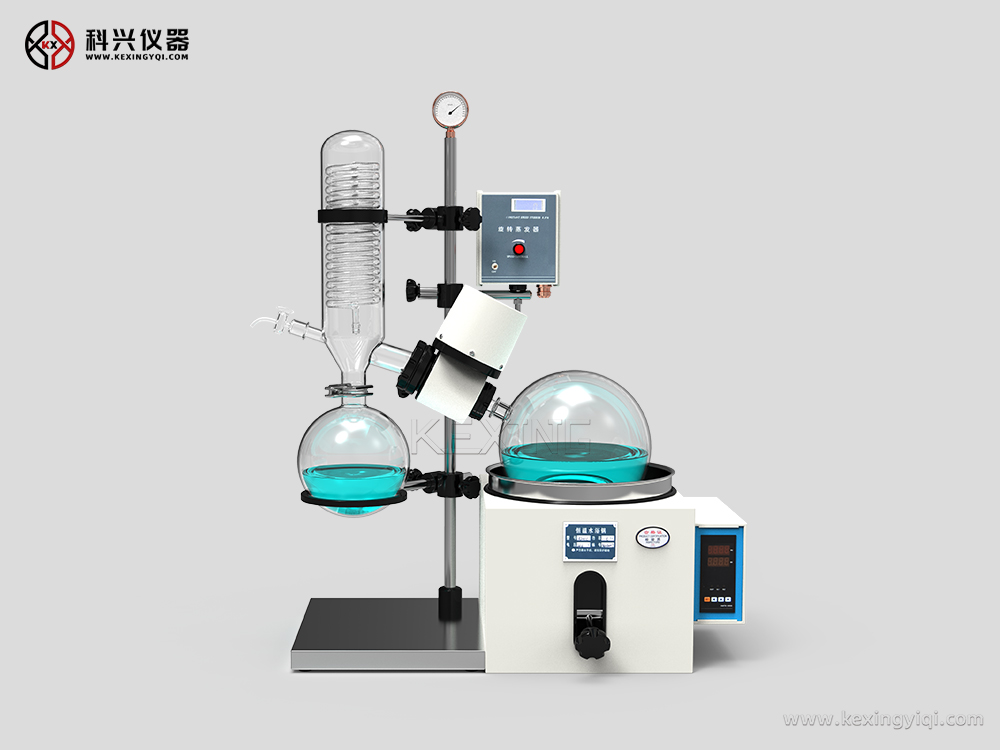

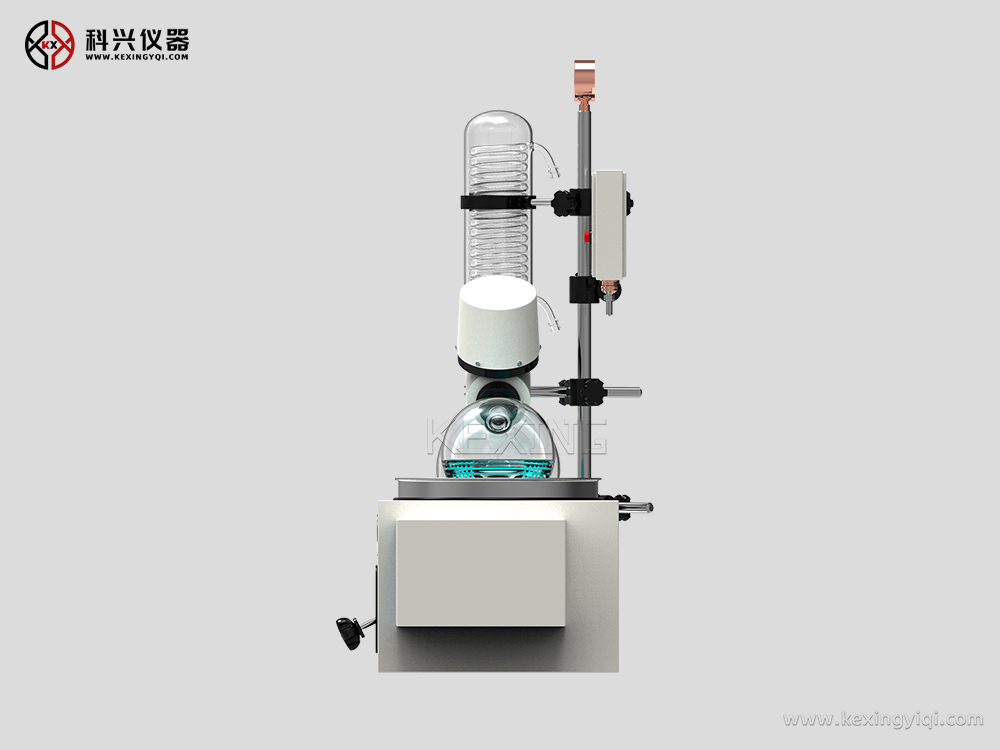

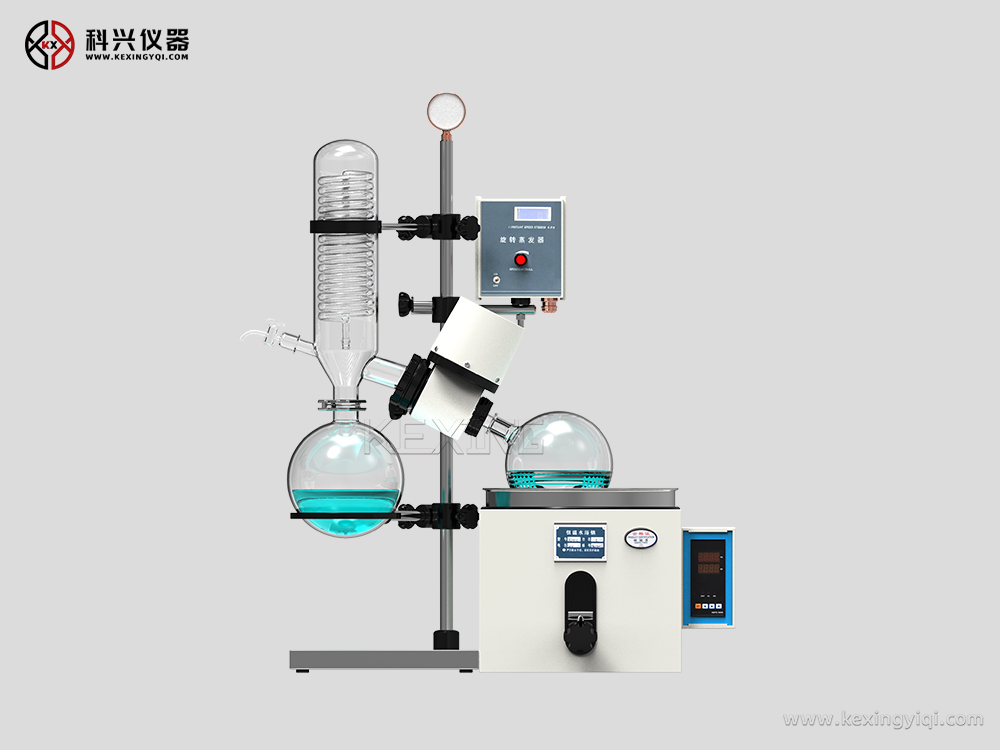

Product Display

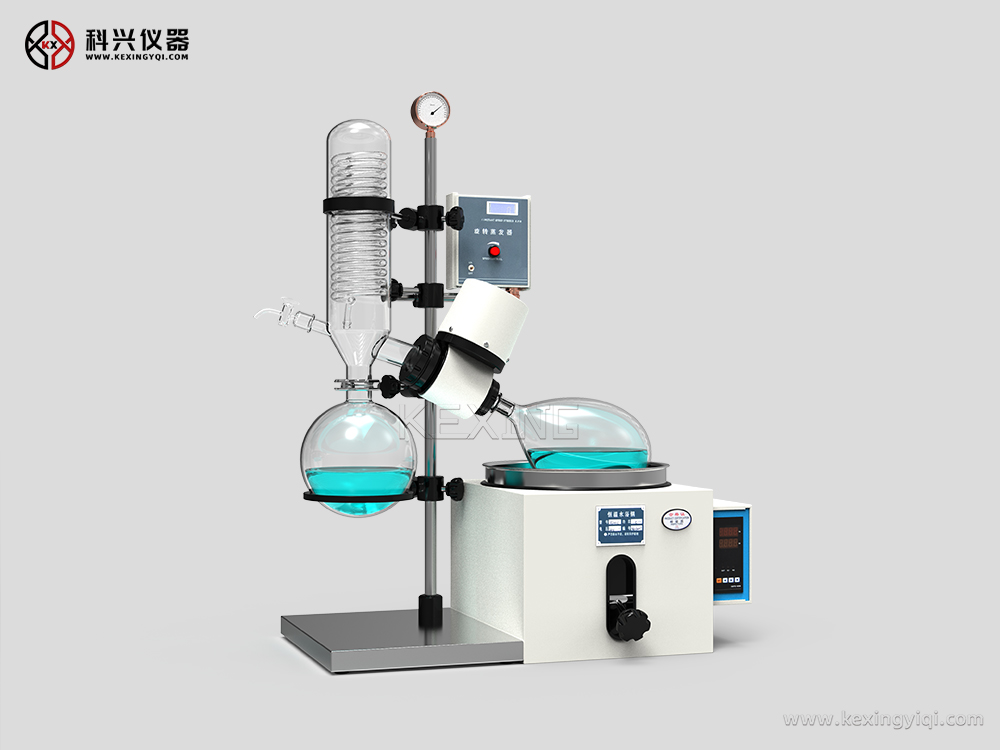

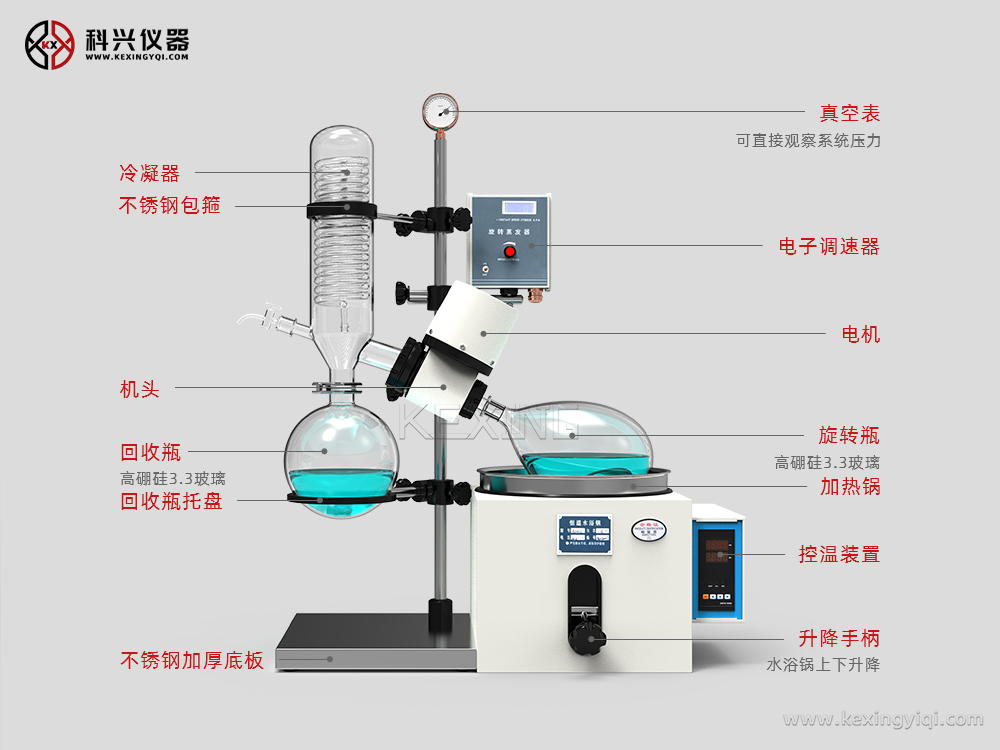

Small standard rotary evaporator 201

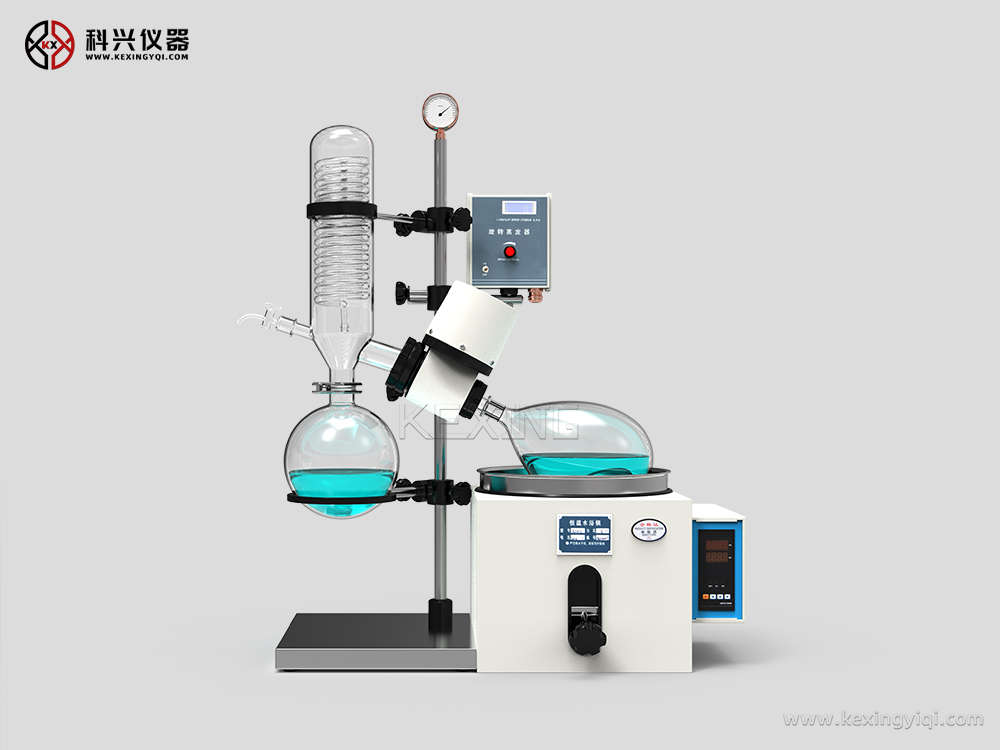

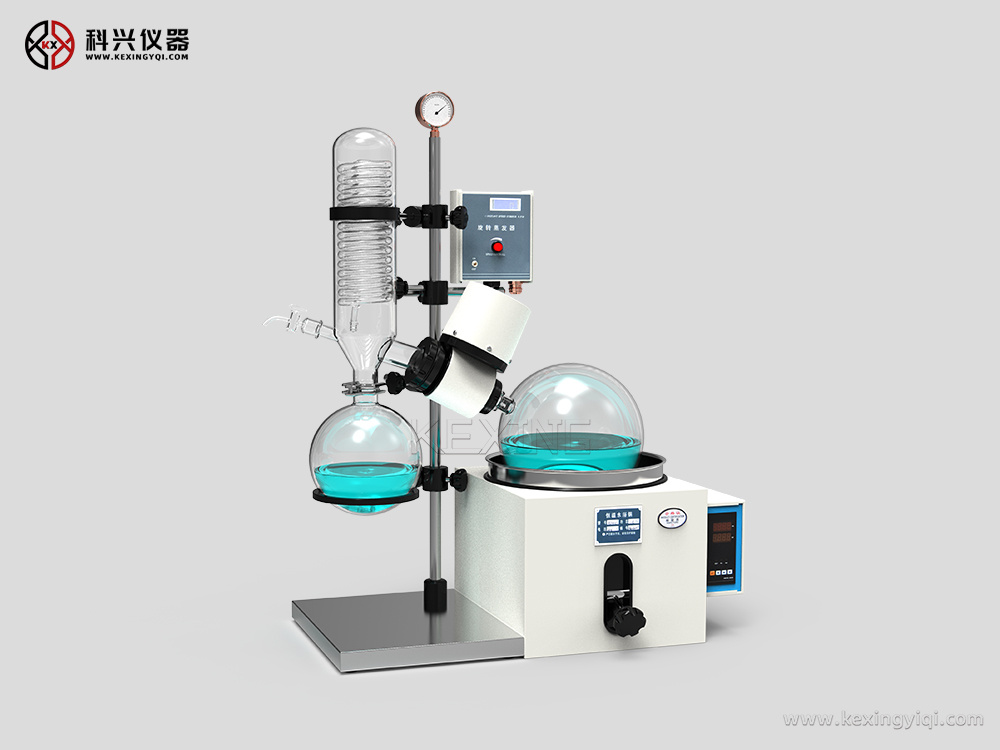

Small standard rotary evaporator 301

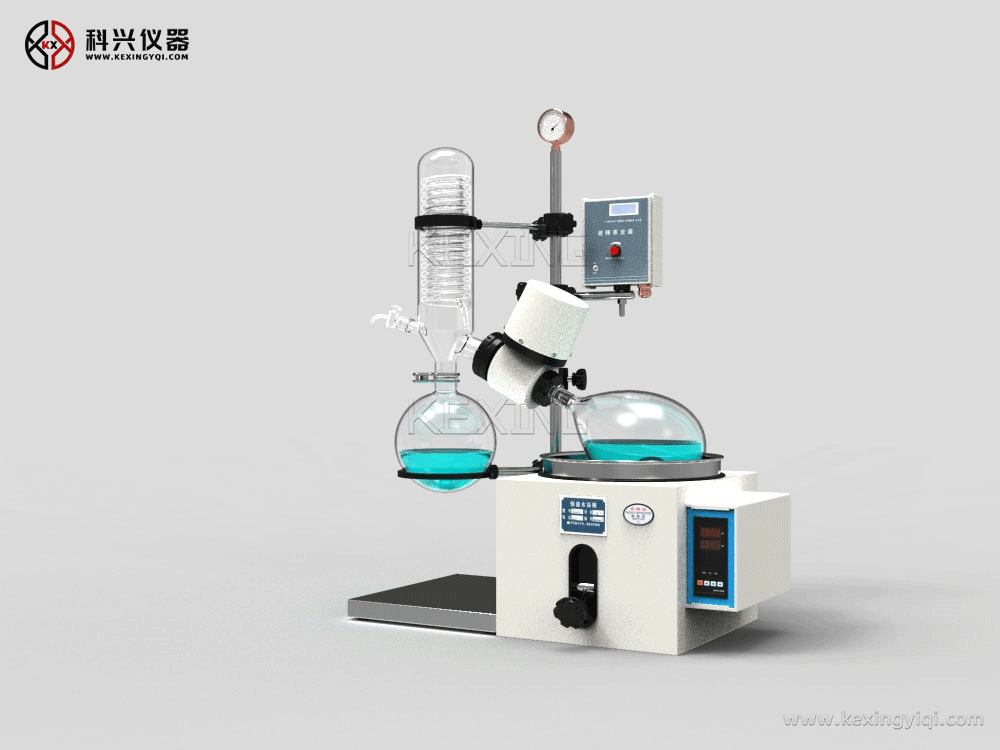

Small standard rotary evaporator 501


Technical Parameter
型号 | RE-201 | RE-301 | RE-501 |
旋转瓶容量 | 1L(24#口) | 3L(法兰口) | 5L(法兰口) |
收集瓶容量 | 1L(35#球磨口) | 2L(35#球磨口) | 3L(35#球磨口) |
冷凝器 | 双重立式 | ||
旋转速度 | 数显0-120转/分 | ||
电动功率 | 40W | ||
水浴锅配置 | 手动升降 | ||
水浴锅功率 | 1.5KW | 2KW | 2KW |
控温方式 | 智能恒温数显 | ||
电源电压 | 220V/50Hz | ||
外形尺寸(mm) | 1050*580*1950 | 1100*600*2100 | 1200*650*2200 |
