Product Introduction
Rotary evaporators are mainly used for concentration, crystallization, drying, separation, and solvent recovery in industries such as pharmaceuticals, chemical engineering, and biopharmaceuticals. The principle is to heat at a constant temperature under vacuum conditions, causing the rotating bottle to rotate at a constant speed. The material forms a large film on the bottle wall and evaporates efficiently. The solvent vapor is cooled by a high-efficiency glass condenser and recovered in a collection bottle, greatly improving the evaporation efficiency. Specially suitable for the concentration and purification of biological products that are prone to decomposition and denaturation at high temperatures. The product can be paired with circulating water multi-purpose vacuum pumps, diaphragm vacuum pumps, low-temperature circulation (vacuum) pumps, circulation coolers, constant temperature circulators, low-temperature coolant circulation pumps, and other system devices.

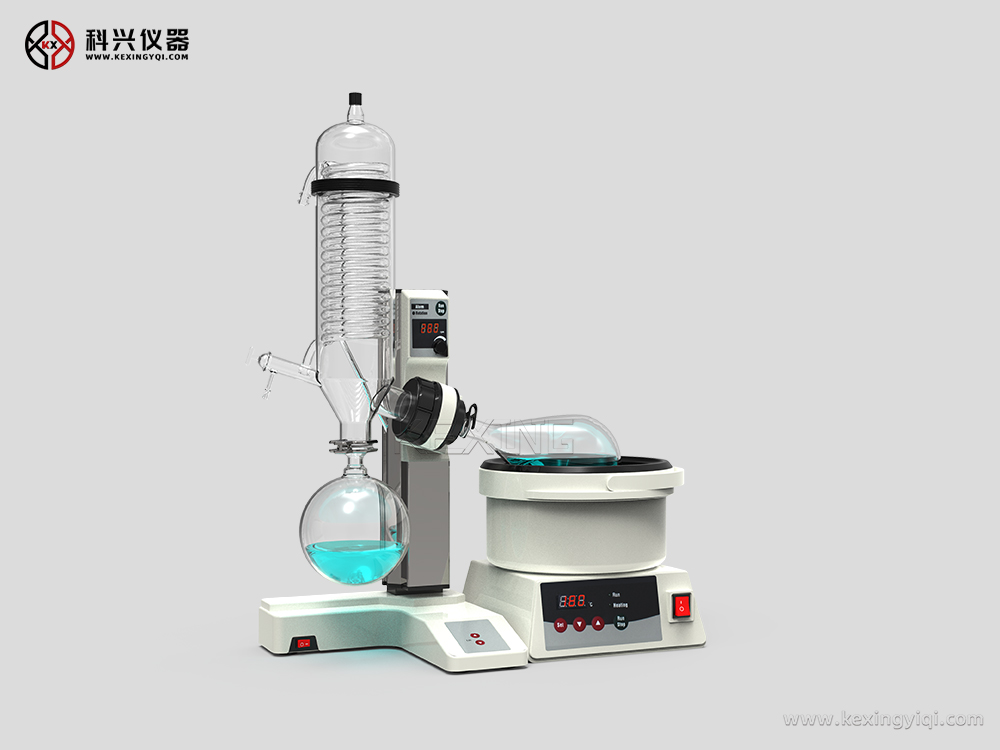

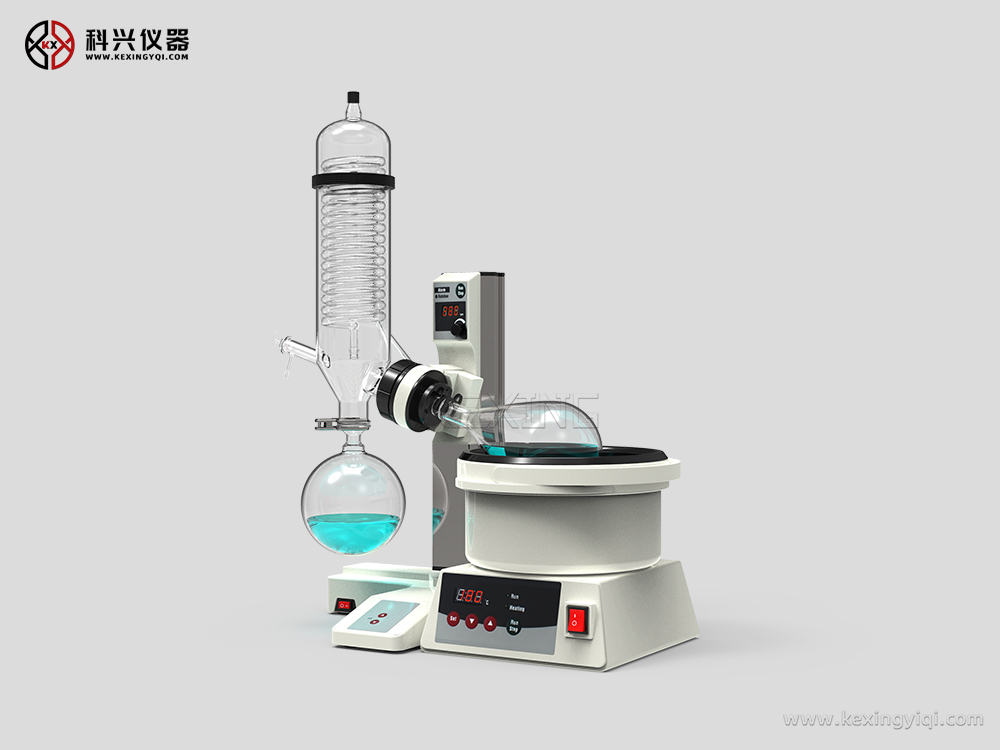

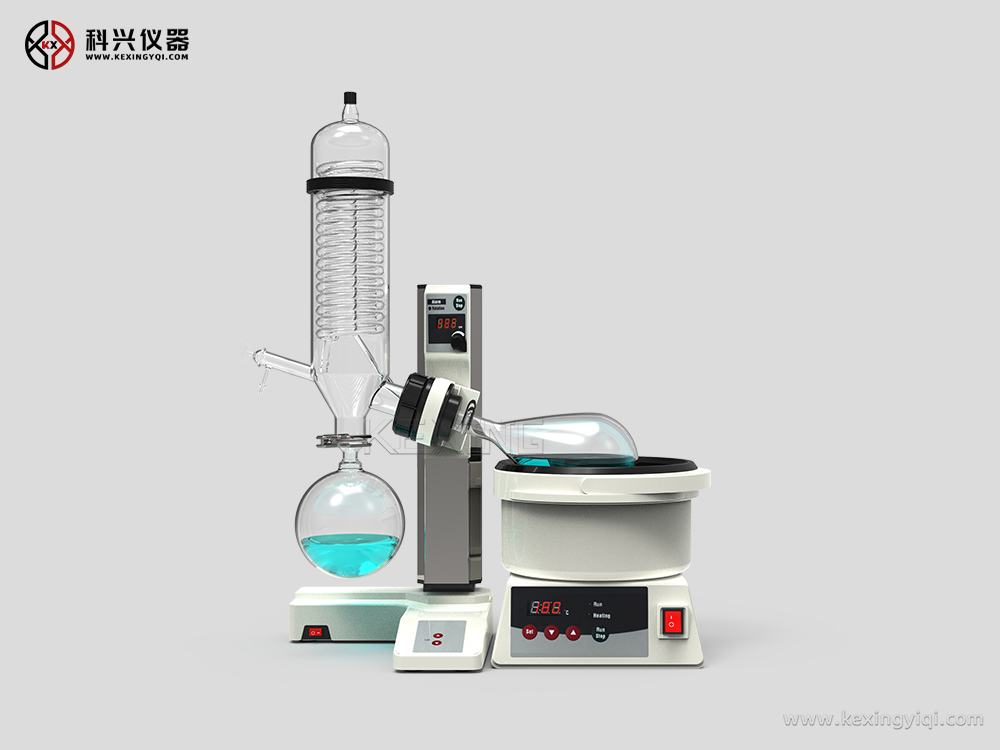

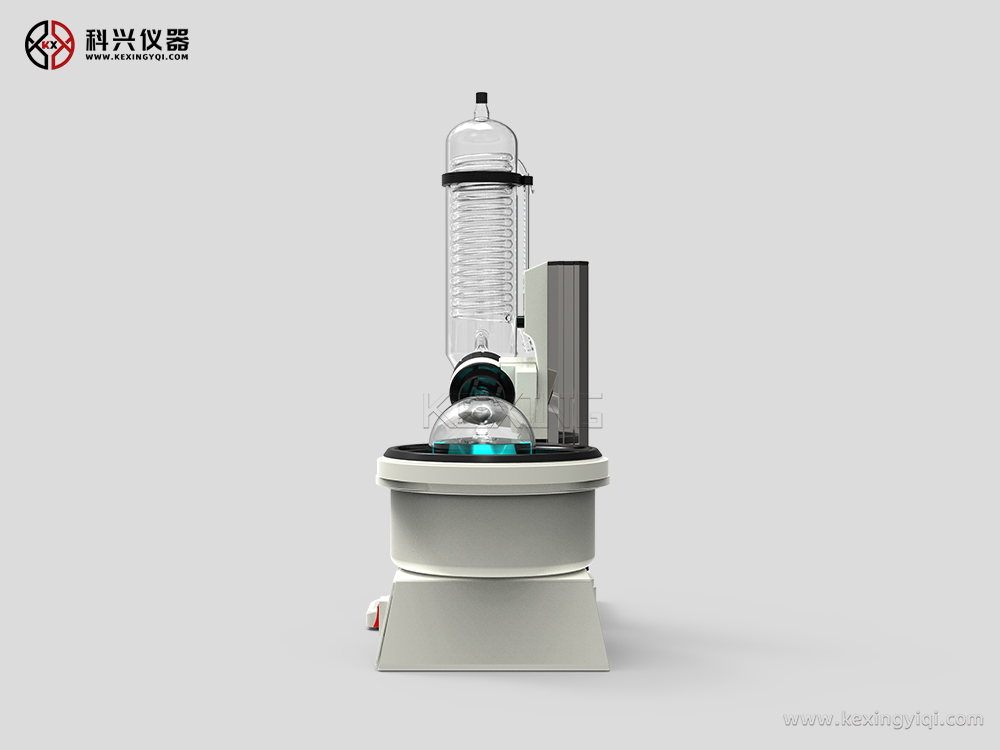

Product Display
Rotary evaporator small technical manual




Rotating evaporator small technology electric




Technical Parameter
DZFY electric lifting parameters
DZFY-1L(I) | DZFY-1L(Ⅱ) | DZFY-3L(Ⅰ) | DZFY-3L(Ⅱ) | DZFY-5L(Ⅱ) | |
旋转速度 | 10~310rpm 数字显示 | 20~160rpm | |||
蒸发能力 | Max.25mL/min | Max.43mL/min | |||
可达真空度 | 399.9Pa(3mmHg)以下 | ||||
温度调节范围 | 室温+5~180℃ | ||||
温度调节精度 | 水±1℃ 油±2℃ | ||||
温度控制 | 微电脑PID控制 | ||||
温度设定·显示 | 按键输入设定·数字显示 | ||||
安全机能 | 熔断器、微电脑防空烧电路 | 熔断器、电机超负荷自动抬升系统 | |||
主机电机 | 无刷电机,定时正反转 | ||||
水浴锅功率 | 1.30KW | 2.0 KW | |||
冷凝器 | 直立式双重蛇形盘管冷却面积0.15m2 | 新V型直立式三重蛇形盘管冷却面积0.27m2 | 直立式双重蛇形盘管冷却面积0.15m2 | 新V型直立式三重蛇形盘管冷却面积0.27m2 | 新V型直立式三重蛇形盘管 冷却面积0.27㎡ |
旋转连接轴 | 短型旋转玻璃轴标准磨口29/38 | ||||
内径16mm×长178mm | 内径16mm×长162mm | 内径16mm×长178mm | 内径16mm×长162mm | 内径16mm×长178mm | |
试料瓶 | 梨形烧瓶1L TS29/38 标配 | 梨形烧瓶3L TS29/38 标配 | 球形烧瓶5L TS29、38 标配 | ||
回收瓶 | 球形烧瓶 1L S35 标配 | 球形烧瓶 2L S35 标配 | 球形烧瓶 3L S35 标配 | ||
真空密封垫 | 特氟龙·特氟龙和氟化橡胶双重密封垫 | ||||
升降行程 | 电动升降100mm+手动辅助延长130mm | 电动升降160mm | |||
使用环境温度 | 5 ~ 35 ℃ | ||||
输入电源 | AC220V 50HZ | ||||
浴锅尺寸·材质 | 直径220mm×深120mm | 直径240mm×深120mm | 直径280mm×深160mm | ||
SUS304+特氟龙涂层约4.5L | SUS304+特氟龙涂层约5.5L | SUS304+特氟龙涂层 约10L |
ZFY manual lifting parameters
ZFY-1L | ZFY-3L | |
旋转速度 | 20~200rpm | |
蒸发能力 | Max.25mL/min | |
可达真空度 | 399.9Pa(3mmHg)以下 | |
温度调节范围 | 室温+5~180℃ | |
温度调节精度 | 水±1℃ 油±2℃ | |
温度控制 | 微电脑PID控制 | |
温度设定·显示 | 按键输入设定·数字显示 | |
安全机能 | 熔断器、微电脑防空烧电路 | |
主机电机功率 | 25W | |
水浴锅功率 | 1.3KW | |
冷凝器 | 直立式双重蛇形盘管 冷却面积0.15m2 | |
旋转连接轴 | 短型旋转玻璃轴 标准磨口29/38 | |
内径16mm×长162mm | ||
试料瓶 | 梨形烧瓶1L TS2938 标配 | 梨形烧瓶3L TS2938 标配 |
回收瓶 | 球形烧瓶 1L S35 标配 | 球形烧瓶 2L S35 标配 |
真空密封垫 | 特氟龙·特氟龙和氟化橡胶双重密封垫 | |
升降行程 | 重量平衡式100mm+辅助延长150mm | |
使用环境温度 | 5 ~ 35 ℃ | |
输入电源 | AC220V 50HZ | |
浴锅尺寸·材质 | 直径220mm×深120mm | 直径240mm×深120mm |
SUS304+特氟龙涂层 约4.5L | SUS304+特氟龙涂层 约5.5L |
