Product Introduction
The rotary evaporator is mainly used for pilot testing in the food and other fields of the pharmaceutical, chemical, and biopharmaceutical industries, for concentration, crystallization, drying, separation, and solvent recovery. There is a large capacity, large-diameter rotary evaporation bottle placed in a water bath, heated while rotating, to efficiently diffuse and evaporate the solution. The product can be paired with circulating water multi-purpose vacuum pumps, diaphragm vacuum pumps, low-temperature circulation (vacuum) pumps, circulation coolers, constant temperature circulators, low-temperature coolant circulation pumps, and other system devices. The principle is to heat at a constant temperature under vacuum conditions, causing the rotating bottle to rotate at a constant speed. The material forms a large film on the bottle wall and evaporates efficiently. The solvent vapor is cooled by a high-efficiency glass condenser and recovered in a collection bottle, greatly improving the evaporation efficiency. Specially suitable for the concentration and purification of biological products that are prone to decomposition and denaturation at high temperatures.

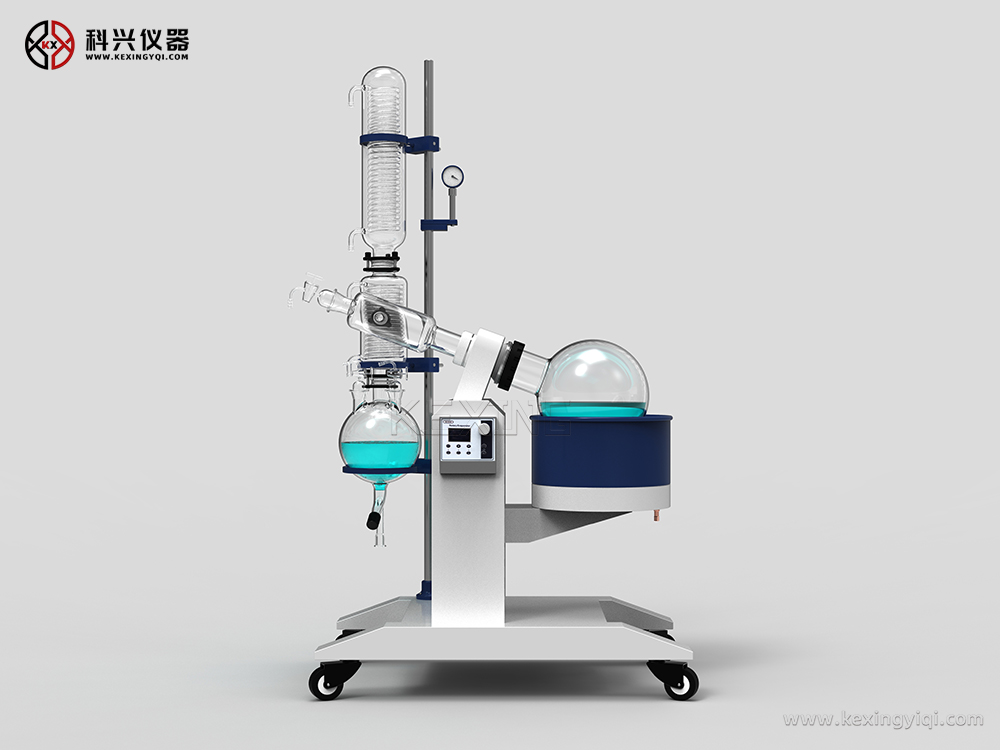

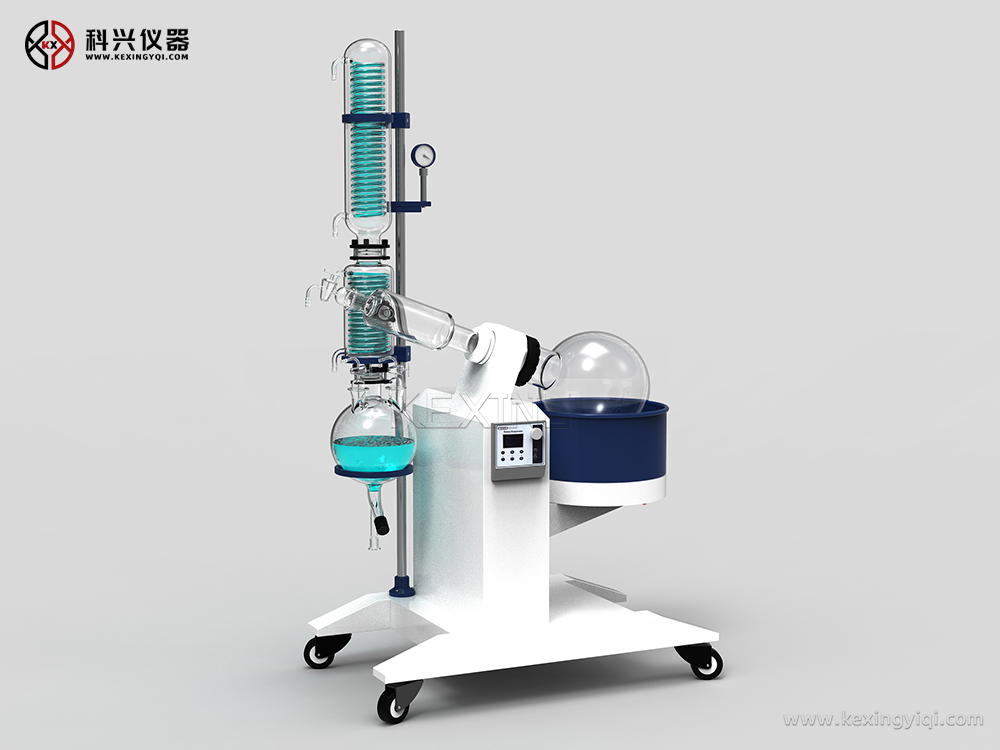

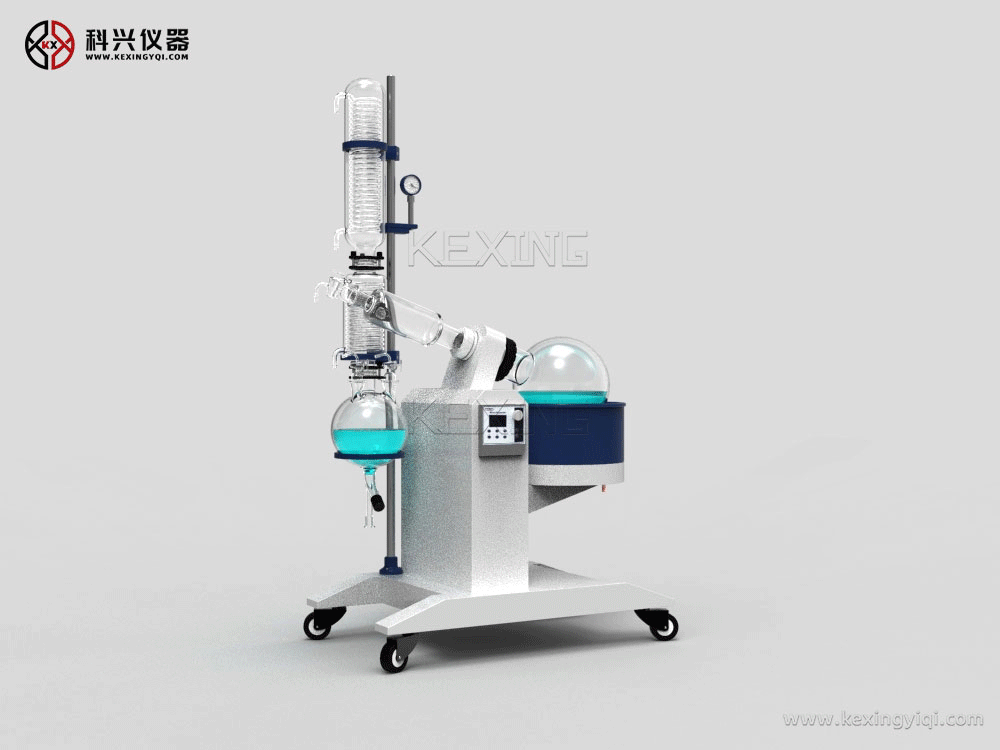

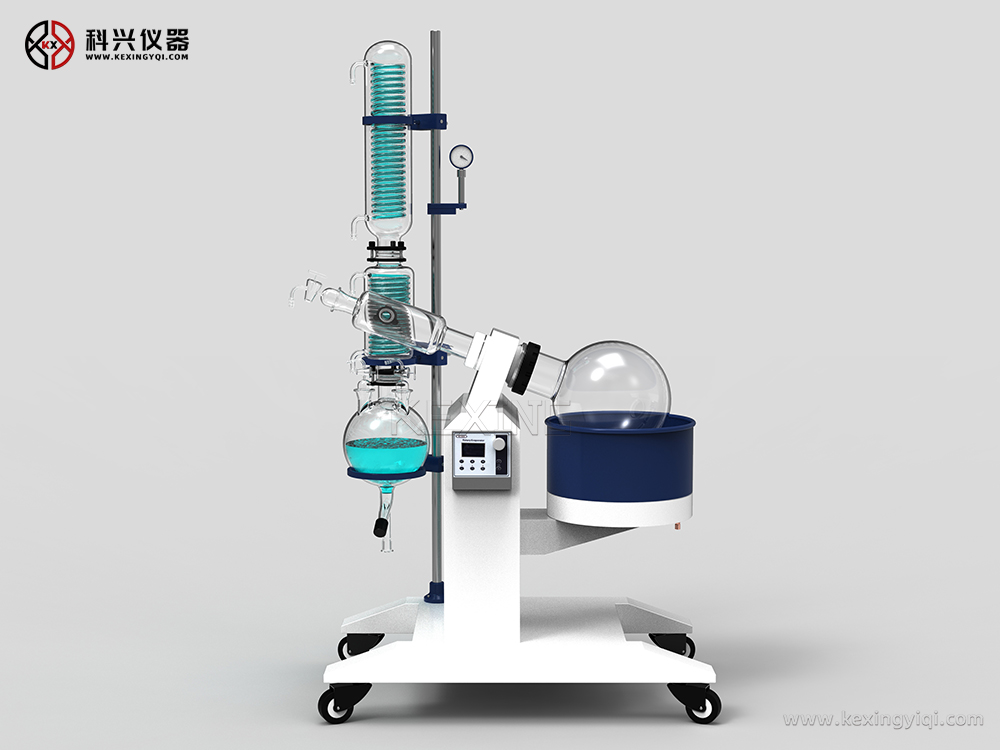

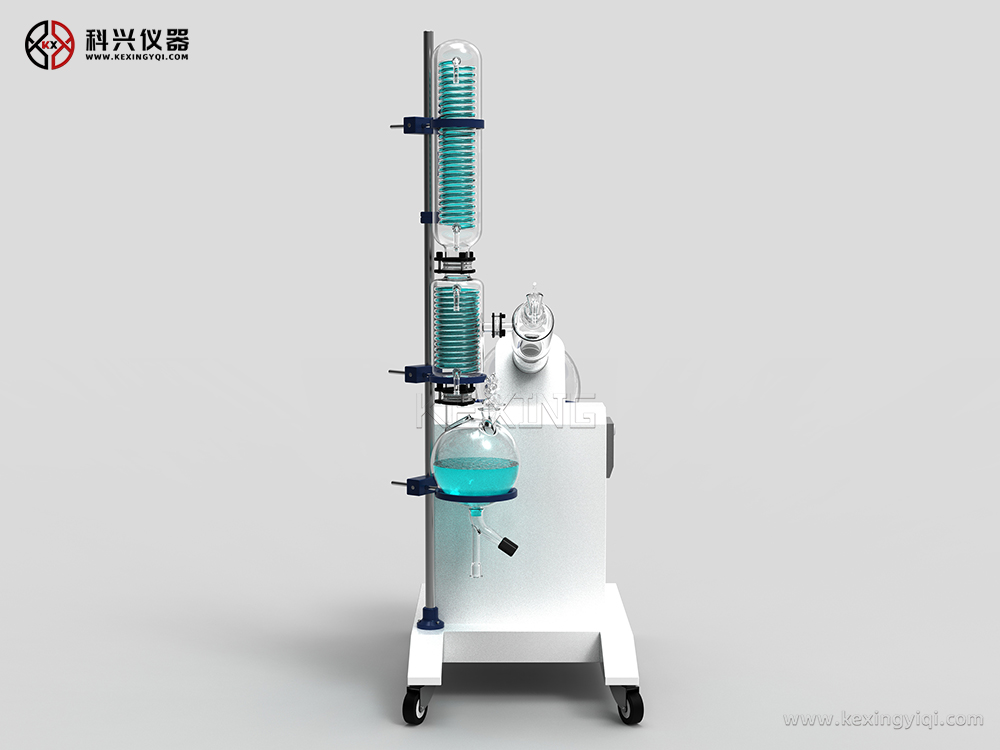

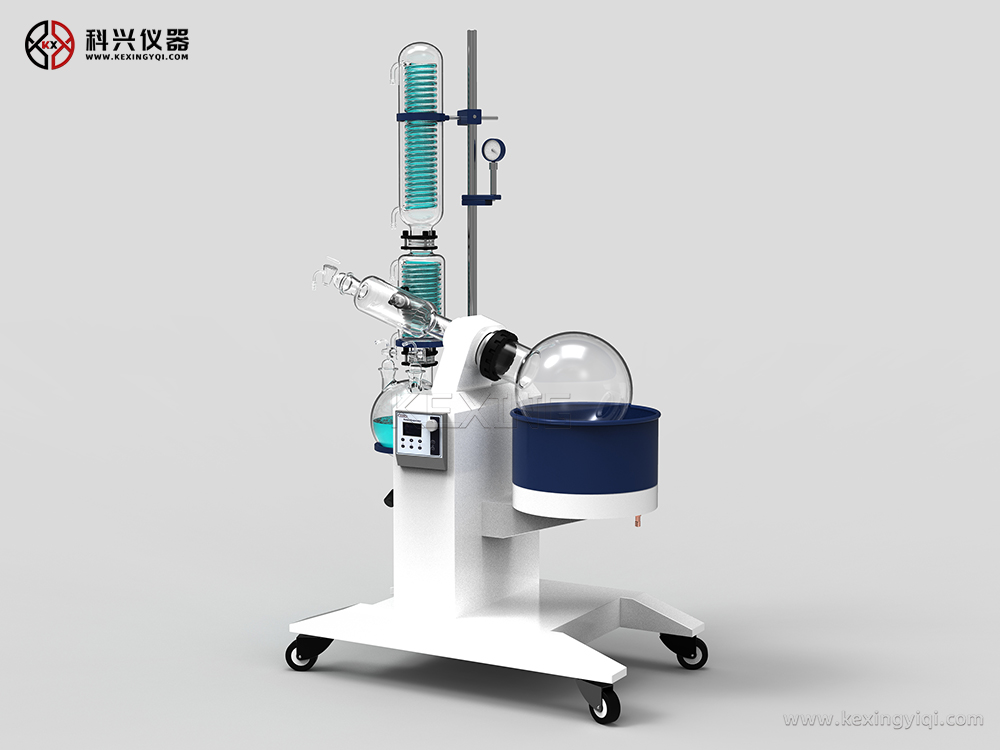

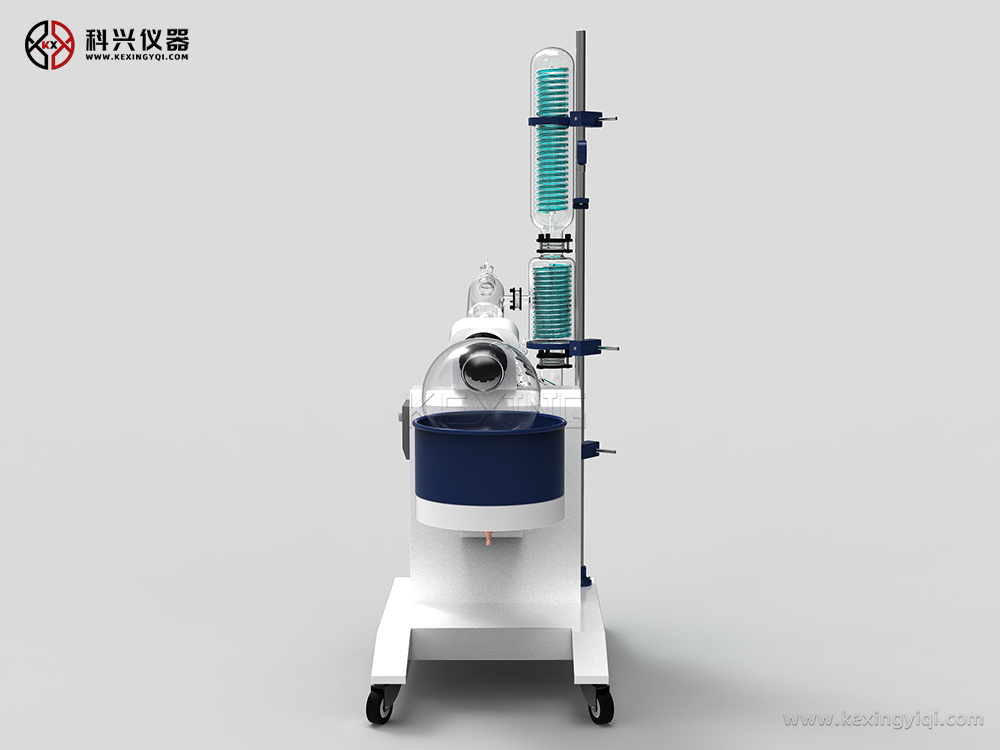

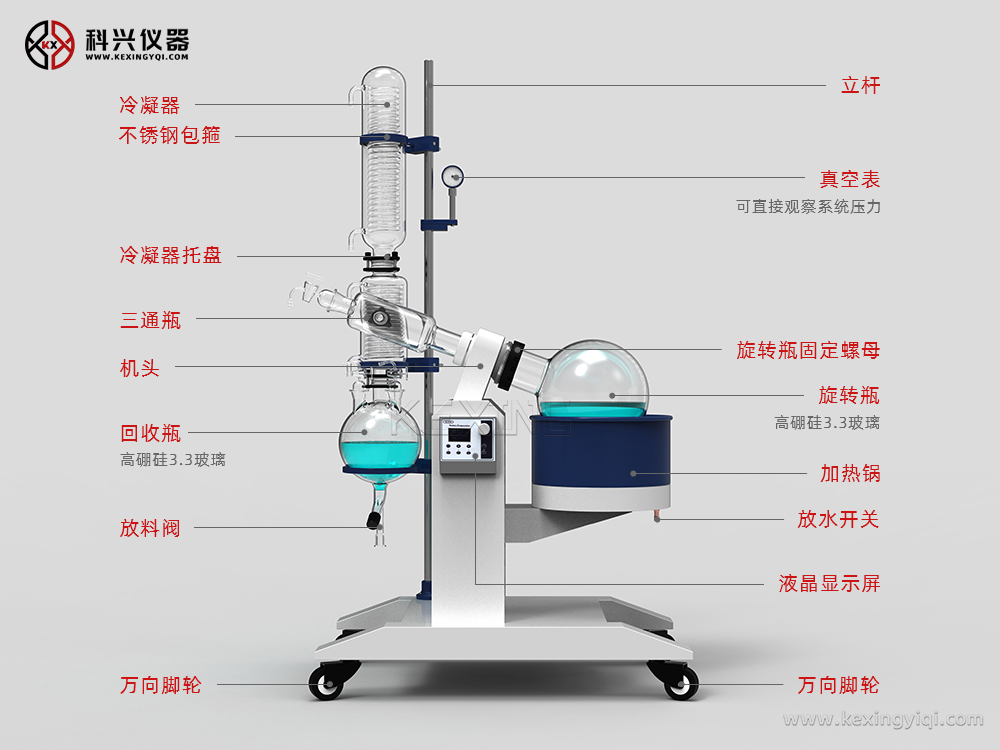

Product Display
Technical Parameter
| 型号 | R1005 | R1010 | R1020 | R1050 |
| 环境温度要求（℃） | 5~35 | |||
| 工作电源（V/Hz） | 单相220/50/60 | 三相220/380/50/60 | ||
| 主机调速 | 数显变频 无极调速 | 数显直流无极调速 | ||
| 主机转速（rpm） | 20~120 | |||
| 旋转电机（W） | 100 | 无刷250 | ||
| 温度控制（℃） | 数显控温，室温~99 | |||
| 真空度（Pa） | 399.9（3mmHg以下） | |||
| 旋转瓶（L） | 5 法兰口ø50 | 10 法兰口ø125 | 20 法兰口ø125 | 50 法兰口ø125 |
| 回收瓶（L） | 3 | 5 | 10 | 20 |
| 冷凝管 | 立式双重蛇形管 | 立式，主冷+副冷，高效 三回流冷凝管 | ||
| 蒸发能力（L/h） | 水≥2 酒精≥4 | 水≥3.2 酒精≥6.5 | 水≥5 酒精≥11 | 水≥9 酒精≥19 |
| 水浴锅材质 | 不锈钢 | |||
| 水浴锅尺寸（mm） | Φ300×170 | Φ350×220 | Φ450×260 | Φ550×320 |
| 升降功能 | 电动升降 | |||
| 升降行程（mm） | 0~100 | 0~160 | 0~190 | 0~180 |
| 整机功率（KW） | 1.65 | 3.2 | 4.3 |
6.5（220V） 8.0（380V） |
| 外形尺寸（mm） | 660×400×1020 | 920×550×1700 | 1250×600×2100 | 1320×770×2340 |
