Product Introduction
The application characteristics of a large rotary evaporator include a large capacity, large-diameter rotary evaporator bottle with a large evaporation area. It is placed in a water bath under reduced pressure and heated while rotating to efficiently diffuse and evaporate the solution. It can be used in small-scale and pilot projects in the fields of biology, medicine, chemical engineering, food, etc. The product can be paired with circulating water multi-purpose vacuum pumps, diaphragm vacuum pumps, low-temperature circulation (vacuum) pumps, circulation coolers, constant temperature circulators, low-temperature coolant circulation pumps, and other components to form a device.

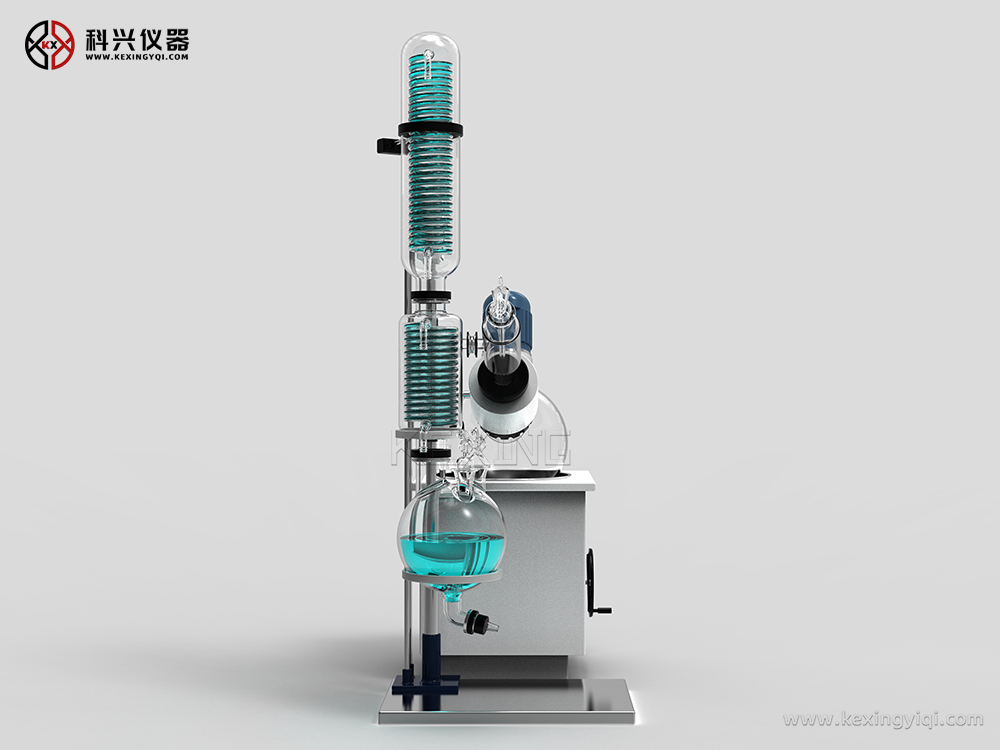

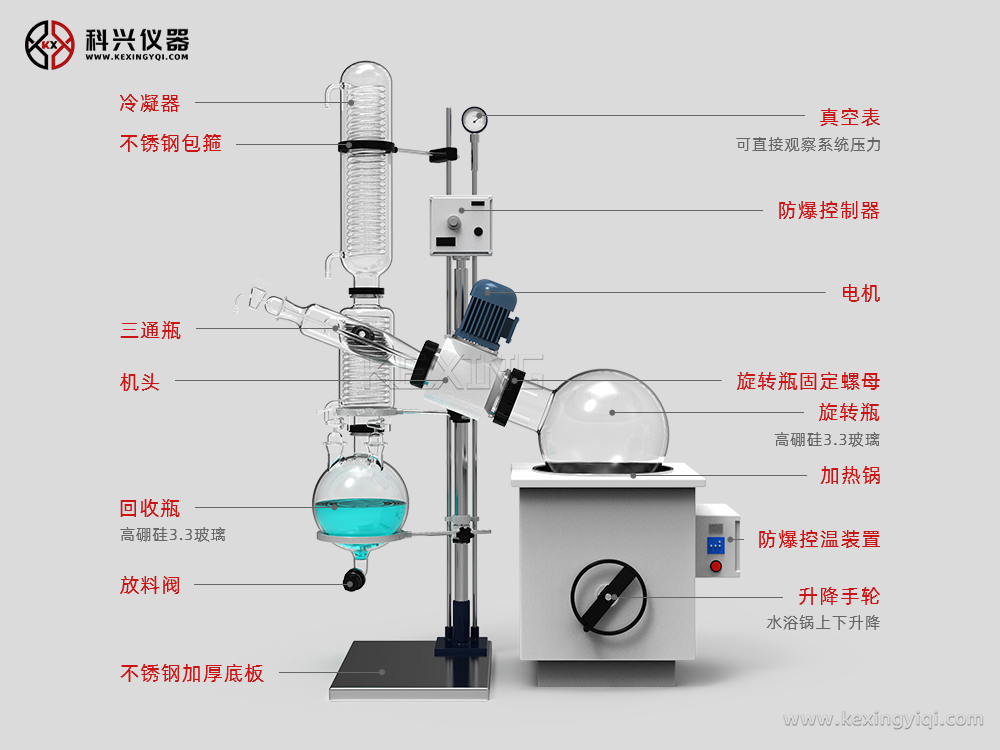

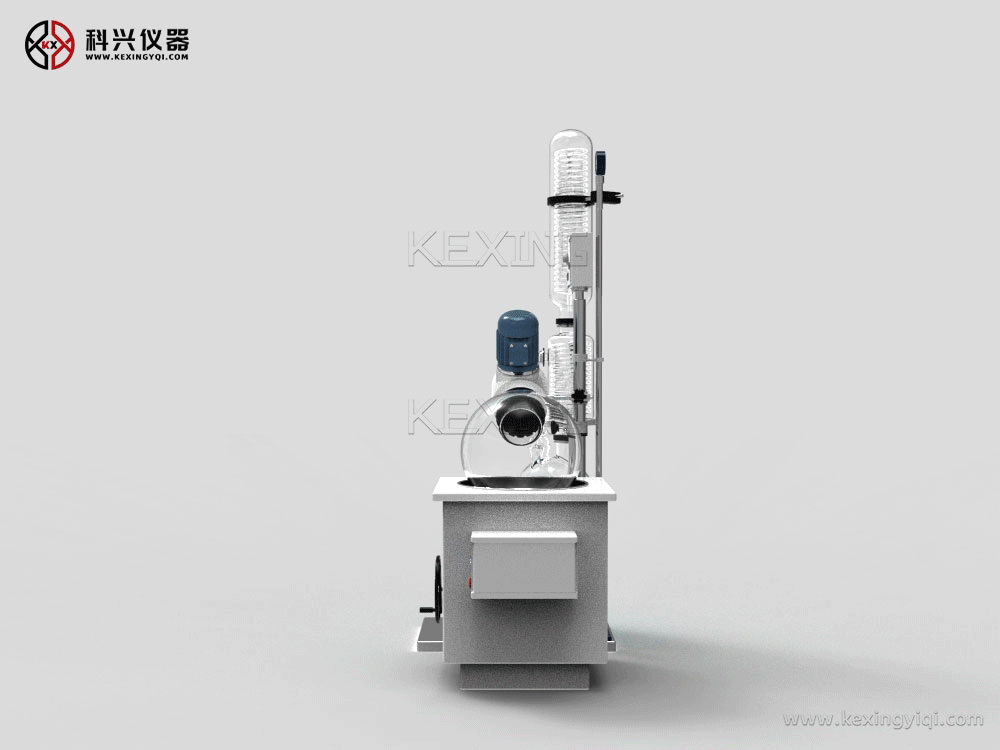

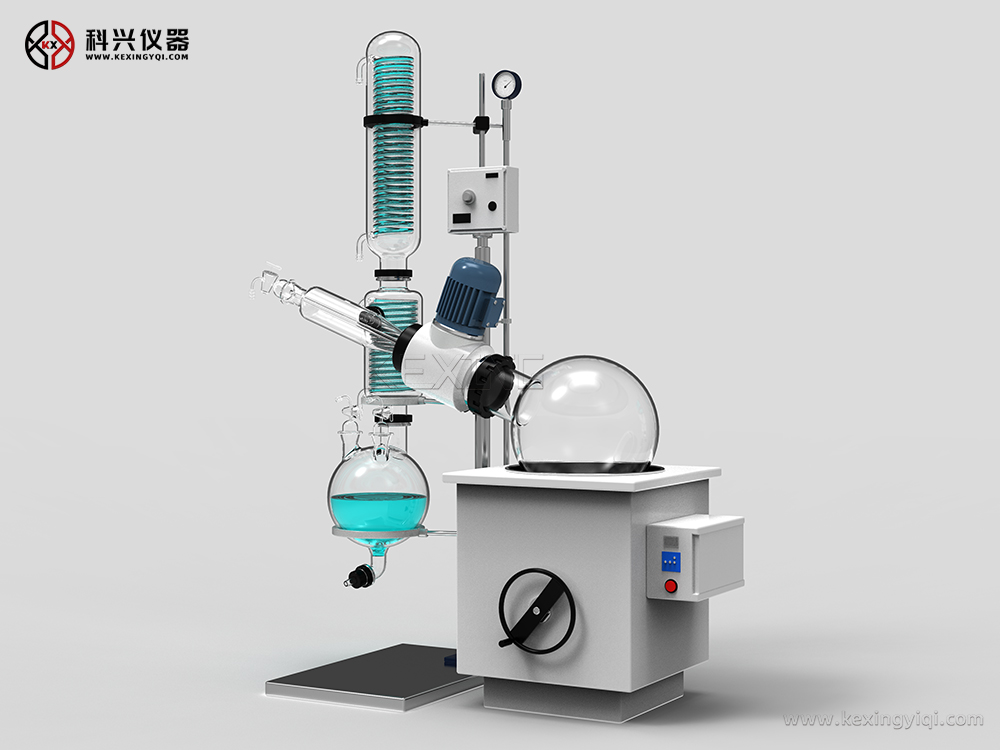

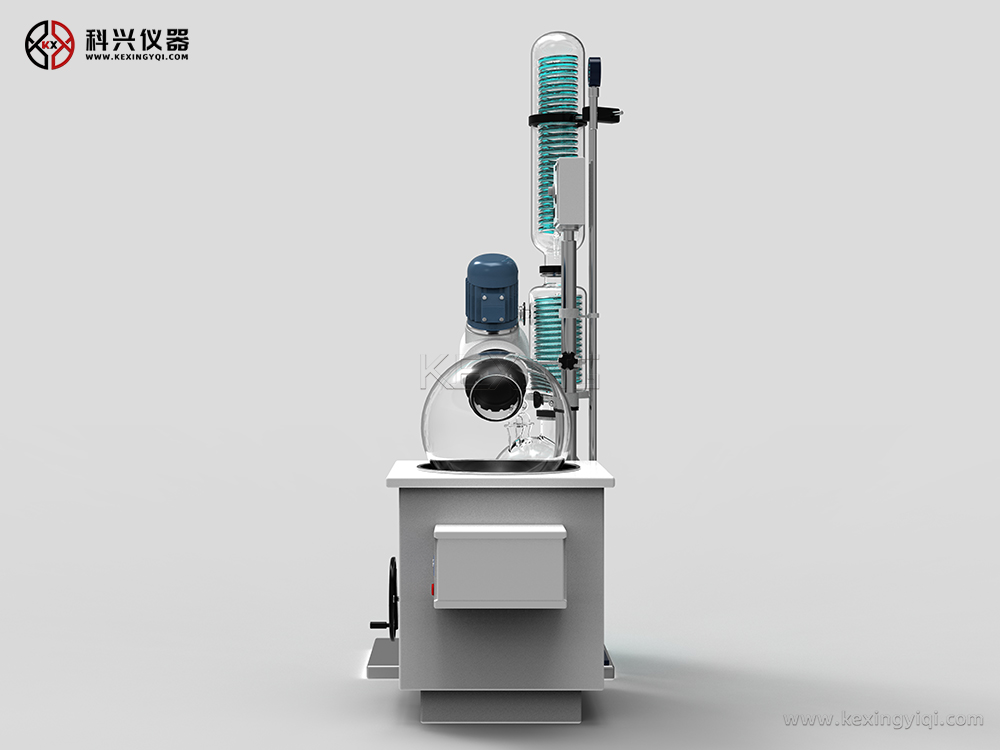

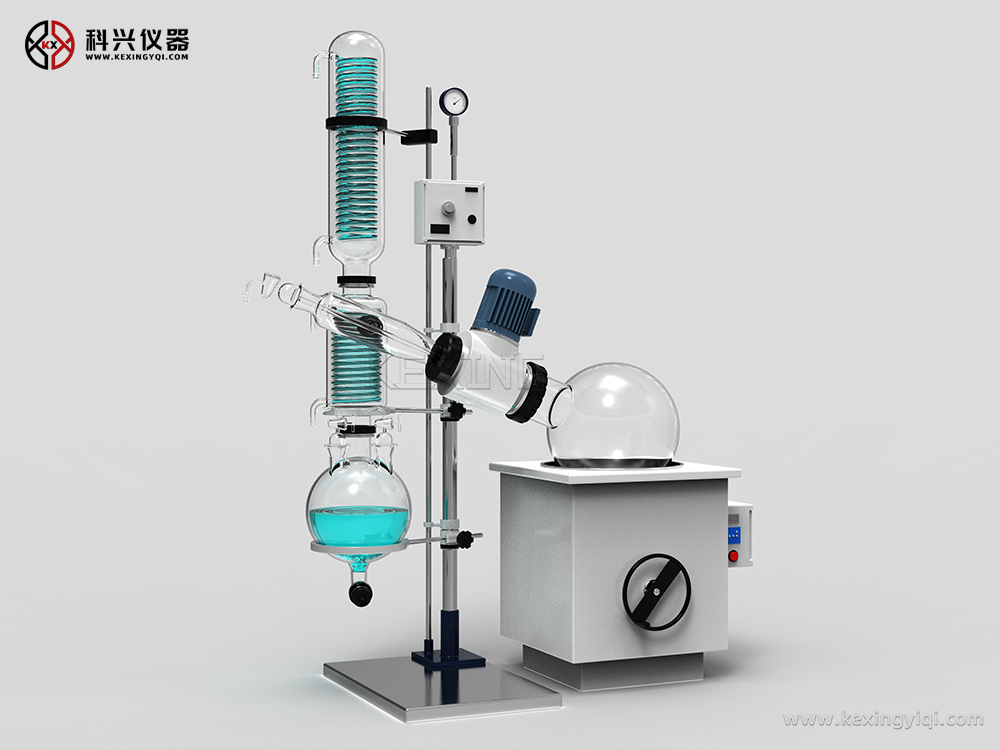

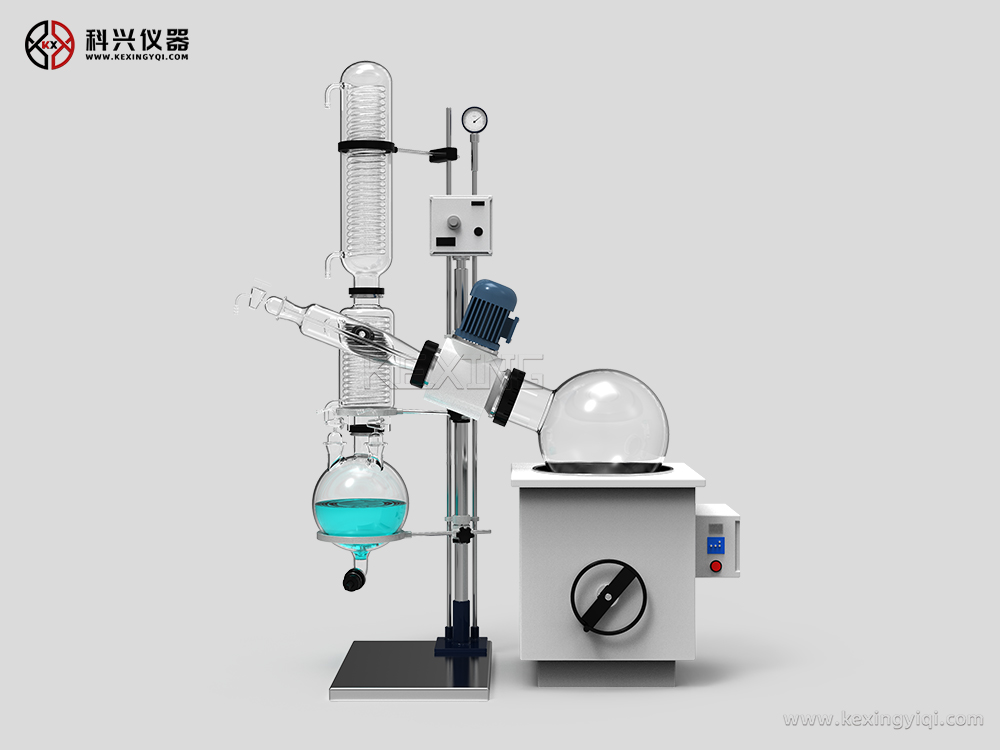

Product Display
Technical Parameter
| 型号 | RE-1002 | RE-2002 | RE-5002 |
| 旋转瓶（L） | 10 | 20 | 50 |
| 收集瓶（L） | 5，下放料 | 10，下放料 | 20，下放料 |
| 主机调速 | 数显变频调速 | ||
| 主机转速（r/min） | 0-120，转速数显 | ||
| 冷凝面积（㎡） | 0.57 | 1 | 1.5 |
| 蒸发速度（H2O） | ≥3L/h | ≥5L/h | ≥9L/h |
| 达到真空度（Pa） | <133 | ||
| 浴锅功率（KW） | 3 | 4 | 6 |
| 温控范围及波动（℃） | 0~99（180）±0.2 | ||
| PTFE组合密封 | 标配 | ||
| PTFE放料阀 | 标配 | ||
| 真空表 | 标配 | ||
| 加热锅 | 不锈钢水浴 | ||
| 电机 | 交流式感应电机（可选配防爆电机） | ||
| 冷凝管 | 立式 主冷+副冷、高效三回流冷凝管 | ||
| 升降功能 | 手动升降 | ||
| 电源（V/Hz） | 220/50 | ||
