Product Introduction
A closed heating cycle device is a new type of heating equipment that guides the use of electric heating for the heat medium in a closed circulation system, and heats the supporting reaction vessel by outputting thermal fluid through a circulation pump. Widely used in the pharmaceutical, chemical, and petrochemical industries for reactor combination devices that require high temperature conditions.

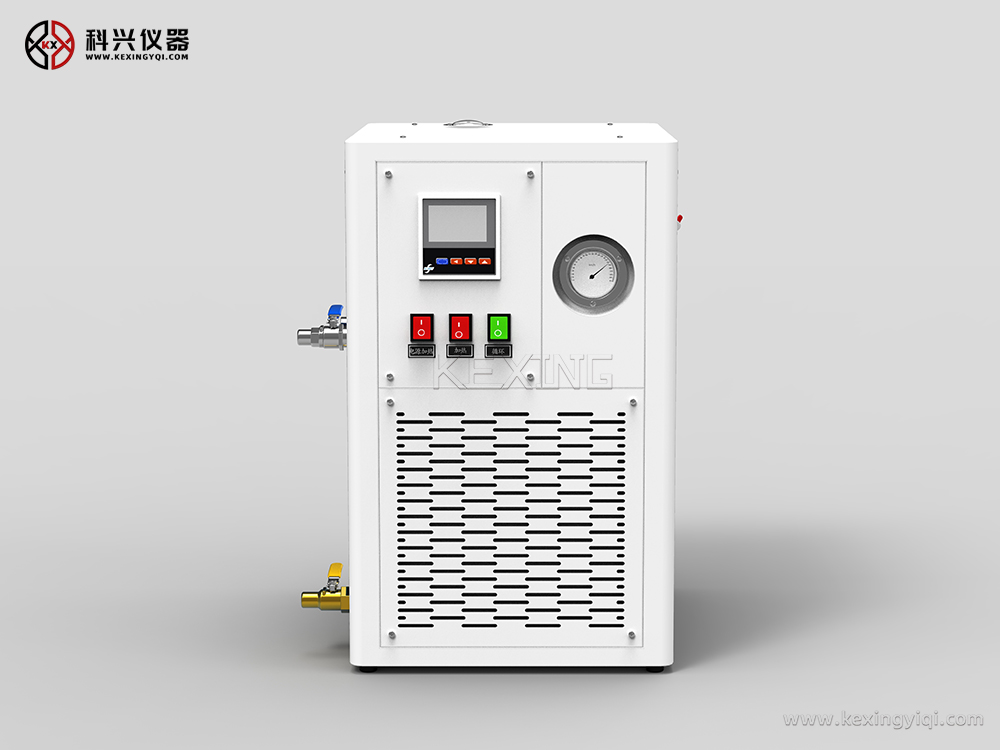

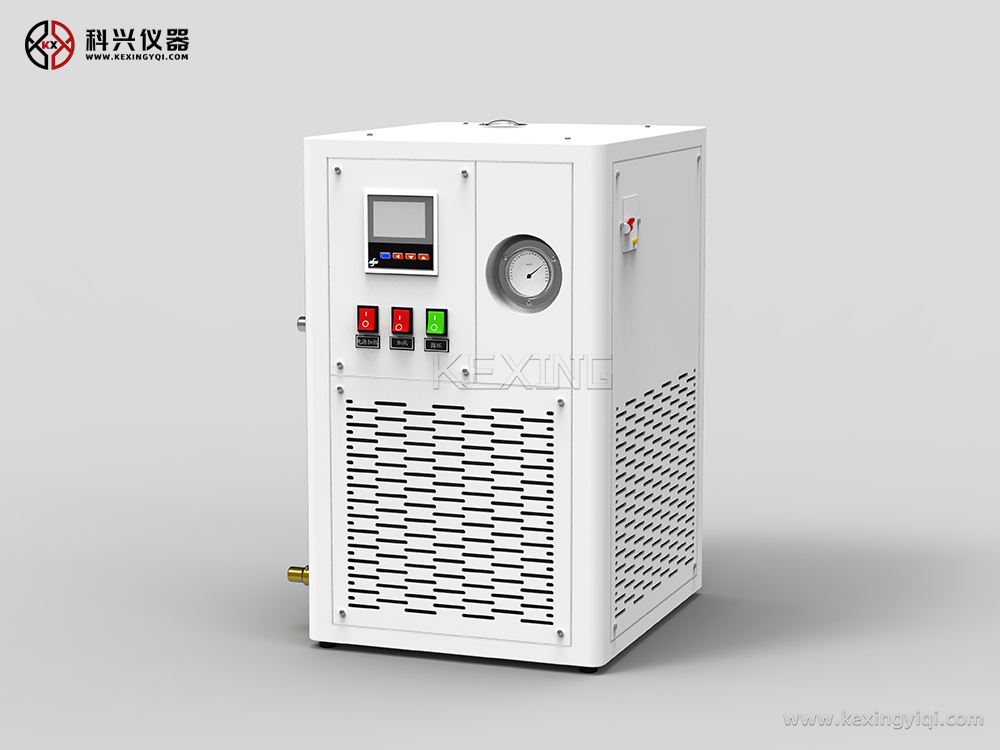

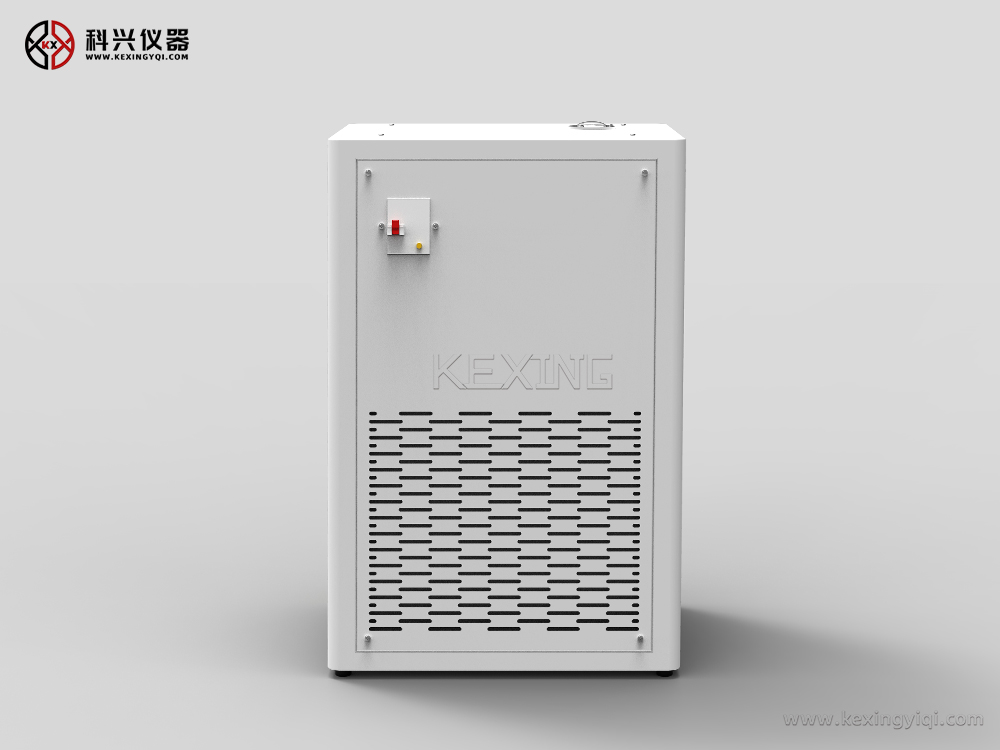

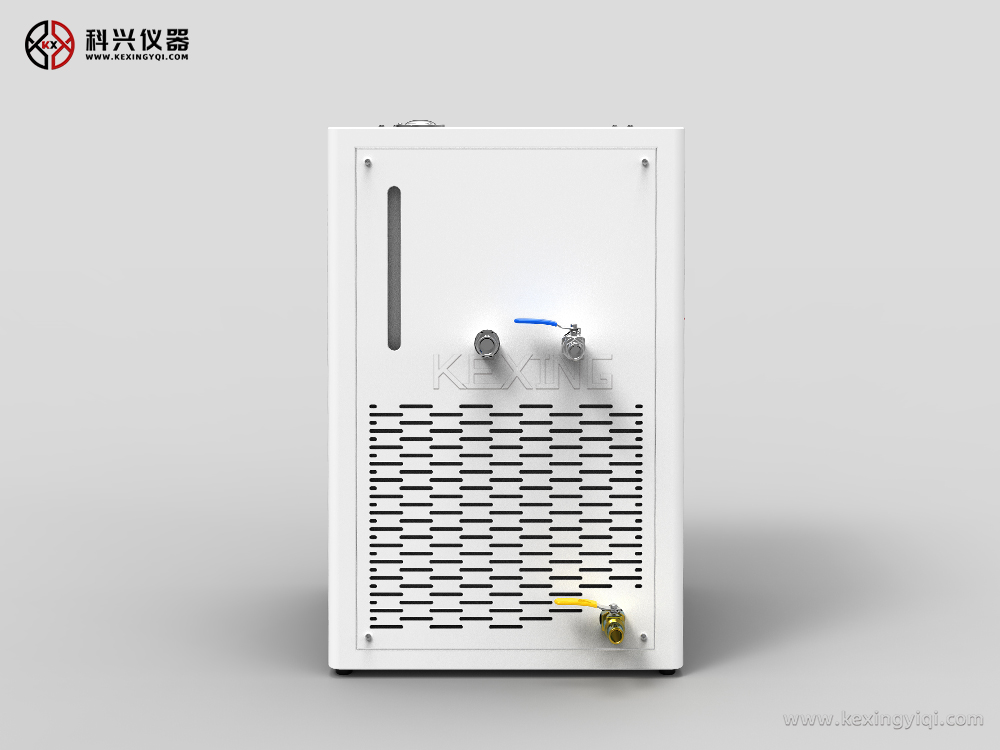

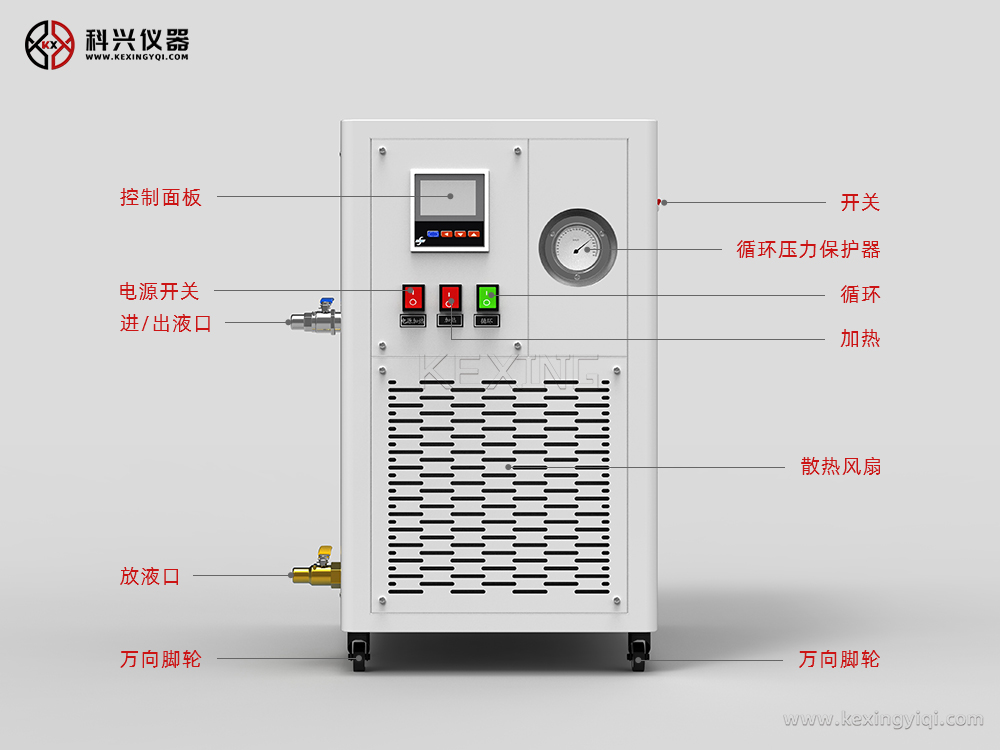

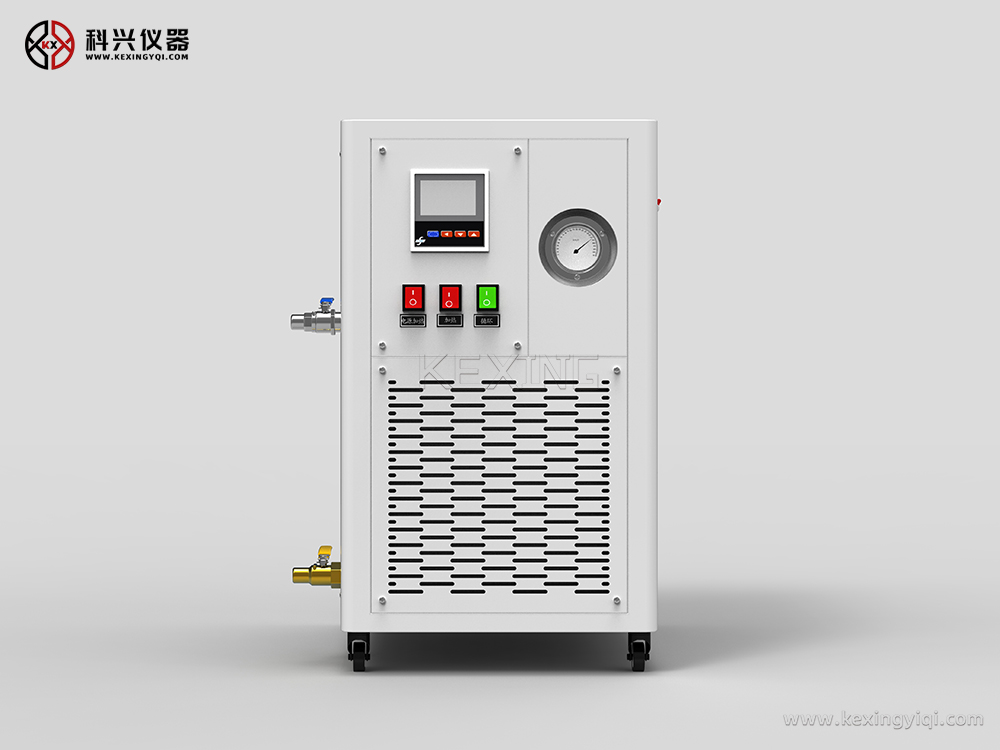

Product Display
Technical Parameter
| 型号 | FBXH-10 | FBXH-20 | FBXH-30 | FBXH-50 | FBXH-100 |
| 加热温度可达（℃） | 200 | ||||
| 使用温度范围（℃） | 室温至200 | ||||
| 控温精度（℃） | PID控制±1℃ | ||||
| 可适配容量 | 5~10L | 5~20L | 10~30L | 20~50L | 50~100L |
| 加液/膨胀槽容积 | 8L | 10L | 12L | 15L | 20L |
| 电源 | 220V 50Hz | 380V 50Hz | |||
| 功率（W） | 250W | ||||
| 流量（L/min） | 35L/min | ||||
| 扬程 | 20M | ||||
| 进出口尺寸 | DN15 | ||||
| 安全保护 | 漏电/超温/循环压力等保护 | ||||
| 加热功率（KW） | 3 | 4 | 5 | 6 | 9 |
| 外型尺寸（mm） | 430*690*750 | 430*690*850 | 430*690*950 | 430*690*1050 | 550*690*1150 |
