FMD short-range molecular distillation device

Moleculardistillationisadistillationmethodoperatedunderhighvacuum,inwhichtheaveragefreepathofvapormoleculesisgreaterthanthedistancebetweentheevaporationsurfaceandthecondensationsurface,allowingforthes

Factory direct sales
Quality Assurance
Worry free delivery
After sales guarantee
Sales hotline

400-880-7108

Product Introduction

Molecular distillation is a distillation method operated under high vacuum, in which the average free path of vapor molecules is greater than the distance between the evaporation surface and the condensation surface, allowing for the separation of liquid mixtures by utilizing the differences in evaporation rates of each component in the feed liquid. Molecular distillation is a special liquid-liquid separation technique that differs from traditional distillation in that it relies on the principle of boiling point difference for separation. Instead, it achieves separation by the difference in the average free path of molecular motion of different substances.

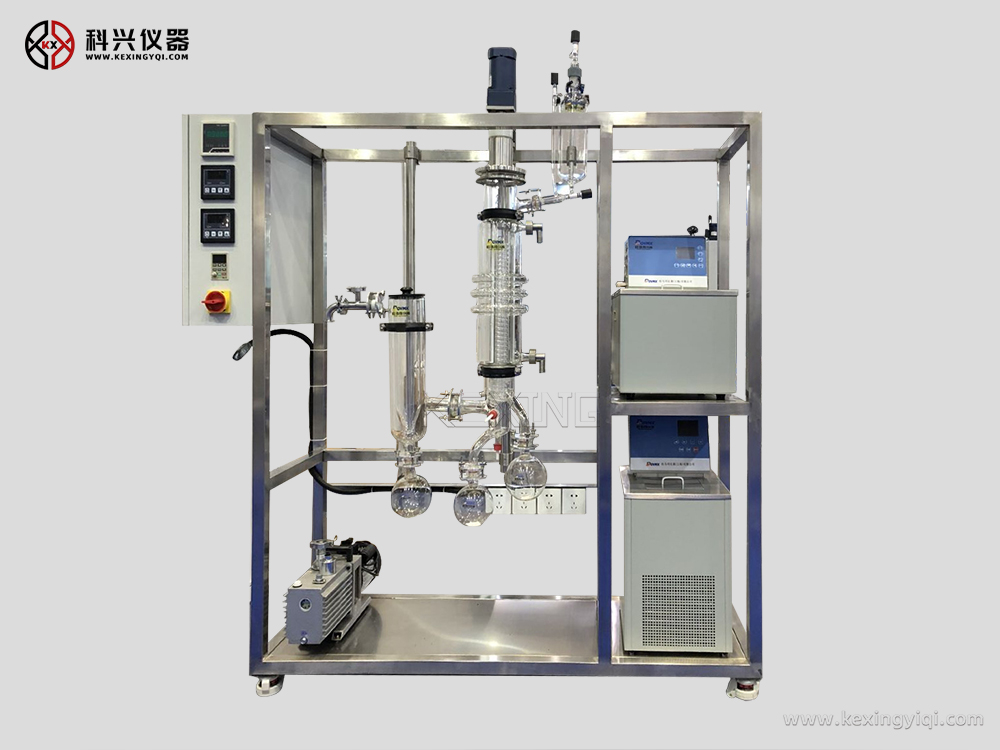

Product Display

Technical Parameter

    A型

                型号                FMD-60(A)                FMD-80(A)                FMD-100(A)                FMD-150(A)                FMD-200(A)                FMD-230(A)
                有效蒸发面积                0.05                0.1                0.15                0.25                0.35                0.5
                内冷凝面积                0.1                0.15                0.2                0.4                0.5                0.65
                桶身内直径                60                80                100                150                190                220
                进料器容积                1.5                1.5                1.5                1.5                1.5                1.5
                处理流量                0.1~2.0                0.3~4.0                0.5~5.0                1.0~8.0                1.5~10.0                2.0~15.0
                电机功率                120                120                120                120                200                200
                转速范围                0~450                0~450                0~450                0~450                0~450                0~450

    B型

                型号                FMD-60(B)                FMD-80(B)                FMD-100(B)                FMD-150(B)                FMD-200(B)                FMD-230(B)
                有效蒸发面积                0.05                0.1                0.15                0.25                0.35                0.5
                内冷凝面积                0.1                0.15                0.2                0.4                0.5                0.65
                外冷凝面积                0.2                0.25                0.3                0.6                0.6                0.6
                桶身内直径                60                80                100                150                190                220
                进料器容积                1.5                1.5                1.5                1.5                1.5                1.5
                处理流量                0.1~2.0                0.3~4.0                0.5~5.0                1.0~8.0                1.5~10.0                2.0~15.0
                电机功率                120                120                120                120                200                200
                转速范围                0~450                0~450                0~450                0~450                0~300                0~300
