智能磁力搅拌器(加热板式)

SHZ-D circulating water vacuum pump

TheMSPseriesintelligentmagneticstirrerisasmallheatingplateintelligentmagneticstirrer.Theheatingplateadoptsceramictechnology,whichisresistanttohightemperatureandcorrosion.ThemagneticstirrerproducedbySh

智能磁力搅拌器(平板式)
智能磁力搅拌器(平板式)
Factory direct sales
Quality Assurance
Worry free delivery
After sales guarantee
Sales hotline

400-880-7108

Product Introduction

1. Multiple fault identification and detection functions, adopting active protection technology, high safety, effectively preventing accidents from occurring.

2. The temperature of the heating plate (internal sensor temperature), the temperature of the heated medium (external sensor temperature), the set temperature, and the actual speed are all displayed intuitively, which is convenient and safe.

3. It has the functions of timing, timing, heating plate and temperature control switching of the heated medium.

4. Adopting a DC motor with low noise, constant speed, high speed control accuracy, and program forward and backward mixing function, it can greatly improve the mixing effect.

5. The heating plate adopts porcelain process, which is resistant to high temperature and corrosion.

Heating and stirring can be controlled separately.

7. Protection functions: anti burn dry, sensor placement error, thyristor breakdown, leakage protection, overcurrent protection, etc.

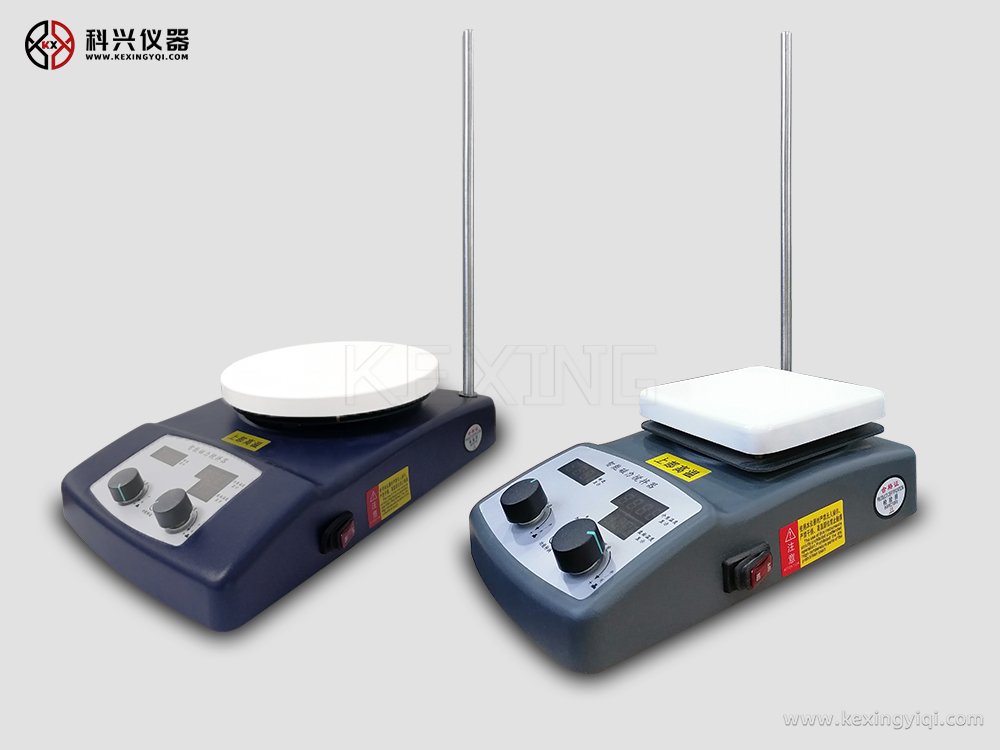

Product Display

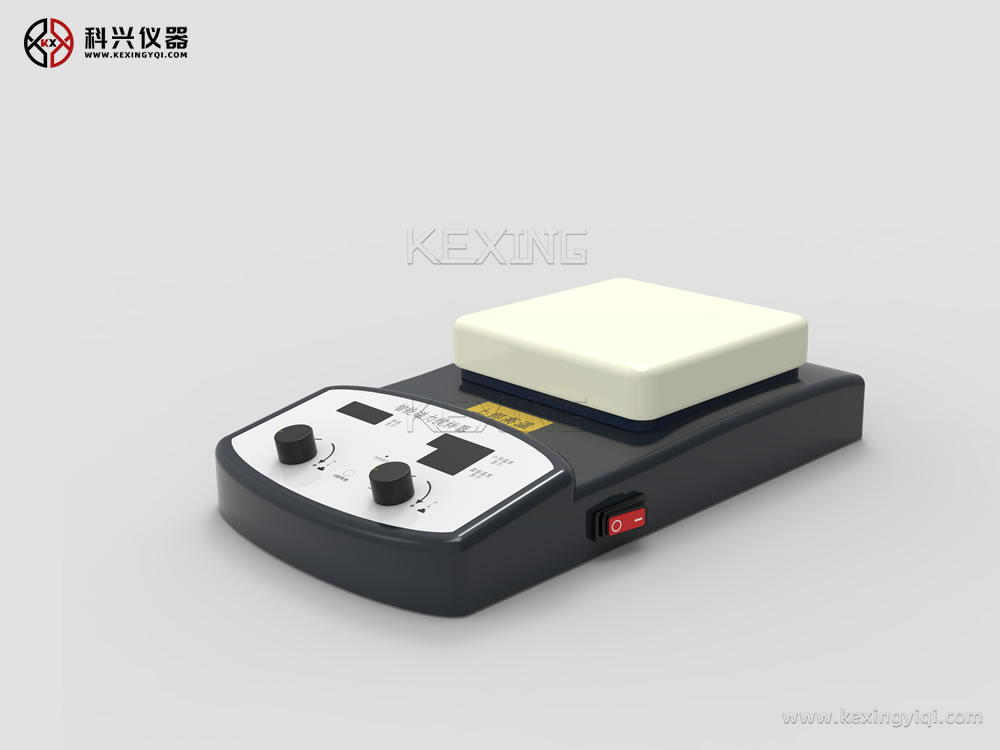

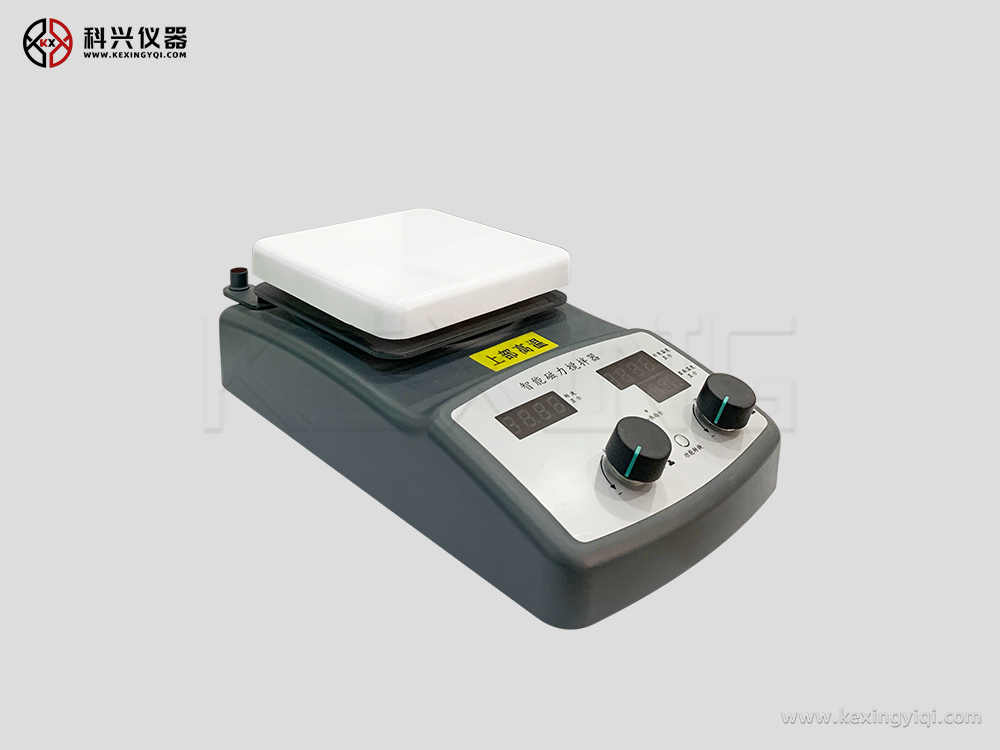

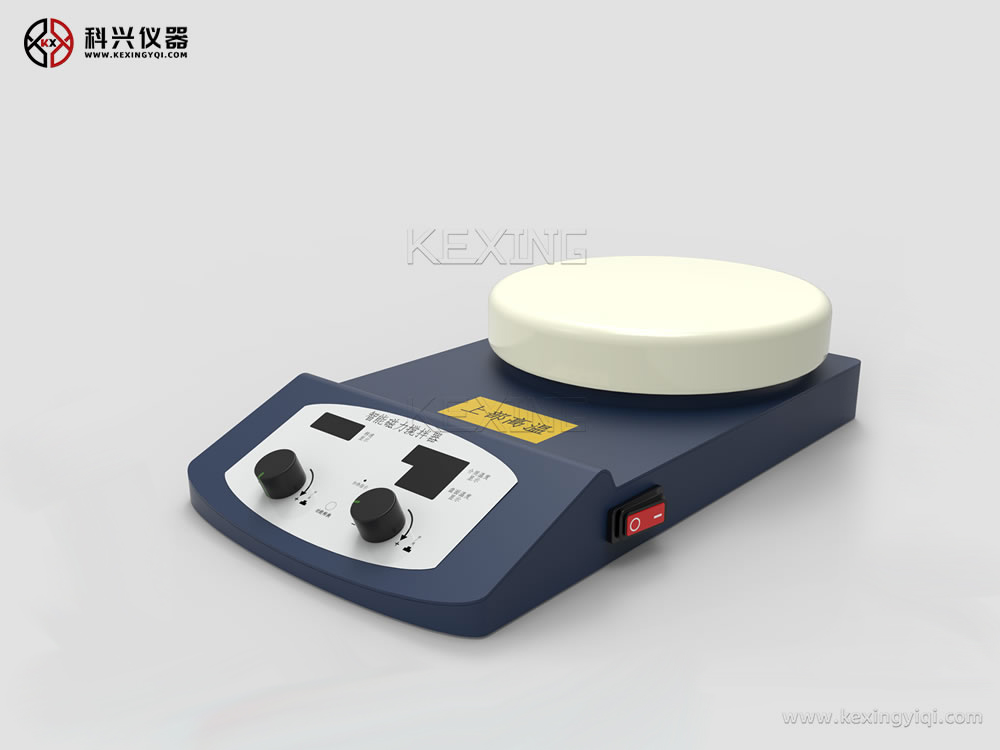

磁力搅拌器(旋钮方形)

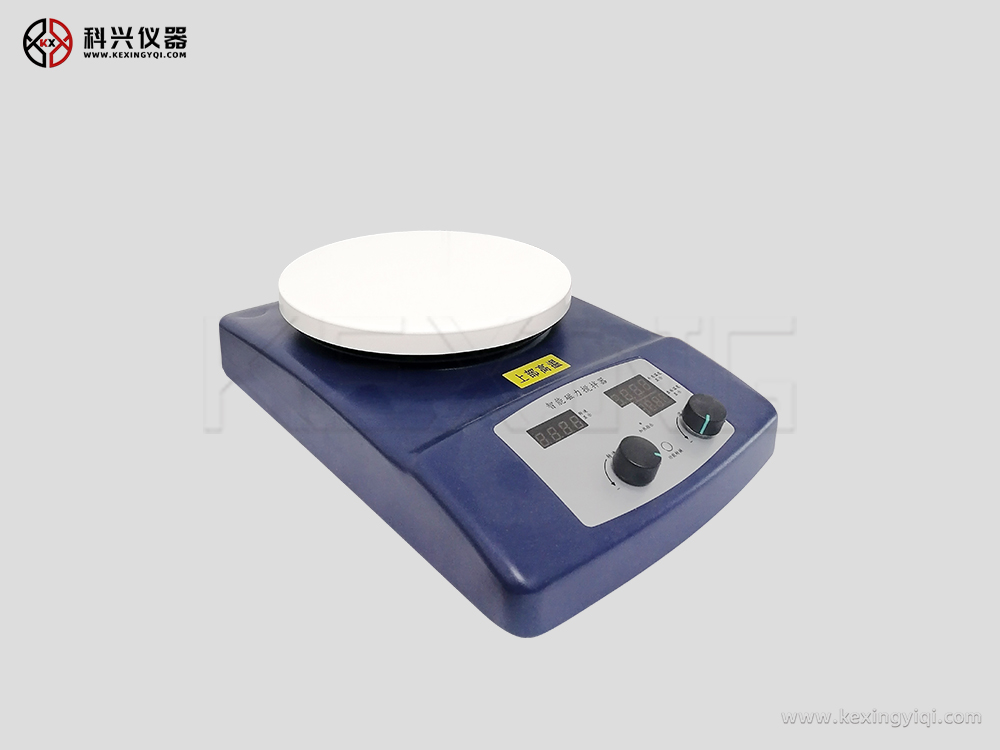

磁力搅拌器(旋钮圆形)

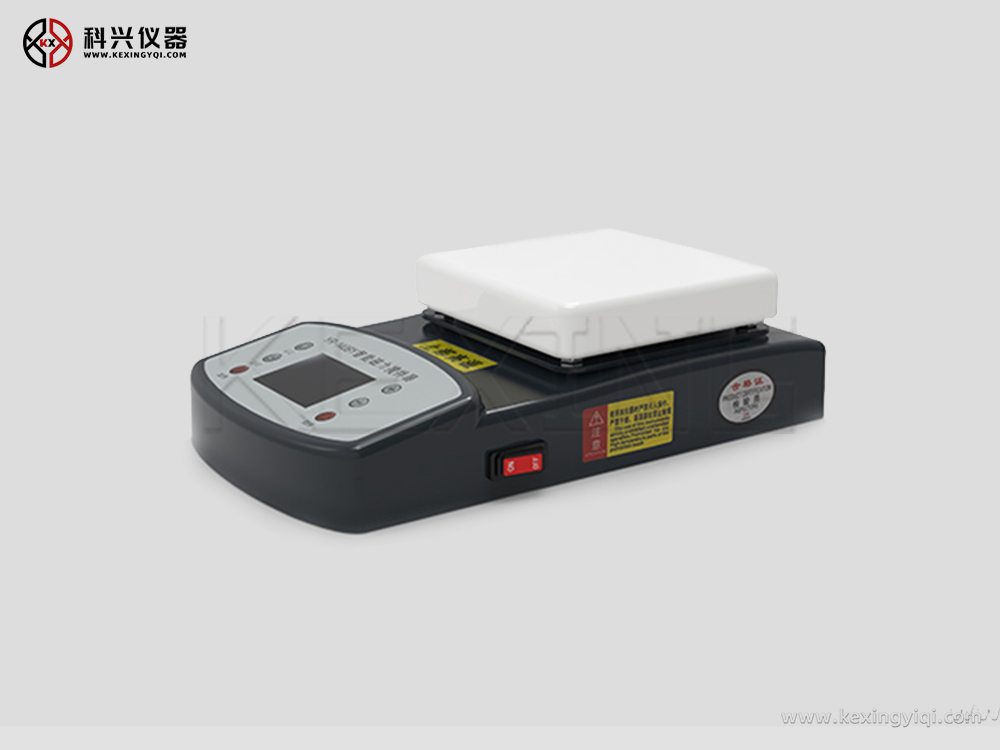

磁力搅拌器(旋钮方形)
磁力搅拌器(旋钮圆形)

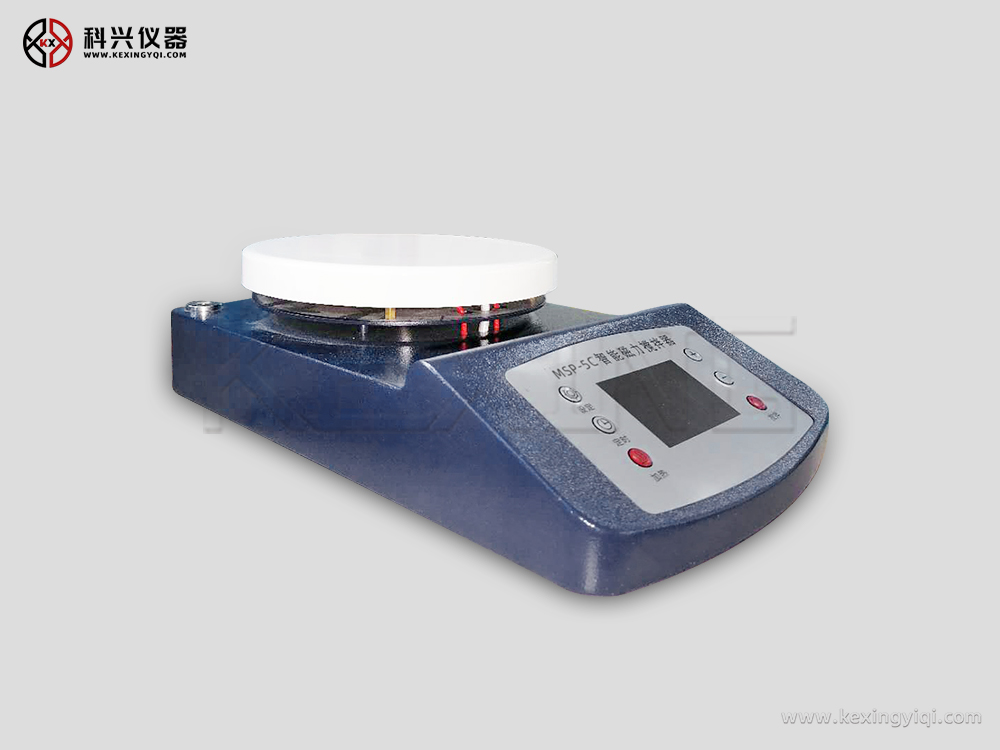

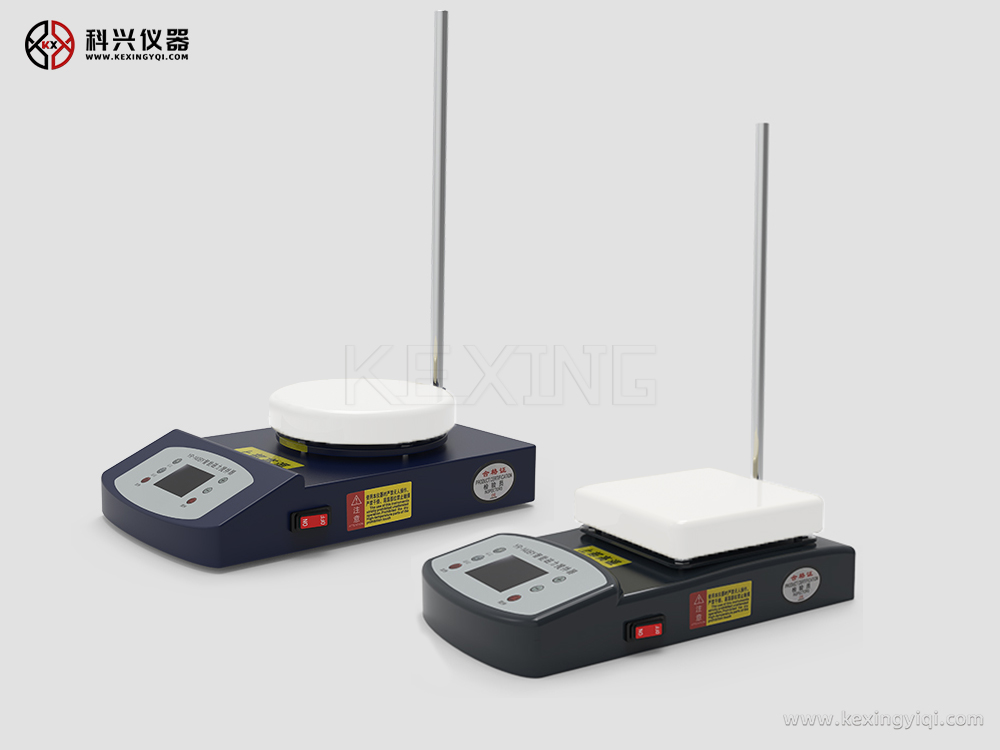

磁力搅拌器(按键圆形)

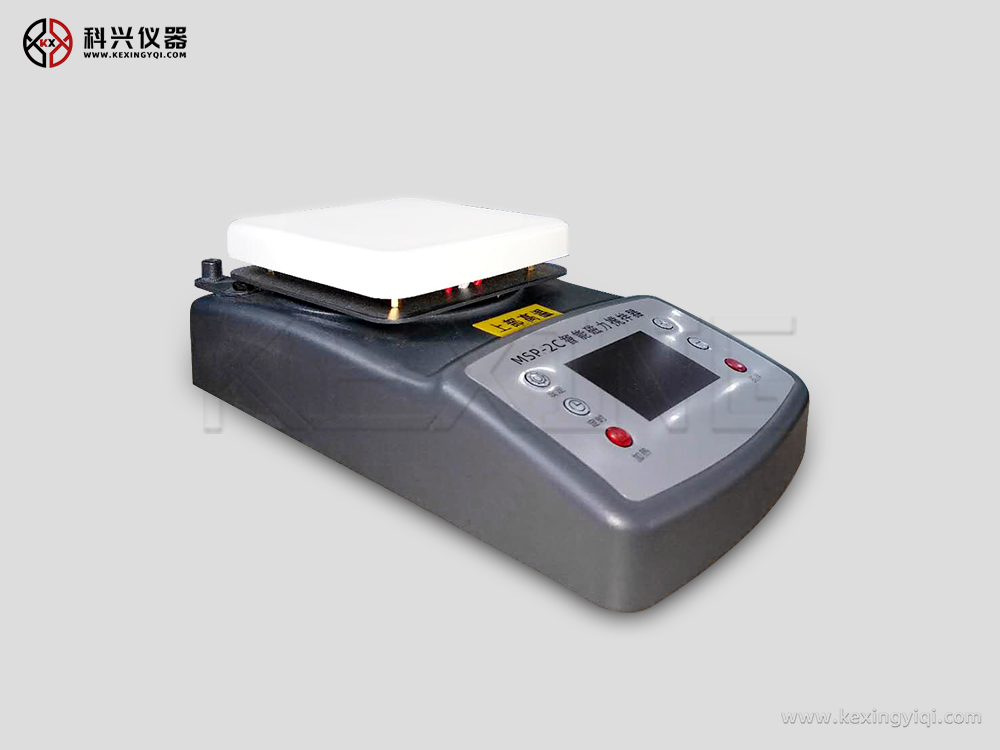

磁力搅拌器(按键方形)

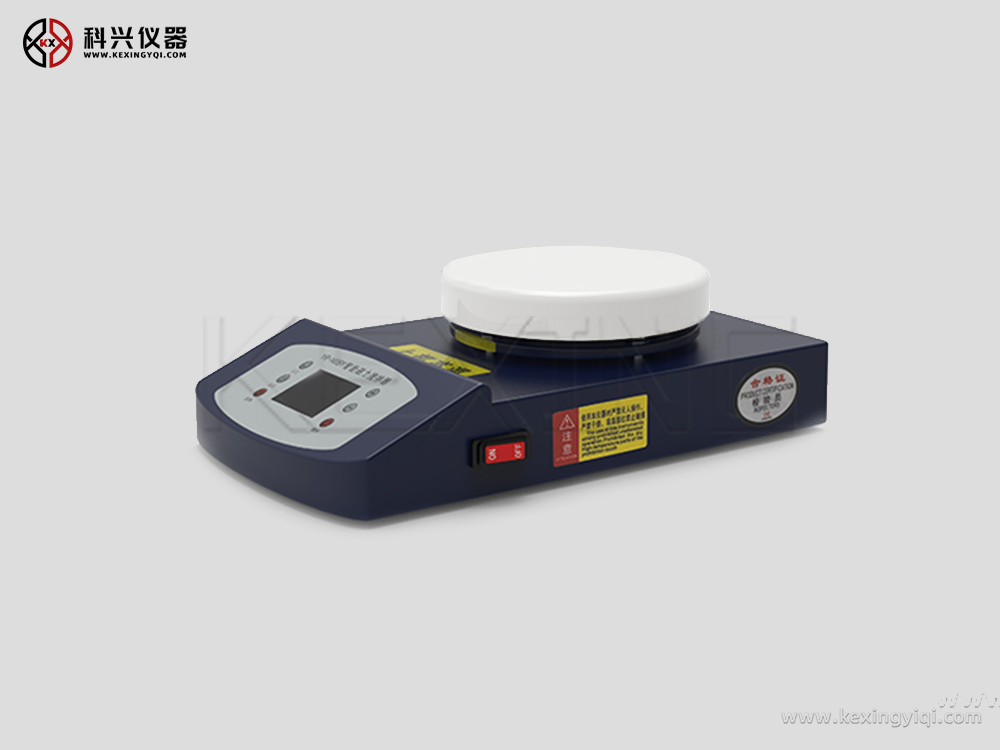

磁力搅拌器(按键圆形)
磁力搅拌器(按键方形)

Technical Parameter

型号MSP-2CMSP-5CMSP-10CMSP-2EMSP-5EMSP-10E
显示LCD数字显示LED显示
操作按键操作旋钮操作
电源AC220V220v/50HzAC220V±10% 50/60Hz
加热盘工作面积140*140mm圆盘直径180mm圆盘直径230mm140*140mm圆盘直径180mm圆盘直径230mm
加热功率400W650W900W400W650W900W
加热温度表面温度可达340度,自带超温保护功能表面温度可达340度,自带超温保护功能
控温精度±0.5℃ 0.1℃显示±0.5℃ 0.1℃显示
调速范围60-1800转/分  数字显示,按键调节60-1800转/分
时间设定范围0-9999,数字显示,计时误差<1%0-9999,数字显示,计时误差<1%
电机功率40W40W
外形尺寸300*170*100mm350*210*105mm400*260*100mm300*170*100mm350*210*105mm400*260*100mm
炉丝Cr20Ni80Cr20Ni80
工作时间连续连续
主机重量2.7kg2.7kg
最大搅拌量2L(H₂O)5L(H₂O)10L(H₂O)2L(H₂O)5L(H₂O)10L(H₂O)
控温范围室温~300℃室温~300℃
搅拌转速50~1500r/min50~1500r/min
控速精度±5r/min±5r/min
定时范围1~999min1~999min
输入输出编码器输入 编码器输入 1路速度显示 2路温度显示
测温分辨力0.1℃0.1℃
