智能磁力搅拌器(加热锅式)

Intelligent magnetic stirrer (heating pot type)

ShanghaiKexingInstrumentsuppliesandsellstheMSBseriesheatingpottypeintelligentmagneticstirrer,whichhasmultiplefaultrecognitionanddetectionfunctions,highsafety,anddualswitchcontrolforheatingandstirring.

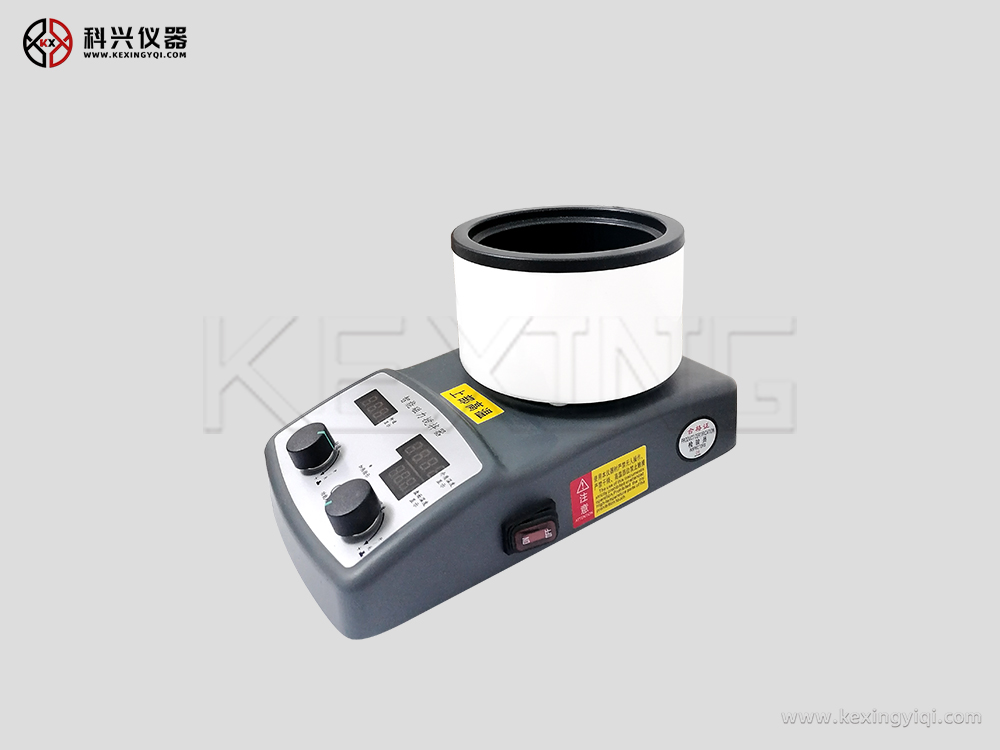

智能磁力搅拌器旋钮型加热锅式
智能磁力搅拌器按键型加热锅式
智能磁力搅拌器旋钮型加热锅式
Factory direct sales
Quality Assurance
Worry free delivery
After sales guarantee
Sales hotline

400-880-7108

Product Introduction

1. Multiple fault identification and detection functions, adopting active protection technology, high safety, effectively preventing accidents from occurring.

2. The temperature of the heating plate (internal sensor temperature), the temperature of the heated medium (external sensor temperature), the set temperature, and the actual speed are all displayed intuitively, which is convenient and safe.

3. It has the functions of timing, timing, heating plate and temperature control switching of the heated medium.

4. The integrated speed adjustment button adopts intelligent algorithms. If the rotation is fast, the number increases faster. If the scale needs to be fine tuned, it can be slowly rotated and has anti misoperation settings.

5. Adopting a DC motor with low noise, constant speed, high speed control accuracy, and program forward and backward stirring function can greatly improve the stirring effect.

Heating and stirring can be controlled separately.

7. Protection functions: anti burn dry, sensor placement error, thyristor breakdown, leakage protection, overcurrent protection, etc.   加热锅式智能磁力搅拌器

加热锅式智能磁力搅拌器产品细节
加热锅式智能磁力搅拌器应用领域

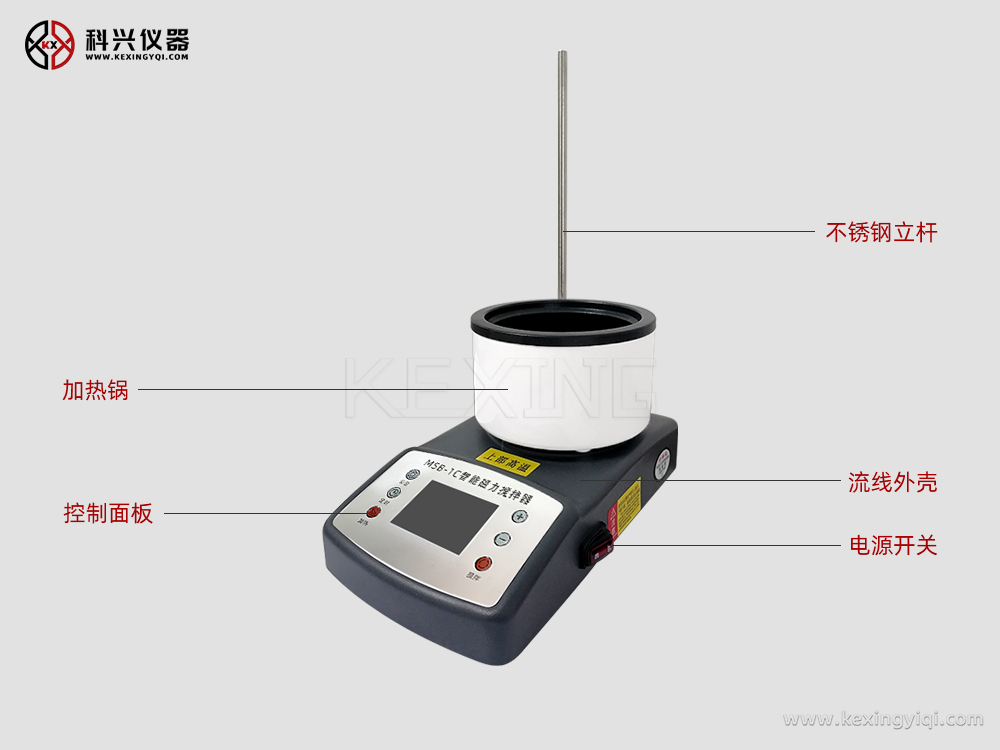

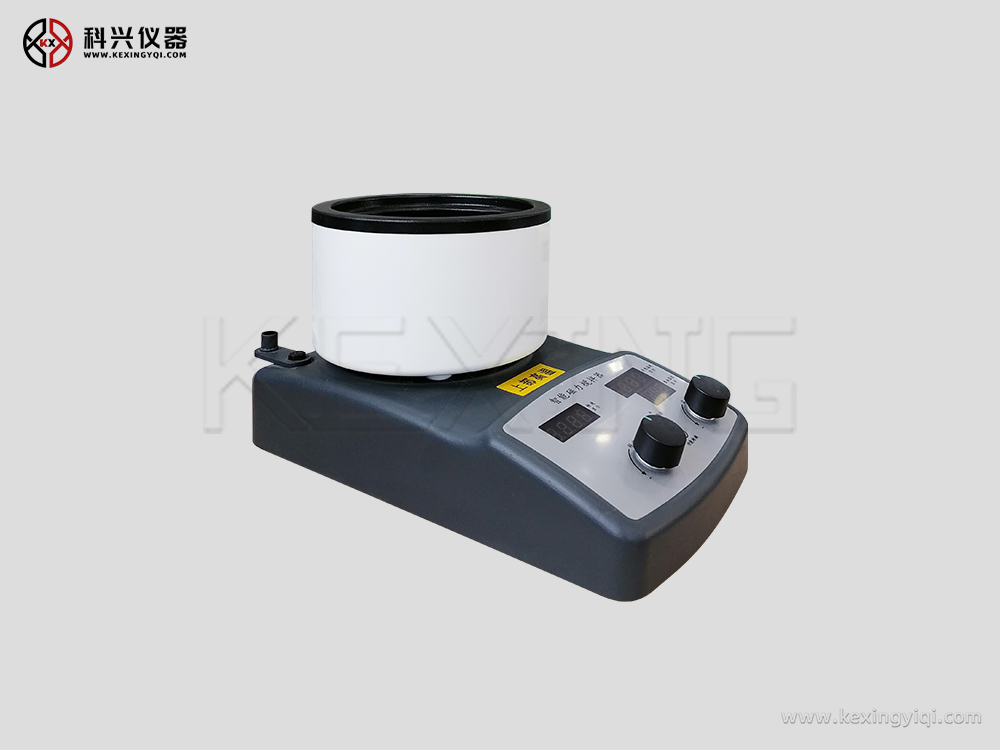

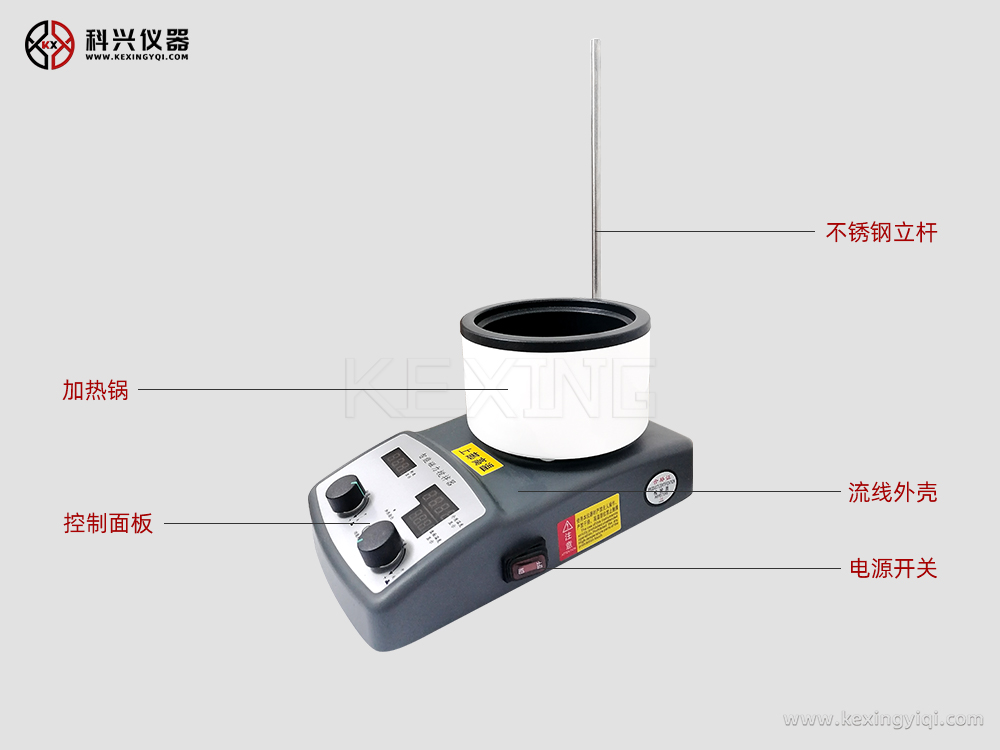

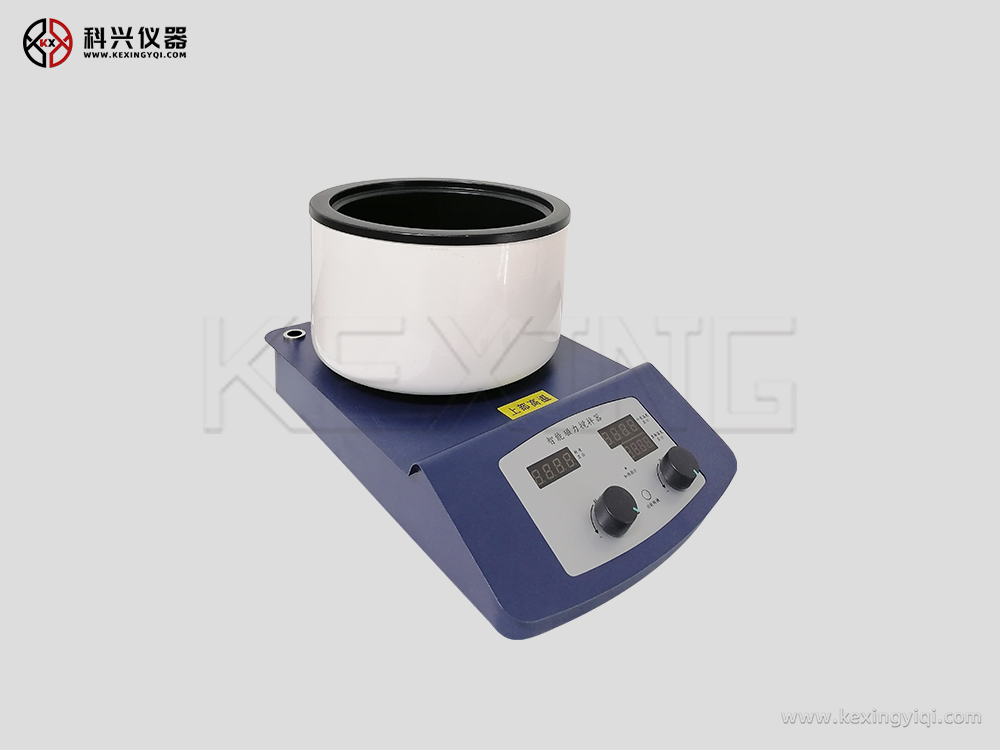

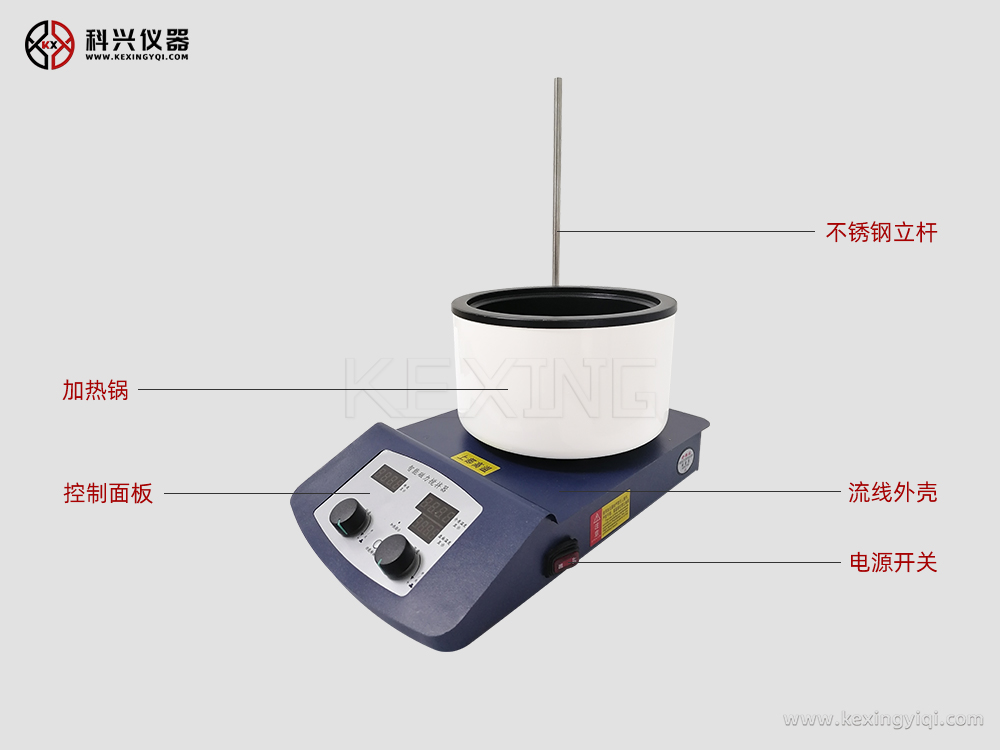

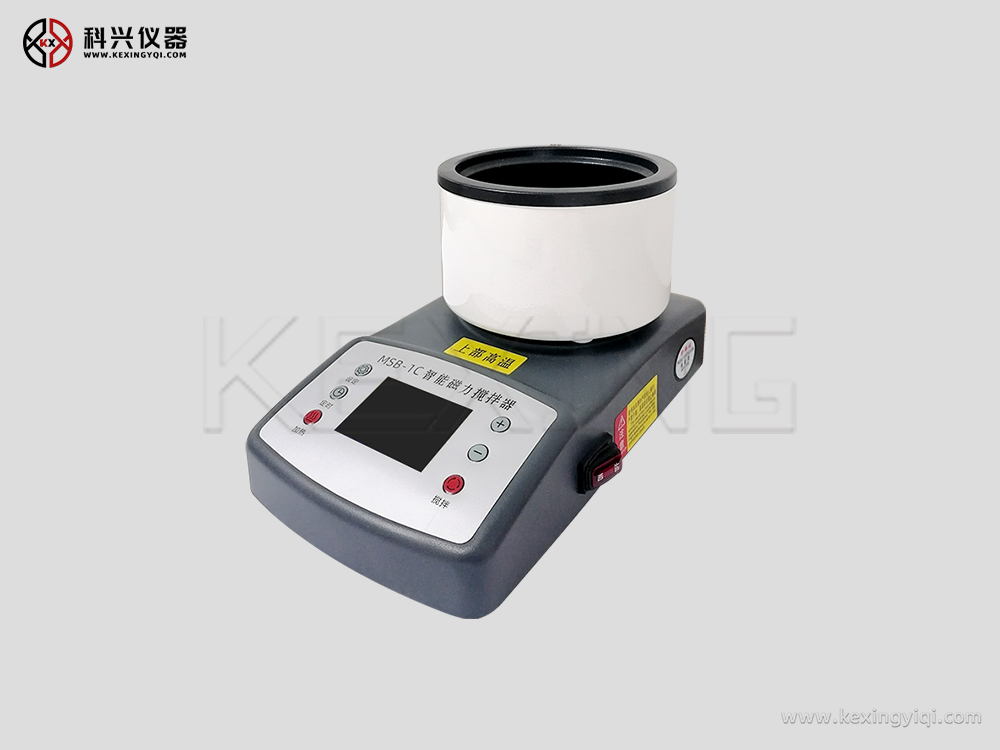

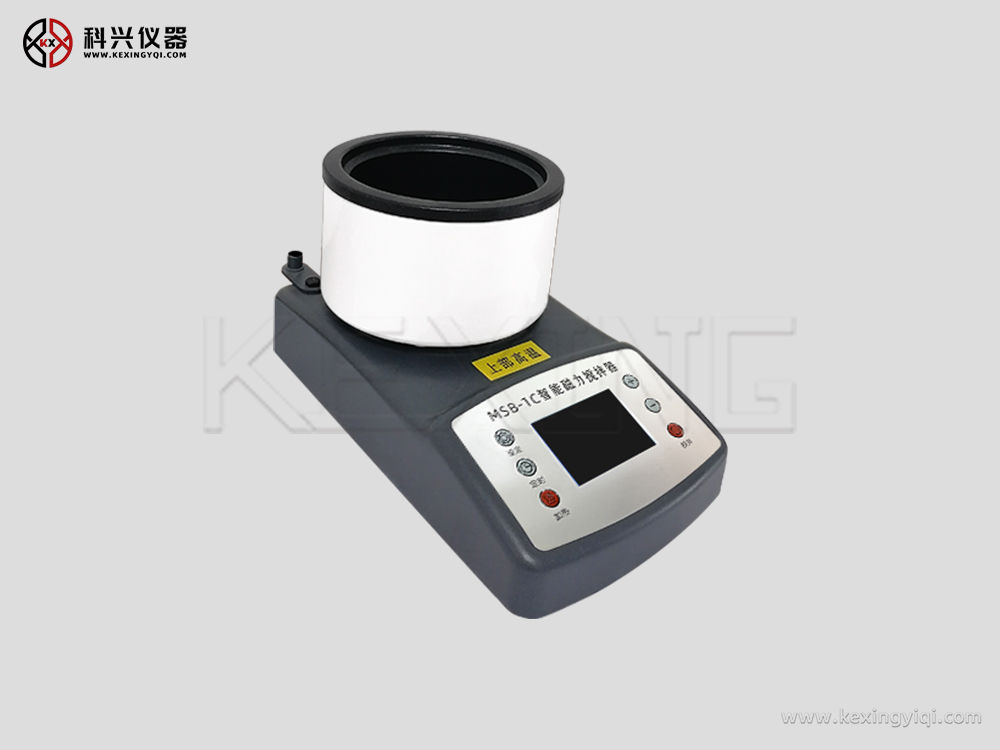

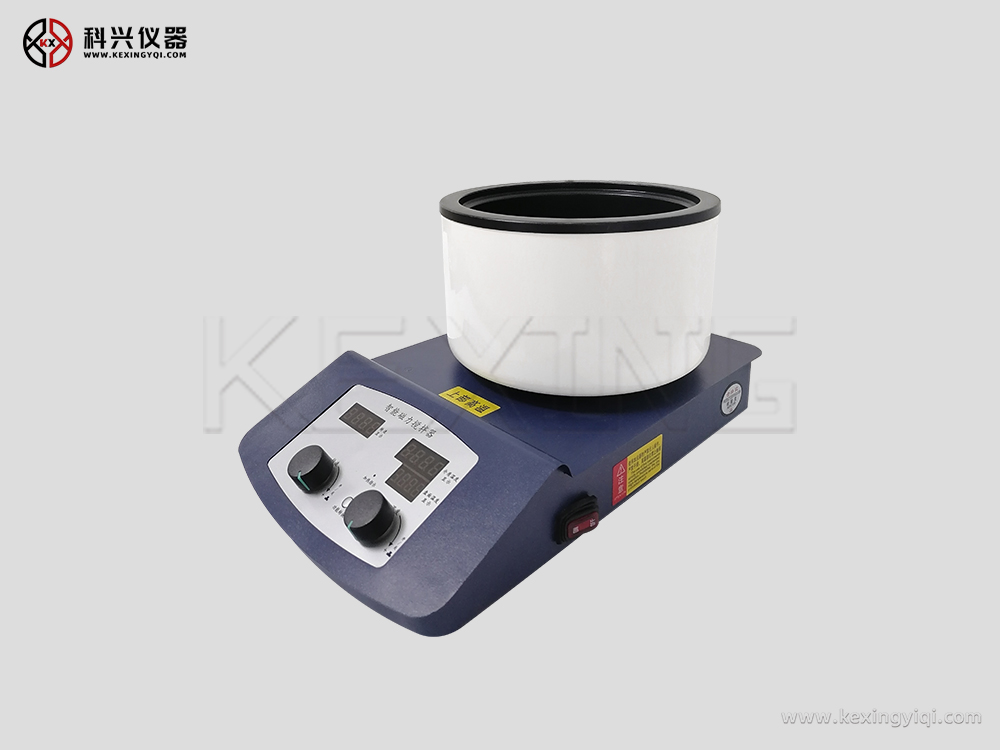

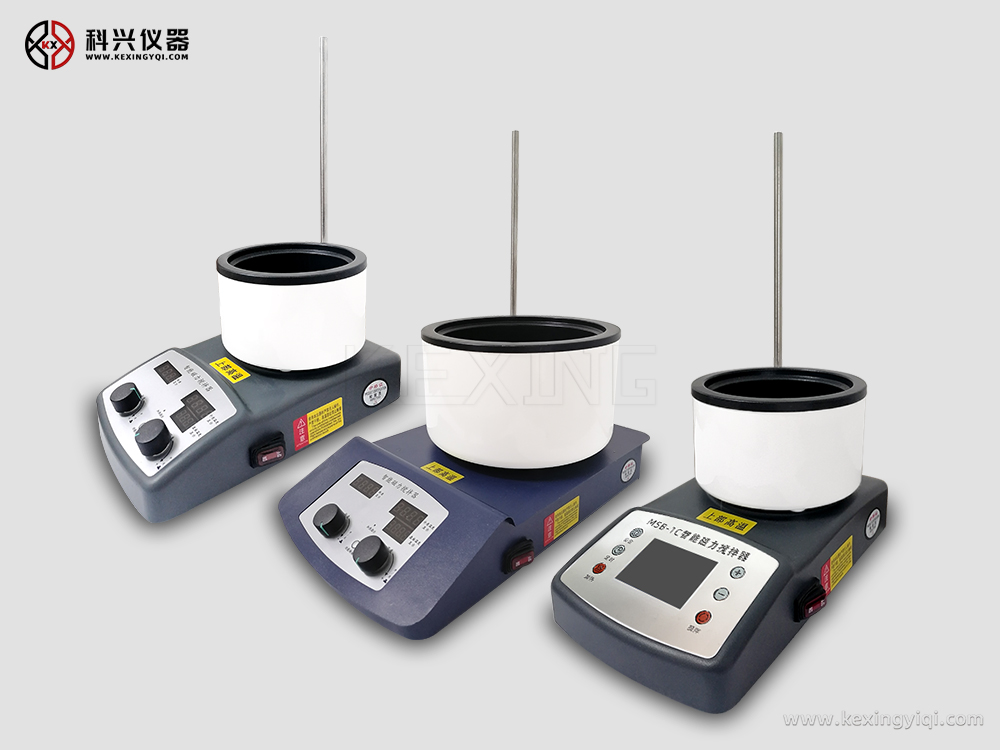

Product Display

智能磁力搅拌器按键加热锅式
智能磁力搅拌器按键加热锅式<
智能磁力搅拌器旋钮加热锅式
智能磁力搅拌器旋钮加热锅式
智能磁力搅拌器旋钮加热锅式
智能磁力搅拌器旋钮加热锅式

Technical Parameter

                型号                MSB-1C                MSB-3C                MSB-5C                MSB-1E                MSB-3E                MSB-5E
                显示                LCD数字显示                LED数字显示
                操作                按键操作                旋钮操作
                电源                AC220V&plusmn;10% 50/60Hz                AC220V&plusmn;10% 50/60Hz
                加热锅尺寸                135*70mm                190*105mm                240*140mm                135*70mm                190*105mm                240*140mm
                加热功率                400w                650W                900W                400W                650w                900W
                加热温度                溶液温度水、油 室温~260℃,自带超温保护功能                溶液温度水、油 室温~260℃,自带超温保护功能
                控温精度                0.5℃,0.1℃显示                0.5℃,0.1℃显示
                调速范围                60-1800转/分   数字显示                60-1800转/分   数字显示
                时间设定范围                0-9999分,数字显示,计时误差<1%                0-9999分,数字显示,计时误差<1%
                电机功率                40W                40W
                外形尺寸                300*170*170mm                400*240*205mm                400*260*245mm                300*170*170mm                400*240*205mm                400*260*245mm
                炉丝                Cr20Ni80                Cr20Ni80
                工作时间                连续                连续
                搅拌转速                50~1500r/min                50~1500r/min
                控速精度                &plusmn;5r/min                &plusmn;5r/min
                控温范围                室温~300℃                室温~300℃
                测温分辨力                0.1℃                0.1℃
                主机重量                2.7kg                2.7kg
                输入输出                编码器输入                编码器输入  1路速度显示  2路温度显示
