智能磁力搅拌器电热套

Intelligent magnetic stirrer (electric heating sleeve)

MSJIntelligentMagneticStirrer/HotPlateadoptsaheatingmantledesign,featuringalargeanduniformheatingsurfacewithrapidtemperaturerise.TheLCDscreendisplaysreal-timespeed,temperature,andtimerConstructedwith

MSJ智能磁力搅拌器电热套
MSJ智能磁力搅拌器电热套
MSJ智能磁力搅拌器电热套
Factory direct sales
Quality Assurance
Worry free delivery
After sales guarantee
Sales hotline

400-880-7108

Product Introduction

1. Using an electric heating sleeve for heating, it has the characteristics of large heating area, uniform heating, and fast temperature rise, with a temperature of up to 380 ℃.

2. Heating and stirring can be performed on 50-10000ml standard or non-standard reaction bottles.

3. Adopting the German PAPST series DC brushless motor, it has stable performance, low noise, long service life, and no spark generation.

4. The shell adopts a one-time flame retardant reinforced PBT injection molded shell, which is heat-resistant, corrosion-resistant, and has good insulation performance.

5.The 30 degree inclined control panel is suitable for both sitting and standing perspectives.


Product Display

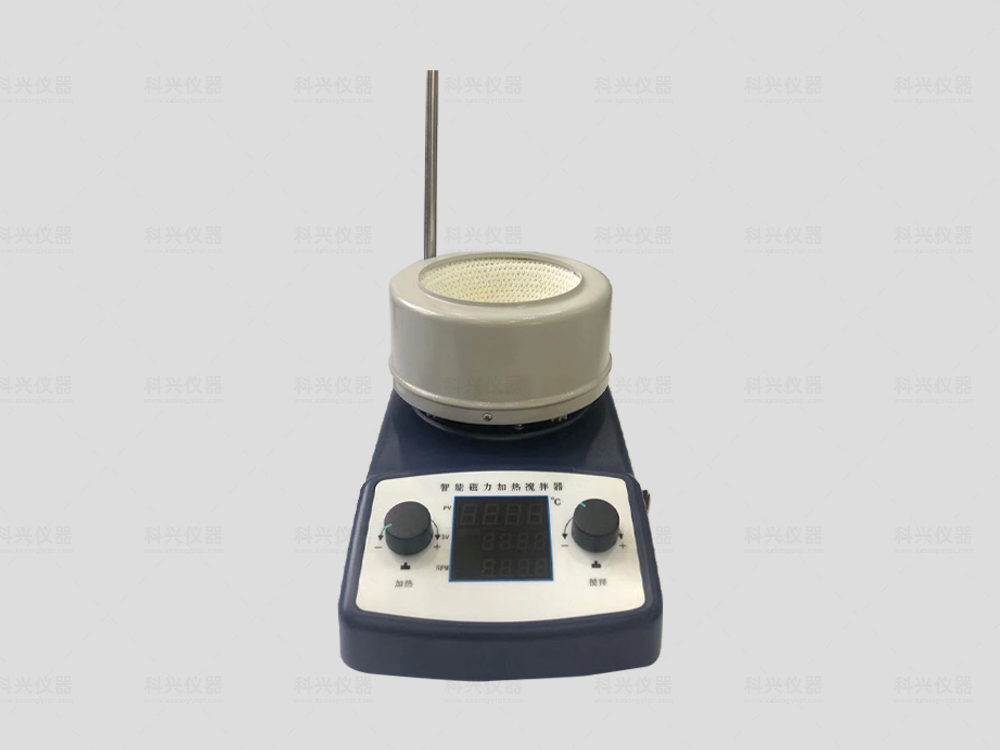

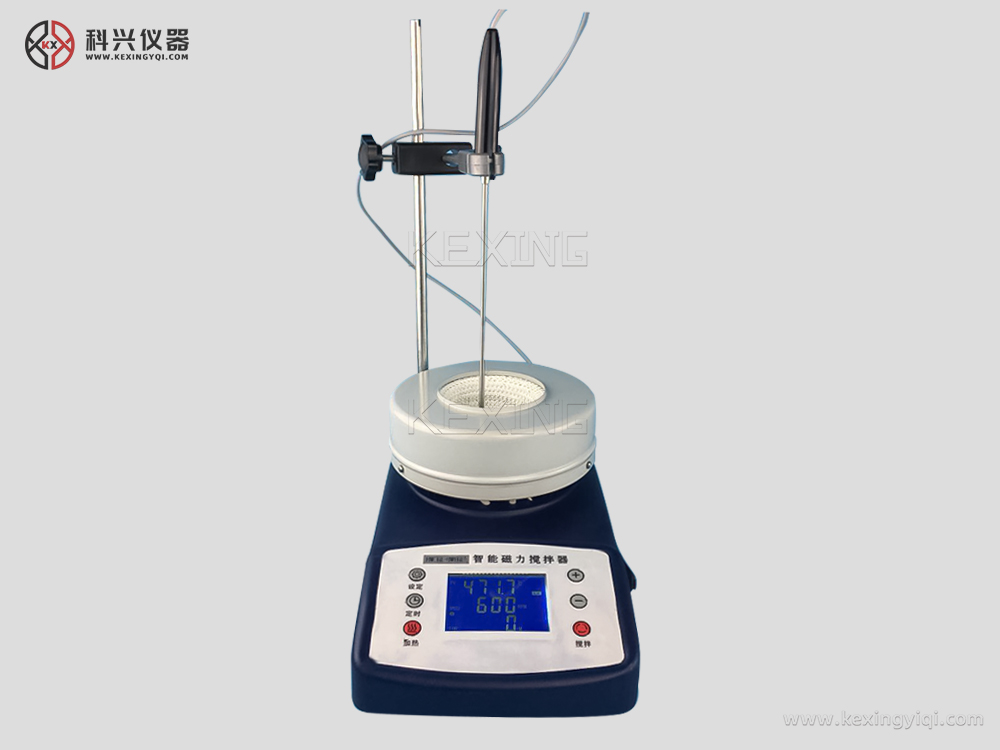

MSJ智能磁力搅拌器按键型正面图

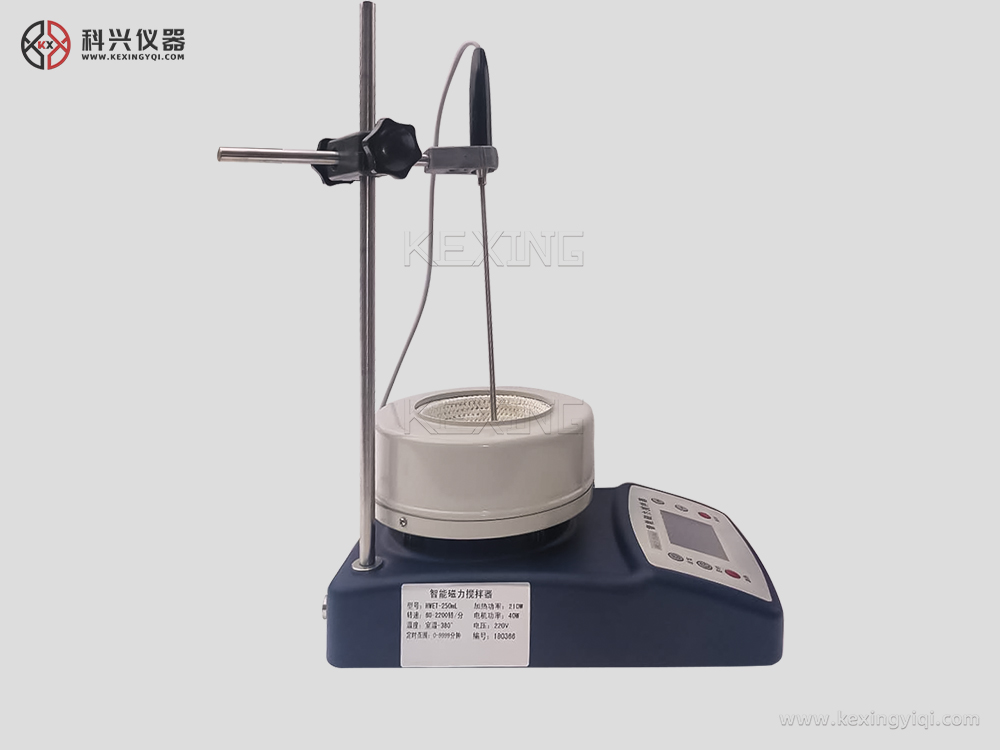

MSJ智能磁力搅拌器按键型侧面图

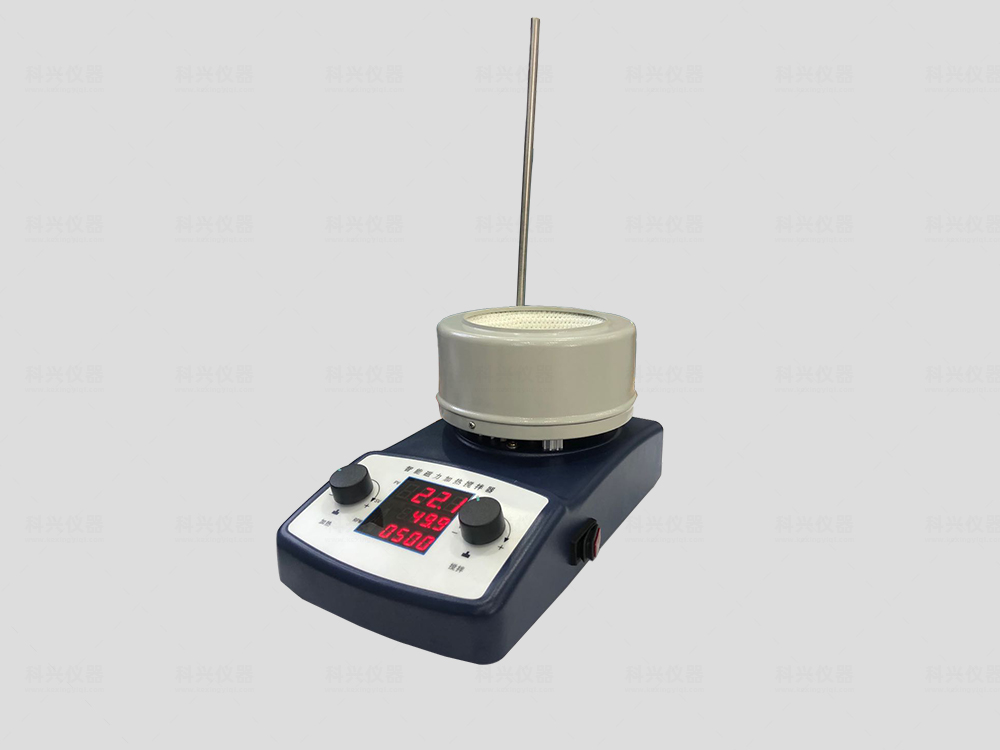

MSJ智能磁力搅拌器旋钮型正面图
MSJ智能磁力搅拌器旋钮型侧面图


Technical Parameter

搅拌容量50-100ml25050010002000300050001000020000
型号MSJ-CMSJ-E
电源200V/50HZ
加热功率110W-2700W
加热温度表面温度可达380℃,自带超温保护功能
控温精度±0.2℃,0.1℃显示
调速范围60-2300转/分,数字显示,按键调节60-2500转/分,数字显示
时间设定范围0-9999分,数字显示,计时误差<1%无定时
电机功率电机8W,DC14V电机40W,DC14-24V
水沸腾8-15分钟8-20分钟
外形尺寸300*170*160mm
炉丝Cr20Ni80
绝缘层无碱玻璃纤维,可耐温450度
绝缘系数相对温度≤35%时≥500兆
保温层硅酸铝棉保温
工作时间连续
