Product Introduction
The KGYF-A desktop high-pressure reactor is a simple high-pressure reactor produced according to the functional characteristics of the high-pressure reactor according to customer needs. It is heated at the bottom and stirred by magnetic stirring at the bottom. It is made of stainless steel material, displayed on a LCD panel, and can be configured with a computer communication terminal. The volume size can be customized according to customer needs.

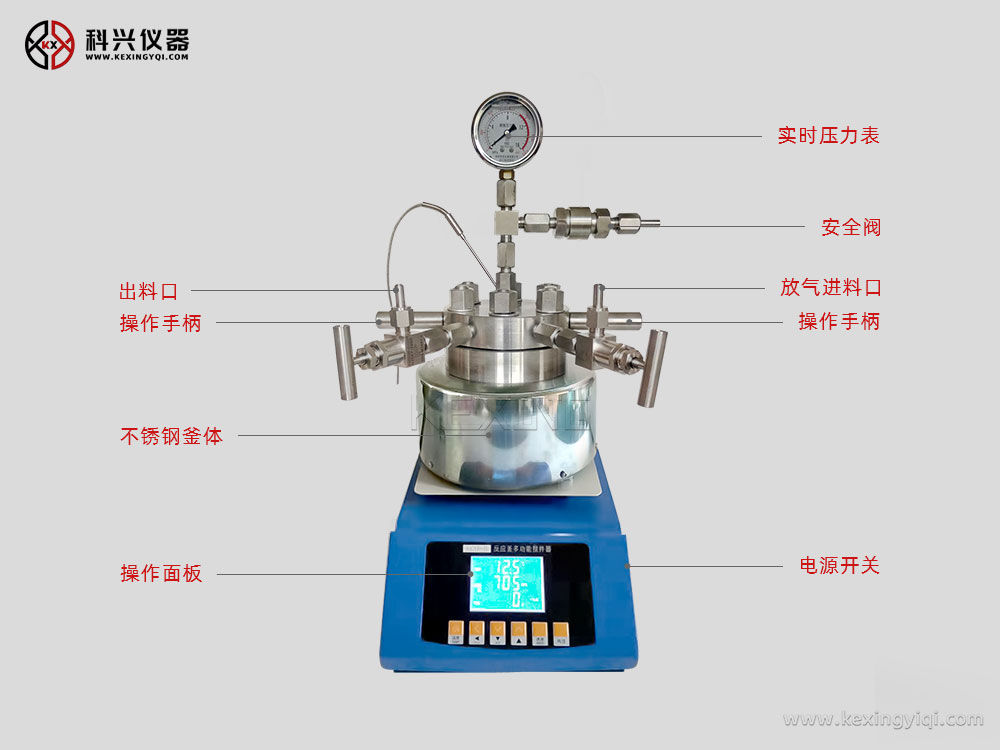

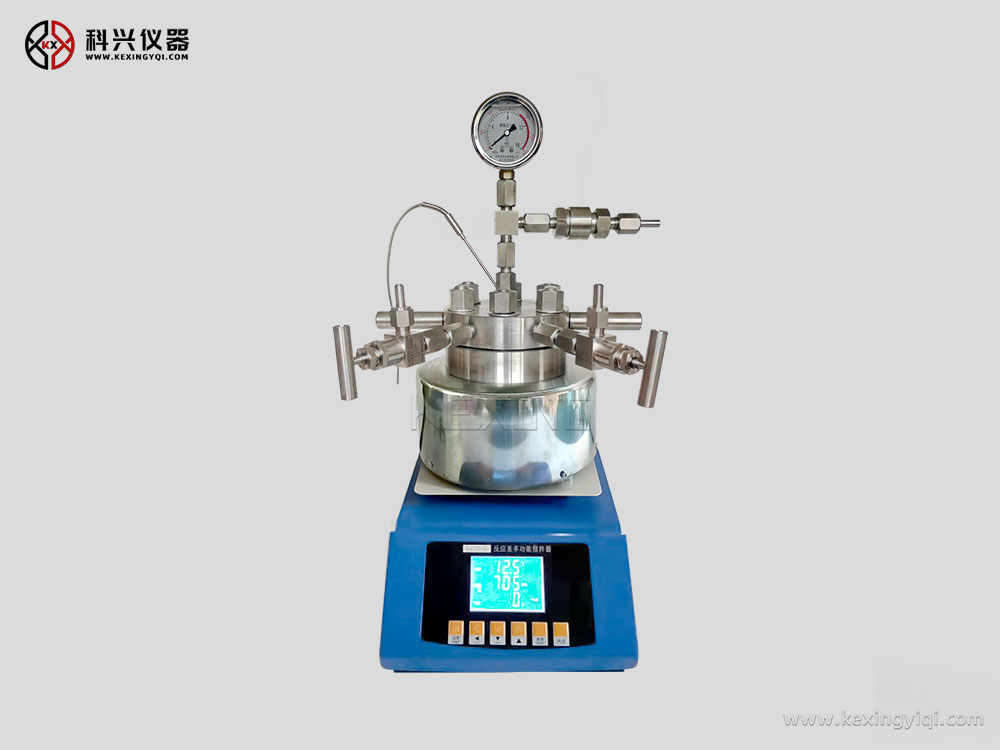

Product Display
Technical Parameter
| 型号 | KGYF-A | |||
| 搅拌方式 | 底部磁力搅拌 | |||
| 加热方式 | 电热套加热 | |||
| 电机功率 | 20w | |||
| 控温精度 | <0.3% | |||
| 设计温度(℃) | 200℃ | |||
设计压力(Mpa) | 0-22Mpa | |||
| 电源电压 | 220VAV±10% | |||
| 环境温度 | 0-50℃ | |||
| 传感器类型 | K型热电偶 | |||
| 容积(ml) | 50 | 100 | 250 | 500 |
| 转速范围 | 0-2000rpm | |||
| 加热功率(Kw) | 0.6 | 0.6 | 0.8 | 1.5 |
| 结构材质 | 不锈钢304、316 | |||
