Product Introduction
The small spray dryer is mainly suitable for universities, research institutes and laboratories of food, medicine and chemical enterprises to produce micro particle powders. It has broad spectrum applicability to all solutions such as emulsion and suspension, and is suitable for drying heat sensitive substances such as biological products, biological pesticides, enzymes, etc. Because the sprayed materials are only exposed to high temperature when sprayed into aerosol particles, they are only heated instantaneously, which can keep the active ingredients of these active materials intact after drying.

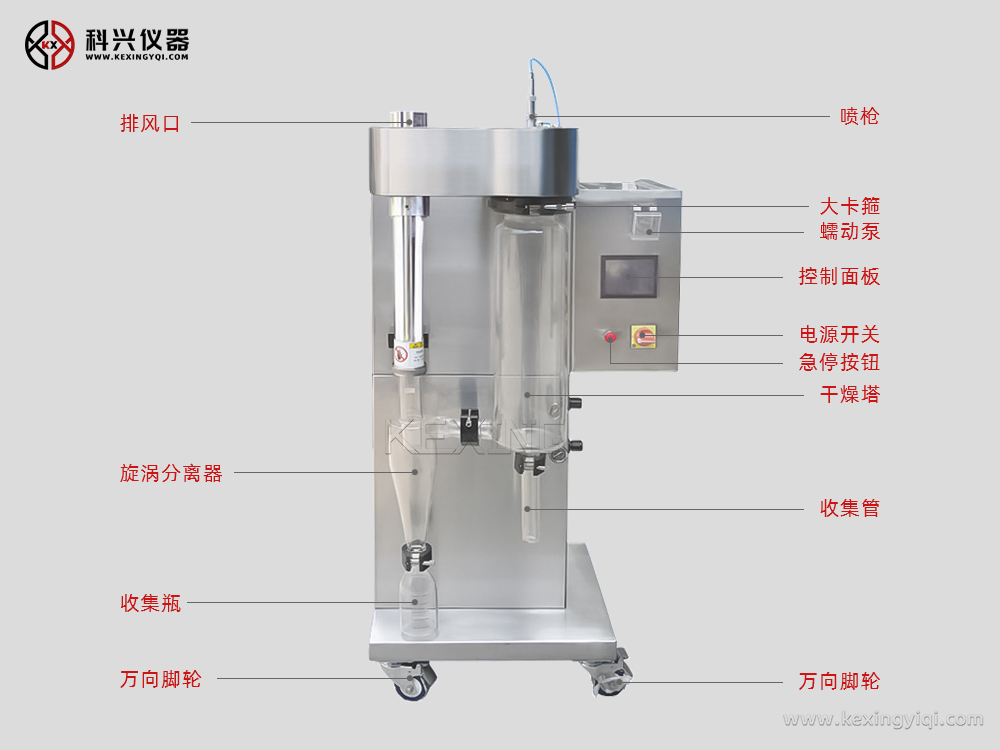

Product Display
Technical Parameter
| 型号 | 小型喷雾干燥机 | ||||
| 进风温度控制 | 30℃~300℃ | ||||
| 出风温度控制 | 30℃~140℃ | ||||
| 蒸发水量 | 1500mL/H~2000mL/H | ||||
| 进料量范围 | 50mL-蠕动泵可调大为2000ml/h | ||||
| 控温方式 | 实时调控PID；全自动控制与手动控制双重控制模式，整个实验过程彩色触摸屏动态显示 | ||||
| 控温精度 | ±1℃ | ||||
| 干燥时间 | 1.0~1.5S | ||||
| 关机功能 | 关机时只需按停止键，机器除风机外立即停止运行，保证设备不会因为误操作（强行关风机）而导致加热部分烧坏 | ||||
| 触摸屏参数显示 | 进风口温度/出风口温度/蠕动泵转速/风量/通针频率 | ||||
| 喷嘴口径 | 0.5mm/0.7mm/0.75mm/1.0mm/1.5mm/2.0mm可选，并可根据要求定制 | ||||
| 整机功率 | 3KW/220V | ||||
| 设备尺寸 | 1200mm(高)×650mm(长)×500mm(宽) | ||||
| 喷咀清洁器 | （通针）在喷咀被堵塞时，会自动清除，通针的频率可自动调整 | ||||
| 材质 |
整机全不锈钢制作；二流体喷雾的雾化结构，喷雾、烘干及收集系统采用透明的优质高硼硅耐热玻璃材料制造 | ||||
| 空压机 | 内置进口全无油空压机，喷粉的颗径呈正态分布，流动性好，而且噪音非常低，符合国家实验室噪音标准 | ||||
| 吹扫 | 塔壁吹扫装置，物料得率更高 | ||||
| 配件 | 玻璃干燥室1个；玻璃旋风分离器1个；玻璃产品收集瓶1个；玻璃产品收集管1个；输料硅胶管（4mm）1米；罗口连接件（黑色）4个；雾化器，标准配置为0.75 mm，1个；鼓风机（可变频）1个；压缩机（随机附带）1 个；控制系统及机箱1个 | ||||
| 可升级成双级分离收集系统；喷雾头冷却装置（可选）；可直接升级成应用于有机溶剂物料干燥的氮气循环系统 | |||||
