Single layer glass reactor

Lowtemperaturecoolantcirculationpumpisalow-temperatureliquidcirculationequipmentthatadoptsmechanicalrefrigeration,andhasthefunctionofprovidinglow-temperatureliquidandlow-temperaturewaterbath.Thelargec

Factory direct sales
Quality Assurance
Worry free delivery
After sales guarantee
Sales hotline

400-880-7108

Product Introduction

Low temperature coolant circulation pump is a low-temperature liquid circulation equipment that adopts mechanical refrigeration, and has the function of providing low-temperature liquid and low-temperature water bath. Combining rotary evaporators, vacuum freeze-drying ovens, circulating water vacuum pumps, magnetic stirrers, and other instruments for multifunctional low-temperature chemical reaction operations and drug storage. Low temperature coolant circulation pump can be matched with various instruments (rotary evaporator, fermentation tank, chemical reaction kettle, freeze-drying equipment, biopharmaceutical reaction kettle, etc.); Large cooling capacity and fast cooling speed greatly improve work efficiency; The flow rate of the local circulation pump can be adjusted or customized to meet the actual needs of different users; All models of this machine can be reasonably matched between low temperature and cooling capacity, low temperature and container capacity according to user requirements.

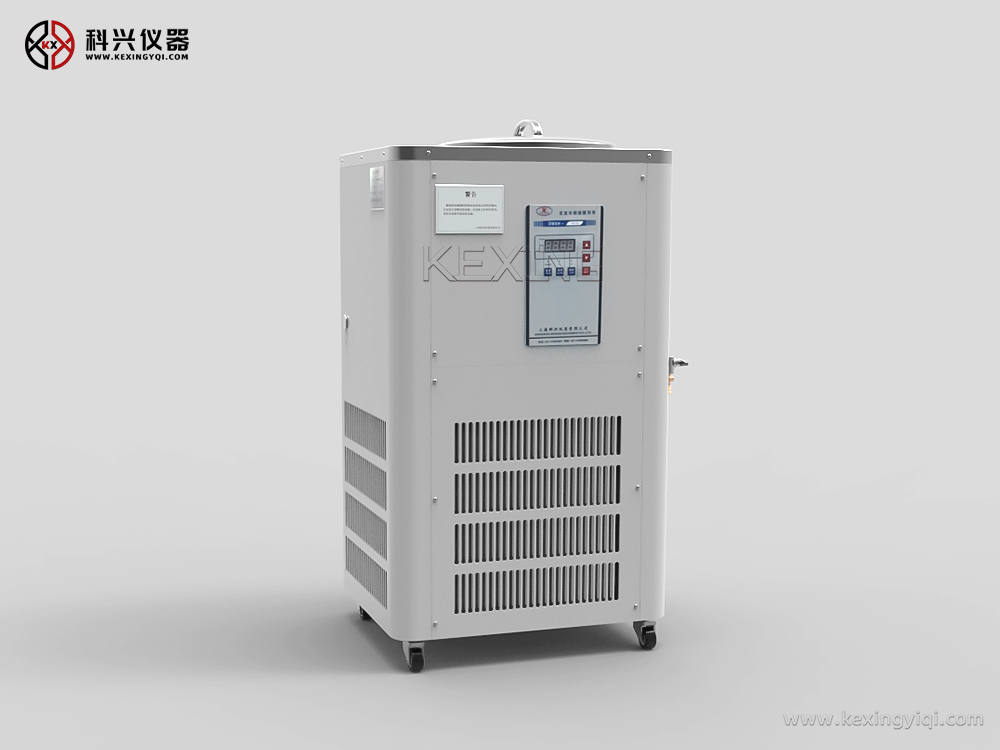

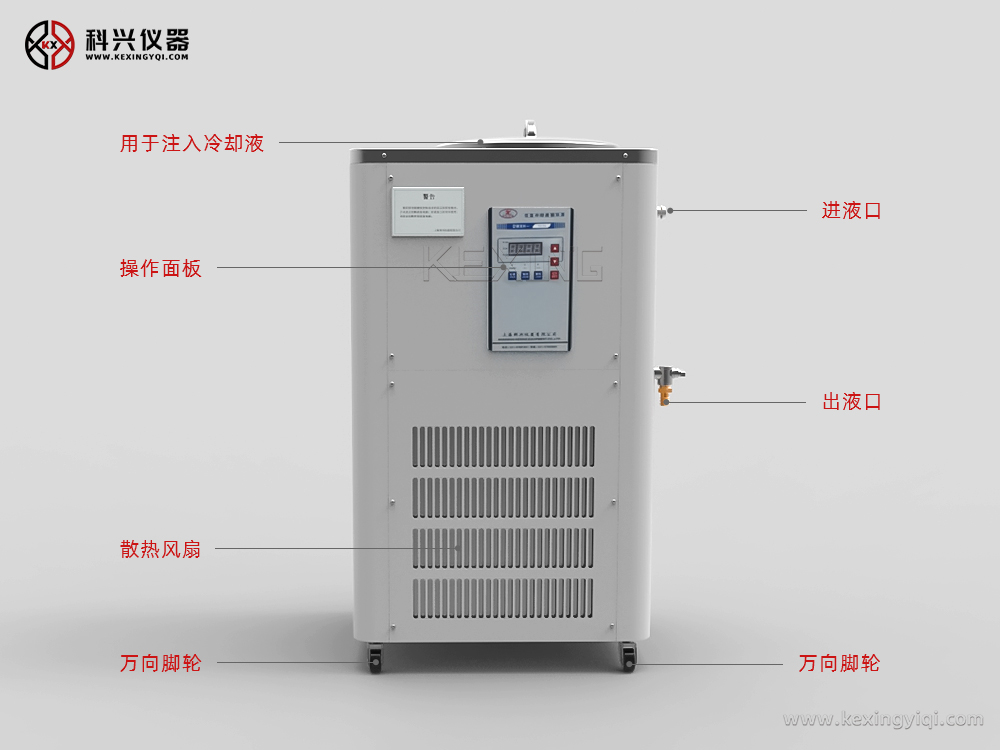

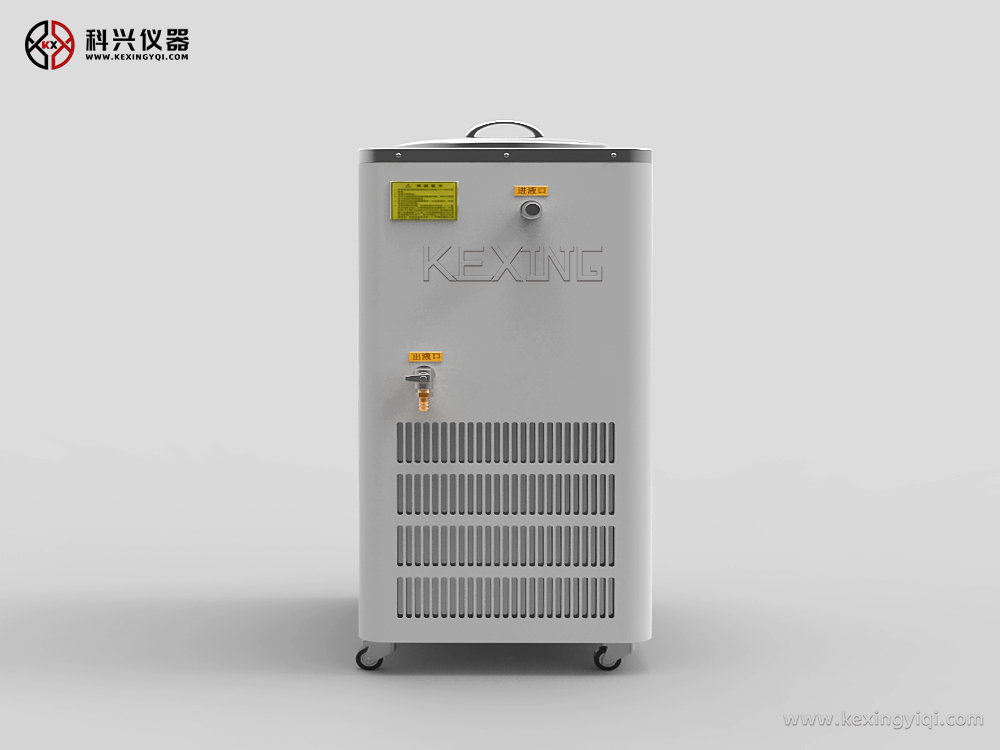

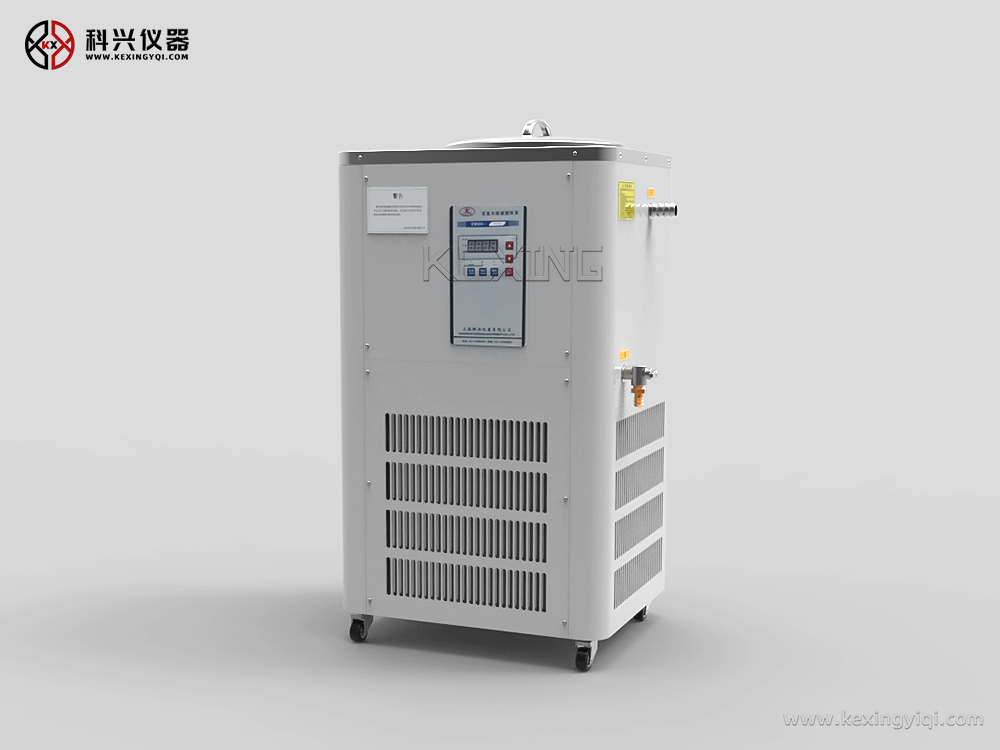

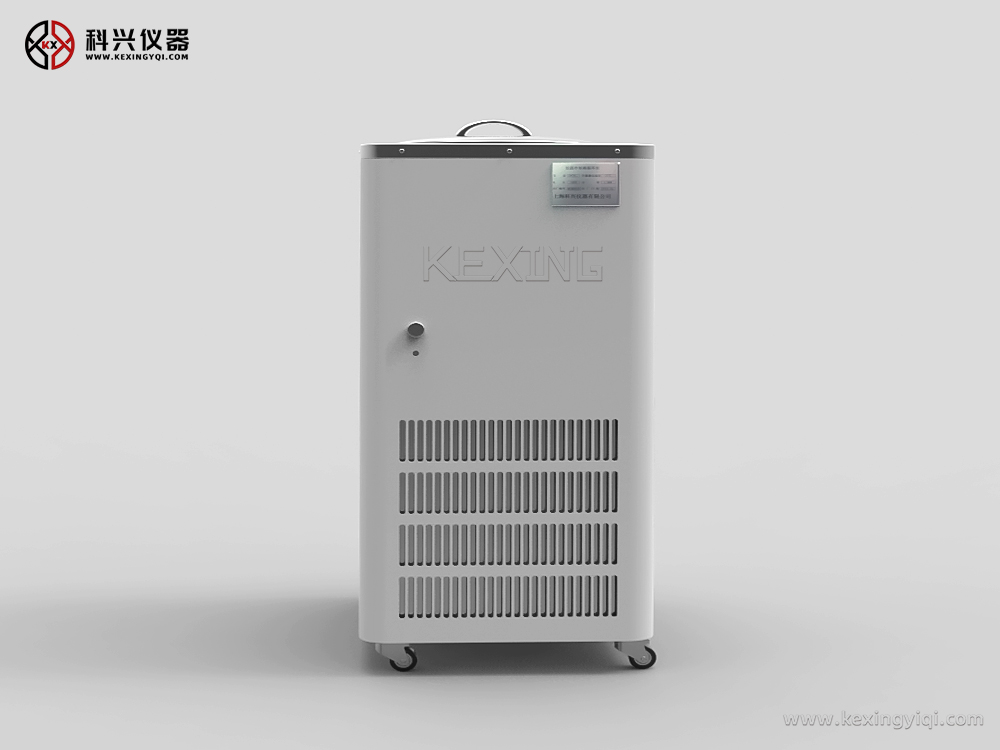

Product Display

Technical Parameter

DWXH-20 Low temperature coolant circulation pump
型号DWXH-5/20DWXH-10/20DWXH-20/20DWXH-30/20DWXH-50/20DWXH-100/20
储液槽容积5L(φ200*150)10L(φ200*250)20L(φ250*300)30L(φ300*350)50L(φ350*400)100L(φ450*500)
环境温度(℃)-20℃~室温(空载温度范围)
环境温度≤25℃
相对湿度≤60%
可放烧瓶容量2L2L5L10L10L10L
蒸发器紫铜管镀镍
冷凝器翅片式冷凝器
制冷剂R22
显示方式数字显示
温度显示储液槽温度
压缩机功率全封闭压缩机550W全封闭压缩机735W全封闭压缩机1100W全封闭压缩机1470W全封闭压缩机2572W全封闭压缩机3675W
额定制冷量1725W2300W3450W5000W8050W11500W
循环功率100W250W
循环进出口尺寸10mm10mm16mm16mm16mm16mm
循环流量20L/min(DN15)35L/min(DN15)
扬程7M20M
安全保护延时/过载/过热等保护
外壳材质冷板静电喷塑
外形尺寸370*490*750mm370*490*800mm440*520*870mm530*650*1050mm620*740*1200mm620*740*1300mm
额定总功率750W935W1300W1720W2872W4175W
要求客户提供电源220V/10A三孔插座一个
循环保温管硅胶管+保温层(2*2m)
阀门DN15/10mmDN15/16mm
DWXH-30 Low temperature coolant circulation pump
型号DWXH-5/30DWXH-10/30DWXH-20/30DWXH-30/30DWXH-50/30DWXH-100/30
储液槽容积5L(φ200*150)10L(φ200*250)20L(φ250*300)30L(φ300*350)50L(φ350*400)100L(φ450*500)
环境温度(℃)-30℃~室温(空载温度范围)
环境温度≤25℃
相对湿度≤60%
可放烧瓶容量2L2L5L10L10L10L
蒸发器紫铜管镀镍
冷凝器翅片式冷凝器
制冷剂R22
显示方式数字显示
温度显示储液槽温度
压缩机功率全封闭压缩机650W全封闭压缩机835W全封闭压缩机1200W全封闭压缩机1670W全封闭压缩机2772W全封闭压缩机3975W
额定制冷量1825W2400W3550W5200W8250W16500W
循环功率100W250W
循环进出口尺寸10mm10mm16mm16mm16mm16mm
循环流量20L/min(DN15)35L/min(DN15)
扬程7M20M
安全保护延时/过载/过热等保护
外壳材质冷板静电喷塑
外形尺寸370*490*750mm370*490*800mm440*520*870mm530*650*1050mm620*740*1200mm620*740*1300mm
额定总功率850W1035W1400W1870W3022W4375W
要求客户提供电源220V/10A三孔插座一个380V/50Hz(空气开关:三相五线制,≥16A)380V/50Hz(空气开关:三相五线制,≥25A)
循环保温管硅胶管+保温层(2*2m)
阀门DN15/10mmDN15/16mm
DWXH-40 Low temperature coolant circulation pump
型号DWXH-5/40DWXH-10/40DWXH-20/40DWXH-30/40DWXH-50/40DWXH-100/40
储液槽容积5L(φ200*150)10L(φ200*250)20L(φ250*300)30L(φ300*350)50L(φ350*400)100L(φ450*500)
环境温度(℃)-40℃~室温(空载温度范围)
环境温度≤25℃
相对湿度≤60%
可放烧瓶容量2L2L5L10L10L10L
蒸发器紫铜管镀镍
冷凝器翅片式冷凝器
制冷剂R404A
显示方式数字显示
温度显示储液槽温度
压缩机功率全封闭压缩机735W全封闭压缩机735W全封闭压缩机1100W全封闭压缩机2205W全封闭压缩机2940W全封闭压缩机4410W
额定制冷量2300W2500W3750W6900W11500W17500W
循环功率100W250W
循环进出口尺寸10mm10mm16mm16mm16mm16mm
循环流量20L/min(DN15)35L/min(DN15)
扬程7M20M
安全保护延时/过载/过热等保护
外壳材质冷板静电喷塑
外形尺寸370*490*750mm370*490*800mm440*520*870mm530*650*1050mm620*740*1200mm620*740*1300mm
额定总功率850W1035W1400W2450W3925W5595W
要求客户提供电源220V/10A三孔插座一个380V/50Hz(空气开关:三相五线制,≥16A)380V/50Hz(空气开关:三相五线制,≥20A)380V/50Hz(空气开关:三相五线制,≥25A)
循环保温管硅胶管+保温层(2*2m)
阀门DN15/10mmDN15/16mm
DWXH-60 Low temperature coolant circulation pump
型号DWXH-5/60DWXH-10/60DWXH-20/60DWXH-30/60DWXH-50/60DWXH-100/60
储液槽容积5L(φ200*150)10L(φ200*250)20L(φ250*300)30L(φ300*350)50L(φ350*400)100L(φ450*500)
温度范围(℃)-60℃~室温(空载温度范围)
实际使用温度范围-60℃~-30℃(因本设备为超低温仪器,长时间工作在此温度范围内使用)
相对湿度≤60%
可放烧瓶容量2L2L5L10L10L10L
蒸发器紫铜管镀镍
冷凝器翅片式冷凝器
制冷剂R404A/R23/混合
显示方式数字显示
温度显示储液槽温度
压缩机功率全封闭压缩机(1级735W+2级550W)全封闭压缩机(1级735W+2级735W)全封闭压缩机(1级1100W+2级1100W)全封闭压缩机(1级2205W+2级1470W)全封闭压缩机(1级3675W+2级2940W)全封闭压缩机(1级5145W+2级4410W)
循环功率100W250W
循环进出口尺寸10mm10mm16mm16mm16mm16mm
循环流量20L/min(DN15)35L/min(DN15)
扬程7M20M
安全保护延时/过载/过热等保护
外壳材质冷板静电喷塑
外形尺寸370*490*750mm370*490*800mm440*520*870mm530*650*1050mm620*740*1200mm620*740*1300mm
额定总功率1520W1770W2500W4025W7115W10265W
要求客户提供电源220V/10A三孔插座一个220V/16A三孔插座一个380V/50Hz(空气开关:三相五线制,≥16A)380V/50Hz(空气开关:三相五线制,≥25A)380V/50Hz(空气开关:三相五线制,≥32A)
循环保温管硅胶管+保温层(2*2m)
阀门DN15/10mmDN15/16mm
DWXH-80 Low temperature coolant circulation pump
型号DWXH-5/80DWXH-10/80DWXH-20/80DWXH-30/80DWXH-50/80DWXH-100/80
储液槽容积5L(φ200*150)10L(φ200*250)20L(φ250*300)30L(φ300*350)50L(φ350*400)100L(φ450*500)
温度范围(℃)-80℃~室温(空载温度范围)
实际使用温度范围-80℃~-40℃(因本设备为超低温仪器,长时间工作在此温度范围内使用)
环境温度≤25℃
相对湿度≤60%
可放烧瓶容量2L2L5L10L10L10L
蒸发器紫铜管镀镍
冷凝器翅片式冷凝器
制冷剂R404A/R23/混合
显示方式数字显示
温度显示储液槽温度
压缩机功率全封闭压缩机(1级735W+2级735W)全封闭压缩机(1级1100W+2级735W)全封闭压缩机(1级1470W+2级1100W)全封闭压缩机(1级2205W+2级2205W)全封闭压缩机(1级3675W+2级2940W)全封闭压缩机(1级4410W+2级4410W)
循环功率100W250W
循环进出口尺寸10mm10mm16mm16mm16mm16mm
循环流量20L/min(DN15)35L/min(DN15)
扬程7M20M
安全保护延时/过载/过热等保护
外壳材质冷板静电喷塑
外形尺寸370*490*750mm370*490*800mm440*520*870mm530*650*1050mm620*740*1200mm620*740*1300mm
额定总功率1720W2135W2870W4760W7850W11000W
要求客户提供电源220V/10A三孔插座一个220V/16A三孔插座一个380V/50Hz(空气开关:三相五线制,≥16A)380V/50Hz(空气开关:三相五线制,≥25A)380V/50Hz(空气开关:三相五线制,≥32A)
循环保温管硅胶管+保温层(2*2m)
阀门DN15/10mmDN15/16mm
DWXH-120 Low temperature coolant circulation pump
型号DWXH-5/120DWXH-10/120DWXH-20/120DWXH-30/120DWXH-50/120DWXH-100/120
储液槽容积5L(φ200*150)10L(φ200*250)20L(φ250*300)30L(φ300*350)50L(φ350*400)100L(φ450*500)
温度范围(℃)-120℃~室温(空载温度范围)
实际使用温度范围-120℃~-60℃(因本设备为超低温仪器,长时间工作在此温度范围内使用)
环境温度≤25℃
相对湿度≤60%
可放烧瓶容量2L2L5L10L10L10L
蒸发器紫铜管镀镍
冷凝器翅片式冷凝器
制冷剂R404A/R23/R14/混合
显示方式数字显示
温度显示储液槽温度
压缩机功率全封闭压缩机(1级551W+2级551W+3级551W)全封闭压缩机(1级1102W+2级735W+3级735W)全封闭压缩机(1级1470W+2级1102W+3级1102W)全封闭压缩机(1级2205W+2级2205W+3级2205W)全封闭压缩机(1级3675W+2级3675W+3级3675W)全封闭压缩机(1级4410W+2级4410W+3级4410W)
循环功率100W250W
循环进出口尺寸10mm10mm16mm16mm16mm16mm
循环流量20L/min(DN15)35L/min(DN15)
扬程7M20M
安全保护延时/过载/过热等保护
外壳材质冷板静电喷塑
外形尺寸370*490*750mm370*490*800mm440*520*870mm530*650*1050mm620*740*1200mm620*740*1300mm
额定总功率2820W3340W4800W7382W11775W16435W
要求客户提供电源220V/16A三孔插座一个220V(空气开关:单相三线制,≥25A)220V(空气开关:单相三线制,≥32A)380V/50Hz(空气开关:三相五线制,≥63A)
循环保温管硅胶管+保温层(2*2m)
阀门DN15/10mmDN15/16mm
