Shanghai Kexing Instrument cooperates with a certain company

Lowtemperatureconstanttemperaturereactionbath,alsoknownaslow-temperatureconstanttemperaturebath,low-temperaturebath,low-temperaturereactionbath.Itisalow-temperatureconstanttemperatureinstrumentthatour

Factory direct sales
Quality Assurance
Worry free delivery
After sales guarantee
Sales hotline

400-880-7108

Product Introduction

Low temperature constant temperature reaction bath, also known as low-temperature constant temperature bath, low-temperature bath, low-temperature reaction bath. It is a low-temperature constant temperature instrument that our company has improved and produced based on the low-temperature coolant circulation pump. It has the function of heating (auxiliary constant temperature), which makes the temperature control accuracy higher; Install a magnetic stirrer at the bottom of the constant temperature bath. When the magnetic stirrer is working, it can make the medium solution in the low-temperature constant temperature reaction bath flow, achieving a more uniform temperature in the low-temperature bath and more accurate temperature control. At the same time, it can also make the test liquid flow under the stirring of the polytetrafluoroethylene stirrer, making the temperature of the test solution more uniform and the reaction more complete. According to customer needs, a circulation pump can be added to the equipment to achieve the effect of a low-temperature coolant circulation pump, achieving the goal of multi-purpose use for one machine. Low temperature constant temperature reaction bath is suitable for conducting low-temperature experiments in scientific research, biology, physics, medicine, chemical engineering and other departments. It can replace dry ice and liquid nitrogen for low-temperature reactions and provide low-temperature conditions for related equipment. It can also be used as a low-temperature water tank for viscosity testing.

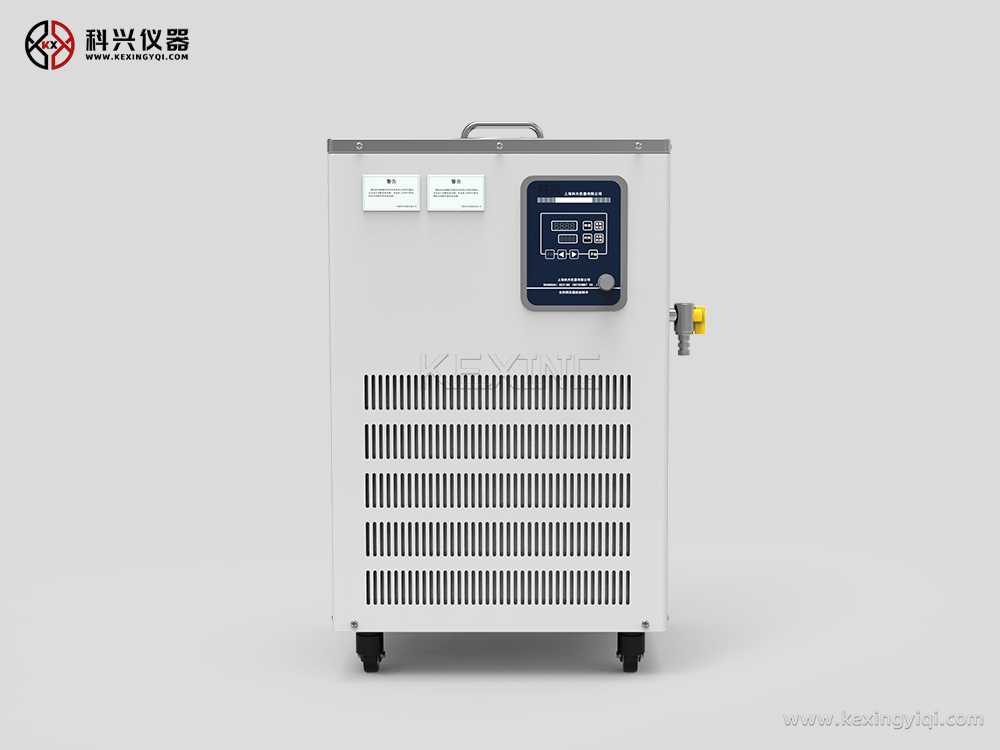

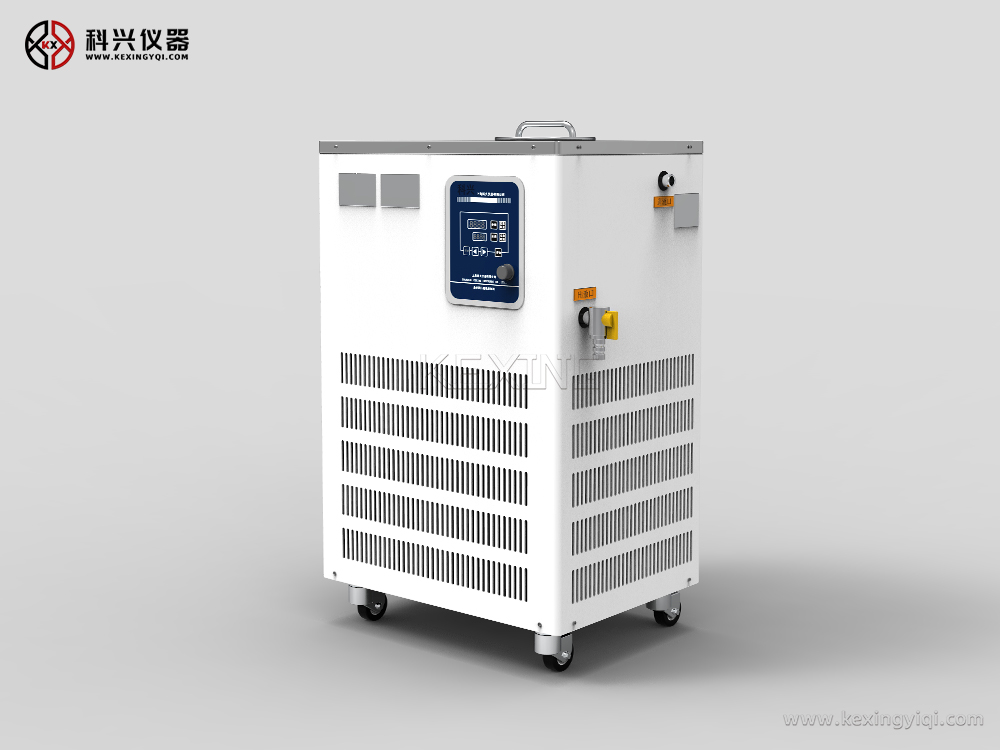

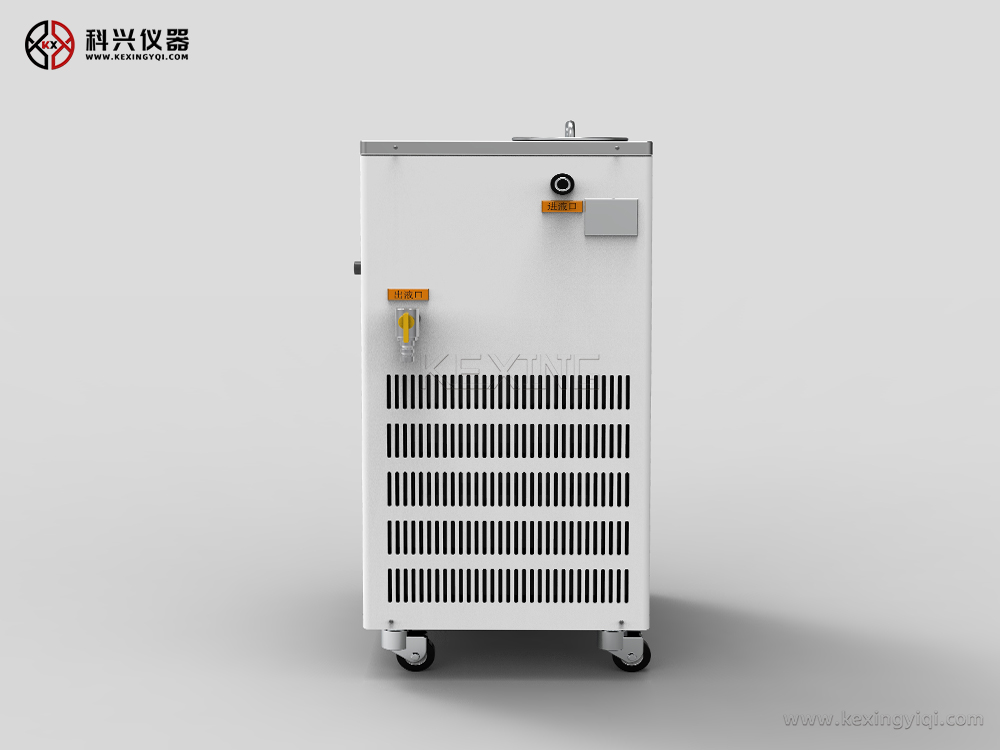

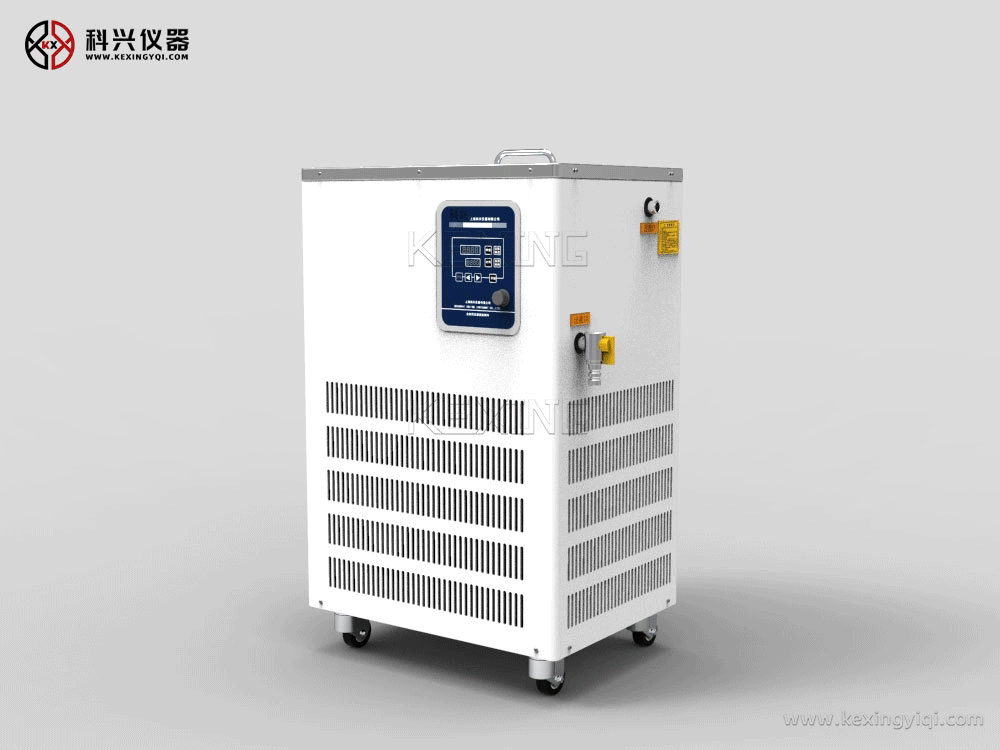

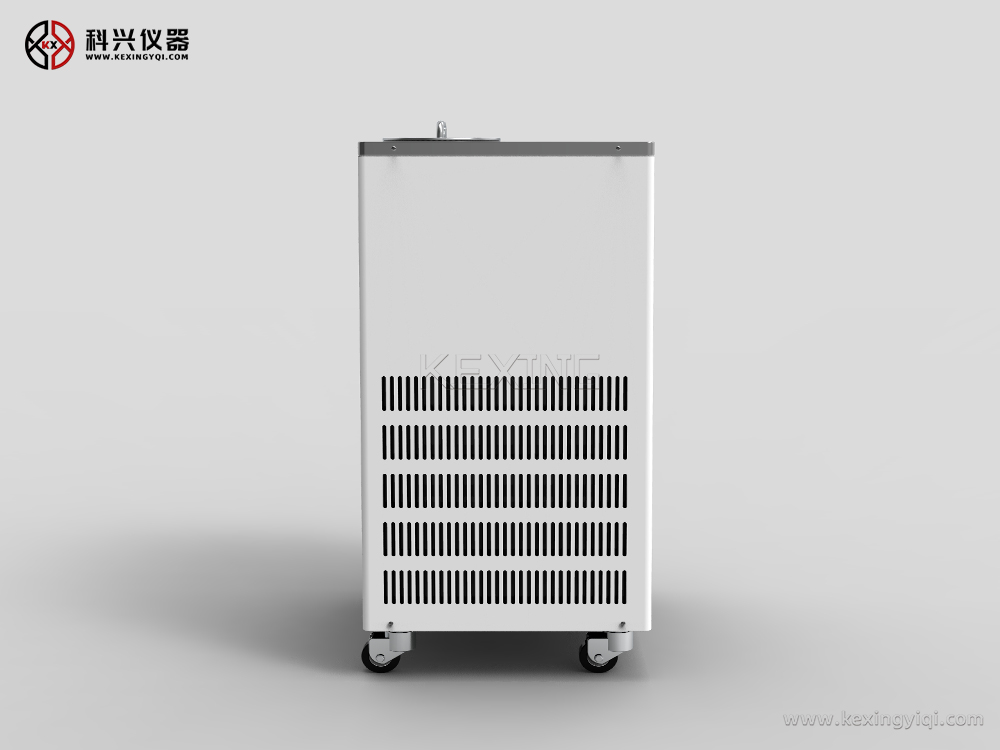

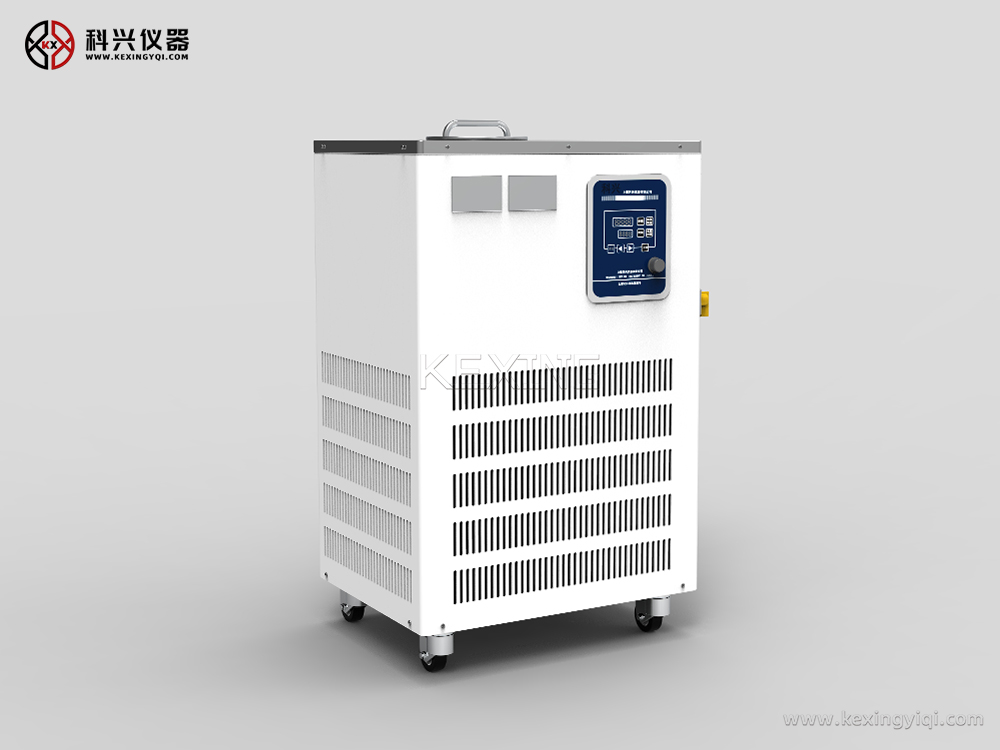

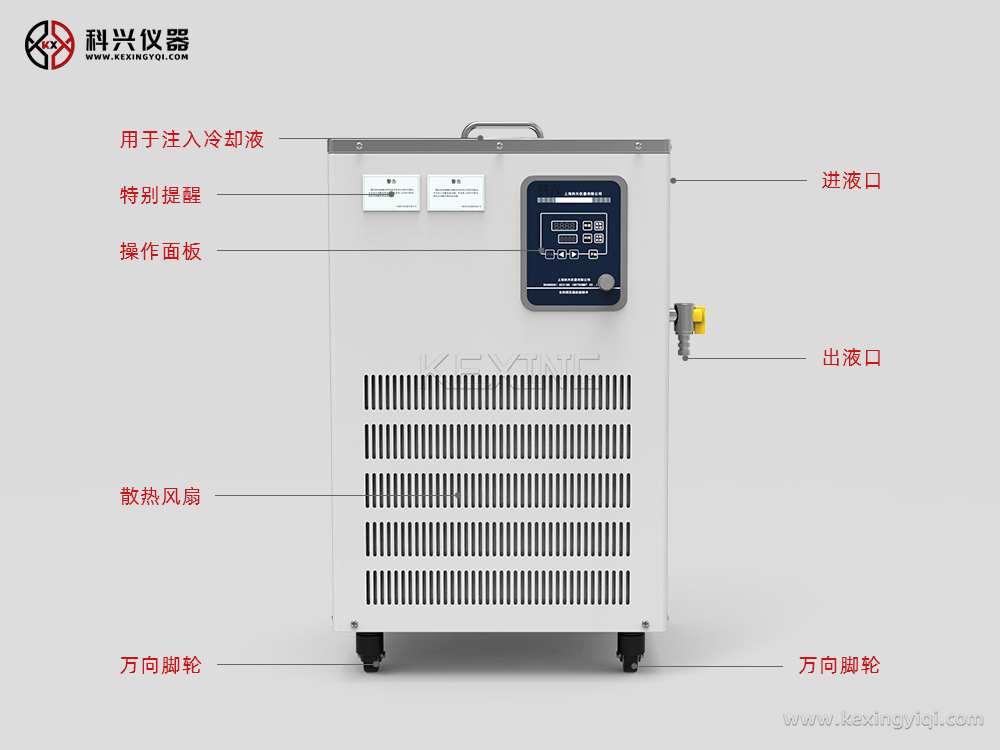

Product Display

Technical Parameter

DHFY-20 ℃ low-temperature constant temperature reaction bath

型号DHFY-5/20DHFY-10/20DHFY-20/20DHFY-30/20DHFY-50/20DHFY-100/20
温度范围(℃)-20~99
实际使用温度范围(℃)降温范围40℃~-20℃;升温范围-20℃~99℃
控温精度±0.5
储液槽容积(L)5(可放烧瓶容量2L)10(可放烧瓶容量5L)20(可放烧瓶容量5L)30(可放烧瓶容量10L)50(可放烧瓶容量10L)100(可放烧瓶容量20L)
搅拌储液槽底部加装磁力搅拌无(浴槽高度因素,不适用;如需搅拌反应,建议选择机械搅拌)
磁力搅拌功率(W)25W
开口尺寸(mm)¢200*150¢250*200¢250*300¢300*350¢350*400¢450*500
加热功率(W)150020003000400050006000
制冷机组功率(W)550W全封闭压缩机735W全封闭压缩机1100W全封闭压缩机1470W全封闭压缩机2572W全封闭压缩机3675W
制冷机组额定制冷量1725W2300W3450W5000W8050W11500W
制冷机组制冷剂R22
循环泵功率(W)100W
循环泵流量(L/min)20(DN15)
循环泵扬程(m)7
外循环接口(mm)¢10mm¢16mm
外壳材质冷板静电喷塑
整机额定功率(W)2250296043255720787210125
要求客户提供电源220V/16A三孔插座一个220V(空气开关:单相三线制,≥25A)220V(空气开关:单相三线制,≥32A)380V/50Hz(空气开关:三相五线制,≥25A)380V/50Hz(空气开关:三相五线制,≥32A)
循环保温管硅胶管+保温层(2*2m)
固定烧瓶立杆不锈钢立杆16mm
阀门DN15/10mmDN15/16mm
外形尺寸(mm)480*365*700370*490*800440*520*870530*650*1050620*740*1200620*740*1300

DHFY-30℃ low-temperature constant temperature reaction bath

型号DHFY-5/30DHFY-10/30DHFY-20/30DHFY-30/30DHFY-50/30DHFY-100/30
温度范围(℃)-30~99
实际使用温度范围(℃)降温范围40℃~-30℃;升温范围-30℃~99℃
控温精度±0.5
储液槽容积(L)5(可放烧瓶容量2L)10(可放烧瓶容量5L)20(可放烧瓶容量5L)30(可放烧瓶容量10L)50(可放烧瓶容量10L)100(可放烧瓶容量20L)
搅拌储液槽底部加装磁力搅拌无(浴槽高度因素,不适用;如需搅拌反应,建议选择机械搅拌)
磁力搅拌功率(W)25W
开口尺寸(mm)¢200*150¢250*200¢250*300¢300*350¢350*400¢450*500
加热功率(W)150020003000400050006000
制冷机组功率(W)全封闭压缩机650W全封闭压缩机835W全封闭压缩机1200W全封闭压缩机1670W全封闭压缩机2772W全封闭压缩机3975W
制冷机组额定制冷量1825W2400W3550W5200W8250W16500W
制冷机组制冷剂R22
循环泵功率(W)100W250W
循环泵流量(L/min)20(DN15)35(DN15)
循环泵扬程(m)720
外循环接口(mm)¢10mm¢16mm
外壳材质冷板静电喷塑
整机额定功率(W)2350303544005920802210425
要求客户提供电源220V/16A三孔插座一个220V(空气开关:单相三线制,≥25A)220V(空气开关:单相三线制,≥32A)380V/50Hz(空气开关:三相五线制,≥25A)380V/50Hz(空气开关:三相五线制,≥32A)
循环保温管硅胶管+保温层(2*2m)
固定烧瓶立杆不锈钢立杆16mm
阀门DN15/10mmDN15/16mm
外形尺寸(mm)480*365*700370*490*800440*520*870530*650*1050620*740*1200620*740*1300

DHFY-40℃ low-temperature constant temperature reaction bath

型号DHFY-5/40DHFY-10/40DHFY-20/40DHFY-30/40DHFY-50/40DHFY-100/40
温度范围(℃)-40~99
实际使用温度范围(℃)降温范围40℃~-40℃;升温范围-40℃~99℃
控温精度±0.5
储液槽容积(L)5(可放烧瓶容量2L)10(可放烧瓶容量5L)20(可放烧瓶容量5L)30(可放烧瓶容量10L)50(可放烧瓶容量10L)100(可放烧瓶容量20L)
搅拌储液槽底部加装磁力搅拌无(浴槽高度因素,不适用;如需搅拌反应,建议选择机械搅拌)
磁力搅拌功率(W)25W
开口尺寸(mm)¢200*150¢250*200¢250*300¢300*350¢350*400¢450*500
加热功率(W)150020003000400050006000
制冷机组功率(W)全封闭低温压缩机650W全封闭低温压缩机835W全封闭低温压缩机1200W全封闭低温压缩机2200W全封闭低温压缩机3675W全封闭低温压缩机5145W
制冷机组额定制冷量2300W2500W3750W6900W11500W17500W
制冷机组制冷剂R404A
循环泵功率(W)100W250W
循环泵流量(L/min)20(DN15)35(DN15)
循环泵扬程(m)720
外循环接口(mm)¢10mm¢16mm
外壳材质冷板静电喷塑
整机额定功率(W)2350306044256450892511595
要求客户提供电源220V/16A三孔插座一个220V(空气开关:单相三线制,≥25A)220V(空气开关:单相三线制,≥32A)380V/50Hz(空气开关:三相五线制,≥32A)380V/50Hz(空气开关:三相五线制,≥40A)
循环保温管硅胶管+保温层(2*2m)
固定烧瓶立杆不锈钢立杆16mm
阀门DN15/10mmDN15/16mm
外形尺寸(mm)480*365*700370*490*800440*520*870530*650*1050620*740*1200620*740*1300

DHFY-80℃ low-temperature constant temperature reaction bath

型号DHFY-5/80DHFY-10/80DHFY-20/80DHFY-30/80DHFY-50/80DHFY-100/80
温度范围(℃)-80~99
实际使用温度范围(℃)降温范围-80℃~-40℃;升温范围-80℃~99℃
控温精度±0.5
储液槽容积(L)5(可放烧瓶容量2L)10(可放烧瓶容量5L)20(可放烧瓶容量5L)30(可放烧瓶容量10L)50(可放烧瓶容量10L)100(可放烧瓶容量20L)
搅拌储液槽底部加装磁力搅拌无(浴槽高度因素,不适用;如需搅拌反应,建议选择机械搅拌)
磁力搅拌功率(W)25W
开口尺寸(mm)¢200*150¢250*200¢250*300¢300*350¢350*400¢450*500
加热功率(W)150020003000400050006000
制冷机组功率(W)全封闭压缩机(1级735W+2级735W)全封闭压缩机(1级1100W+2级735W)全封闭压缩机(1级1470W+2级1100W)全封闭压缩机(1级2205W+2级2205W)全封闭压缩机(1级3675W+2级3675W)全封闭压缩机(1级5145W+2级5145W)
制冷机组制冷剂1级R404A;2级R23/混合
循环泵功率(W)100W250W
循环泵流量(L/min)20(DN15)35(DN15)
循环泵扬程(m)720
外循环接口(mm)¢10mm¢16mm
外壳材质冷板静电喷塑
整机额定功率(W)30853960569587101285017040
要求客户提供电源220V/16A三孔插座一个220V/50Hz(空气开关:单相三线制,≥25A)220V(空气开关:单相三线制,≥32A)380V/50Hz(空气开关:三相五线制,≥32A)380V/50Hz(空气开关:三相五线制,≥40A)380V/50Hz(空气开关:三相五线制,≥63A)
循环保温管硅胶管+保温层(2*2m)
固定烧瓶立杆不锈钢立杆16mm
阀门DN15/10mmDN15/16mm
外形尺寸(mm)480*365*700370*490*800440*520*870530*650*1050620*740*1200620*740*1300

DHFY-120℃ low-temperature constant temperature reaction bath

型号DHFY-5/120DHFY-10/120DHFY-20/120DHFY-30/120DHFY-50/120DHFY-100/120
温度范围(℃)-120~99
实际使用温度范围(℃)降温范围-120℃~-60℃;升温范围-120℃~99℃
控温精度±0.5
储液槽容积(L)5(可放烧瓶容量2L)10(可放烧瓶容量5L)20(可放烧瓶容量5L)30(可放烧瓶容量10L)50(可放烧瓶容量10L)100(可放烧瓶容量20L)
搅拌储液槽底部加装磁力搅拌无(浴槽高度因素,不适用;如需搅拌反应,建议选择机械搅拌)
磁力搅拌功率(W)25W
开口尺寸(mm)¢200*150¢250*200¢250*300¢300*350¢350*400¢450*500
加热功率(W)150020003000400050006000
制冷机组功率(W)全封闭压缩机(1级1100W+2级735W+3级735W)全封闭压缩机(1级1470W+2级735W+3级735W)全封闭压缩机(1级2200W+2级1100W+3级1100W全封闭压缩机(1级2572W+2级2205W+3级2205W)全封闭压缩机(1级3675W+2级3675W+3级3675W)全封闭压缩机(1级5145W+2级5145W+3级5145W)
制冷机组制冷剂1级R404A;2级R23/混合;3级R14/混合
循环泵功率(W)100W250W
循环泵流量(L/min)20(DN15)35(DN15)
循环泵扬程(m)720
外循环接口(mm)¢10mm¢16mm
外壳材质冷板静电喷塑
整机额定功率(W)447053657825115821677522185
要求客户提供电源220V(空气开关:单相三线制,≥32A)220V/50Hz(空气开关:单相三线制,≥32A)220V(空气开关:单相三线制,≥63A)380V/50Hz(空气开关:三相五线制,≥40A)380V/50Hz(空气开关:三相五线制,≥63A)380V/50Hz(空气开关:三相五线制,≥100A)
循环保温管硅胶管+保温层(2*2m)
固定烧瓶立杆不锈钢立杆16mm
阀门DN15/10mmDN15/16mm
外形尺寸(mm)480*365*700370*490*800440*520*870530*650*1050620*740*1200620*740*1300
