SHZ-95B anti-corrosion five pump circulating water vacuum pump

Thispumpisbasedonthemulti-purposevacuumpumpforcirculatingwater,takingintoaccountthesmalllaboratoryareaandreferringtotheJapanesedesktoppump,withaone-timemoldedshellandreducedvolumeimprovement.Ithasthec

Factory direct sales
Quality Assurance
Worry free delivery
After sales guarantee
Sales hotline

400-880-7108

Product Introduction

This pump is based on the multi-purpose vacuum pump for circulating water, taking into account the small laboratory area and referring to the Japanese desktop pump, with a one-time molded shell and reduced volume improvement. It has the characteristics of small volume, light weight, and beautiful appearance. This machine adopts two taps and can be used separately or in parallel. It is equipped with two vacuum gauges. The host is made of 304 stainless steel core material. Corrosion resistant, pollution-free, low noise, easy to move, and can also be equipped with vacuum regulating valves according to user needs. Two students can conduct chemistry experiments simultaneously to reduce the experimental space.

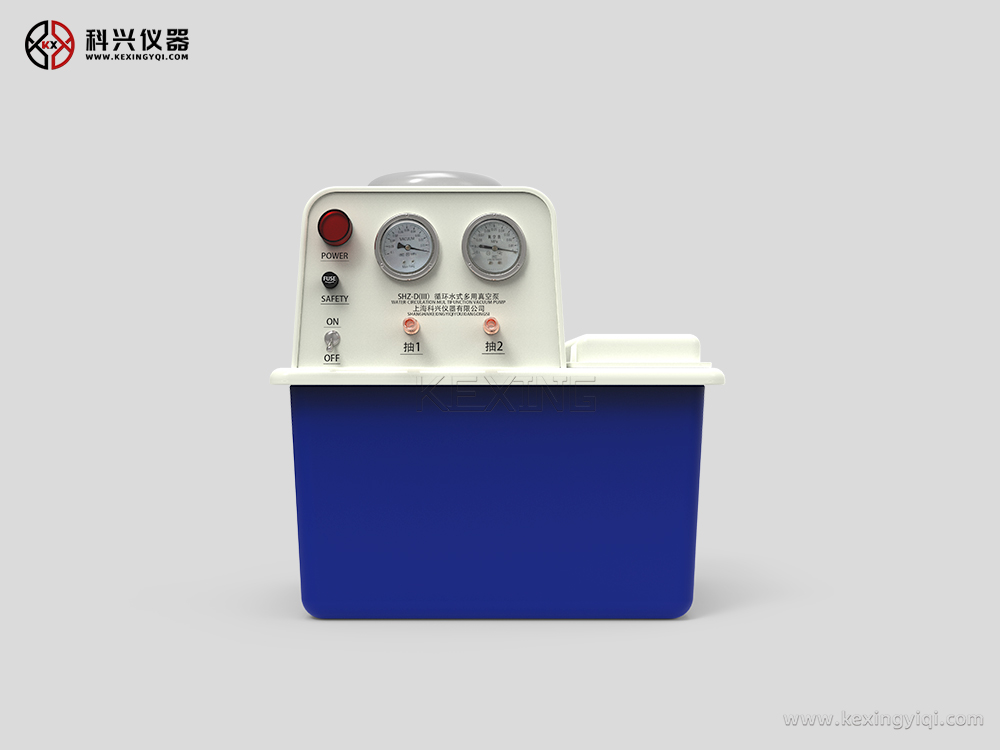

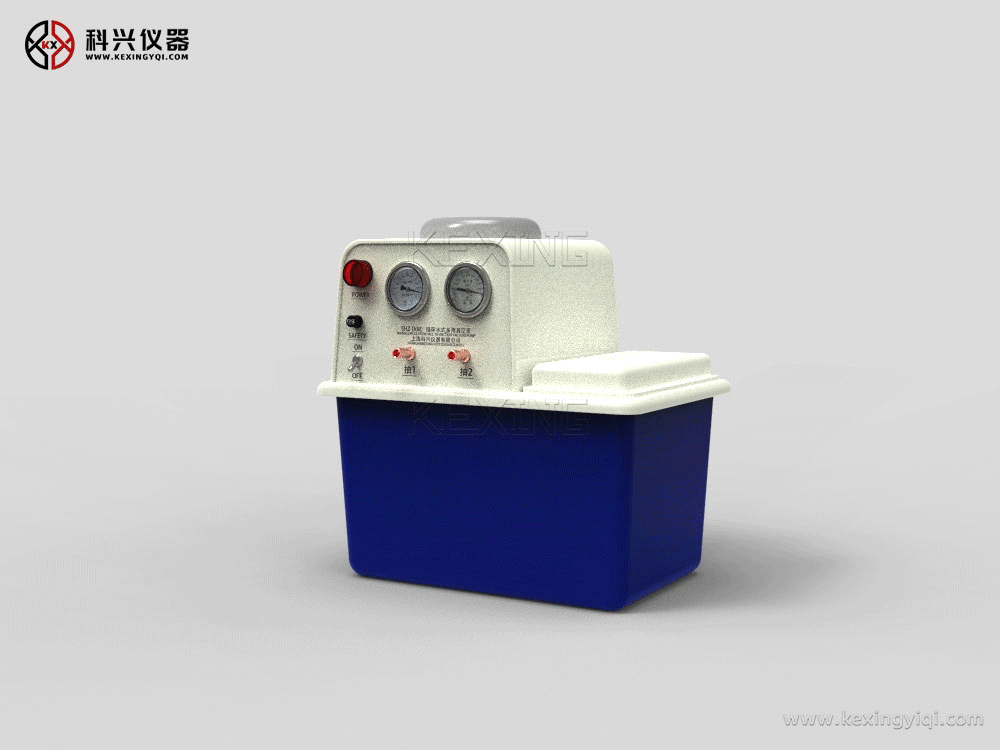

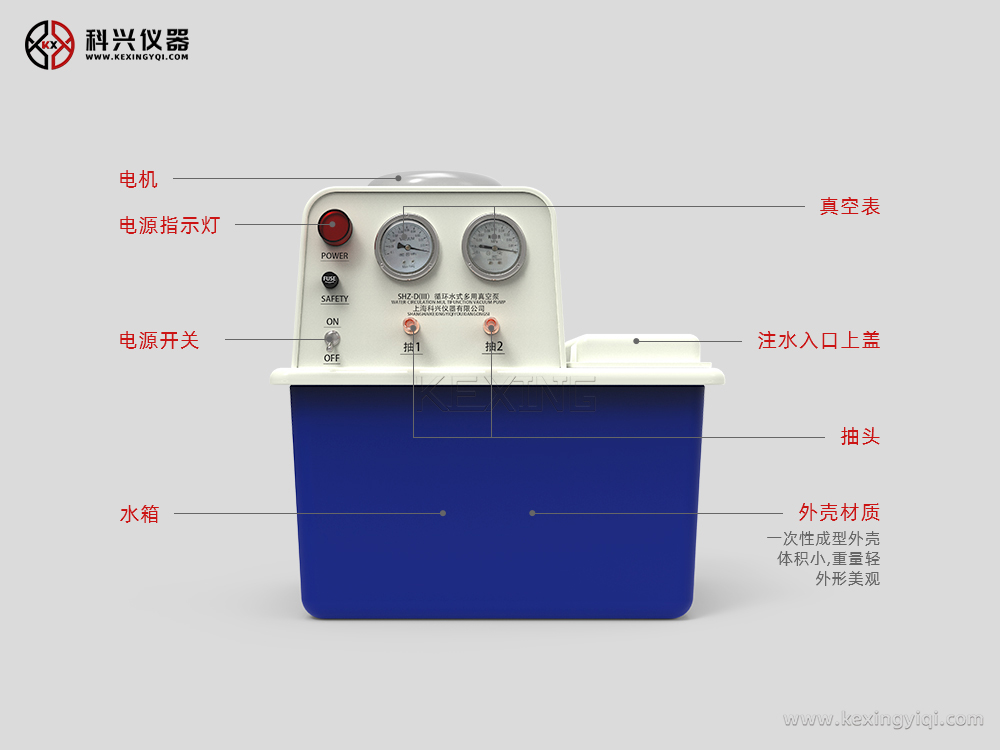

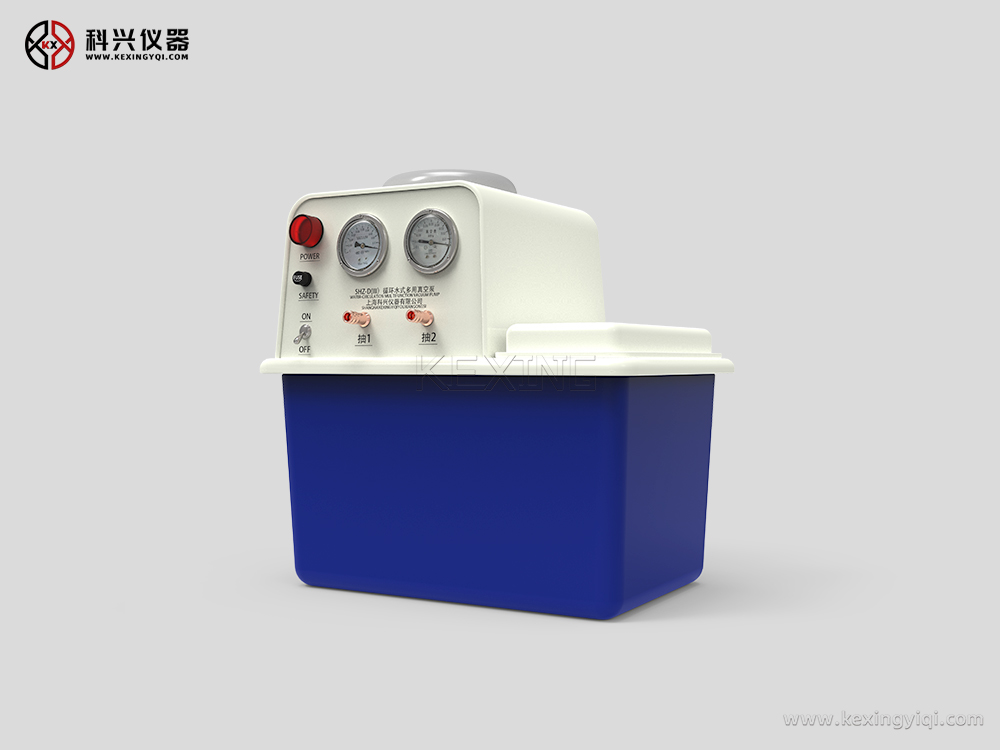

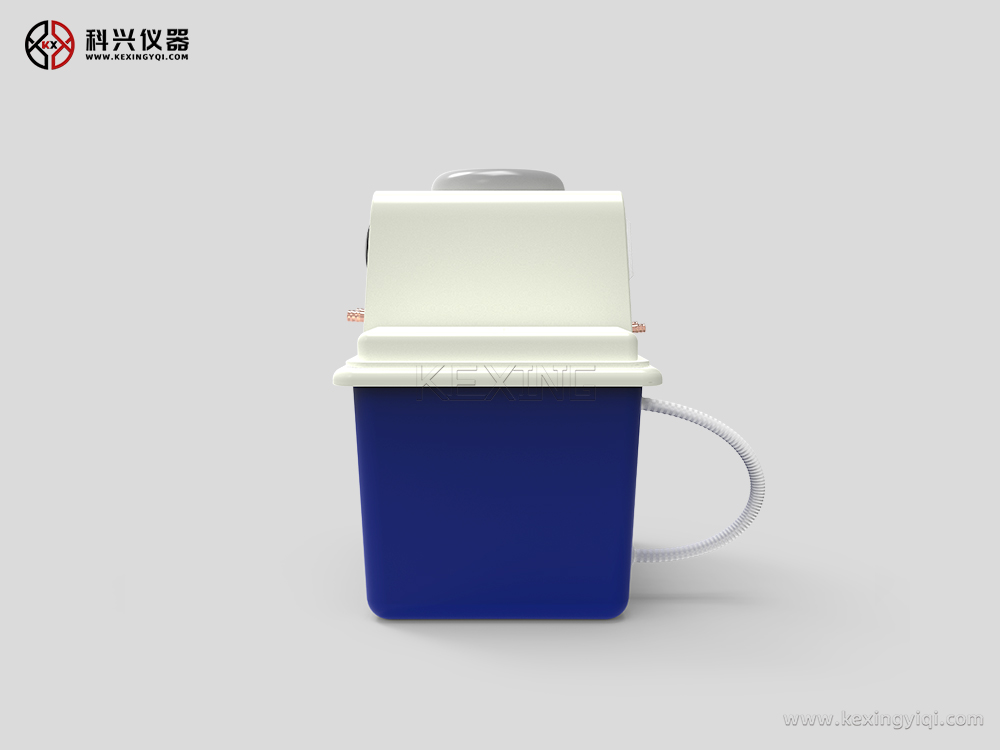

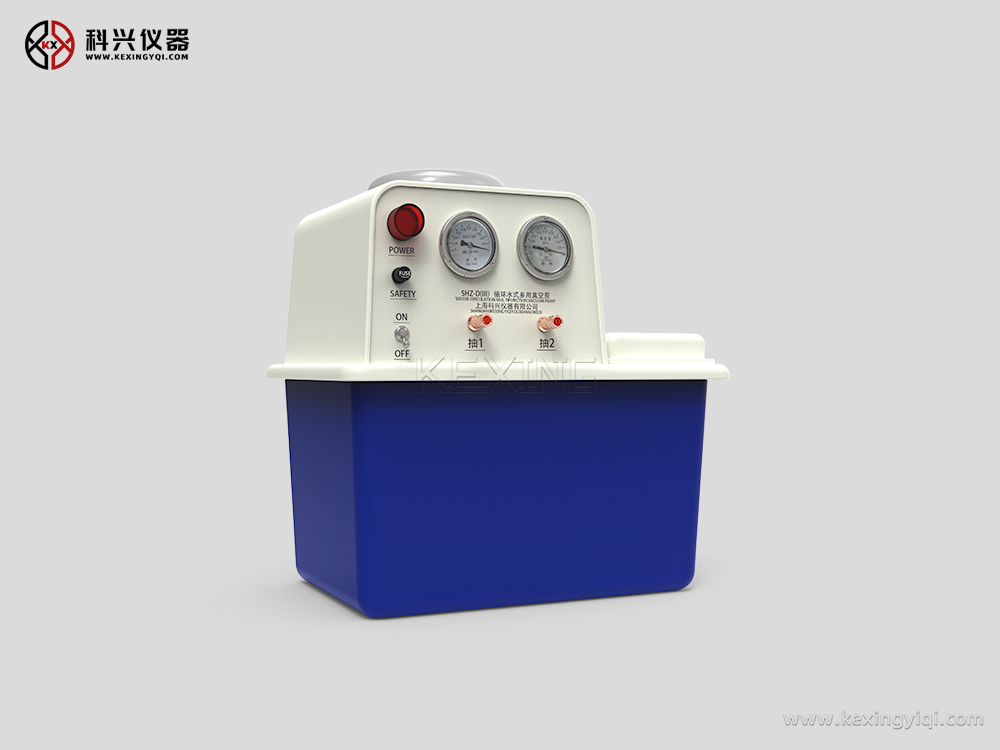

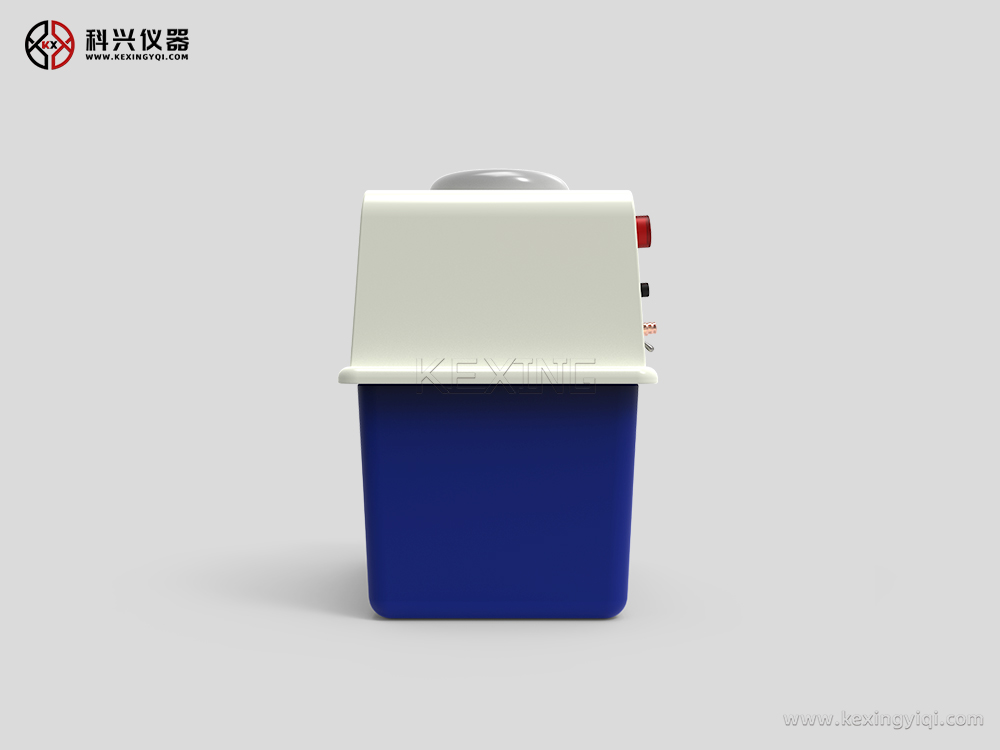

Product Display

Technical Parameter

                机器性能                指标
                型号                SHZ-D(III)
                功率                180W
                电压                ~220V/50Hz
                流量                60L/min
                扬程                8M
                真空度                ≥0.098Mpa
                单头抽气量                10L/min
                抽气头数量                2
                储水箱容积                15L
                材质                防腐工程塑料(加强聚丙乙烯)
                外形尺寸                400*280*420mm
                全机重量                15Kg
