Household freeze-drying machines have broad application prospects in multiple fields due to their high efficiency, energy saving, convenience, and multifunctionality. Whether it is daily food preservation, homemade healthy snacks, pet food production, preservation and extraction of traditional Chinese medicine and health products, handicrafts and DIY creation, infant and toddler food production, or emergency food reserves, household freeze-drying machines can bring convenience and a healthy lifestyle to families.

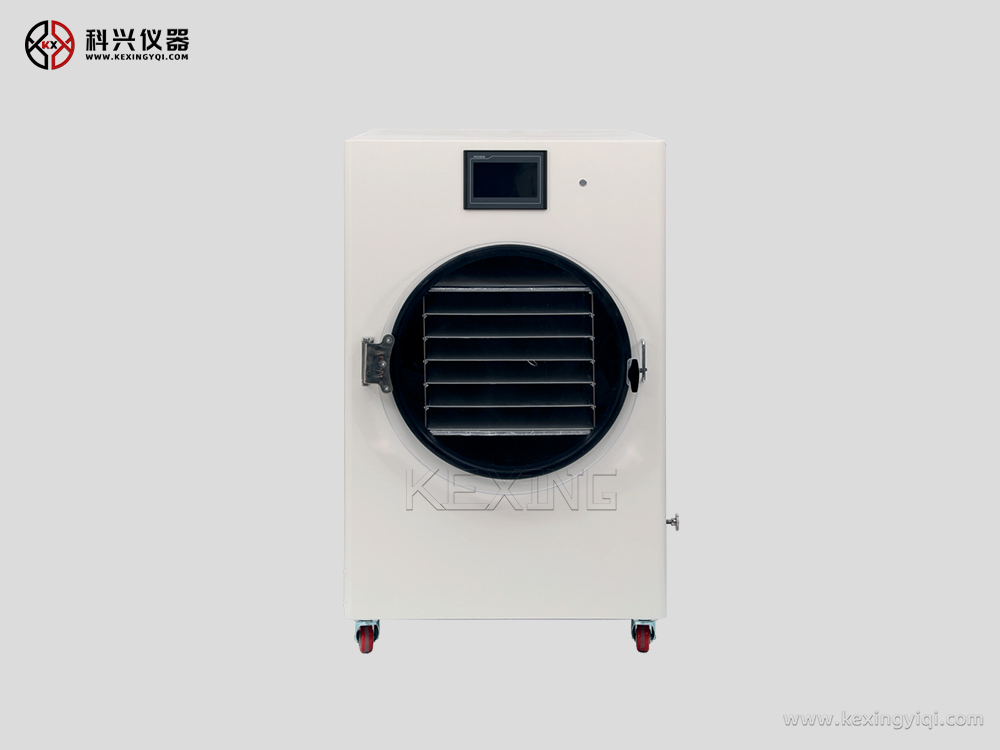

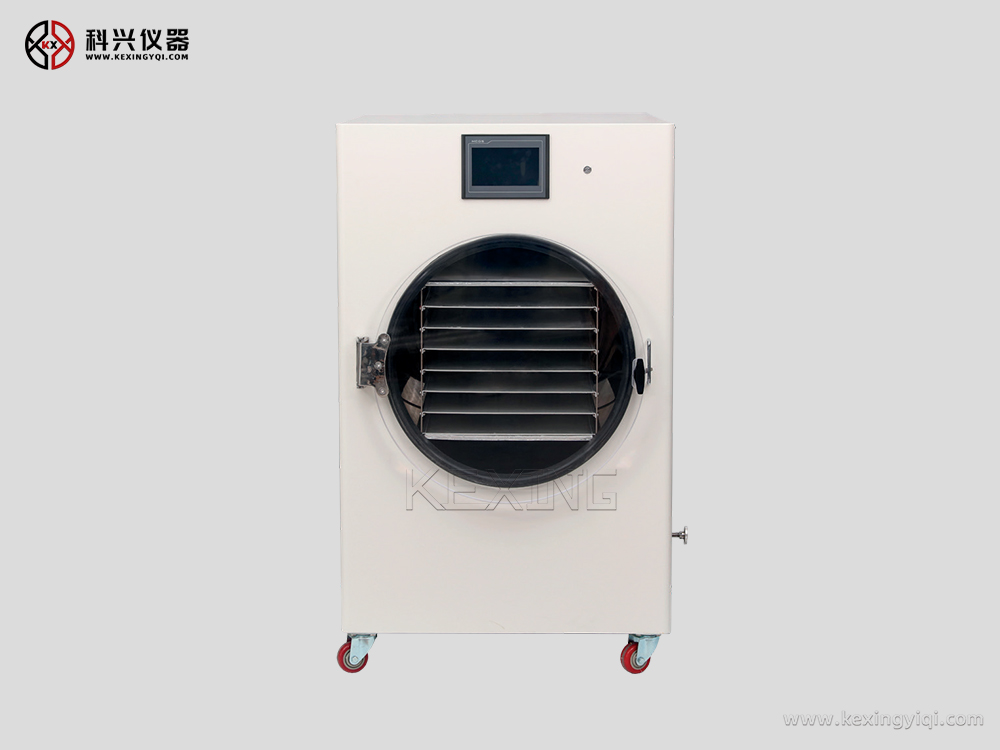

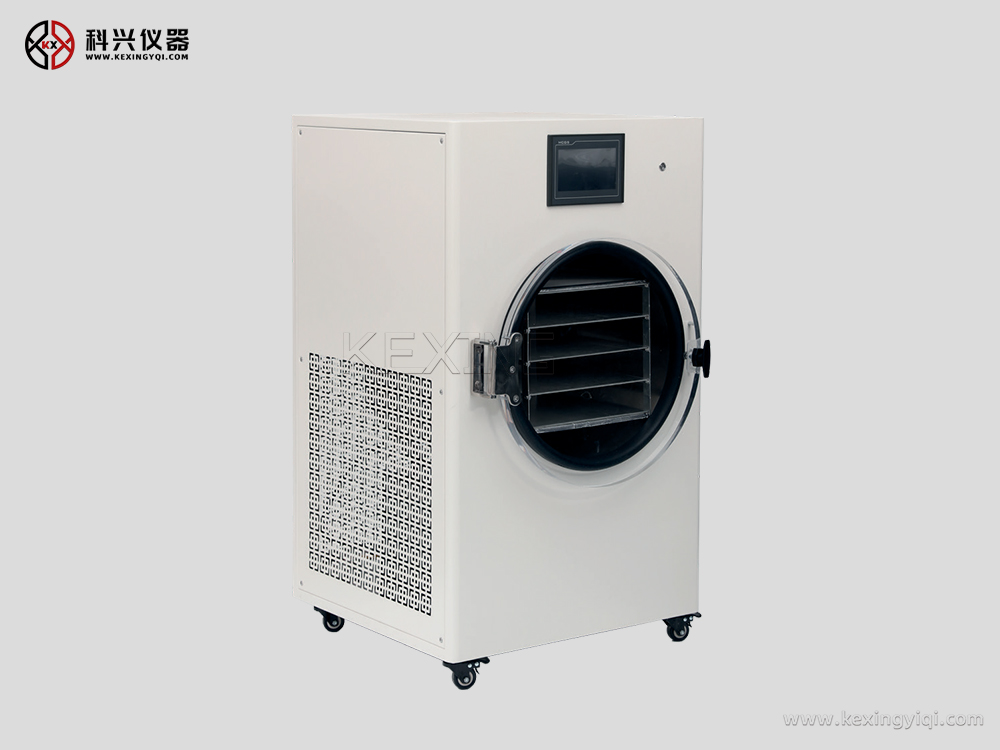

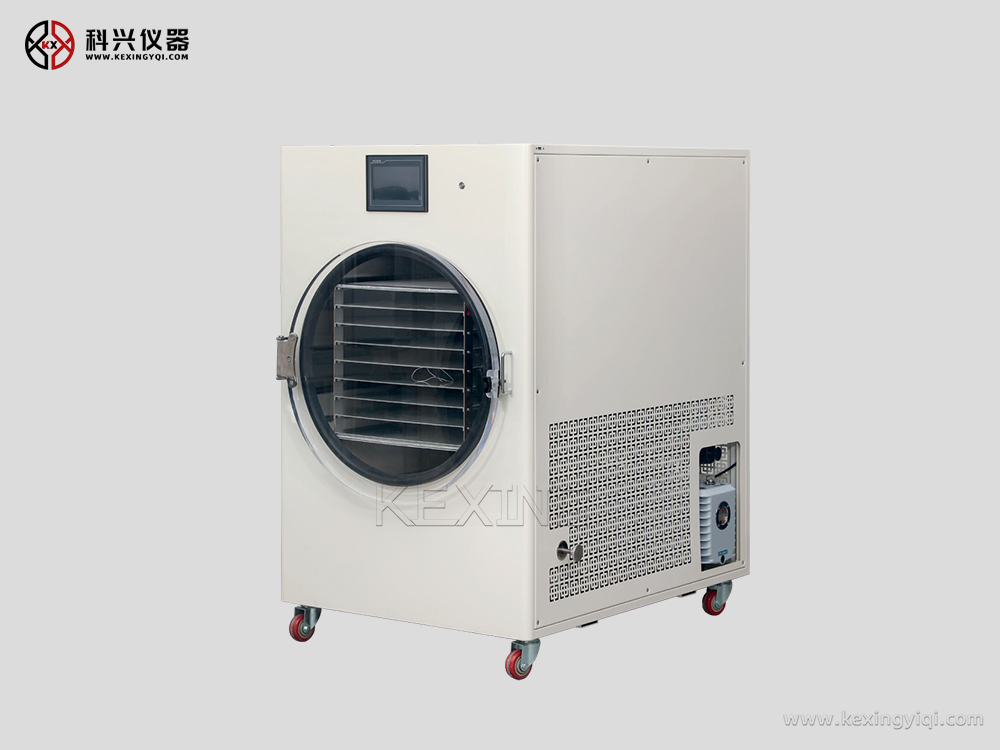

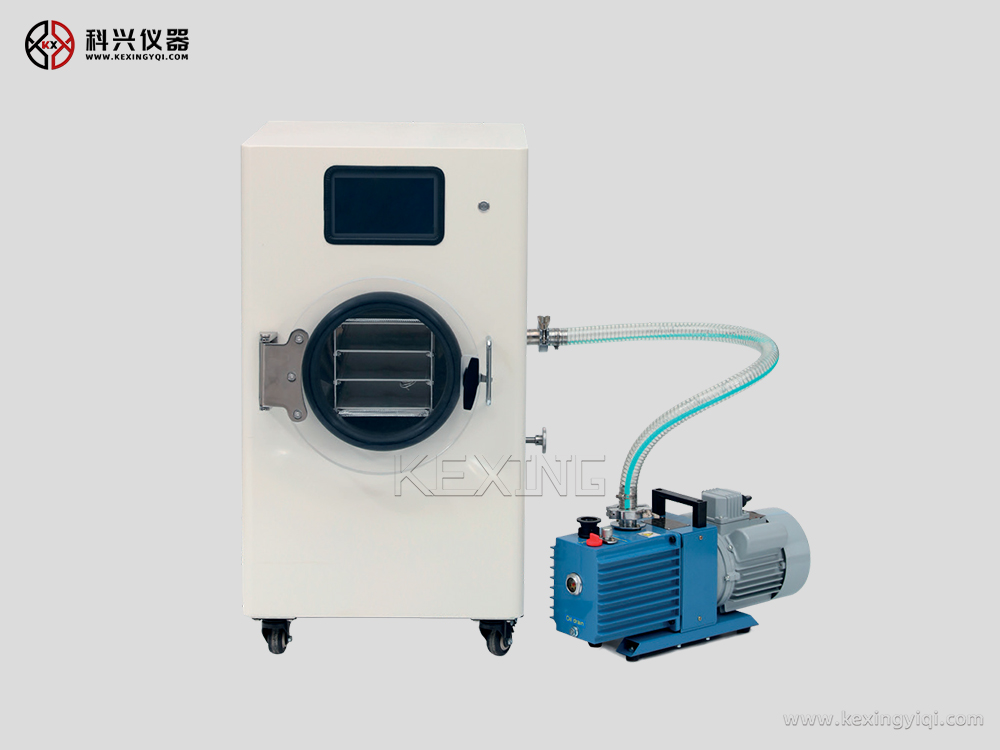

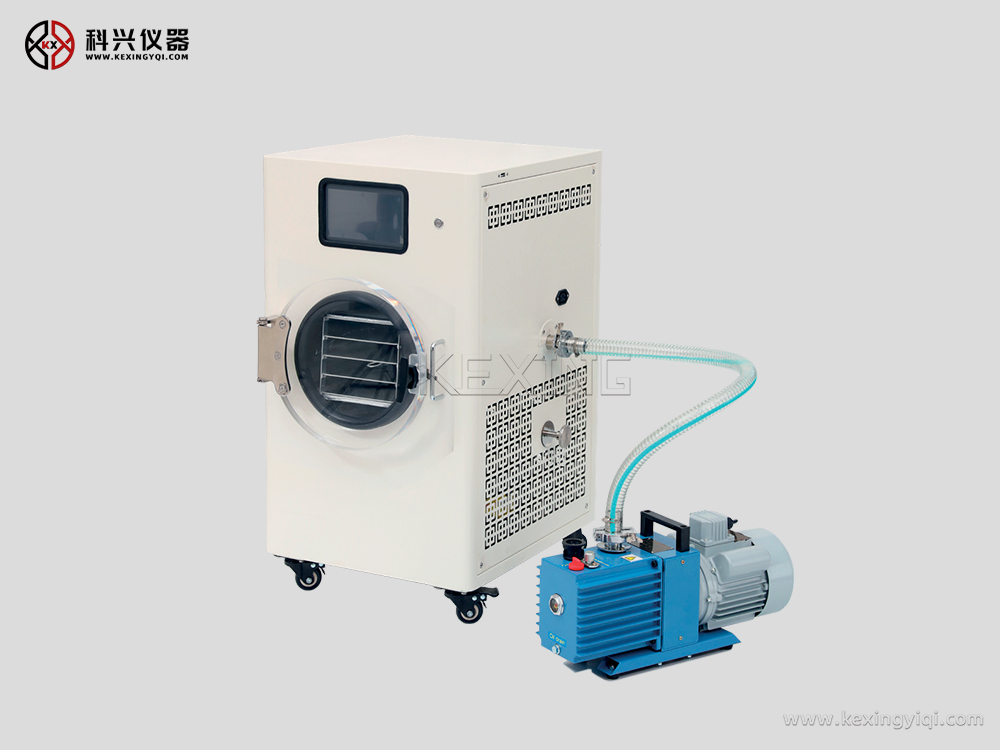

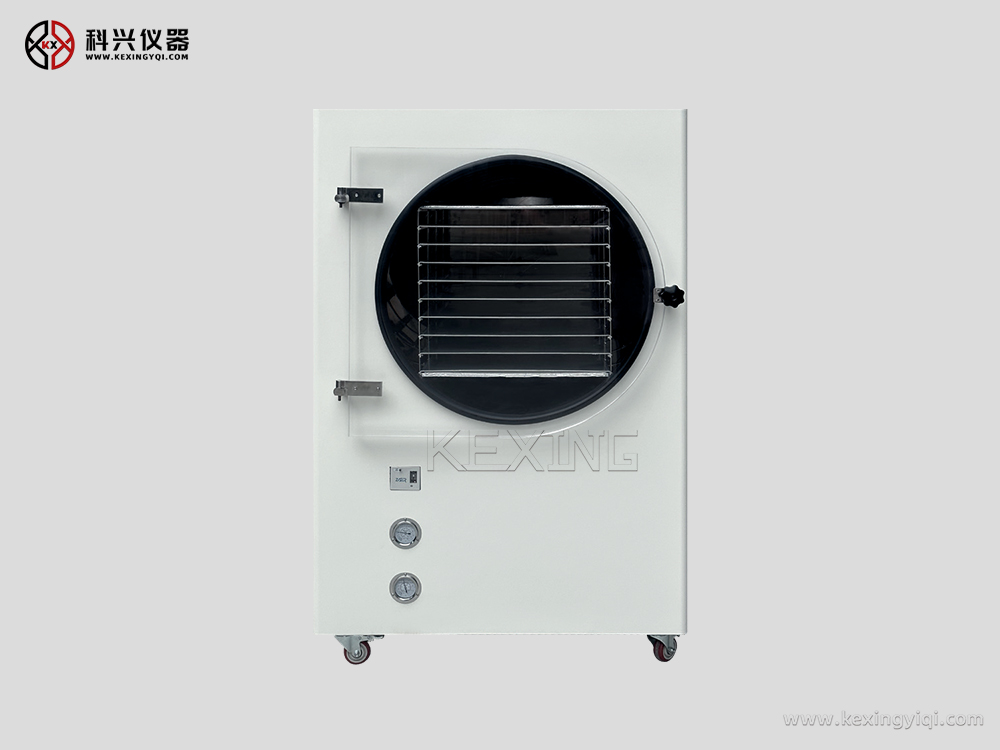

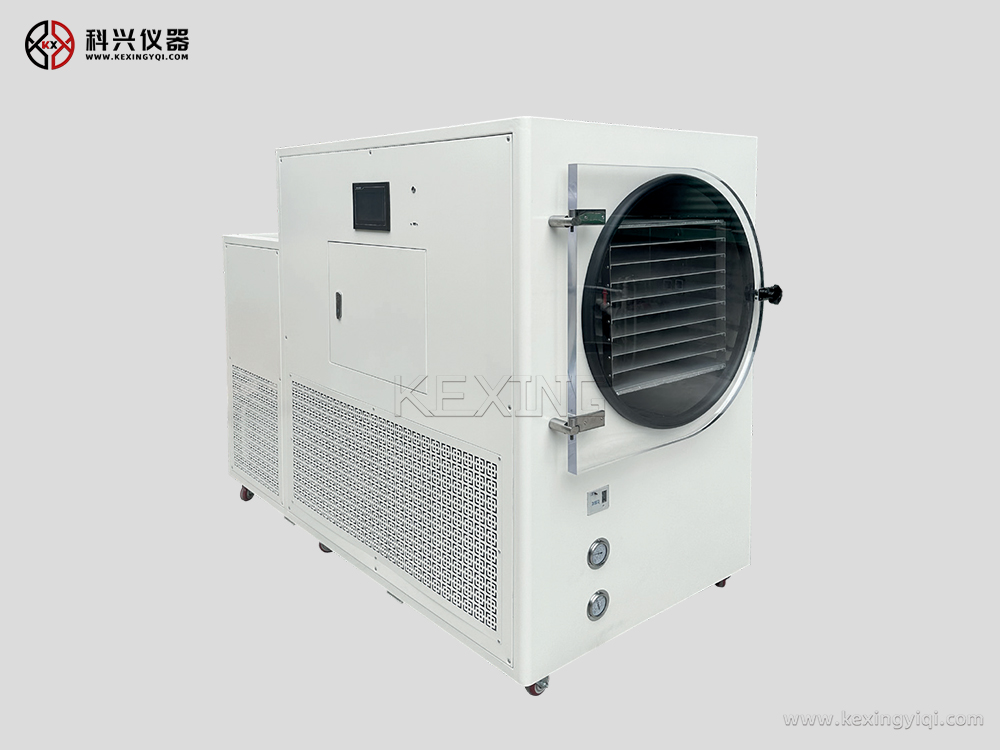

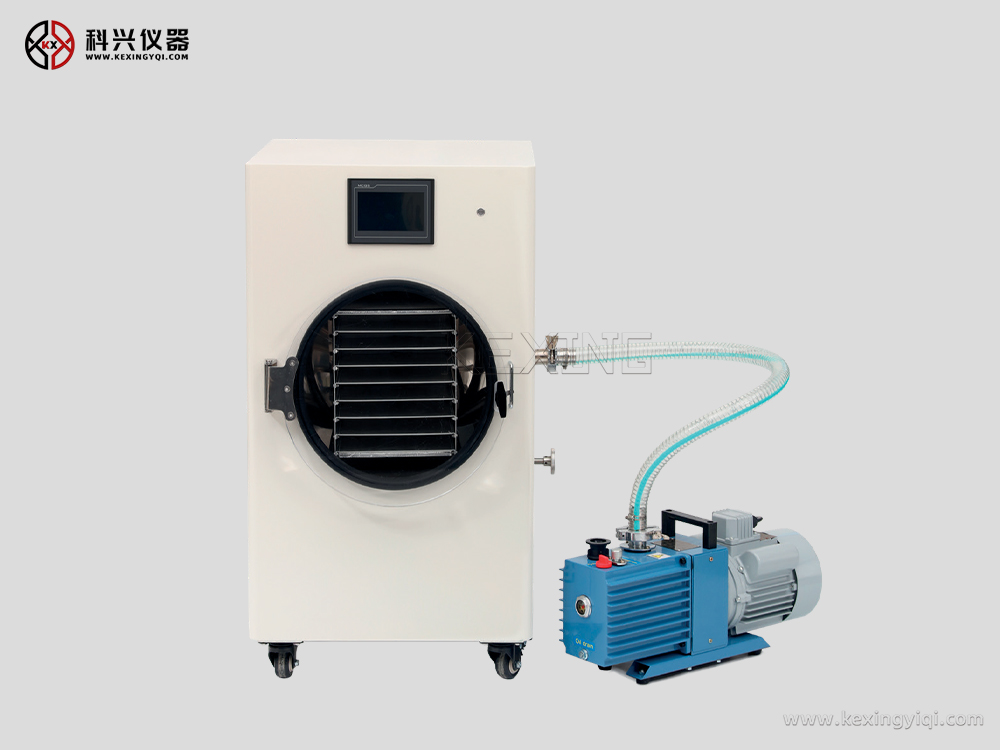

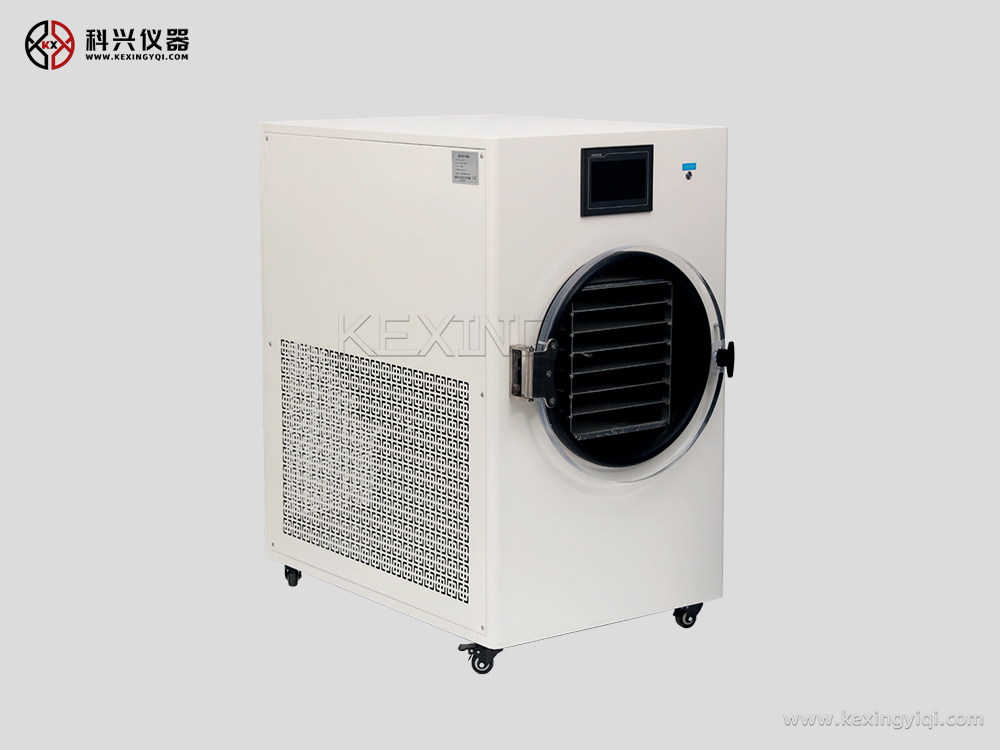

Product Display
HFD-1
HFD-4
HFD-6
HFD-8
HFD-15
HFD-20
HFD-25
HFD-30
HFD-50
HFD-50
Technical Parameter
| Household Freeze Dryer | |||||||||
| Model | HFD-1 | HFD-4 | HFD-6 | HFD-8 | HFD-15 | HFD-20 | HFD-25 | HFD-30 | HFD-50 |
| Freeze Dried Area | 0.1 ㎡ | 0.4 ㎡ | 0.6 ㎡ | 0.92 ㎡ | 1.45 ㎡ | 2.16 ㎡ | 2.52 ㎡ | 3㎡ | 4.95 ㎡ |
| Cold Trap Temperature | -35℃(Customizable -50℃ /-80℃) | -35℃(Customizable -50℃ /-80℃) | -60℃ | -55℃ | -55℃ | -55℃ | -45℃ | ||
| Processing Capacity | 1-2KG/批 | 4-6KG/ 批 | 6-8KG/ 批 | 10-12KG/ 批 | 18-20KG/ 批 | 26-28KG/批 | 32-35KG/批 | 40-42KG/批 | 75kg/批 |
| 1-2 KG/batch | 4-6 KG/batch | 6-8 KG/batch | 10-12 KG/batch | 18-20KG/batch | 26-28KG/batch | 32-35KG/batch | 40-42KG/batch | 75kg/batch | |
| Ultimate Vacuum | 2Pa 以下 Below 2Pa | 2Pa 以下 Below 2Pa | 2Pa 以下 Below 2Pa | 2Pa 以下 Below 2Pa | 2Pa 以下 Below 2Pa | ||||
| Material Tray Size | 145*275(mm) | 200*425(mm) | 315*430(mm) | 265*430(mm) | 265*780(mm) | 400*900(mm) | 400*900(mm) | 420*898(mm) | 500mm*550mm*30mm |
| Number of Material Trays | 3 只 3 pieces | 4 只 4 pieces | 4 只 4 pieces | 8 只 8 pieces | 7 只 7 pieces | 6 只 6 pieces | 7 只 7 pieces | 8 只 8 pieces | 18 只 18 pieces |
| Material Tray Spacing | 43mm | 45mm | 70mm | 38mm | 43mm | 53mm | 45mm | 45mm | 47 mm |
| Pumping Speed | 2L/S | 2L/S | 4L/S | 4L/S | 4L/S | 4L/S | 4L/S | 6L/S | 8L/S |
| Water Harvesting Ability | 3kg/24h | 4kg/24h | 6kg/24h | 10kg/24h | 18kg/24h | 26kg/24h | 32kg/24h | 40kg/24h | 70kg/24h |
| Operating Noise | ≤ 60dB | ≤ 60dB | ≤ 60dB | ≤ 60dB | ≤ 60dB | ||||
| Supply Voltage | 220V/50Hz (可定制110V或380V) | 220V/50Hz (可定制 110V 或 380V) | 220V/50Hz (可定制 110V 或 380V) | 220V/50Hz (可定制 110V 或 380V) | 三相电 380vThree phase electricity 380V | ||||
| (Customizable 110V or 380V) | (Customizable 110V or 380V) | (Customizable 110V or 380V) | (Customizable 110V or 380V) | ||||||
| Machine Dimensions | 450*500*825(mm) | 500*640*900(mm) | 680*640*1180(mm) | 680*640*1180(mm) | 680*990*1180(mm) | 780*1200*1310(mm) | 780*1200*1310(mm) | 827*1100*1350(mm) | 1000*2010*1560(mm) |
| Net Weight | 73kg | 84kg | 125kg | 130kg | 186kg | 269kg | 279kg | 335kg | |
| Package Size | 570*680*1170mm | 630*840*1260(mm) | 820*800*1540(mm) | 820*800*1540(mm) | 820*1170*1600(mm) | 1400*910*1550(mm) | 820*1170*1600(mm) | 940*1290*1500(mm) | |
| Total Weight with Packaging | 113kg | 139kg | 197kg | 203kg | 281kg | 370kg | 380kg | 455kg | |
| Whole Machine Power | 1100W | 1500W | 2000W | 2500W | 3500W | 3800W | 4100W | 4500W | 9.5 KW |
