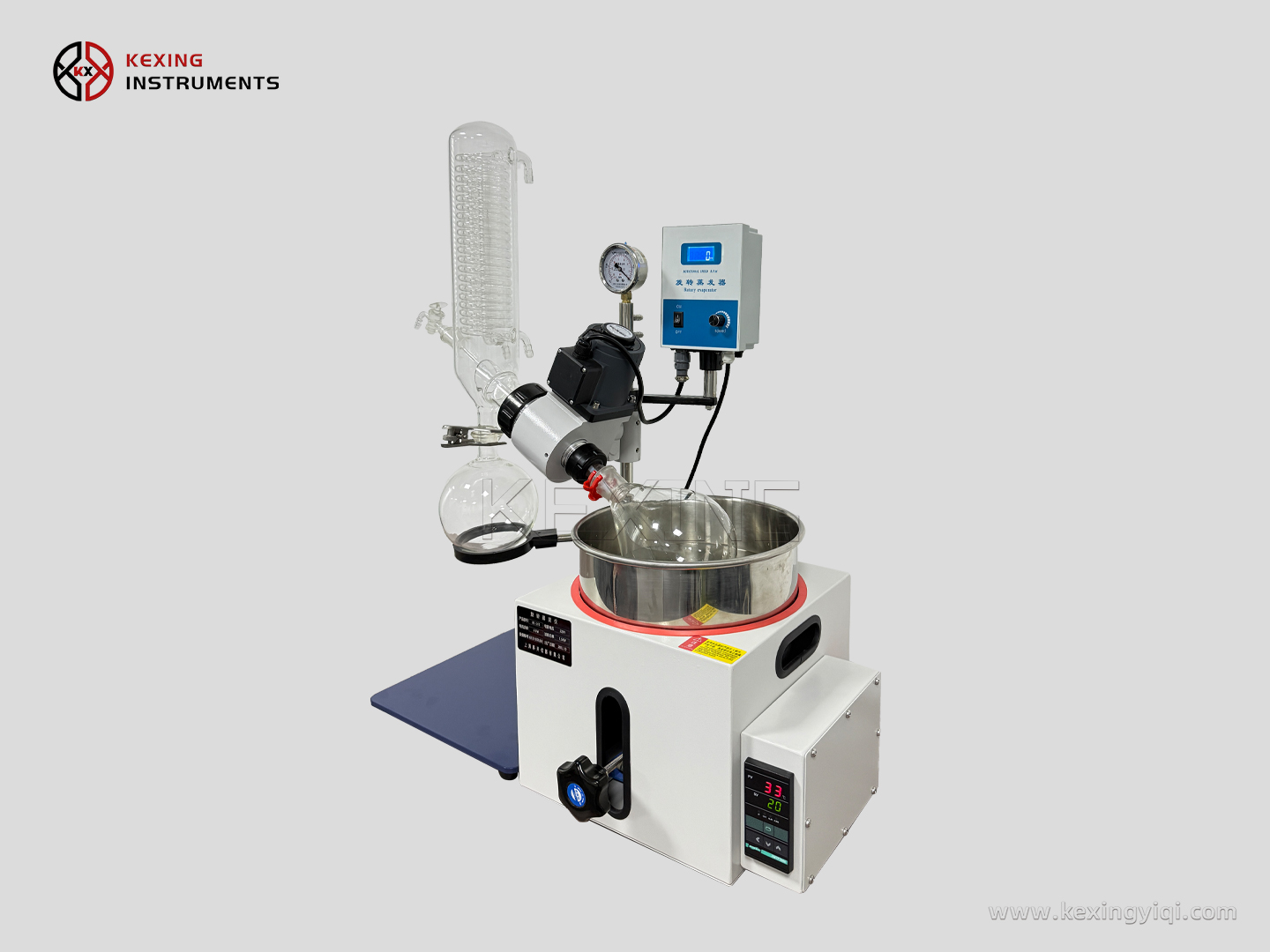

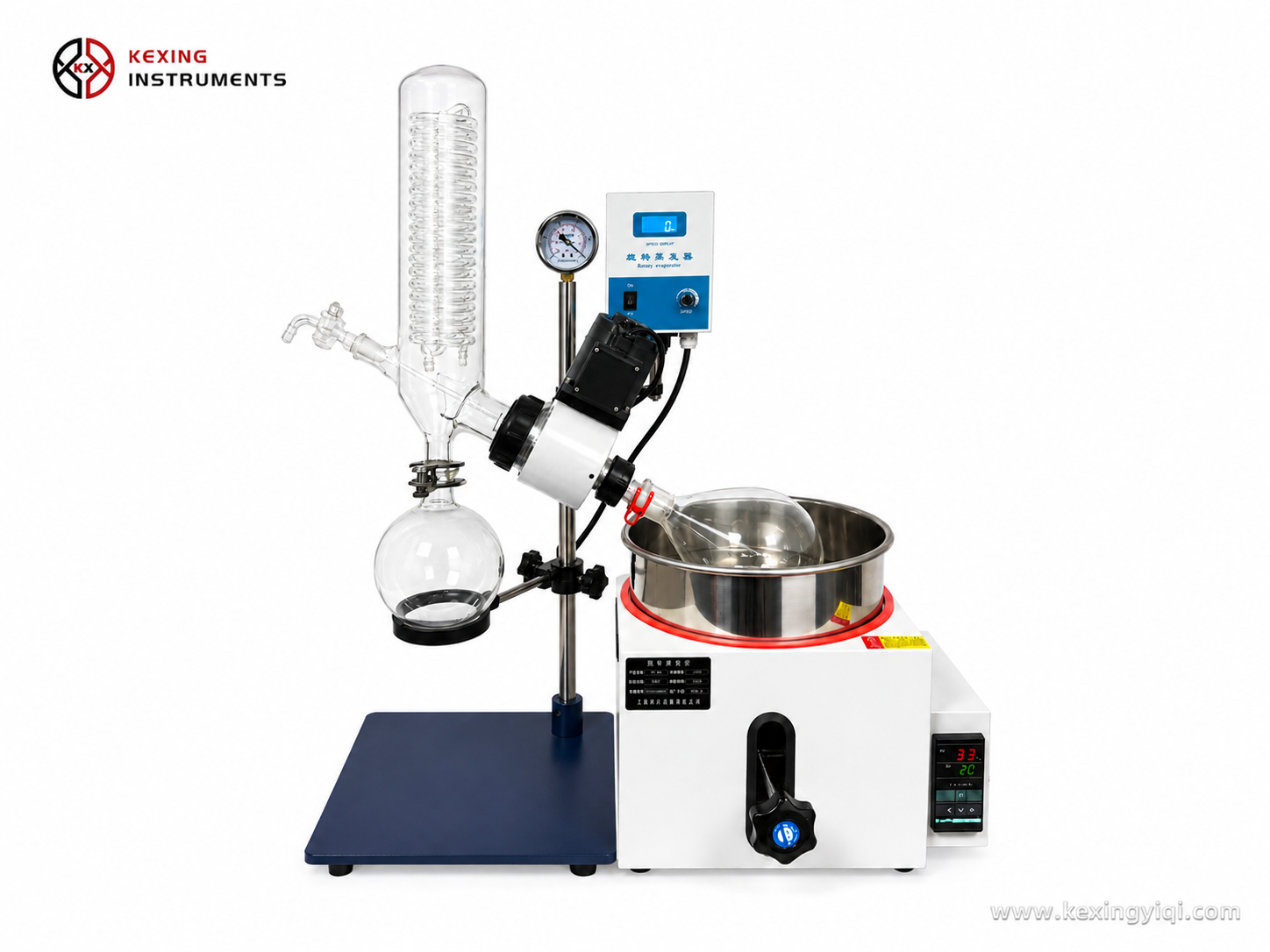

Product Description

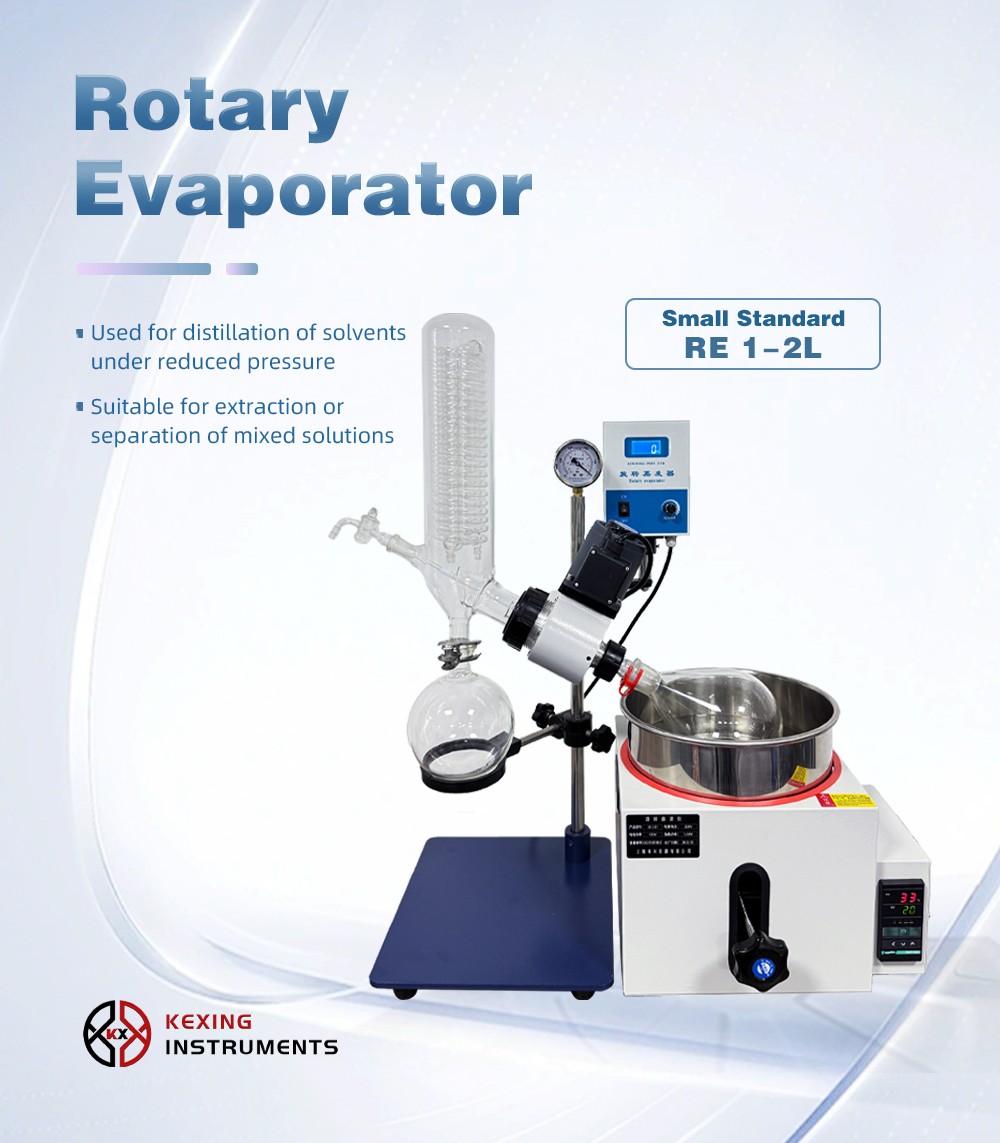

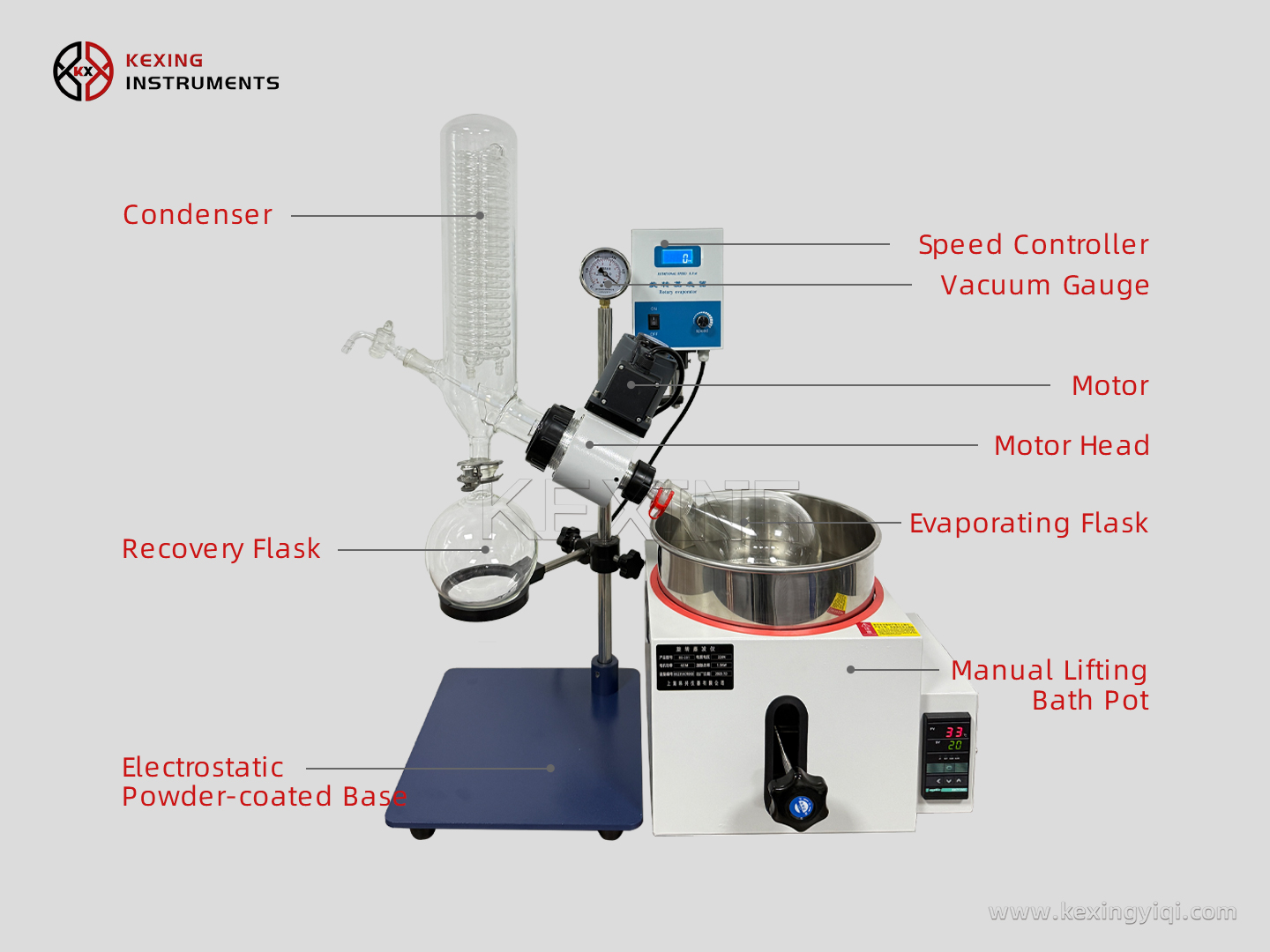

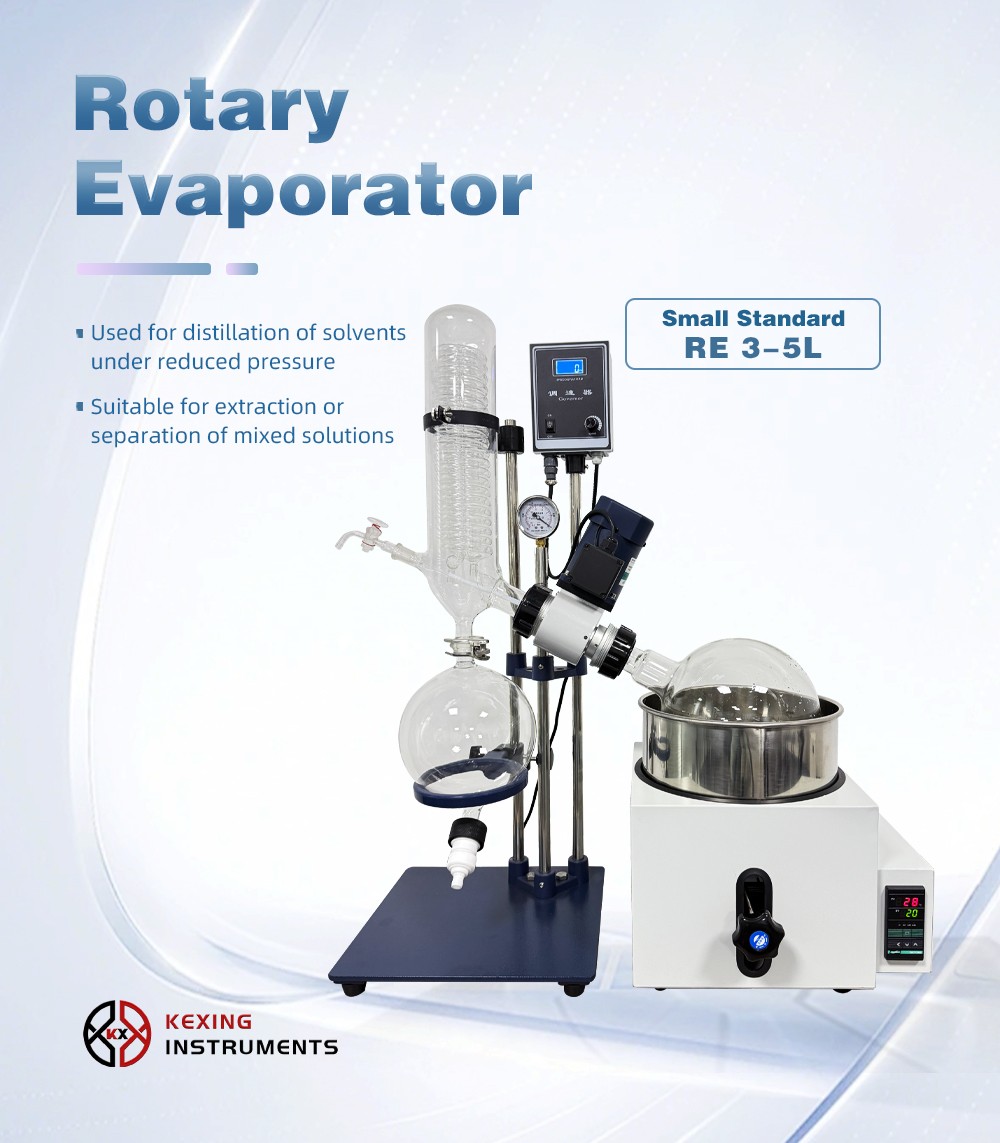

Rotary evaporator is mainly used for continuous distillation of large amount of volatile solvents under reduced pressure. It is suitable for extracting solvents or separating mixed solutions, and can be used in the following experiments or product production: ① solution concentration; ② solvent recovery; ③ chemical separation; ④ essential oil extraction; ⑤ removing solvents from samples. Especially for the concentration and crystallization of extracts and the distillation of receiving solution in chromatographic separation. The basic principle of rotary evaporator is vacuum distillation, i.e., under the condition of reduced pressure, the glass bottle with reaction materials is rotated at constant speed and heated uniformly at constant temperature, the boiling point of materials is lowered, the liquid forms a film and evaporates, and then the solvents are recovered through the glass coiled condenser and collector. It is the ideal equipment for experiments and production in the fields of pharmacy, chemical industry, foodstuff, material and so on.

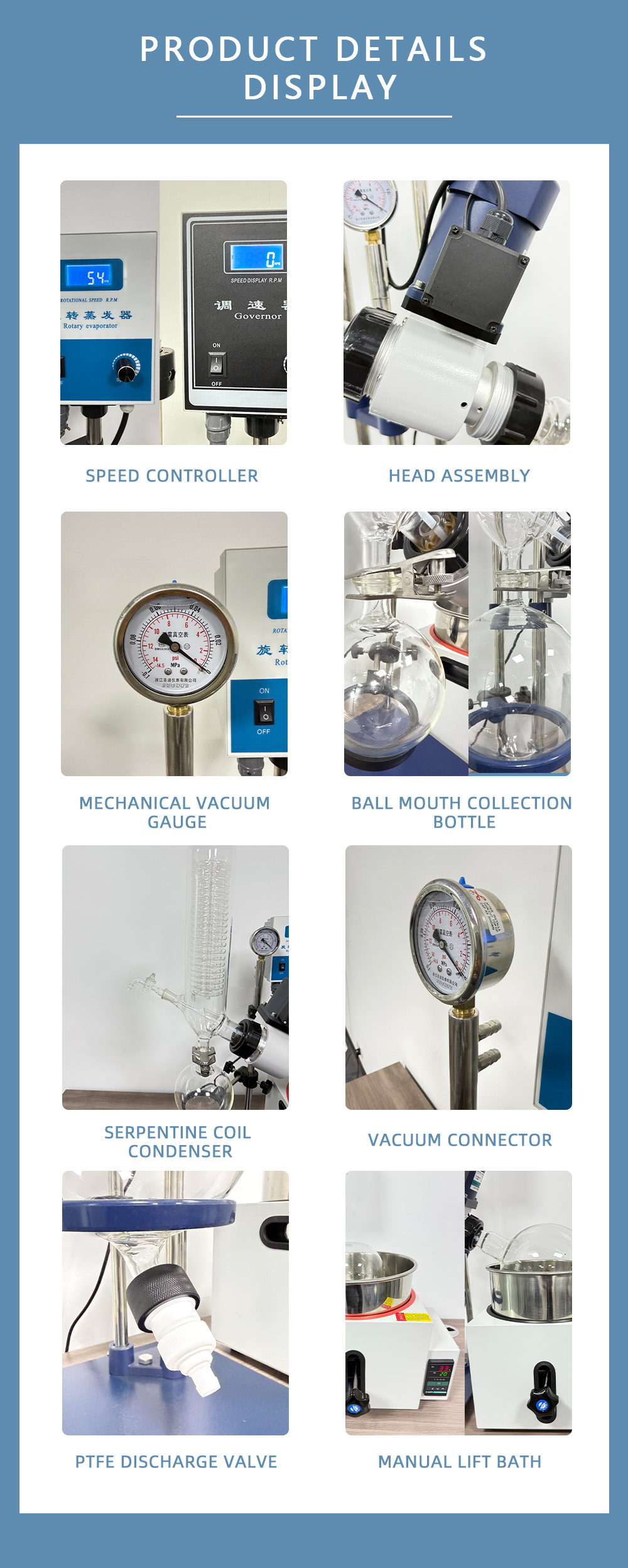

Product Features

•    All glass components are made of 3.3 borosilicate glass, offering excellent physical and chemical properties.

•    Serpentine glass coil condenser provides large condensation area and high recovery efficiency.

•    Electronic or variable frequency speed control ensures stable motor operation.

•    Heating temperature control employs PID regulation for high precision.

• Dynamic sealing utilizes a “PTFE + fluororubber dual seal” design to enhance system integrity.

• Elevating heating bath allows adjustment of flask heating area through vertical movement.

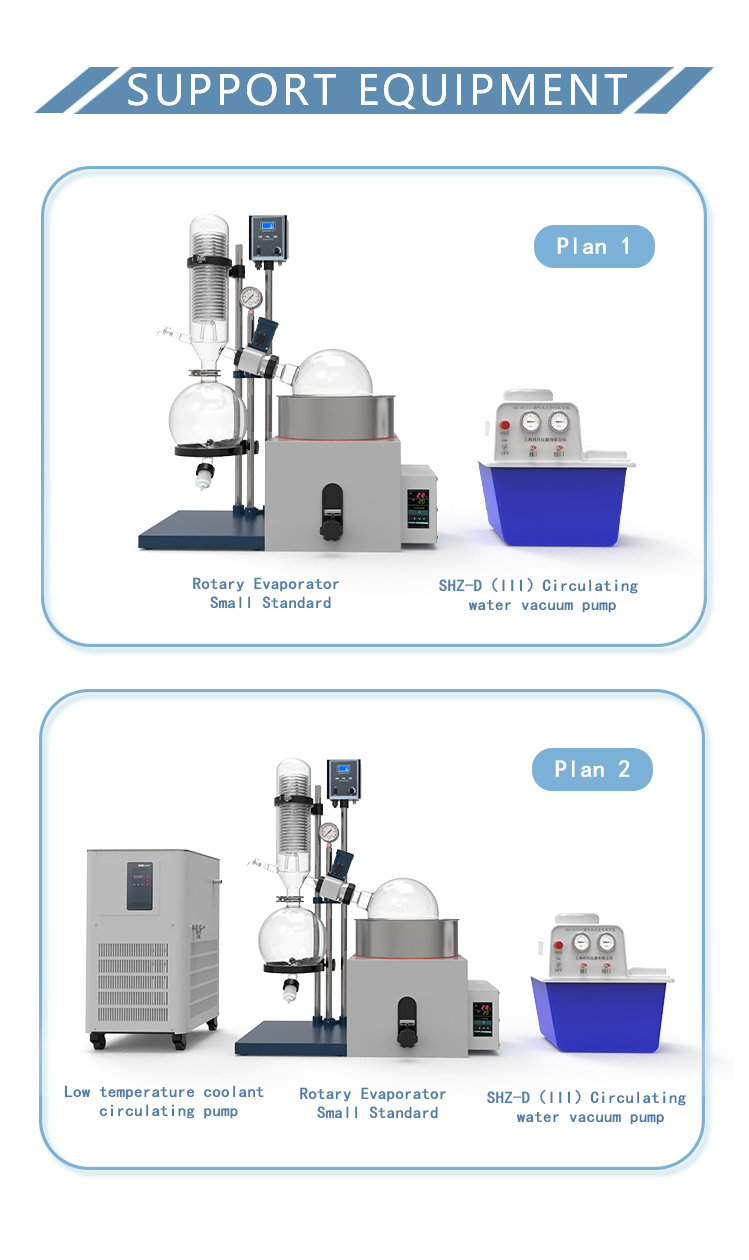

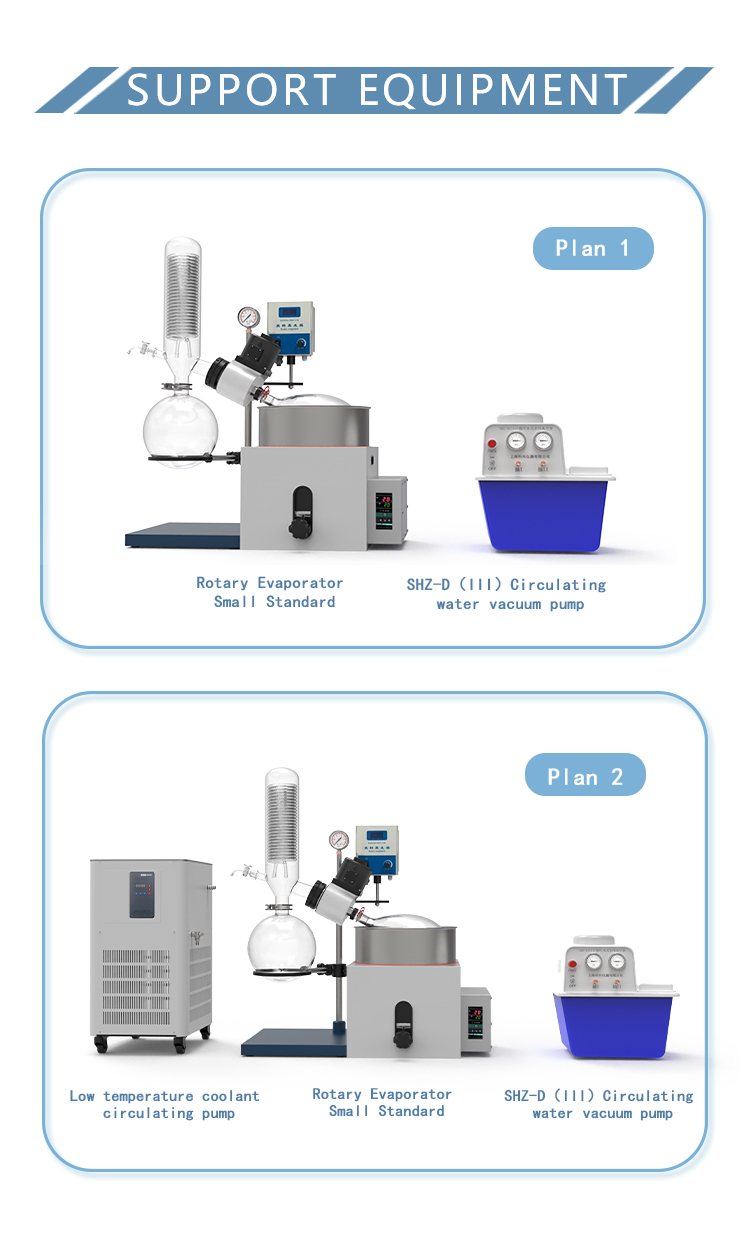

• Optional accessories including cooling circulators and vacuum pumps offer convenient integration, promoting energy efficiency and workflow optimization.
