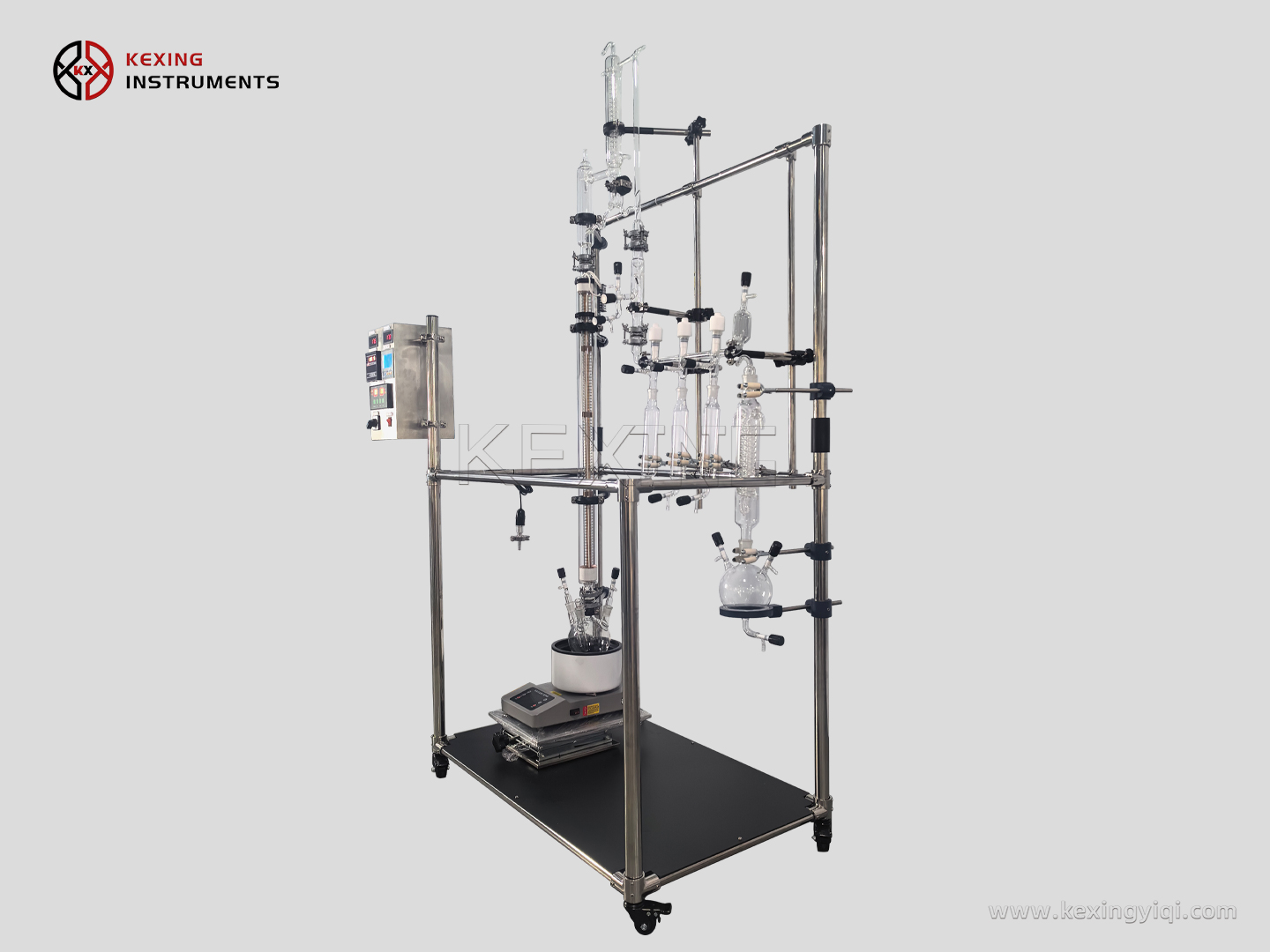

Distillation unit
Distillation unit
Distillation unit
Distillation unit

Distillation unit

Distillation device is a tower type gas-liquid contact device used for distillation. By utilizing the property that each component in the mixture has different volatility, that is, the vapor pressure of each component is different at the same temperature, the light components (low boiling substances...
SHARE

Product Introduction
Product Display
Technical Parameter
Distillation device is a tower type gas-liquid contact device used for distillation. By utilizing the property that each component in the mixture has different volatility, that is, the vapor pressure of each component is different at the same temperature, the light components (low boiling substances) in the liquid phase are transferred to the gas phase, while the heavy components (high boiling substances) in the gas phase are transferred to the liquid phase, thus achieving the purpose of separation. Distillation tower is also a widely used mass and heat transfer device in petrochemical production.
精馏装置
                   玻璃部件                   四口烧瓶                   5000ml瓶
                   温度计套管                   5000ml-塔釜测温
                   加料阀                   5000ml-塔釜加料
                   导气管                   5000ml-塔釜进气
                   精馏头                   腹壁式精馏头
                   镀银真空塔                   长度1000mm(定制)
                   真空取样器                   真空取样
                   两联分液器                   真空状态下切换接料
                   冷阱                   真空缓冲
                   桶型接料瓶                   1000ml
                   电器部件                   电磁铁                   24v-精馏头回流比控制-冷却盘管
                   回流比控制器                   数显回流1:99/99:1
                   电热套                   数显恒温5000ml
                   安装部件                   操作台架                   冷板喷塑
                   夹具                   304不锈钢材质
                   法兰                   DN25
                   十字夹                   特大号十字夹
                   环填料                   根据客户需求定制
                   真空硅脂                   用于磨口连接
                   备用配件                   标口塞                   24/29标口塞
                   硅胶条                   用于夹具距离调节
                   取样磁钢                   用于取样
                   导热油                   用于测温
