Products

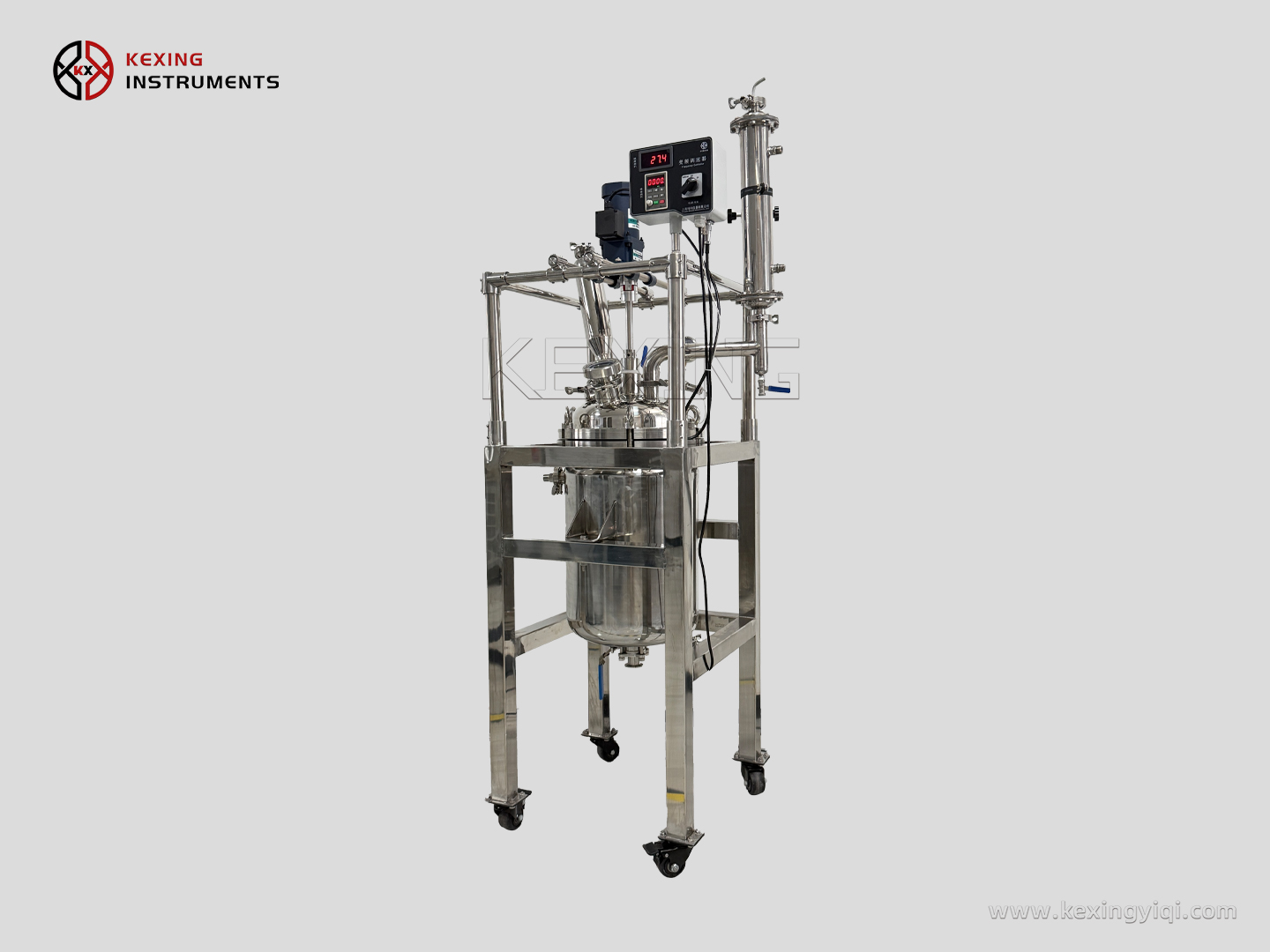

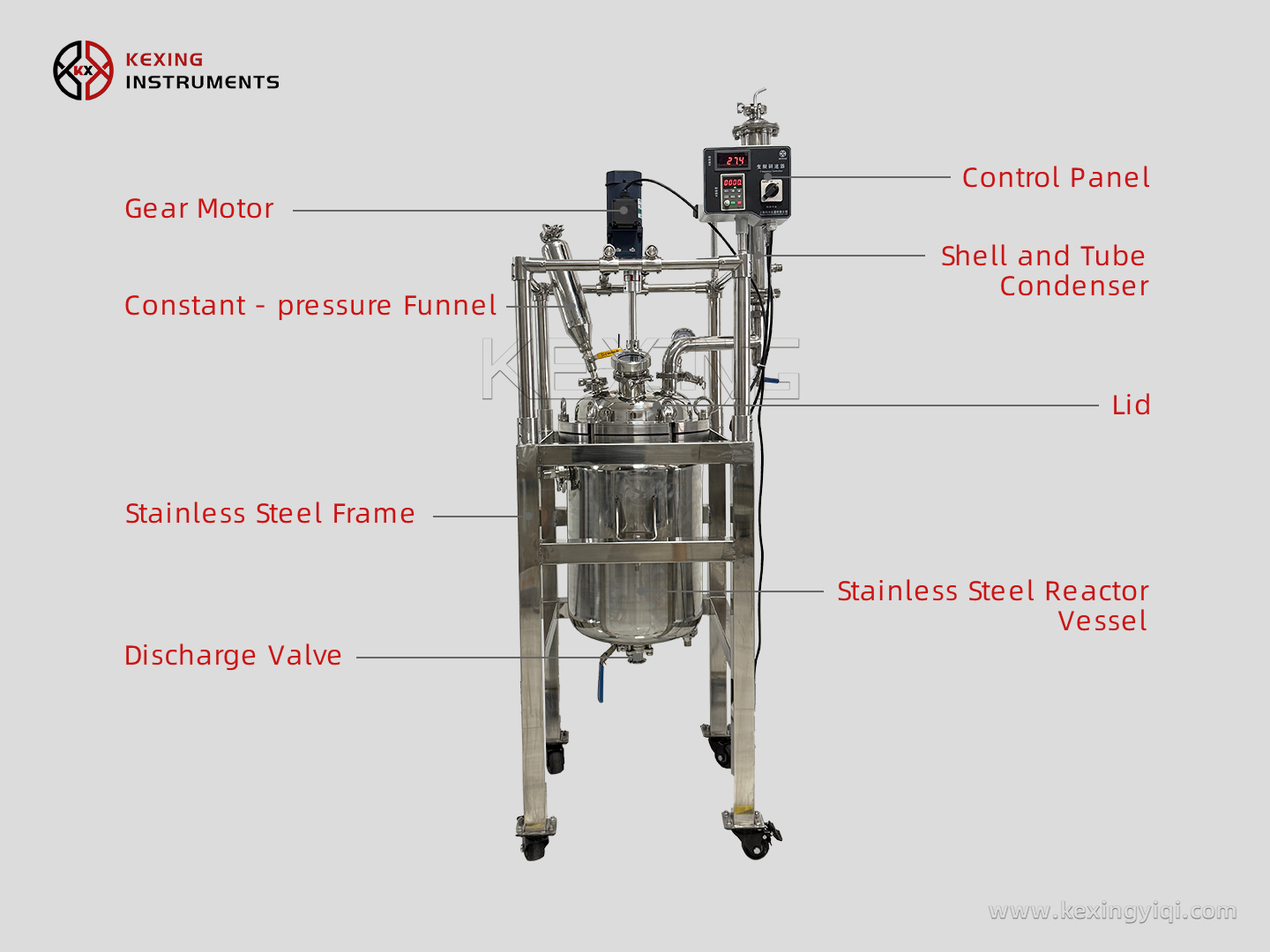

Stainless steel reactor kettle structure can be designed as single layer, double layer and three layer types. The reaction liquid can be put into the inner layer for stirring, and the middle layer can be connected with cold and hot sources (frozen liquid, hot water or hot oil) for circulating heating or cooling reaction. Under constant temperature setting, the reaction can be stirred under micro-pressure or negative pressure in a closed reactor according to the operation, and the reaction solution can also be refluxed and distilled. The apparatus is ideal for the production of new materials for modern fine chemistry, pharmaceuticals and biosynthesis.

Product Benefits and Features:

- It is made of SUS304 or 316 stainless steel, which has good durability and reliability, and the kettle spraying treatment can be selected according to the demand to solve the problem of corrosion resistance and contaminant material.

- Stainless steel material has better thermal conductivity and high thermal conductivity compared with other materials.

- Conventional applicable temperature range: high temperature experiment (maximum temperature is 200℃), low temperature experiment (minimum temperature is -80℃).

- Alloy steel dynamic ring + ceramic static ring mechanical seal design, better guarantee the sealing performance of mixing dynamics.

- The use of PT100 sensor probe, high precision temperature measurement, less error.

- Frequency conversion speed control, gear motor, constant adjustable speed, low noise, strong torque, safety and stability.

- Stainless steel stirring paddle is suitable for stirring and mixing of low to high viscosity liquids, different types of stirring paddle can be selected (anchor, paddle, frame, turbine and other stirring blades)

- Stainless steel tank valve, heat-resistant, can be quickly discharged or rinsed.

- Other functional devices (explosion-proof device, PH monitoring, ultrasonic device, etc.) can be extended and customized according to specific needs.
