Product Description:

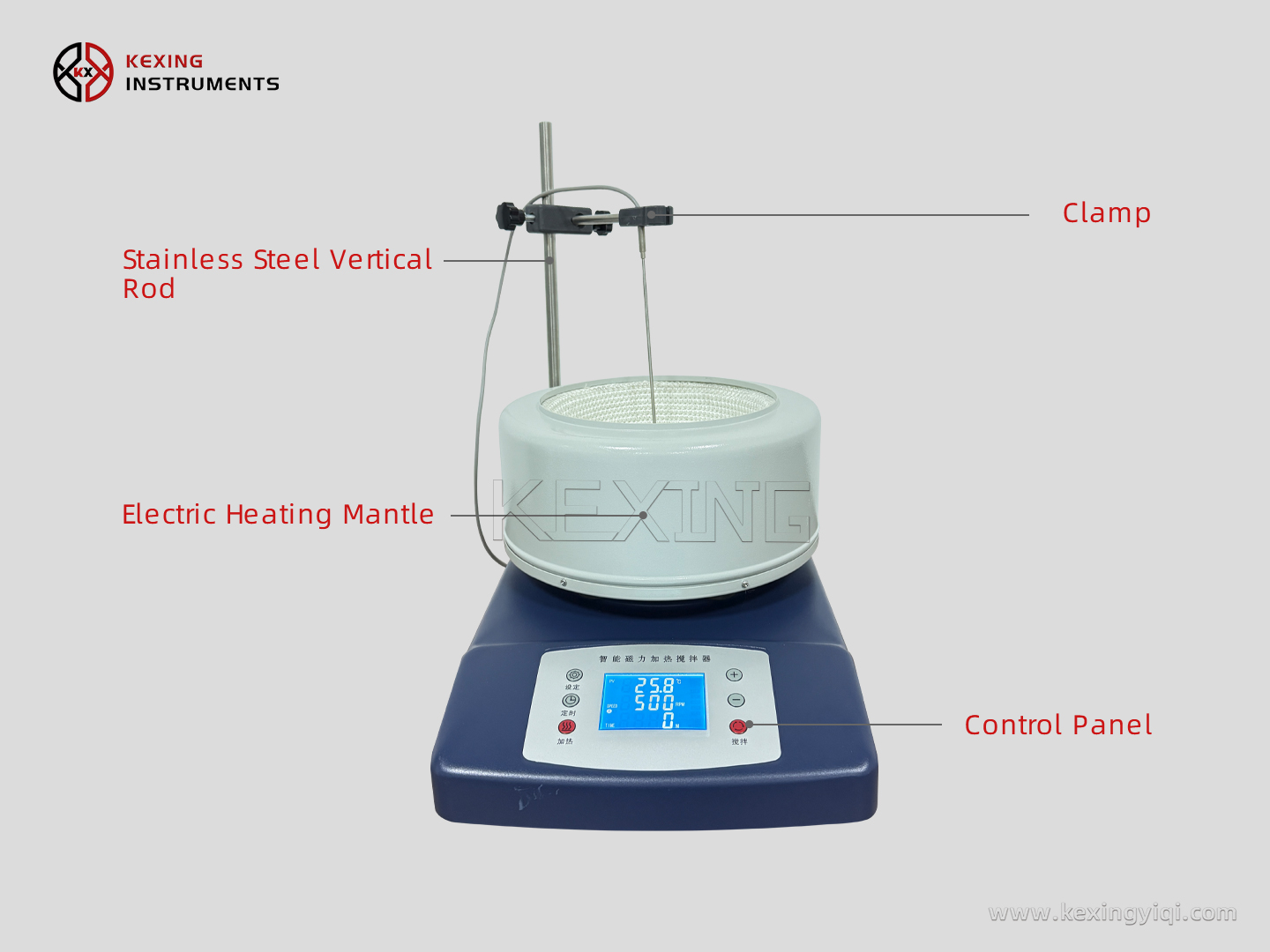

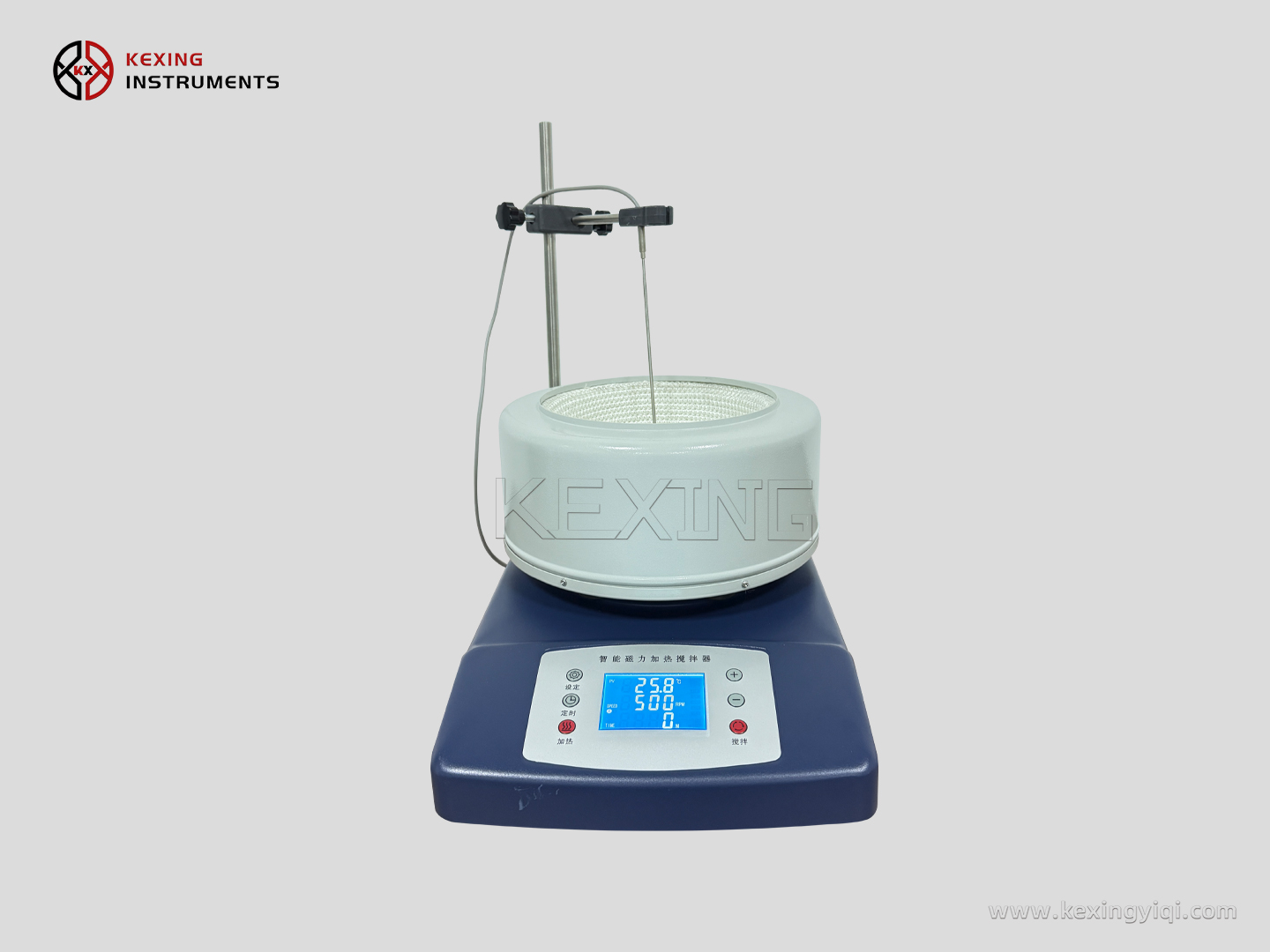

Heating Jacket Type Magnetic Stirrer is a kind of through the electric heating jacket heat radiation to provide heat source to the material, stirring through the magnetic suction to drive the stirrer to stir the material. It can be used for liquid-liquid mixing, solid-liquid suspension, gas-liquid or liquid-liquid dispersion under constant temperature. It is widely used in laboratory, pharmaceutical, chemical, food, biotechnology and other industries.
Product advantages and features:
- Heating jacket heating, fast warming speed, high heating temperature.
- Dual-channel design for heating and stirring; can be controlled separately.
- Internal and external temperature sensors, can measure the temperature of the material control.
- DC permanent magnet motor, low noise, high torque, long service life.
| Name | Jacketed Reactor Magnetic Stirrer | ||||||||
| Series | MSJ-C (Press button Series) | ||||||||
| Model | MSJ-C-100ml | MSJ-C- 250ml | MSJ-C- 500ml | MSJ-C- 1000ml | MSJ-C- 2000ml | MSJ-C- 3000ml | MSJ-C- 5000ml | MSJ-C- 10000ml | MSJ-C- 20000ml |
| Capacity (ml) | 100 | 250 | 500 | 1000 | 2000 | 3000 | 5000 | 10000 | 20000 |
| Gross Weight (kg) | 4 | 4 | 4.5 | 5.5 | 6.5 | 7 | 10.5 | 13.5 | 15 |
| Inner Sleeve Diameter (mm) | 65 | 90 | 115 | 140 | 175 | 200 | 240 | 305 | 375 |
| Inner Sleeve Depth (mm) | 44 | 60 | 70 | 90 | 110 | 125 | 150 | 185 | 210 |
| Heating Power (W) | 140 | 210 | 230 | 530 | 630 | 730 | 1100 | 2100 | 2600 |
| Unit Dimension (mm) | 290*170*130 | 290*170*150 | 290*170*160 | 390*260*200 | 390*260*220 | 390*260*240 | 510*340*250 | 430*430*320 | 510*510*360 |
| Name | Jacketed Reactor Magnetic Stirrer | ||||||||
| Series | MSJ-E (Knob Series) | ||||||||
| Model | MSJ-E-100ml | MSJ-E- 250ml | MSJ-E- 500ml | MSJ-E- 1000ml | MSJ-E- 2000ml | MSJ-E- 3000ml | MSJ-E- 5000ml | MSJ-E- 10000ml | MSJ-E- 20000ml |
| Capacity (ml) | 100 | 250 | 500 | 1000 | 2000 | 3000 | 5000 | 10000 | 20000 |
| Gross Weight (kg) | 4 | 4 | 4.5 | 5.5 | 6.5 | 7 | 10.5 | 13.5 | 15 |
| Inner Sleeve Diameter (mm) | 65 | 90 | 115 | 140 | 175 | 200 | 240 | 305 | 375 |
| Inner Sleeve Depth (mm) | 44 | 60 | 70 | 90 | 110 | 125 | 150 | 185 | 210 |
| Heating Power (W) | 140 | 210 | 230 | 530 | 630 | 730 | 1100 | 2100 | 2600 |
| Unit Dimension (mm) | 290*170*130 | 290*170*150 | 290*170*160 | 390*260*200 | 390*260*220 | 390*260*240 | 510*340*250 | 430*430*320 | 510*510*360 |
