Product Description:

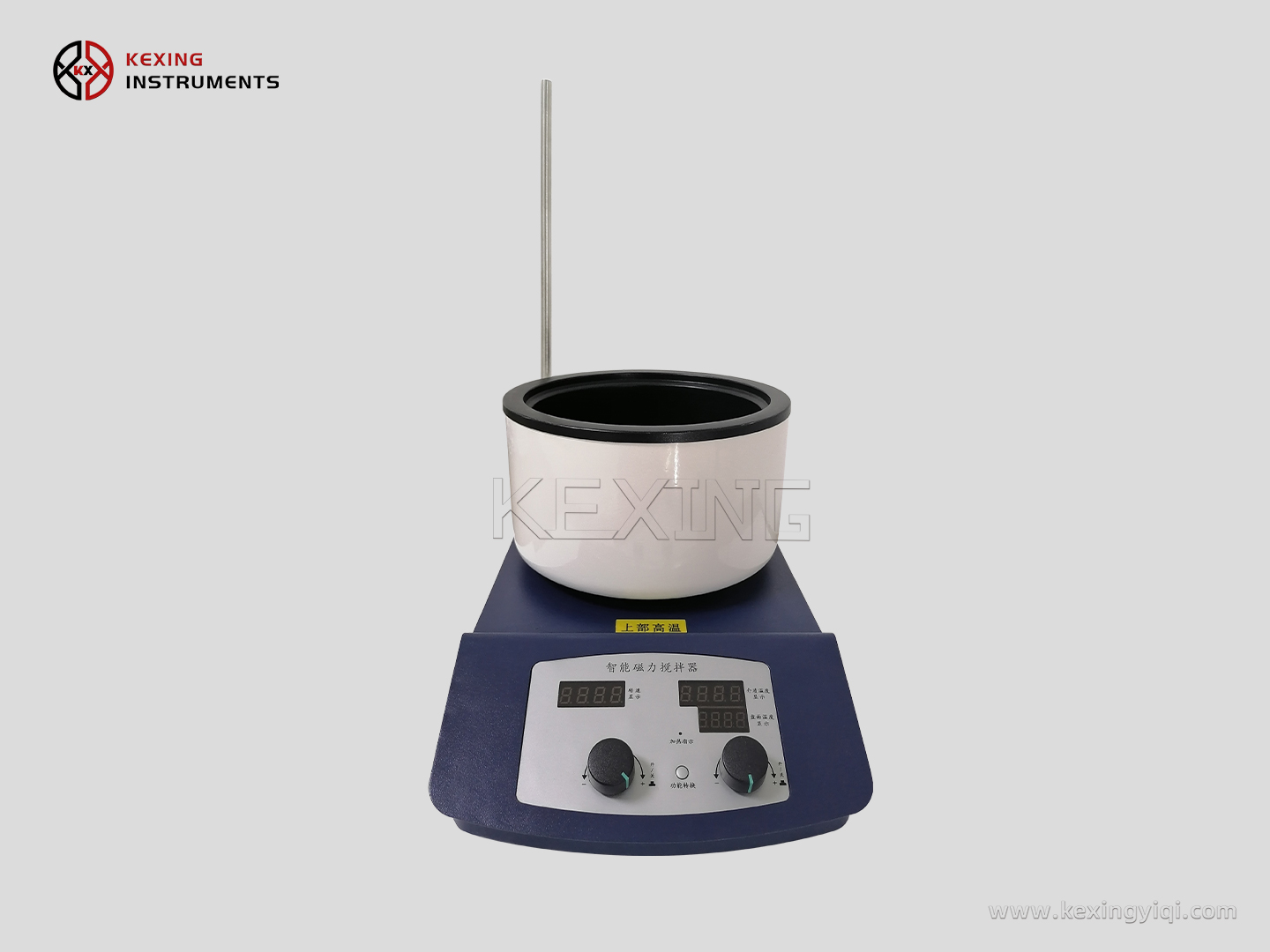

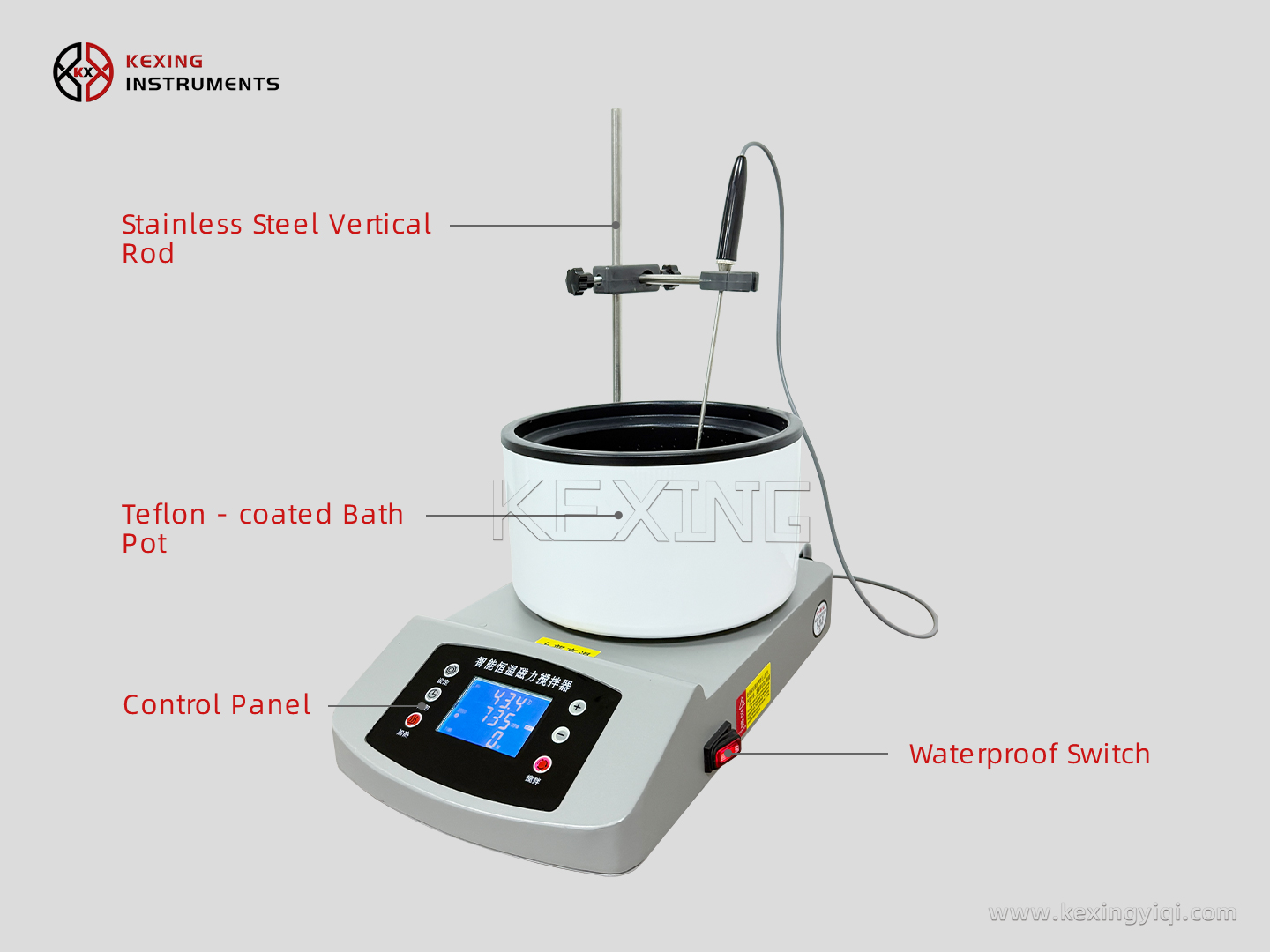

Bath Pot Magnetic Stirrer is a kind of through the electric heating tube to heat transfer to the heat-conducting medium, and then heat transfer to the material to provide a constant temperature heat source, stirring through the magnetic suction to drive the stirrer to stir the material. It can be used for liquid-liquid mixing, solid-liquid suspension, gas-liquid or liquid-liquid dispersion under constant temperature conditions. It is widely used in laboratory, pharmaceutical, chemical, food, biotechnology and other industries.
Product advantages and features:
- Water and oil bath heat conduction, uniform heating, high temperature control precision.
- Dual-channel design for heating and stirring; can be controlled separately.
- Internal and external temperature sensors, temperature control of materials.
- DC permanent magnet motor, low noise, high torque, long service life.
| Product Name | Bath Magnetic Stirrer | |||||
| Model | MSB-1C | MSB-3C | MSB-5C | MSB-1C | MSB-3C | MSB-5C |
| Operate | Key Operation | Knob operation | ||||
| Heating Power(W) | 400W | 650W | 900W | 400W | 650W | 900W |
| Heating Pot Size (Mm) | 130mm*70mm | 190mm*105mm | 240mm*150mm | 130mm*70mm | 190mm*105mm | 240mm*150mm |
| Dimensions (Mm) | 300*170*165 | 380*230*210 | 400*260*250 | 300*170*165 | 380*230*210 | 400*260*250 |
| Motor Power (W) | 40W | |||||
| Stirring Speed | 60～2000r/min | |||||
| Speed Control Accuracy | ±5 r/min; Digital display | |||||
| Temperature Control Range | Room temperature～280℃ | |||||
| Temperature Control Accuracy | ±1 r/℃ Digital display | |||||
| Furnace Wire | Cr20Ni80 | |||||
| Working Hours | continuous | |||||
| Basic Error of Temperature Measurement | <0.5% | |||||
| Speed Sensor | Hall element | |||||
| Work Environment | Ambient temperature: -10～60℃; Relative temperature: <85%RH | |||||
| Power Supply | AC220V±10% 50/60Hz | |||||
