Product Description:

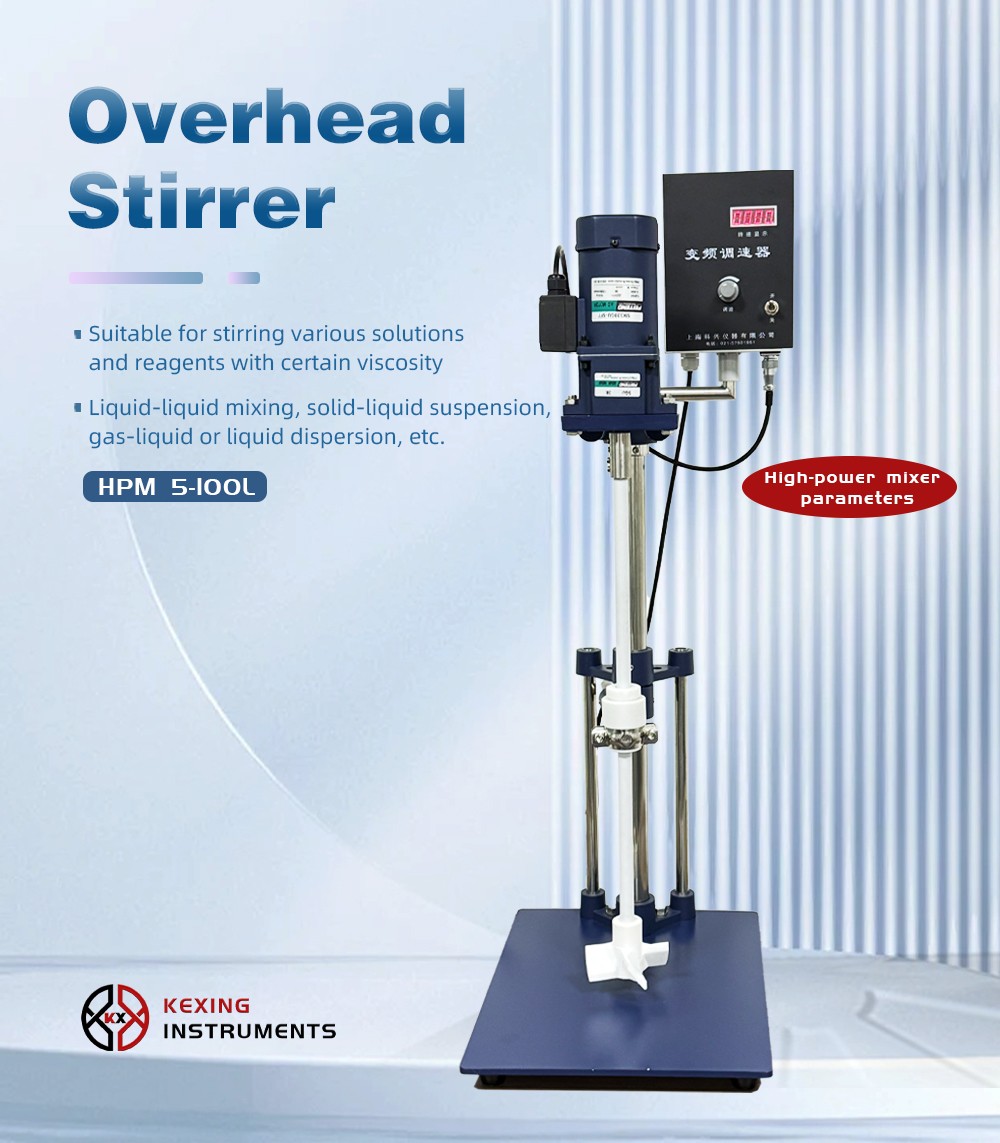

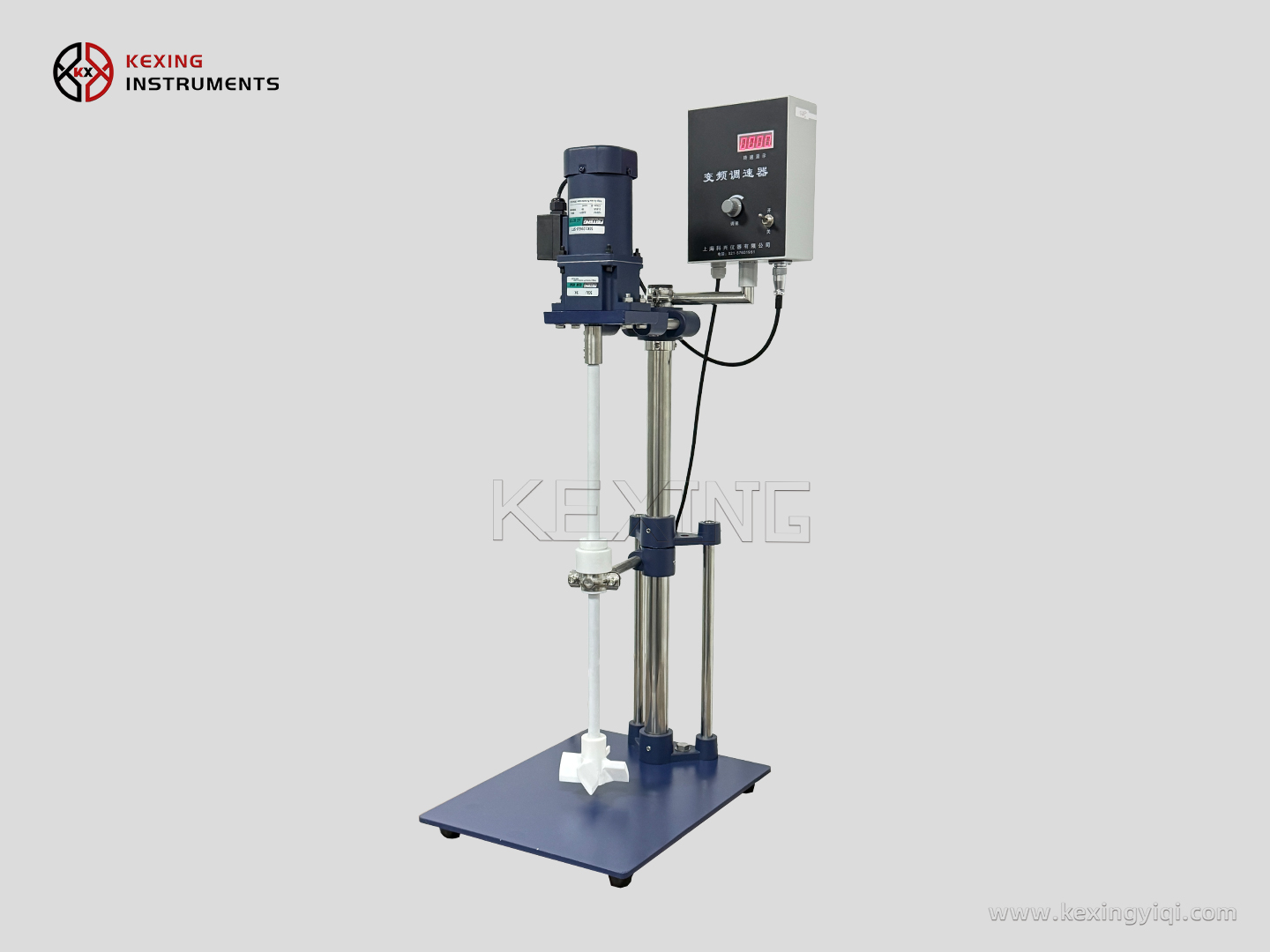

High-power overhead stirrer is a kind of instrument mainly applied in mixing, homogenization, suspension and other working conditions. It can be used for liquid-liquid mixing, solid-liquid suspension, gas-liquid or liquid-liquid dispersion and so on. It is suitable for mixing all kinds of large-capacity and high-viscosity solutions, reagents, etc. It is widely used in laboratory, pharmaceutical, chemical, food, biotechnology and other industries.

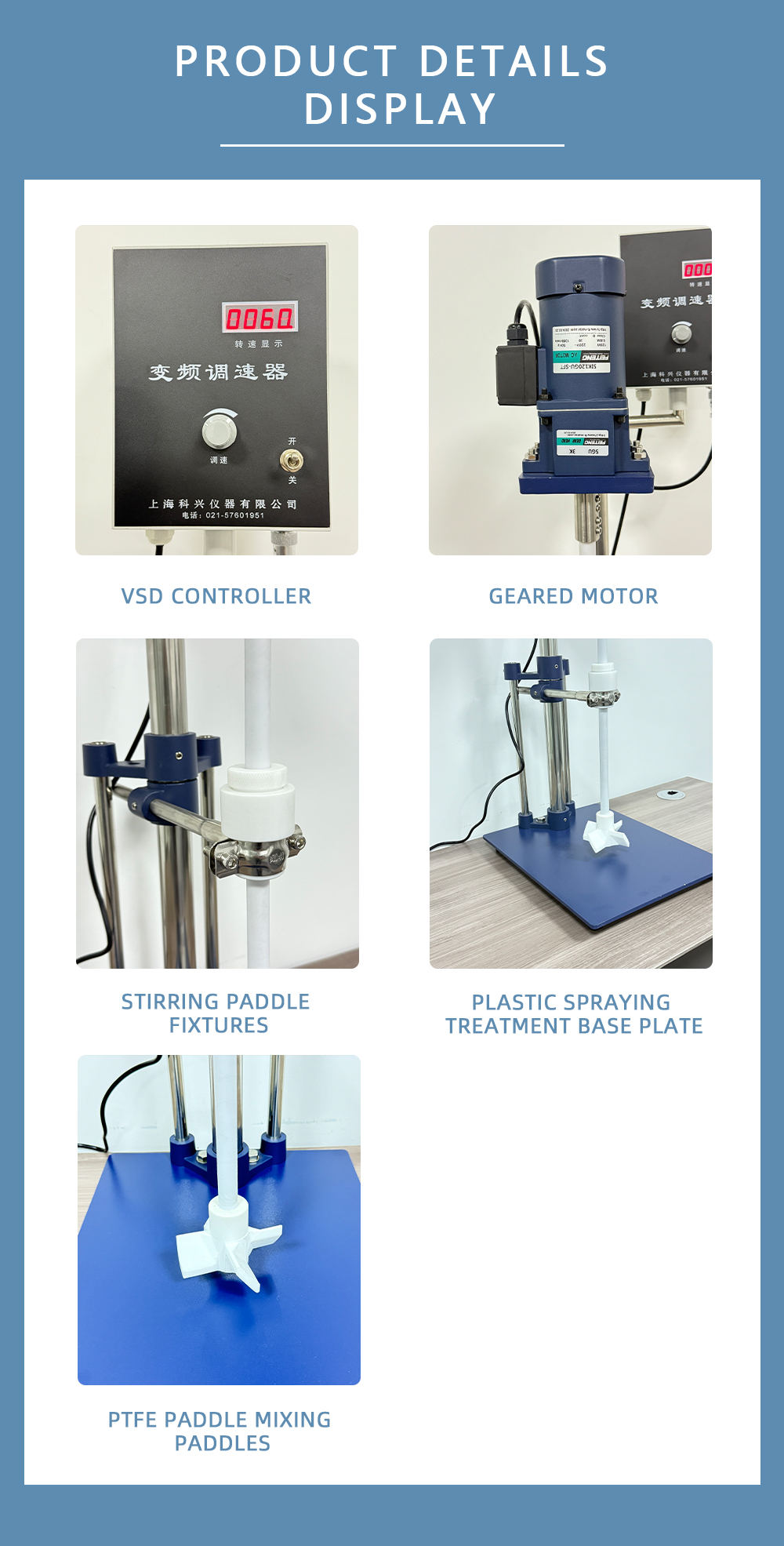

Product Advantages and Features:
- Adopting gear motor, high torque.
- Frequency conversion control, digital display speed, adjustable speed.
- Adopt coupling or universal joint to connect the mixing paddle, simple and convenient operation.
- Base plate or frame design, solid structure, movable.
| High-power mixer parameters | ||||||
| Model | HPM-120 | HPM-120D | HPM-250 | HPM-250D | HPM-180EX | HPM-370EX |
| Maximum mixing capacity(H2O) [L] | 5L-20L | 5L-50L | 20L-50L | 20L-100L | 5L-20L | 20L-50L |
| Motor output power（W） | 90 | 120 | 250 | 250 | 180 （Explosion-proof rating BT4） | 370 （Explosion-proof rating BT4） |
| power supply | 220V/50HZ | |||||
| reduction ratio | / | 1:3speed ratio | / | 1:3speed ratio | / | / |
| controller | electronic speed control | variable frequency speed control | electronic speed control | variable frequency speed control | variable frequency speed control | variable frequency speed control |
| speed range（rpm） | 50-1350 | 0-450 | 50-1350 | 0-450 | 50-1400 | 50-1400 |
| Maximum torque（N·m） | 0.6 | 1.8 | 1.6 | 4.8 | 0.9 | 2.1 |
| Base plate dimensions（mm） | 340*440 | |||||
| stirring paddle | Paddle type (stainless steel outer casing with PTFE coating) | |||||
Please feel free to contact us, we will reply you within 24 hours.
