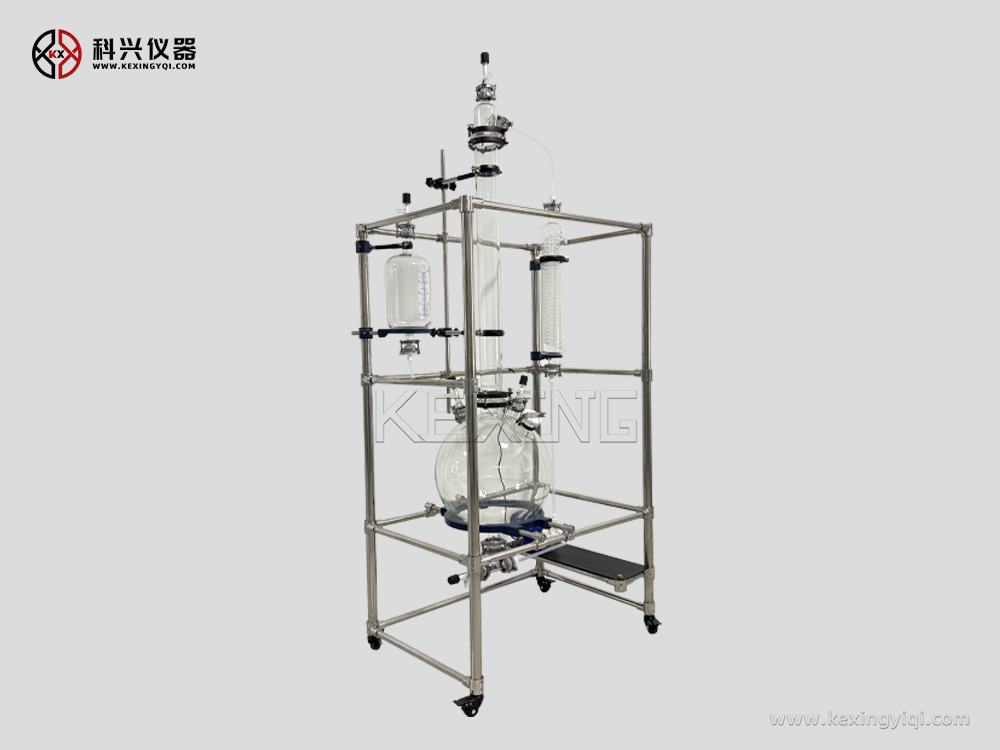

Glass tail gas absorption evice
Glass tail gas absorption evice
Glass tail gas absorption evice
Glass tail gas absorption evice

Glass tail gas absorption evice

Product Description:Glass Tail Gas Absorption Device is an environmental protection equipment used to deal with harmful gases (such as acidic and alkaline gases or organic waste gases) produced in laboratory production, its working principle is that the tail gas passes through the buffer tank and th...
SHARE

Product Introduction
Product Display
Technical Parameter

Product Description:

Glass Tail Gas Absorption Device is an environmental protection equipment used to deal with harmful gases (such as acidic and alkaline gases or organic waste gases) produced in laboratory production, its working principle is that the tail gas passes through the buffer tank and the absorption liquid inside the device to form bubbles, the absorption liquid circulates through the cooler/shower head/stuffing tower, and it is fully contacted with the gas countercurrently, and the physical or chemical reaction occurs.

Product Advantages and Features:

- The glass assembly uses G3.3 borosilicate glass, which is characterized by corrosion resistance and transparent visualization.

- Adopt corrosion-resistant magnetic circulation pump to ensure the stability of absorption liquid circulation.

- Modular design, can be customized to add other purification function module.

- According to user requirements can be customized circulation flow adjustable, electrical explosion-proof and other features.

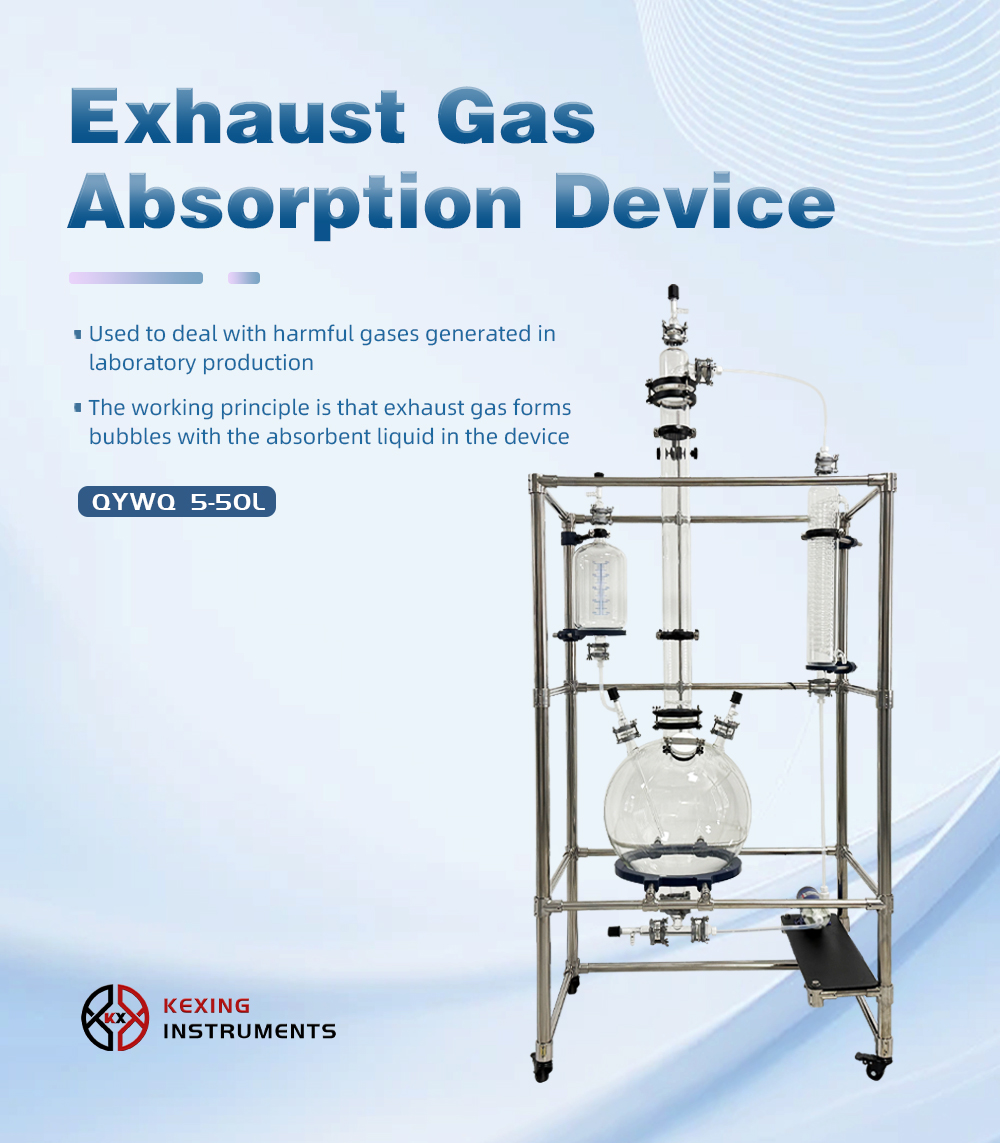

产品展示

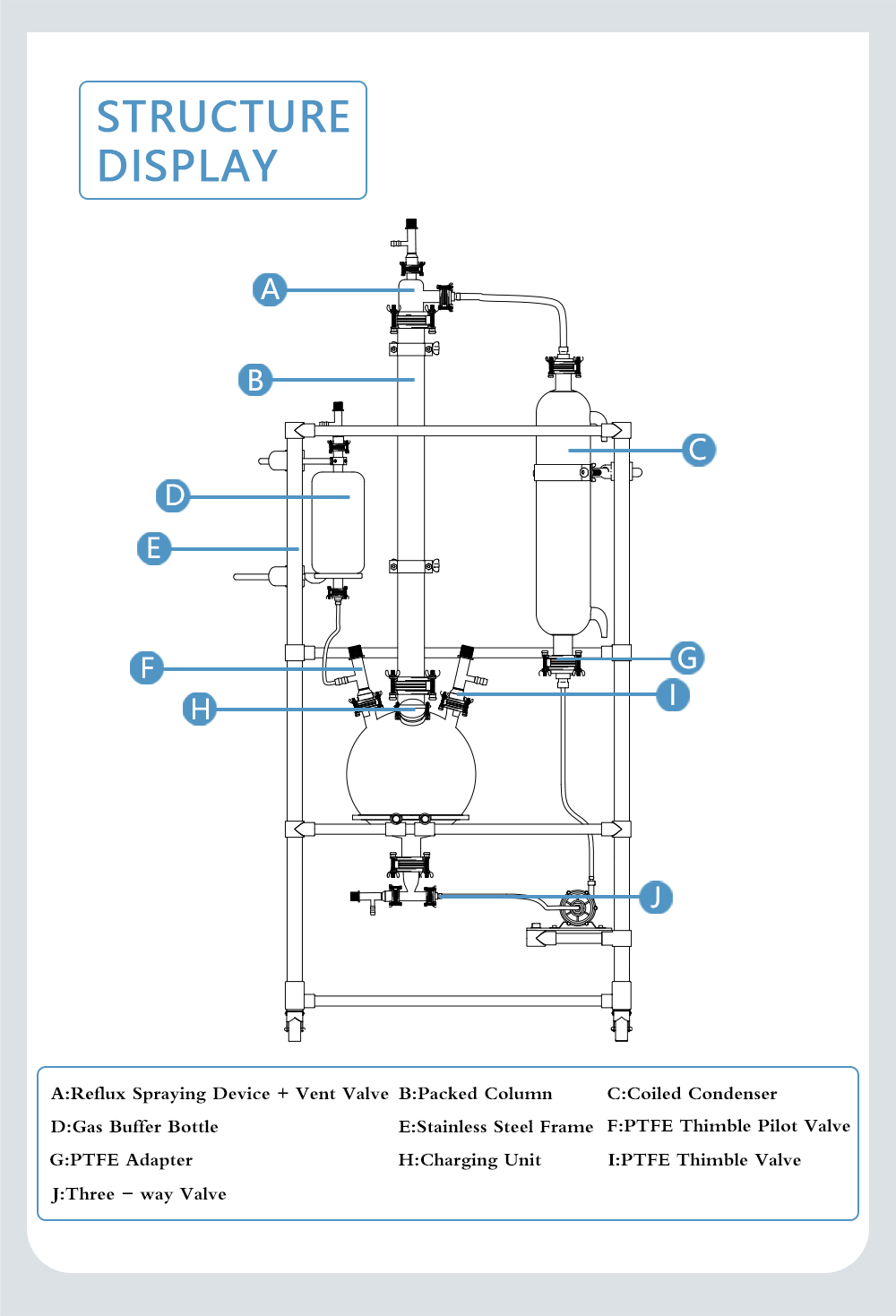

产品结构

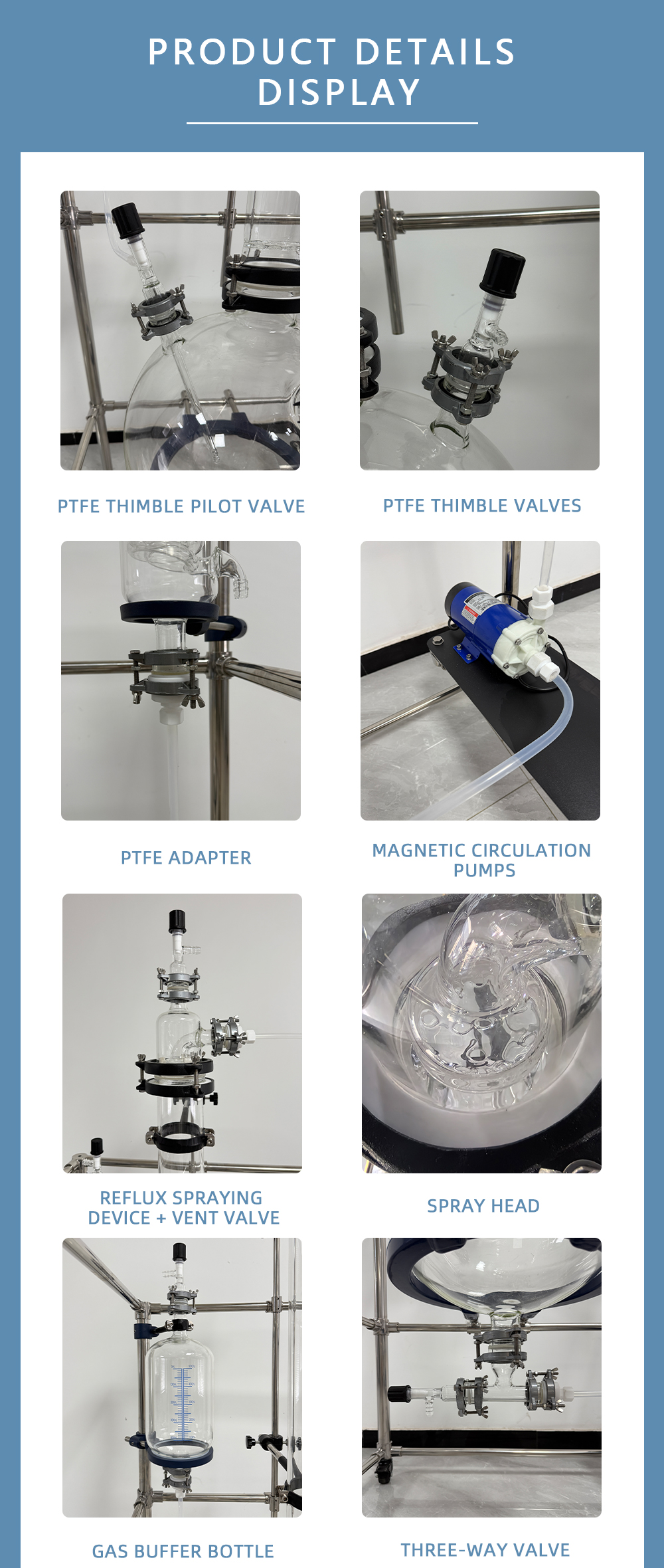

产品细节展示_01

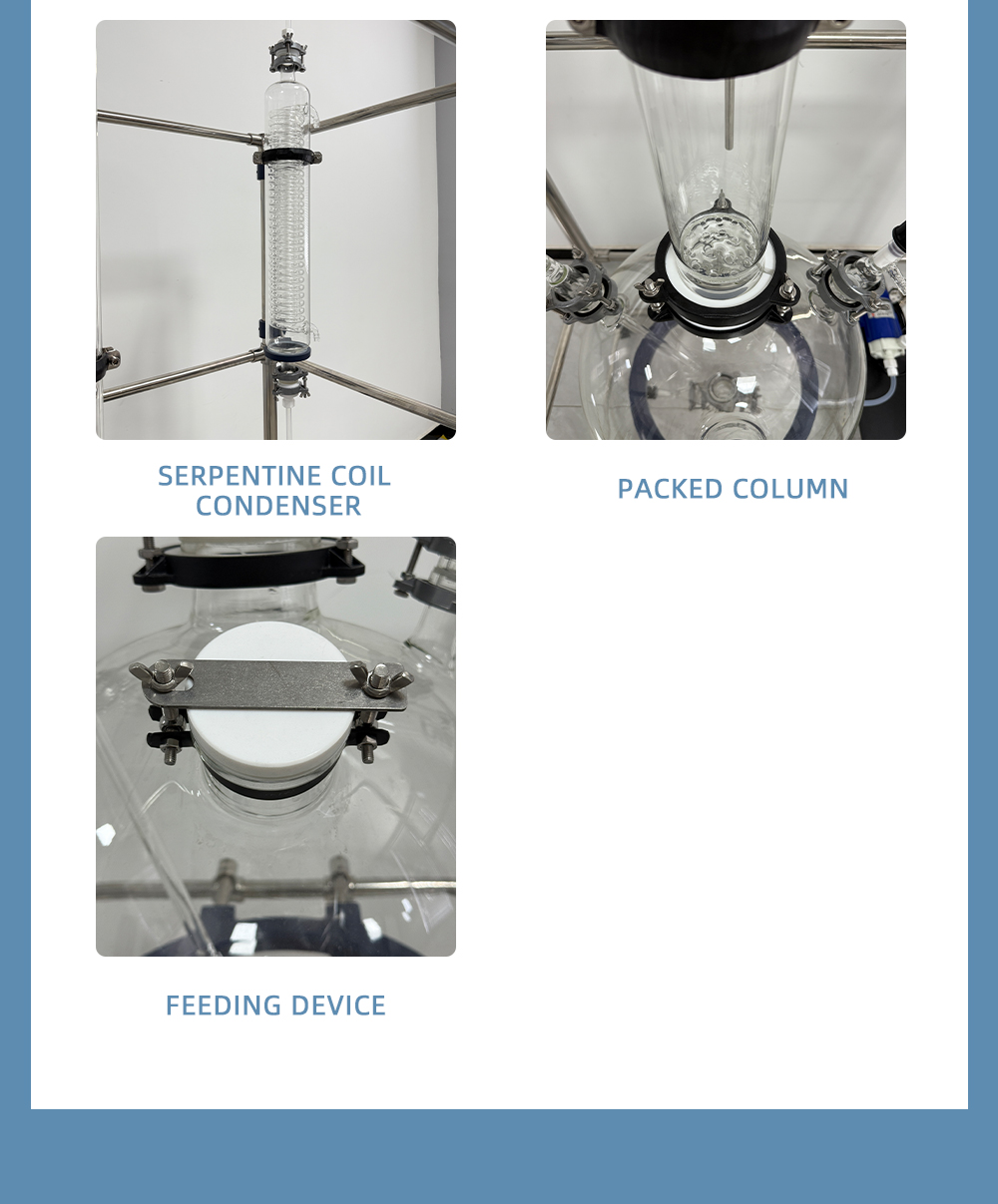

产品细节展示_02

Product Model
QYWQ-5
QYWQ-10
QYWQ-20
QYWQ-30
QYWQ-50
Gas Washing Bottle Capacity
5L
10L
20L
30L
50L
Circulation Pump
Optional explosion-proof and corrosion-resistant fluoroplastic material
Quick Release Clamp
304 stainless steel
Filling Method
Glass, stainless steel or other material fillers
Flange Gasket
PTFE
