Product Description:

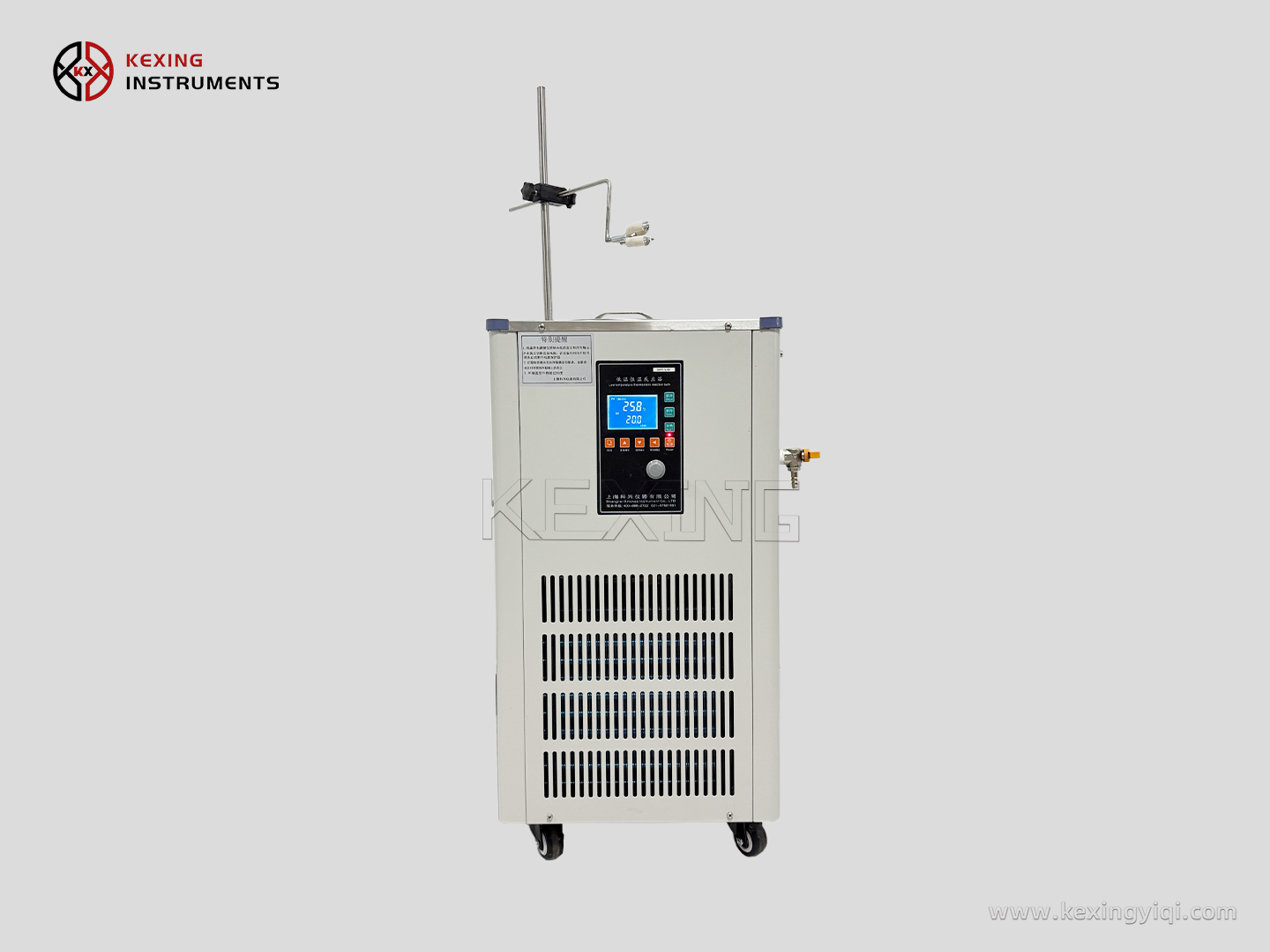

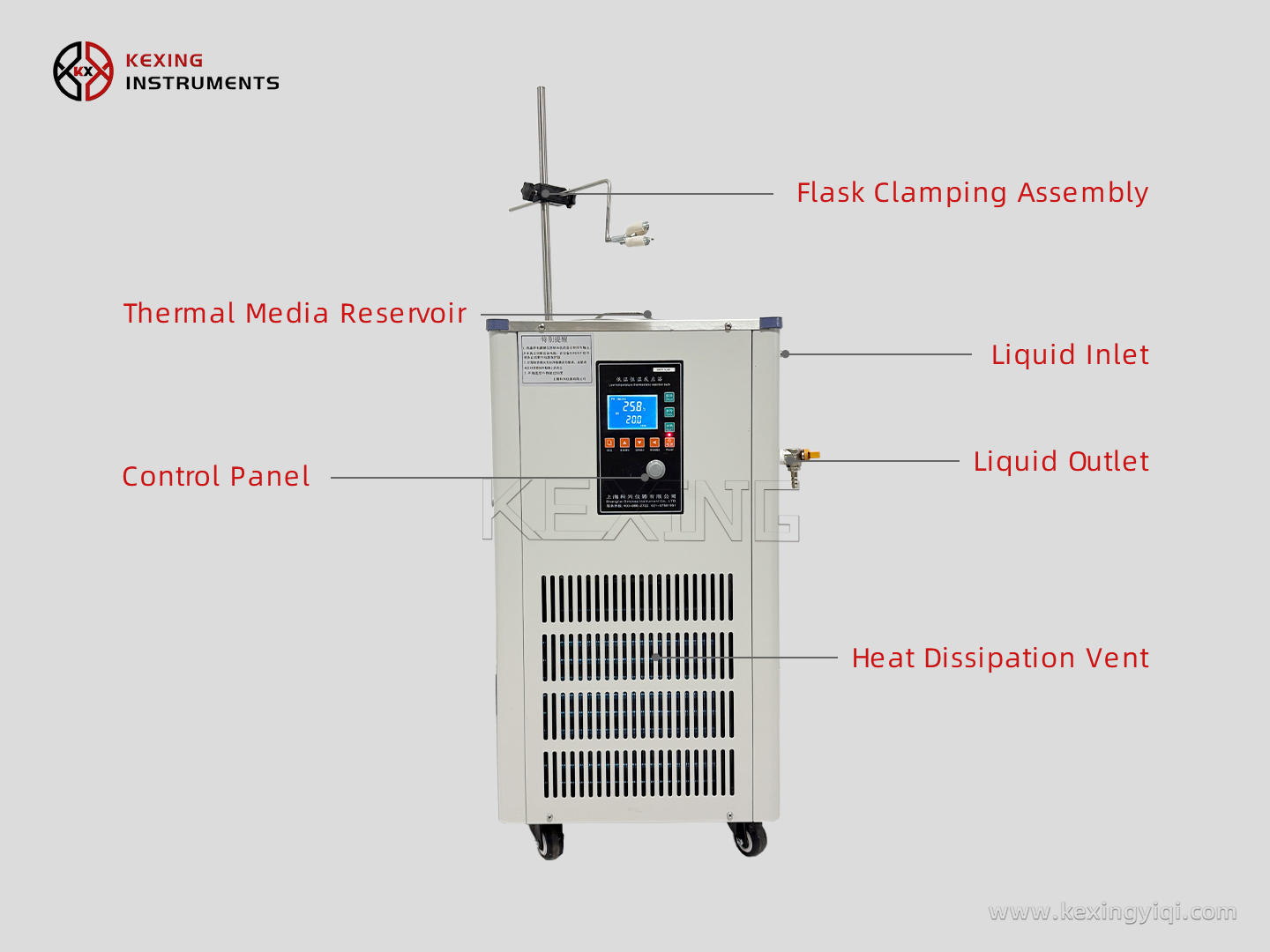

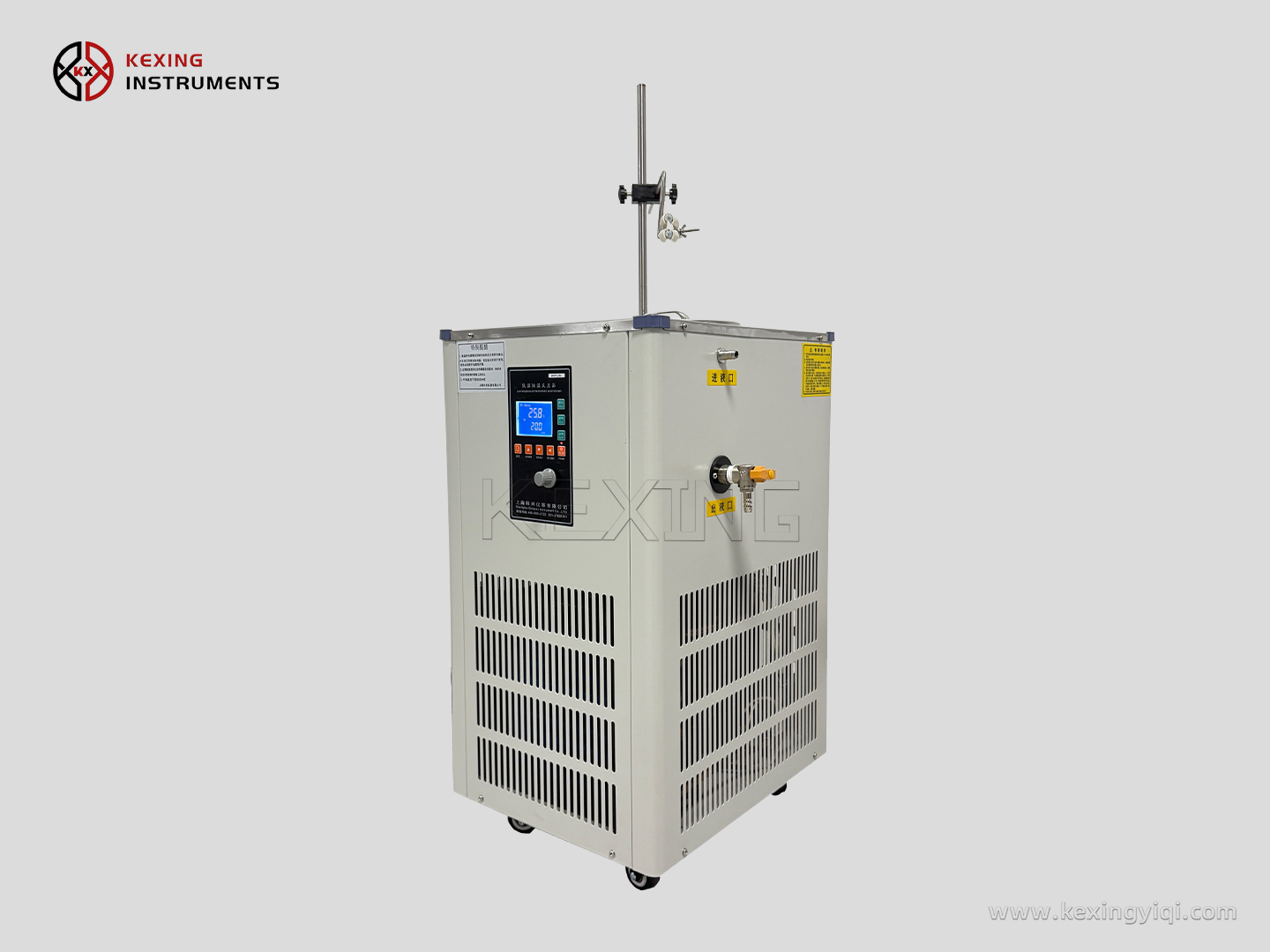

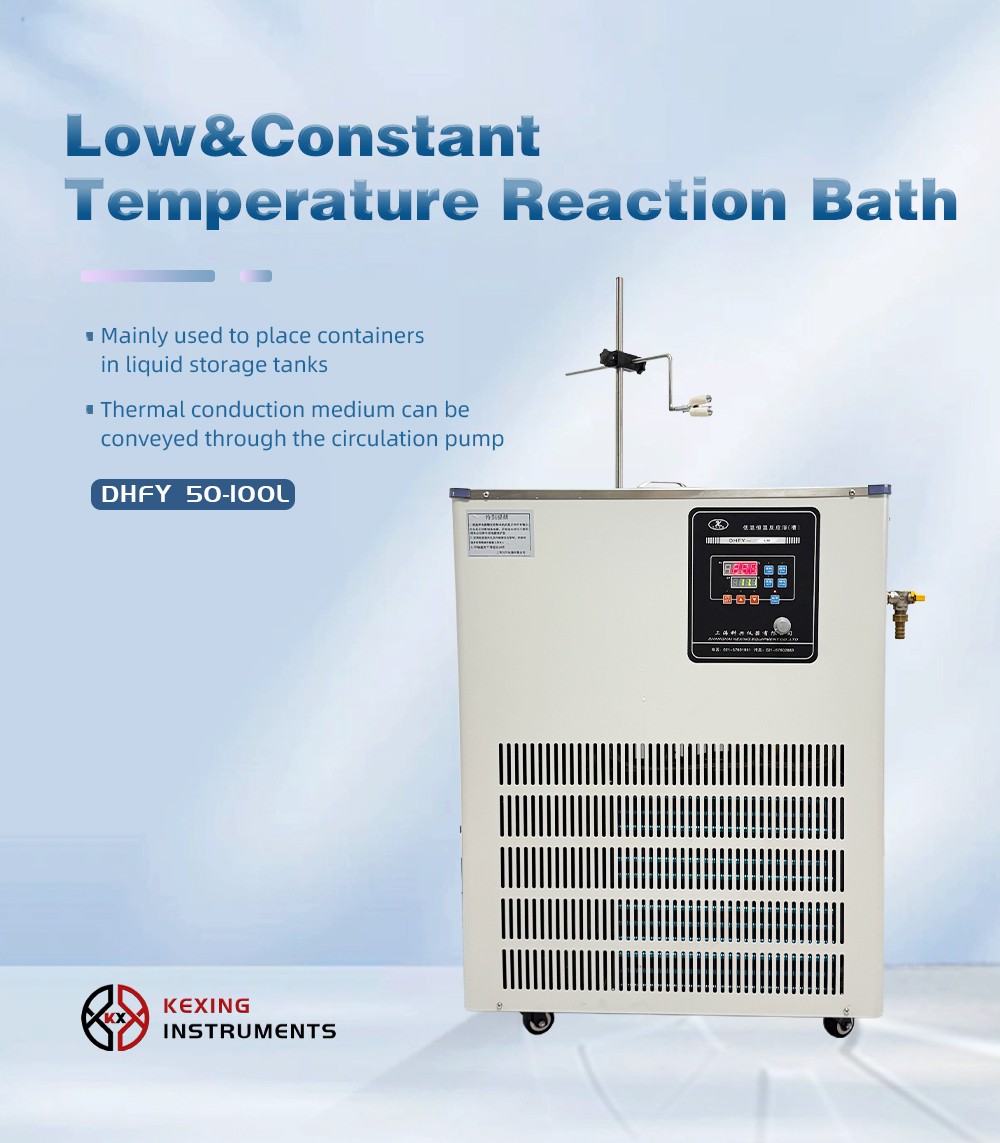

low-temperature thermostatic reaction bath is the use of compressor refrigeration, electric heating tube heating or balanced temperature control, Heat exchange occurs in the storage tank through a thermal conductive medium, the bottom is equipped with magnetic stirring (≤ 20L capacity), mainly used for reservoir tanks to place containers, chemical reactions or storage of materials in the constant temperature closed conditions of the chemical reaction or storage operations, but also through the circulating pump delivery of heat-conducting medium to provide a cold source for other instruments and equipment; widely used in Various reactors, distillation or extraction systems, scientific research institutions, semiconductor and electrical testing, chemical, pharmaceutical, petrochemical, biochemical and other fields.

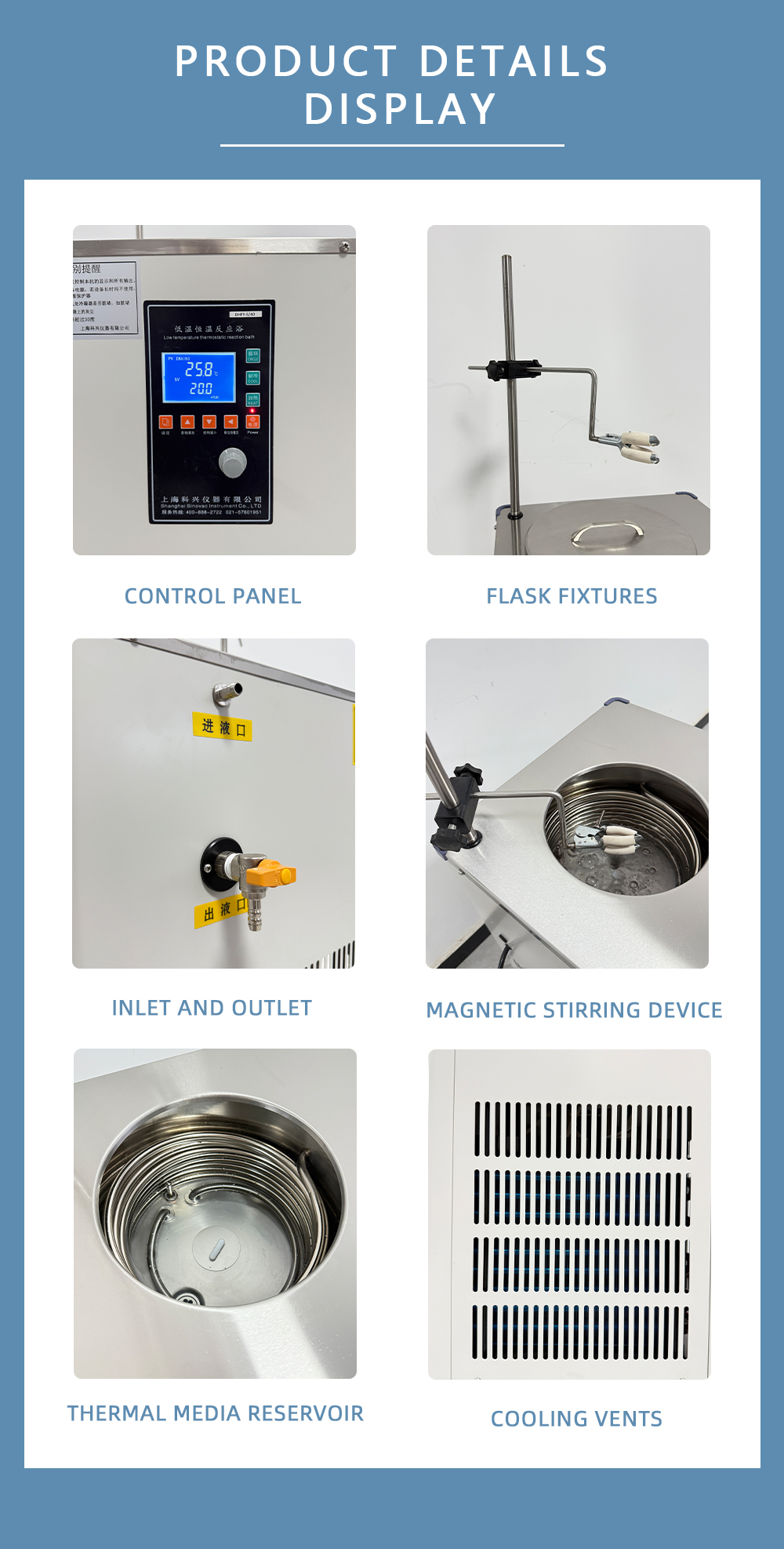

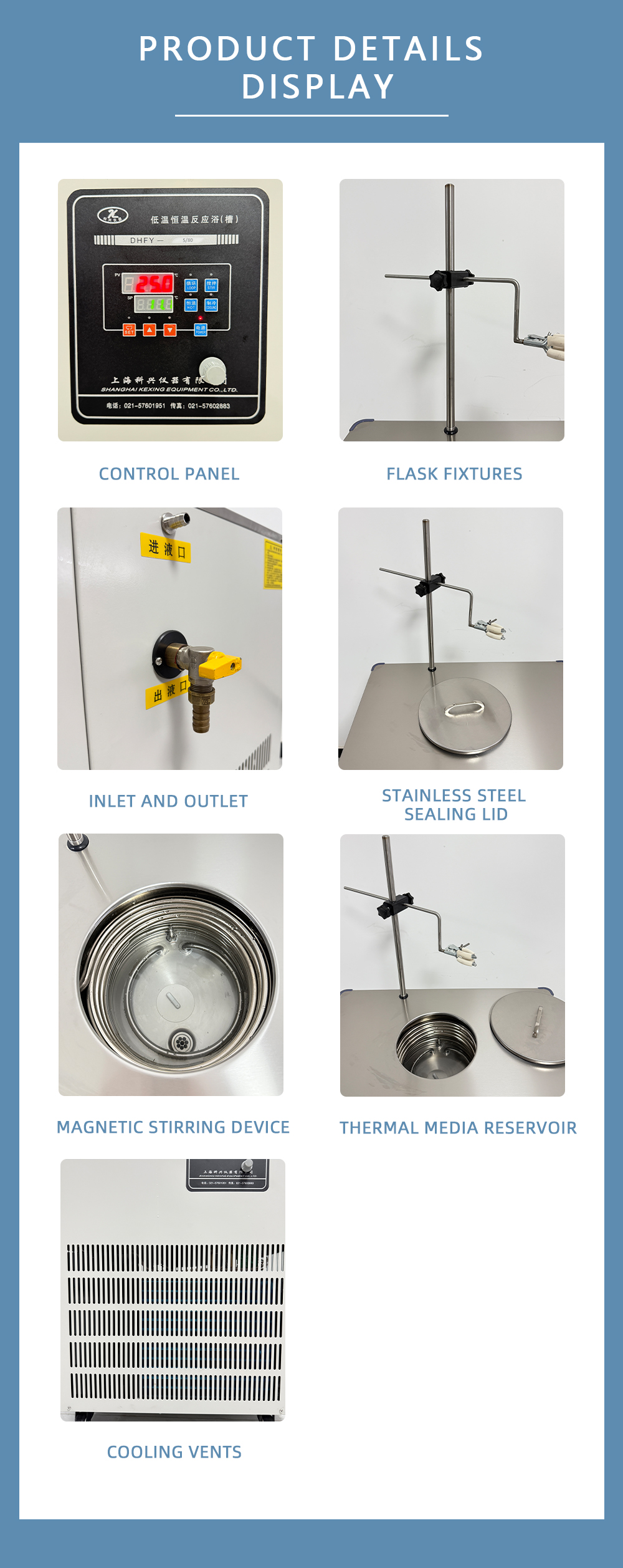

Product Advantages and Features:
- Adopting totally enclosed compressor, small size, smooth operation, low noise, high energy efficiency.
- The air-cooled condenser adopts purple copper tube, finned heat exchanger, high heat transfer efficiency, easy to clean, convenient maintenance.
- Control system digital display, high precision temperature control, simple and convenient operation.
- Magnetic stirring function, speed adjustable, more suitable for low-temperature confined reaction.
- The evaporator adopts stainless steel or purple copper tube coil, with high heat exchange efficiency; the evaporator is installed in the liquid storage tank, and the evaporator will not be damaged when the heat-conducting medium freezes.
- The circulating pump adopts stainless steel shielded pump, which has the advantages of low noise, large flow rate and long durability.
- According to user requirements can be customized water-cooled refrigeration system, explosion-proof models.
| Name | Low-temperature thermostatic reaction bath (-20℃) | ||||||

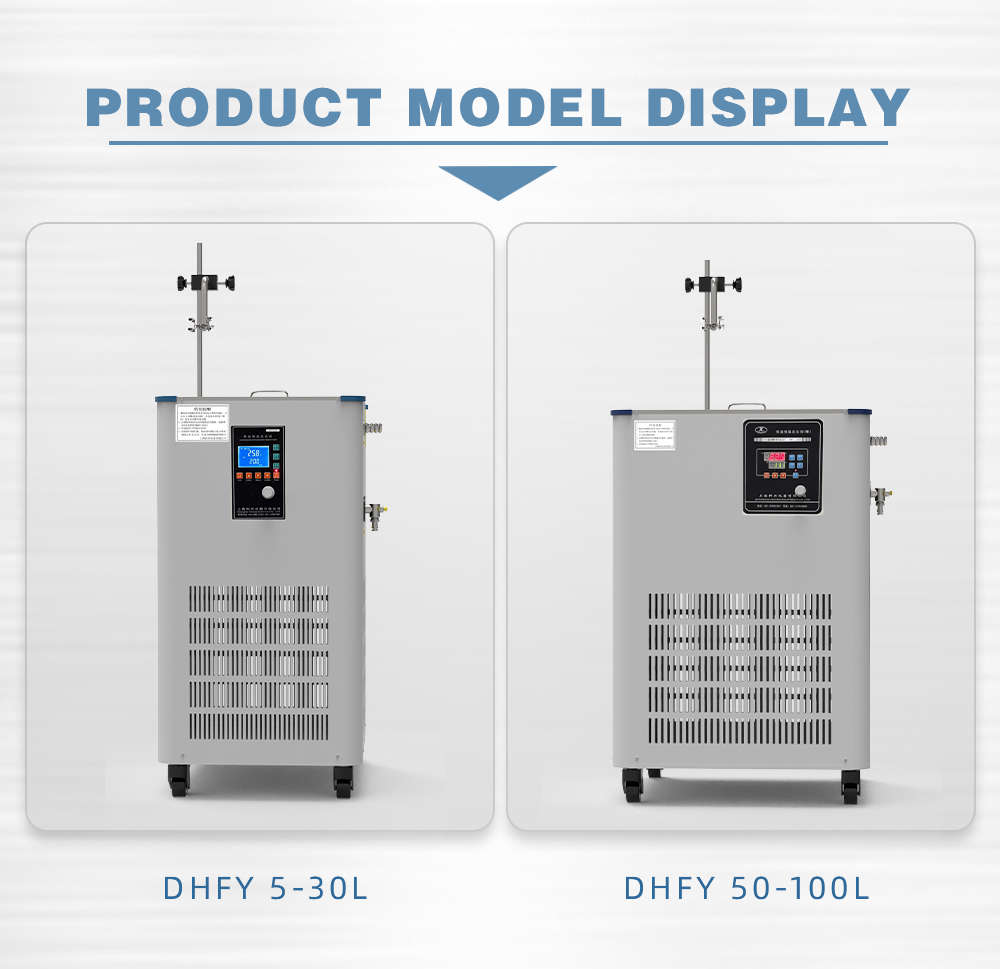

| Model number | DHFY-5/20 | DHFY-10/20 | DHFY-20/20 | DHFY-30/20 | DHFY-50/20 | DHFY-100/20 | |
| No-load temperature range(℃) | -20～99 | ||||||
| Actual applicable temperature range(℃) | Cooling range 40℃～-20℃ | ||||||
| Temperature rise range -20℃～99℃ | |||||||
| Temperature control precision(℃) | ±0.5 | ||||||
| (Note: not controllable within RT±10℃, customization required) | |||||||
| Reservoir | Volume (L) | 5 | 10 | 20 | 30 | 50 | 100 |
| Opening Size(mm) | φ200*160 | φ250*200 | φ250*300 | φ300*350 | φ300*400 | φ300*500 | |
| Maximum flask capacity 2L | Maximum flask capacity 5L | Maximum flask capacity 10L | Regular opening for 10L flasks Maximum flask capacity 20L | ||||
| magnetic stirring | power 5W | power 25W | / | ||||
| Heating power(W) | 1500W | 2000W | 3000W | 4000W | 5000W | 6000W | |
| cooling condition | cooling power(W) | 580W | 935W | 1195W | 1750W | 2580W | 4540W |
| Rated cooling capacity | 1688W | 2805W | 3580W | 5574W | 8150W | 14500W | |
| refrigerants | R22 | ||||||
| circulation pump | power(W) | 100W | 250W | ||||
| Maximum flow rate(L/min) | 20L/min(DN15pipe diameter) | 30L/min(DN20pipe diameter) | |||||
| Maximum lift(m) | 6M | 12M | |||||
| Outer Circulation Interface(mm) | φ12Pagoda Fitting | φ16Pagoda Fitting | |||||
| replacement | valves | DN15/12mm | DN15/16mm | ||||
| Circulation Insulation Pipe | Silicone hose + insulation(2*2m) | ||||||
| Fixed Flask Riser | Stainless Steel Riserφ16mm | ||||||
| Overall dimensions(mm) | 485*420*670 | 520*460*835 | 600*530*920 | 655*550*1010 | 725*645*1170mm | 1110*780*1270 | |
| power supply | Rated power of the whole machine(W) | 2230W | 3120W | 4400W | 6000W | 7830W | 10900W |
| Power supply to be provided by the user | 220V/16AOne three-hole socket | 220V/50HZ(air switch:single phase three-wire system,≥25A) | 220V/50HZ(air switch:single phase three-wire system,≥32A) | 380V/50Hz(air switch:TN-S,≥25A) | 380V/50HZ(air switch:TN-S,≥32A) | ||
| Note: Please do not use ethanol as the medium when the use temperature is higher than 40℃ to avoid danger! | |||||||
| Name | Low-temperature thermostatic reaction bath (-30℃) | |||||||
| Model number | DHFY-5/30 | DHFY-10/30 | DHFY-20/30 | DHFY-30/30 | DHFY-50/30 | DHFY-100/30 | ||
| No-load temperature range(℃) | -30～99 | |||||||
| Actual applicable temperature range(℃) | Cooling range 40℃～-30℃ | |||||||
| Temperature rise range -30℃～99℃ | ||||||||
| Temperature control precision(℃) | ±0.5 | |||||||
| (Note: not controllable within RT±10℃, customization required) | ||||||||
| Reservoir | Volume (L) | 5 | 10 | 20 | 30 | 50 | 100 | |
| Opening Size(mm) | φ200*160 | φ250*200 | φ250*300 | φ300*350 | φ300*400 | φ300*500 | ||
| Maximum flask capacity 2L | Maximum flask capacity 5L | Maximum flask capacity 10L | Regular opening for 10L flasks Maximum flask capacity 20L | |||||
| magnetic stirring | power25W | power25W | / | |||||
| Heating power(W) | 1500W | 2000W | 3000W | 4000W | 5000W | 6000W | ||
| cooling condition | cooling power(W) | 585W | 885W | 1230W | 1980W | 2555W | 5430W | |
| Rated cooling capacity | 1745W | 2770W | 3835W | 6140W | 8235W | 17700W | ||
| refrigerants | R22 | |||||||
| circulation pump | power(W) | 100W | 250W | |||||
| Maximum flow rate(L/min) | 20L/min(DN15pipe diameter) | 30L/min(DN20pipe diameter) | ||||||
| Maximum lift(m) | 6M | 12M | ||||||
| Outer Circulation Interface(mm) | φ12Pagoda Fitting | φ16Pagoda Fitting | ||||||
| replacement | valves | DN15/12mm | DN15/16mm | |||||
| Circulation Insulation Pipe | Silicone hose + insulation(2*2m) | |||||||
| Fixed Flask Riser | Stainless Steel Riser16mm | |||||||
| Overall dimensions(mm) | 485*420*670mm | 520*460*835mm | 600*530*920mm | 655*550*1010mm | 725*645*1170mm | 1110*780*1270mm | ||
| power supply | Rated power of the whole machine(W) | 2350W | 3070W | 4510W | 6260W | 7835W | 12180W | |
| Power supply to be provided by the user | 220V/16AOne three-hole socket | 220V(air switch:single phase three-wire system,≥25A) | 220V(air switch:single phase three-wire system,≥32A) | 380V/50Hz(air switch:TN-S,≥25A) | 380V/50Hz(air switch:TN-S,≥40A) | |||
| Note: Please do not use ethanol as the medium when the use temperature is higher than 40℃ to avoid danger! | ||||||||
| Name | Low-temperature thermostatic reaction bath (-40℃) | ||||||
| Model number | DHFY-5/40 | DHFY-10/40 | DHFY-20/40 | DHFY-30/40 | DHFY-50/40 | DHFY-100/40 | |
| No-load temperature range(℃) | -40～99 | ||||||
| Actual applicable temperature range(℃) | Cooling range40℃～-40℃ | ||||||
| Temperature rise range-40℃～99℃ | |||||||
| Temperature control precision(℃) | ±0.5 | ||||||
| (Note: not controllable within RT±10℃, customization required) | |||||||
| Reservoir | Volume (L) | 5 | 10 | 20 | 30 | 50 | 100 |
| Opening Size(mm) | φ200*160 | φ250*200 | φ250*300 | φ300*350 | φ300*400 | φ300*500 | |
| Maximum flask capacity 2L | Maximum flask capacity 5L | Maximum flask capacity 10L | Regular opening for 10L flasks Maximum flask capacity 20L | ||||
| magnetic stirring | power25W | power25W | / | ||||
| Heating power(W) | 1500W | 2000W | 3000W | 4000W | 5000W | 6000W | |
| cooling condition | cooling power(W) | 930W | 1052W | 1500W | 2571W | 3670W | 6450W |
| Rated cooling capacity | 2820W | 2921W | 4350W | 7637W | 11500W | 9350W | |
| refrigerants | R404A | ||||||
| circulation pump | power(W) | 100W | 250W | ||||
| Maximum flow rate(L/min) | 20L/min(DN15pipe diameter) | 30L/min(DN20pipe diameter) | |||||
| Maximum lift(m) | 6M | 12M | |||||
| Outer Circulation Interface(mm) | φ12mmPagoda Fitting | φ16Pagoda Fitting | |||||
| replacement | valves | DN15/12mm | DN15/12mm | DN15/16mm | DN15/16mm | DN15/16mm | DN15/16mm |
| Circulation Insulation Pipe | Silicone hose + insulation(2*2m) | ||||||
| Fixed Flask Riser | Stainless Steel Riserφ16mm | ||||||
| Overall dimensions(mm) | 520*460*835mm | 520*460*835mm | 600*530*925mm | 655*550*1100mm | 725*645*1170mm | 1110*780*1270mm | |
| power supply | Rated power of the whole machine(W) | 2645W | 3242W | 4545W | 6266W | 8950W | 13100W |
| Power supply to be provided by the user | 220V/16AOne three-hole socket | 220V(air switch:single phase three-wire system,≥25A) | 380V/50Hz(air switch:TN-S,≥25A) | 380V/50Hz(air switch:TN-S,≥32A) | 380V/50Hz(air switch:TN-S,≥40A) | ||
| Note: Please do not use ethanol as the medium when the use temperature is higher than 40℃ to avoid danger! | |||||||
| Name | Low-temperature thermostatic reaction bath (-80℃) | |||||
| Model number | DHFY-5/80 | DHFY-10/80 | DHFY-30/80 | DHFY-50/80 | DHFY-100/80 | |
| No-load temperature range(℃) | -80～99 | |||||
| Actual applicable temperature range(℃) | Cooling range-80℃～-40℃ | |||||
| Temperature rise range-80℃～99℃ | ||||||
| Temperature control precision(℃) | ±0.5 (Note: not controllable within RT±10℃, customization required) | |||||
| Reservoir | Volume (L) | 5 | 10 | 30 | 50 | 100 |
| Opening Size(mm) | φ200*160 | φ250*200 | φ300*350 | φ350*400 | φ450*500 | |
| Maximum flask capacity 2L | Maximum flask capacity 5L | Maximum flask capacity 10L | Maximum flask capacity 20L | |||
| magnetic stirring | power25W | power25W | / | |||
| Heating power(W) | 1500W | 2000W | 4000W | 5000W | 6000W | |
| cooling condition | cooling power(W) | 1 Level885W+2 Level1052W | 1 Level1230W+2 Level1052W | 1 Level2555W+2 Level2751W | 1 Level5430W+2 Level4410W | 1 Level6000W+2 Level5145W |
| refrigerants | R22/R23/hybrid | |||||
| circulation pump | power(W) | 100W | 280W | |||
| Maximum flow rate(L/min) | 12L/min(DN15pipe diameter) | 30L/min(DN15pipe diameter) | ||||
| Maximum lift(m) | 6M | 10M | ||||
| Outer Circulation Interfacemm) | φ12Pagoda Fitting | φ16mPagoda Fitting | ||||
| replacement | valves | DN15/12mm | DN15/16mm | |||
| Circulation Insulation Pipe | Silicone hose + insulation(2*2m) | |||||
| Fixed Flask Riser | Stainless Steel Riserφ16mm | |||||
| Overall dimensions(mm) | 680*540*890mm | 700*530*880 | 1010*770*1110 | 1100*780*1270 | 1400*950*1500 | |
| power supply | Rated power of the whole machine(W) | 3700W | 4500W | 9600W | 15500W | 18300W |
| Power supply to be provided by the user | 220V/16AOne three-hole socket | 220V/50Hz(air switch,single phase three-wire system,≥25A) | 380V/50Hz(air switch:TN-S,≥32A) | 380V/50Hz(air switch:TN-S,≥40A) | 380V/50Hz(air switch:TN-S,≥63A) | |
| Note: Please do not use ethanol as the medium when the use temperature is higher than 40℃ to avoid danger! | ||||||
| Name | Low-temperature thermostatic reaction bath (-120℃) | ||||||
| Model number | DHFY-5/120 | DHFY-10/120 | DHFY-20/120 | DHFY-30/120 | DHFY-50/120 | DHFY-100/120 | |
| No-load temperature range(℃) | -120～99 | ||||||
| Actual applicable temperature range(℃) | Cooling range-120℃～-60℃ | ||||||
| Temperature rise range-120℃～99℃ | |||||||
| Temperature control precision(℃) | ±0.5 (Note: not controllable within RT±10℃, customization required) | ||||||
| Reservoir | Volume (L) | 5 | 10 | 20 | 30 | 50 | 100 |
| Opening Size(mm) | φ200*160 | φ250*200 | φ250*300 | φ300*350 | φ300*400 | φ300*500 | |
| Maximum flask capacity 2L | Maximum flask capacity 5L | Maximum flask capacity 10L | |||||
| magnetic stirring | power25W | power25W | / | ||||
| Heating power(W) | 1500W | 2000W | 3000W | 4000W | 5000W | 6000W | |
| cooling condition | cooling power(W) | 1 Level 885W+2Level 886W+3Level 886W | 1 Level 1230W+2 Level 886W+3 Level 886W | 1 Level 1700W+2 Level 1102W+3 Level 1102W | 1 Level 2555W+2 Level 2205W+3 Level 2205W | 1 Level 5430W+2 Level 4410W+3 Level 4410W | 1 Level 6000W+2 Level 5145W+3 Level 5145W |
| refrigerants | R22/R23/R14/hybrid | ||||||
| circulation pump | power(W) | 100W | 280W | ||||
| Maximum flow rate(L/min) | 12L/min(DN15pipe diameter) | 25L/min(DN15pipe diameter) | |||||
| Maximum lift(m) | 6M | 10M | |||||
| Outer Circulation Interface(mm) | φ12Pagoda Fitting | φ16Pagoda Fitting | |||||
| replacement | valves | DN15/12mm | DN15/16mm | ||||
| Circulation Insulation Pipe | Silicone hose + insulation(2*2m) | ||||||
| Fixed Flask Riser | Stainless Steel Riserφ16mm | ||||||
| power supply | Rated power of the whole machine(W) | 4757W | 5600W | 7500W | 11600W | 20100W | 23700W |
| Power supply to be provided by the user | 220V/50Hz(air switch,single phase three-wire system,≥25A) | 220V/50Hz(air switch,single phase three-wire system,≥32A) | 220V(air switch: single phase three-wire system,≥40A) | 380V/50Hz(air switch: TN-S,≥40A) | 380V/50Hz(air switch: TN-S,≥63A) | 380V/50Hz(air switch: TN-S,≥100A) | |
| Note: Please do not use ethanol as the medium when the use temperature is higher than 40℃ to avoid danger! | |||||||
