Product Description:

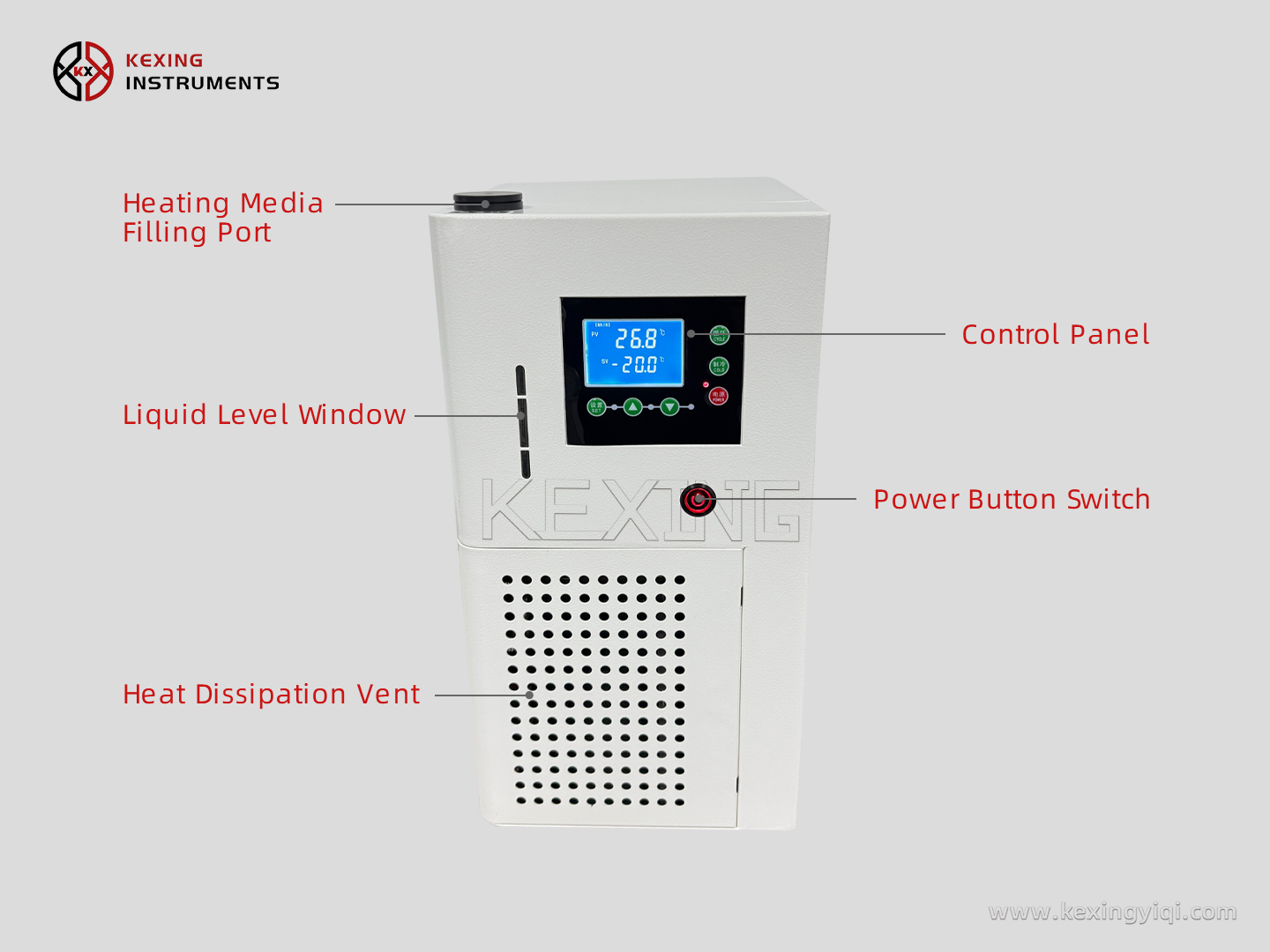

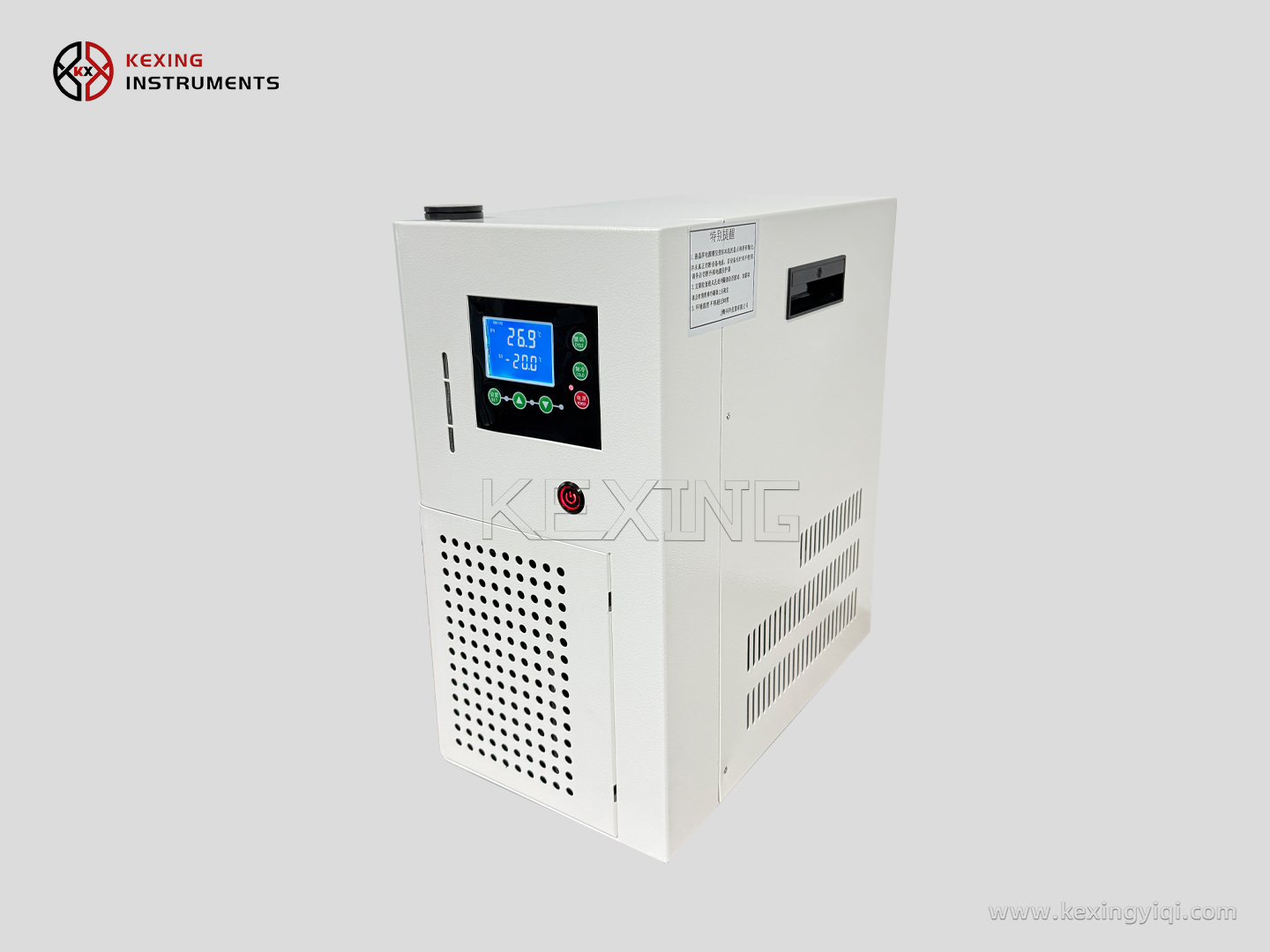

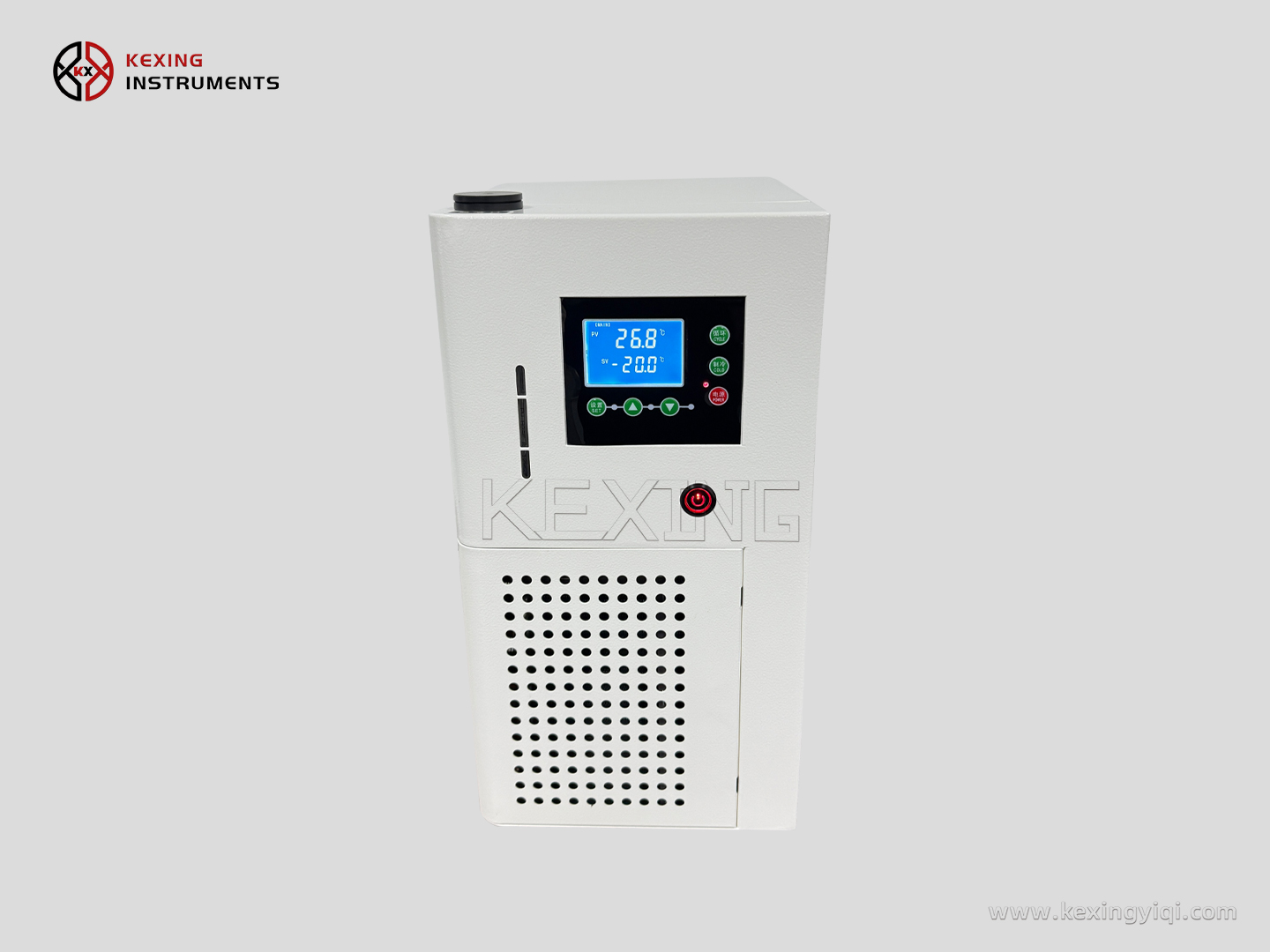

Benchtop Cooling Circulator utilizes compressor refrigeration, heat exchange of heat-conducting medium in the reservoir, and delivery of heat-conducting medium through a circulating pump to provide a cold source for other instruments and equipments; it is widely used in a variety of reactors, distillation and condensation systems, semiconductor and electrical testing, chemistry, pharmacy, petrochemistry, biochemistry and other fields.
Product Advantages and Features:
- The whole machine is small in size, can be placed on the experimental bench and used in limited operating space.
- Adopting totally enclosed piston compressor, small volume, smooth operation, low noise.

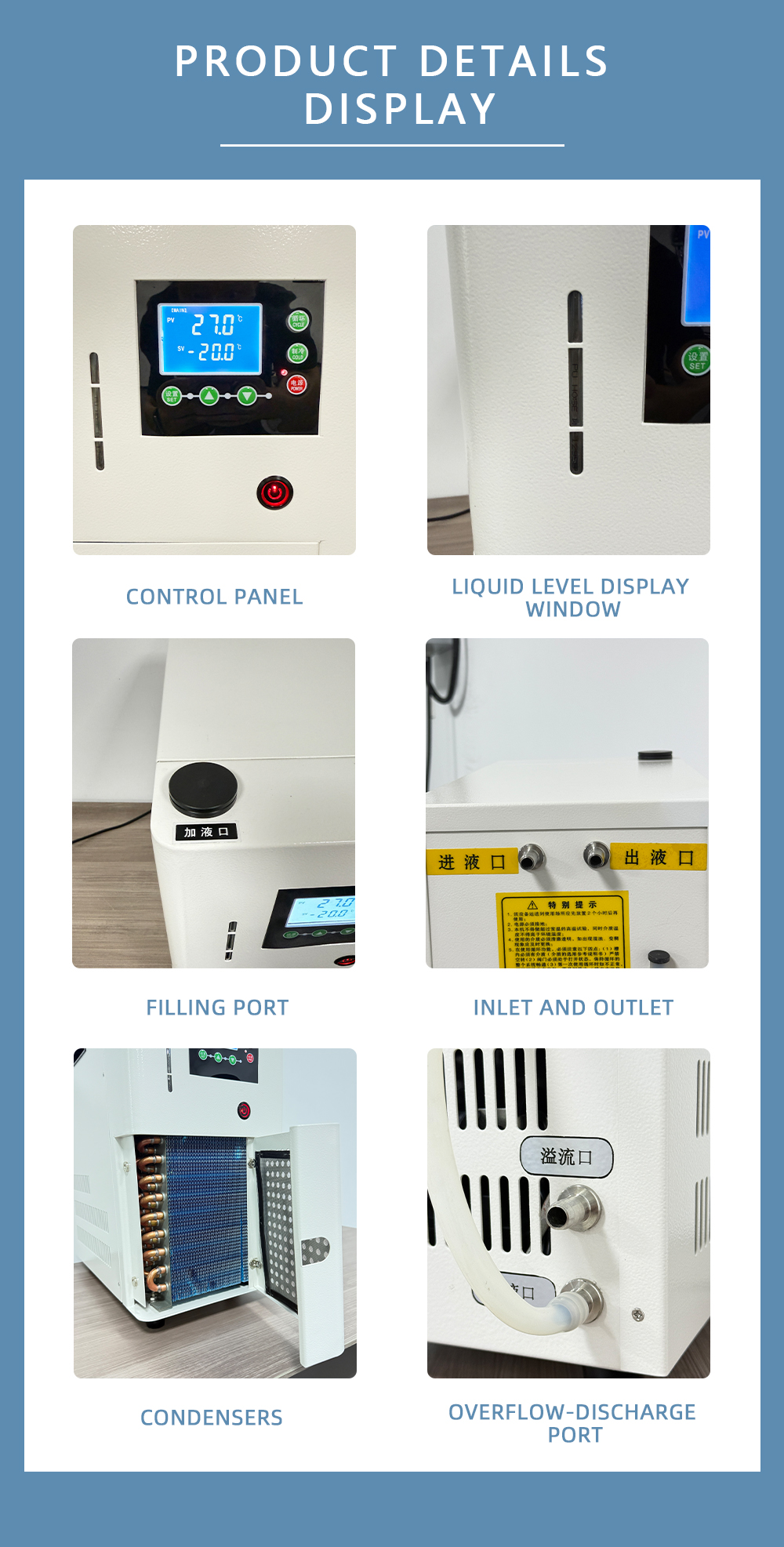

- The air-cooled condenser adopts purple copper tube, finned heat exchanger, high heat transfer efficiency, easy to clean, convenient maintenance.
- Control system digital display, simple and convenient operation.
- The evaporator adopts stainless steel coil, with high heat exchange efficiency; the evaporator is installed in the liquid storage tank, and the evaporator will not be damaged when the heat-conducting medium freezes.
- Circulation pump adopts micro pump, has the advantages of low noise, large flow rate and long durability.
| model number | DL-450 | DL-700 | ||||||||
| Operating Temperature Range（℃） | -20～RT | -20～RT | ||||||||
| Heating power（w） | / | / | ||||||||
| cooling power（w） | 20℃ | 10℃ | 0℃ | -10℃ | -20℃ | 20℃ | 10℃ | 0℃ | -10℃ | -20℃ |
| 450 | 400 | 270 | 160 | 70 | 700 | 600 | 520 | 400 | 200 | |
| temperature stability（℃） | ±2 | |||||||||
| Temperature display | LCD | |||||||||
| Display Accuracy（℃） | 0.1 | 0.1 | ||||||||
| Temperature control method | smart PID | |||||||||
| Internal temperature sensor | PT100 | |||||||||
| Pump Type | Brushless DC Pumps | |||||||||
| Pump Input Voltage（DC） | 24V | |||||||||
| Pump input power（W） | 30 | 48 | ||||||||
| Maximum pump head（m） | 9 | 11 | ||||||||
| Maximum pump flow rate（L/min） | 10 | 20 | ||||||||
| Pump Connection Interface（mm） | ID=8 | |||||||||
| Sink volume（L） | 3 | 4.5 | ||||||||
| Overall dimensions（W×D×H）(mm) | 250×450×510 | |||||||||
| Instrument fixing method | desktop | |||||||||
| Allows continuous operation（%） | 100 | |||||||||
| Permissible ambient temperature（℃） | 5～32 | |||||||||
| Allowable relative temperature（%） | 80 | |||||||||
