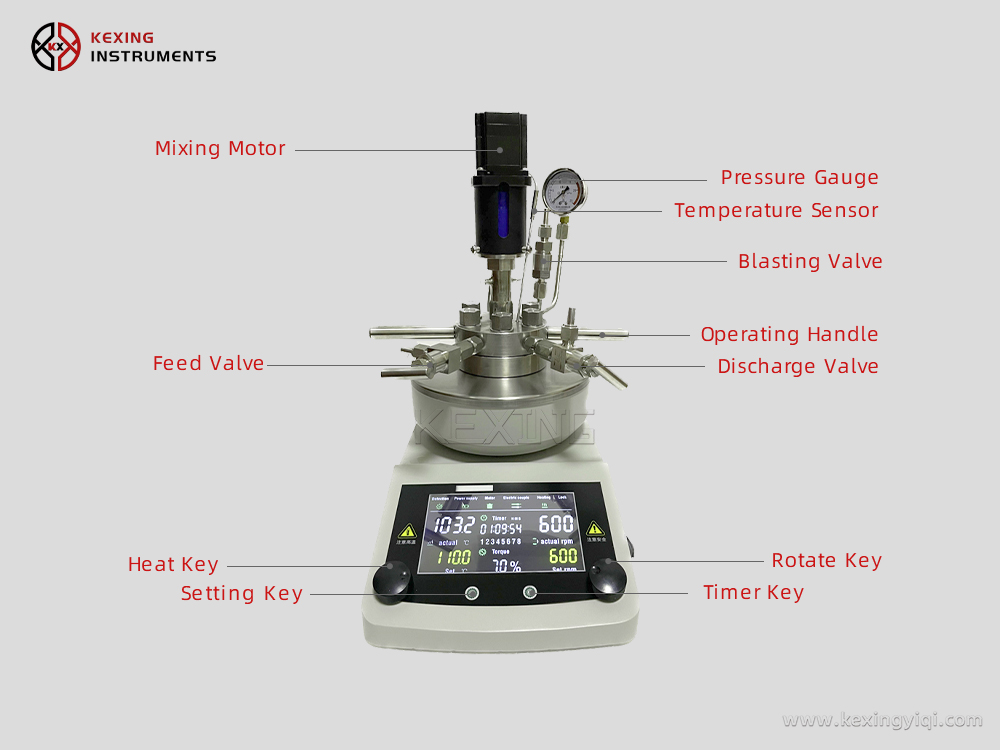

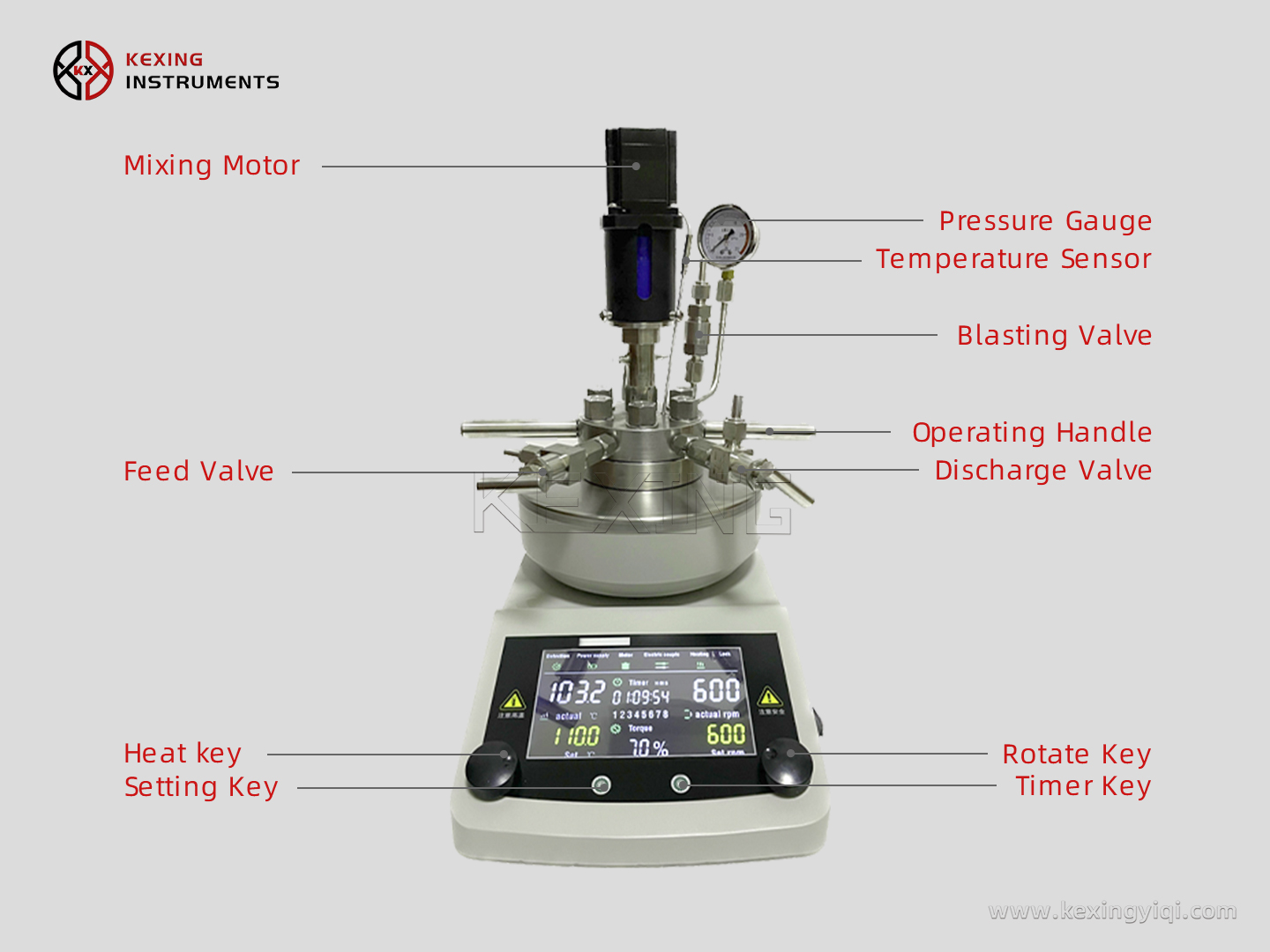

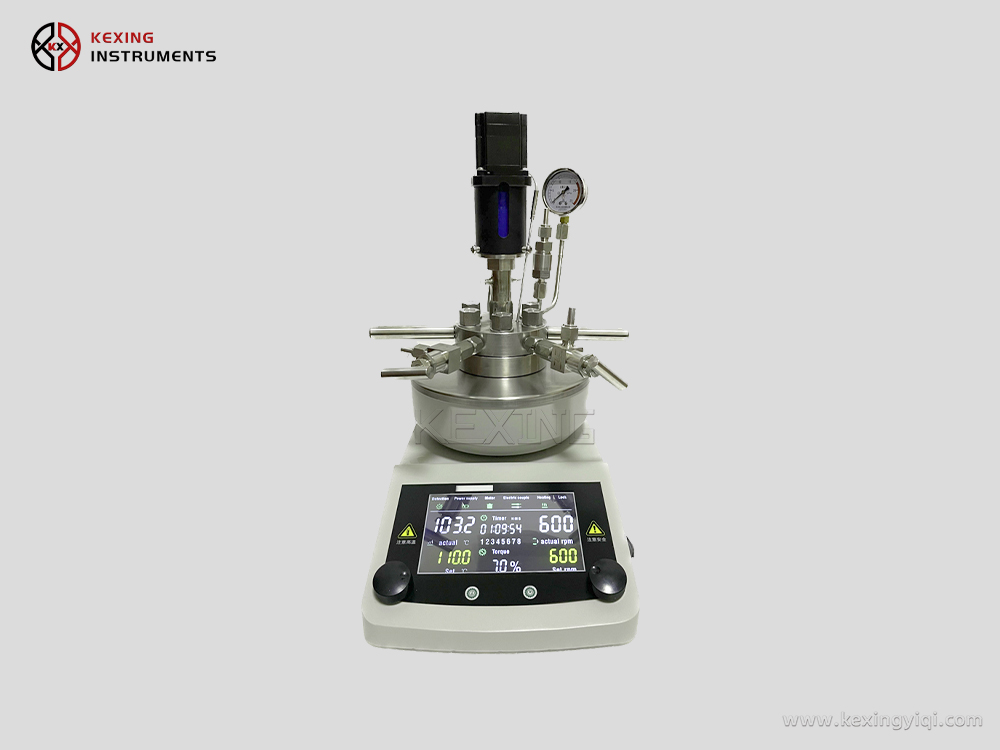

The TGYF-B benchtop high-pressure autoclave is a simple high-pressure reactor produced according to the functional characteristics of the high-pressure reactor based on customer needs. It is stirred at the top using a magnetic coupler and heated at the bottom. It is made of stainless steel material, has a liquid crystal display panel, can be configured with a computer communication terminal, and can customize the volume size according to customer needs.
| model | KGYF-B | |||
| mixing method | Top magnetic coupler | |||
| Heating method | Electric heating sleeve heating | |||
| Motor Power | 20w | |||
| precision | <0.3% | |||
| Design Temperature | 350℃ | |||
| Design pressure (Mpa) | 0-22Mpa | |||
| supply voltage | 220VAV± 10% | |||
| ambient temperature | 0-50℃ | |||
| sensor type | K type thermocouple | |||
| Volume (ml) | 50 | 100 | 250 | 500 |
| Design temperature (℃) | 350 | |||
| speed range | 0-2000rpm | |||
| Heating power (Kw) | 0.6 | 0.6 | 0.8 | 1.5 |
| Construction | Stainless steel 304, 316 | |||
Please feel free to contact us, we will reply you within 24 hours.
