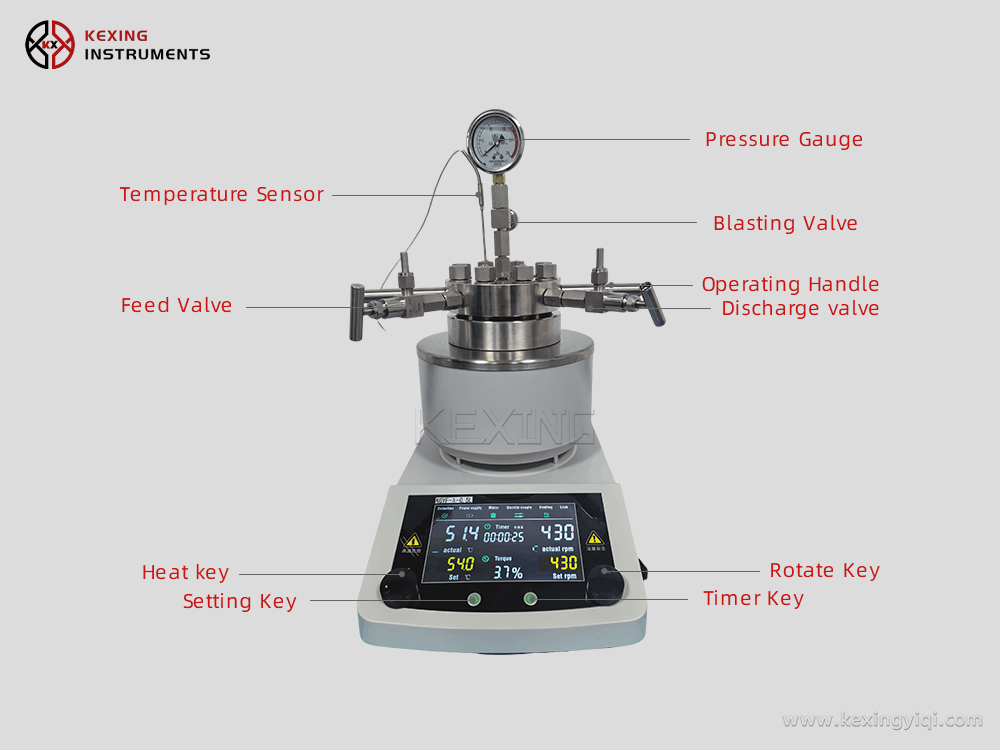

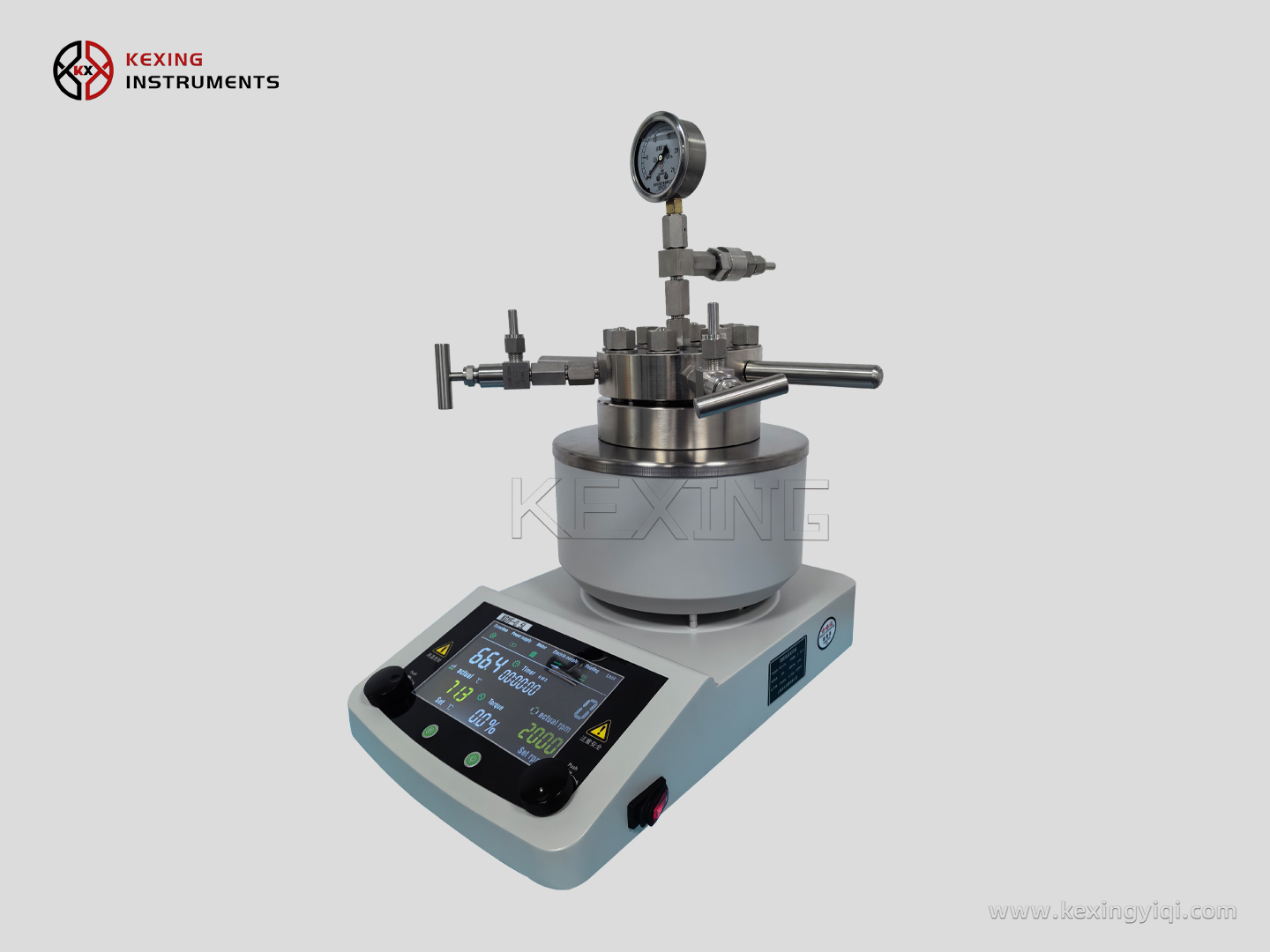

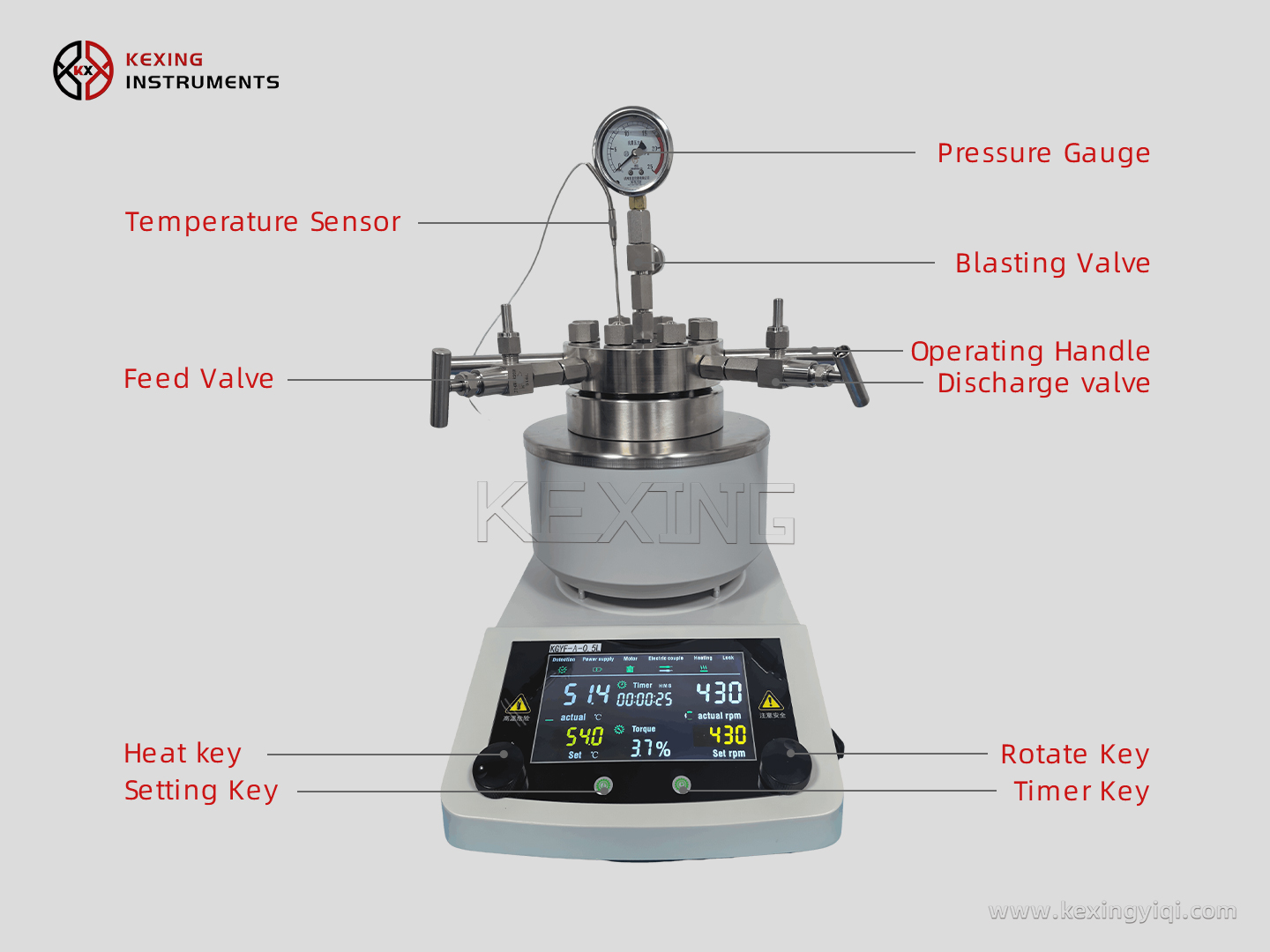

The GYT-A bentchtop high-pressure autoclave is a simple high-pressure reactor produced according to the functional characteristics of the high-pressure reactor according to customer needs. It is heated at the bottom and stirred by magnetic stirring at the bottom. It is made of stainless steel material, displayed on a LCD panel, and can be configured with a computer communication terminal. The volume size can be customized according to customer needs.
| model | KGYF-A | |||
| mixing method | Bottom magnetic stirring | |||
| Heating method | Electric heating sleeve heating | |||
| Motor Power | 20w | |||
| precision | <0.3% | |||
| Design temperature (℃) | 200℃ | |||
| Design pressure (Mpa) | 0-22Mpa | |||
| supply voltage | 220VAV± 10% | |||
| ambient temperature | 0-50℃ | |||
| sensor type | K type thermocouple | |||
| Volume (ml) | 50 | 100 | 250 | 500 |
| speed range | 0-2000rpm | |||
| Heating power (Kw) | 0.6 | 0.6 | 0.8 | 1.5 |
| Construction | Stainless steel 304, 316 | |||
